Description

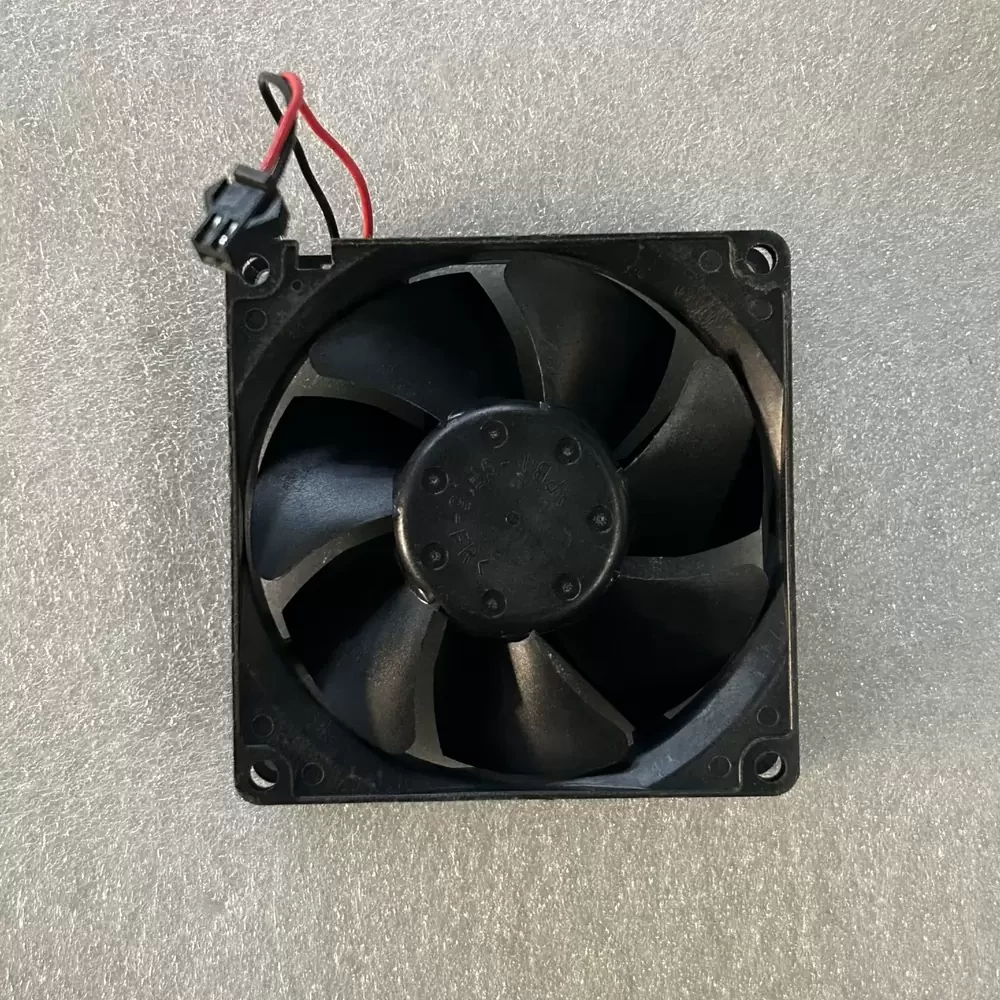

The NMB 3110KL-05W-B50-PQ1 is a high-precision Axial Fan engineered for demanding industrial environments requiring consistent thermal management. This unit utilizes a brushless DC motor architecture paired with a dual ball bearing system to minimize thermal impedance and ensure long-term structural rigidity. Its aerodynamic impeller design is optimized for high static pressure efficiency, allowing for effective heat dissipation in restricted airflow paths. The robust construction and precision-engineered components reflect NMB’s commitment to reliability, making it a critical component for maintaining optimal operating temperatures in sensitive electronic assemblies.

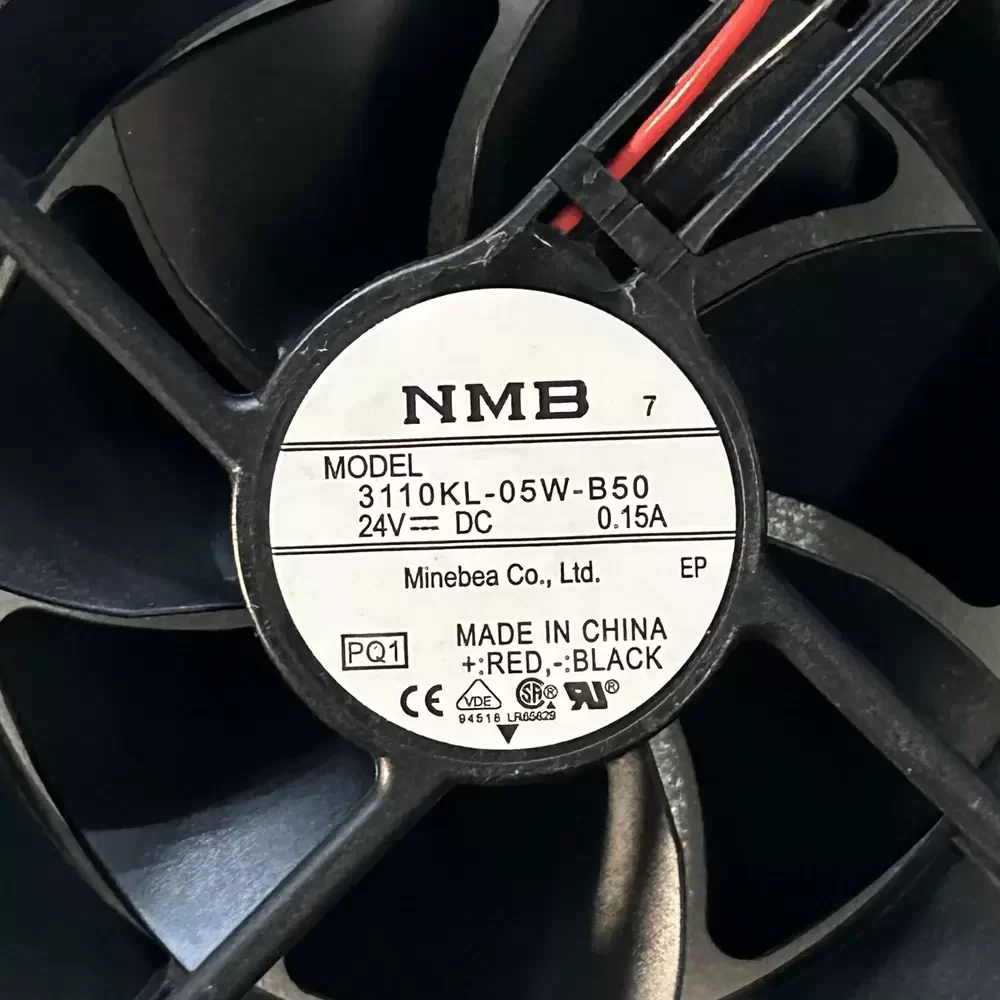

Model Number: 3110KL-05W-B50-PQ1
Brand: NMB
Product Type: Axial Fan
Rated Voltage: 24VDC
Voltage Range: 10.0 – 27.6 VDC
Rated Current: 0.15A
Power: 3.6W
Rated Speed: 3250 RPM
Bearing Type: Dual Ball Bearing
Max. Air Flow: 38.1 CFM (64.7 m³/h / 1.08 m³/min)
Max. Static Pressure: 4.48 mmH₂O (44.0 Pa / 0.18 inH₂O)
Dimensions: 80x80x25 mm
Weight: 95g
Life Expectancy: 70,000 Hours (25°C)
Noise Level: 34.0 dB
Housing Material: Plastic (Black) UL94V-0
Blade Material: Plastic (Black) UL94V-0
Termination: 2 Lead Wires
Operating Temperature: -10°C to +70°C
Storage Temperature: -40°C to +70°C
Protection Features: Locked Rotor Protection, Reverse Polarity Protection
Insulation Resistance: 10M Ohm min. at 500VDC
This axial cooling solution is primarily deployed in frequency converters, power supply units, and various industrial automation controllers. The 3110KL-05W-B50-PQ1 provides essential localized cooling for internal circuitry, ensuring that the 3110KL-05W-B50-PQ1 maintains system stability during continuous duty cycles in server racks and telecommunications infrastructure.
