Description

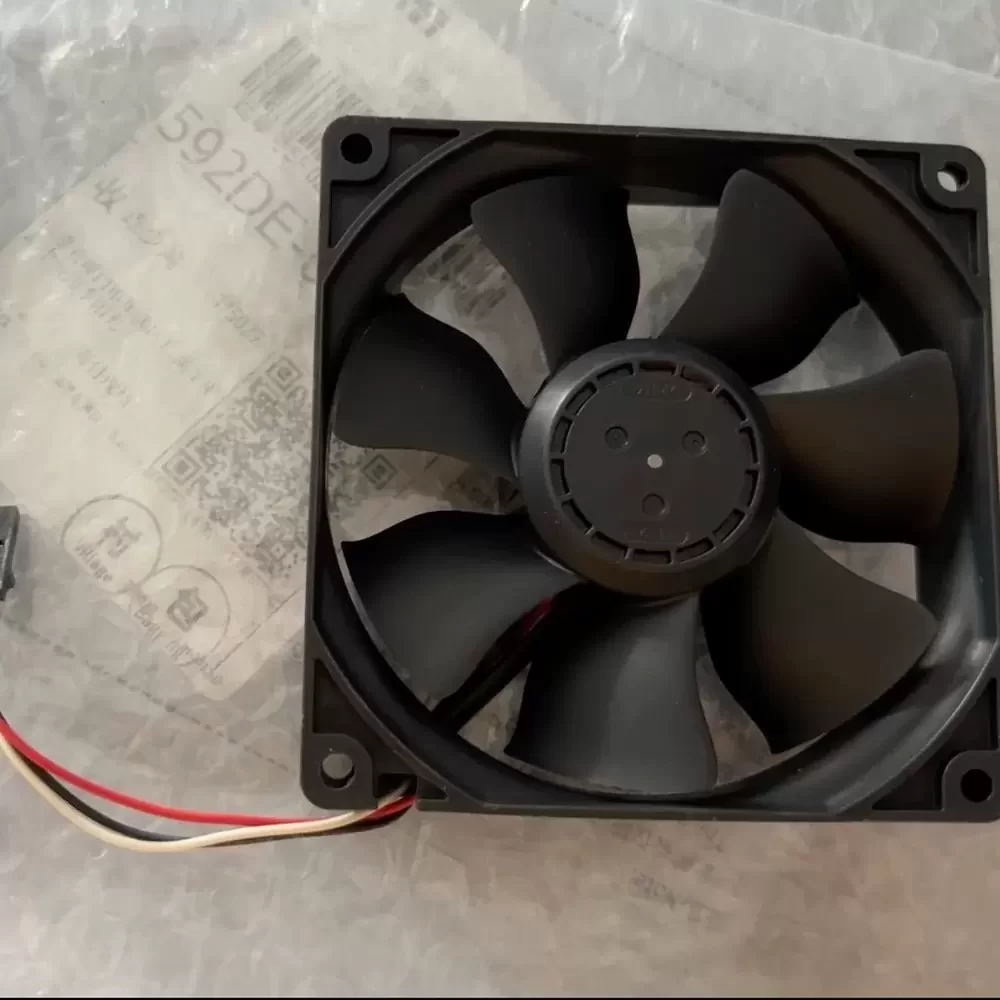

The NMB 3610SB-05W-B39-E01 is a precision-engineered DC Axial Fan designed for critical thermal management in analytical instrumentation. Utilizing advanced DC brushless motor technology paired with a robust dual ball bearing architecture, this unit ensures minimal friction and extended operational longevity under continuous load. The aerodynamic impeller design optimizes airflow while maintaining low acoustic noise, essential for sensitive laboratory environments. Its structural rigidity and UL94V-0 rated housing provide superior resistance to thermal stress and vibration, making it an ideal component for maintaining thermal equilibrium in high-precision electronic assemblies where low thermal impedance is required.
Model Number: 3610SB-05W-B39-E01
Brand: NMB Technologies (MinebeaMitsumi)
Product Type: DC Axial Fan
OEM Part Number: G3170-60565 (Agilent)
Rated Voltage: 24 VDC
Voltage Range: 14.0 – 27.6 VDC
Rated Current: 0.07 A
Power Input: 1.68 W
Rated Speed: 2600 RPM
Bearing Type: Dual Ball Bearing
Max. Air Flow: 53.0 CFM (90.0 m³/h / 1.50 m³/min)
Max. Static Pressure: 3.57 mmH₂O (35.0 Pa / 0.14 inH₂O)
Dimensions: 92 x 92 x 25 mm
Weight: 95 g
Life Expectancy: 100,000 Hours @ 25°C
Noise Level: 34.0 dBA
Speed Control: Tachometer Output (Sensor)
Housing Material: Polybutylene Terephthalate (PBT) UL94V-0
Impeller Material: Polybutylene Terephthalate (PBT) UL94V-0
Termination: 3-Wire Lead with Connector
Operating Temperature: -10°C to +70°C
Storage Temperature: -40°C to +70°C
Ingress Protection: IP40
Insulation Resistance: 10M Ω or over with a DC500V Megger
Dielectric Strength: AC700V 1s
Protection: Auto Restart / Polarity Protection
Certifications: UL, CSA, VDE, TUV, RoHS
This cooling solution is specifically engineered for integration into analytical laboratory equipment, serving as a direct replacement for the Agilent G3170-60565 component. The 3610SB-05W-B39-E01 is critical for regulating internal temperatures within Gas Chromatography and Mass Spectrometry systems, such as the Agilent 5973, 5975, and 5977 series. By maintaining stable thermal conditions, the 3610SB-05W-B39-E01 ensures the accuracy and reliability of sensitive detection instruments used in chemical analysis, medical diagnostics, and pharmaceutical research applications.
