Description

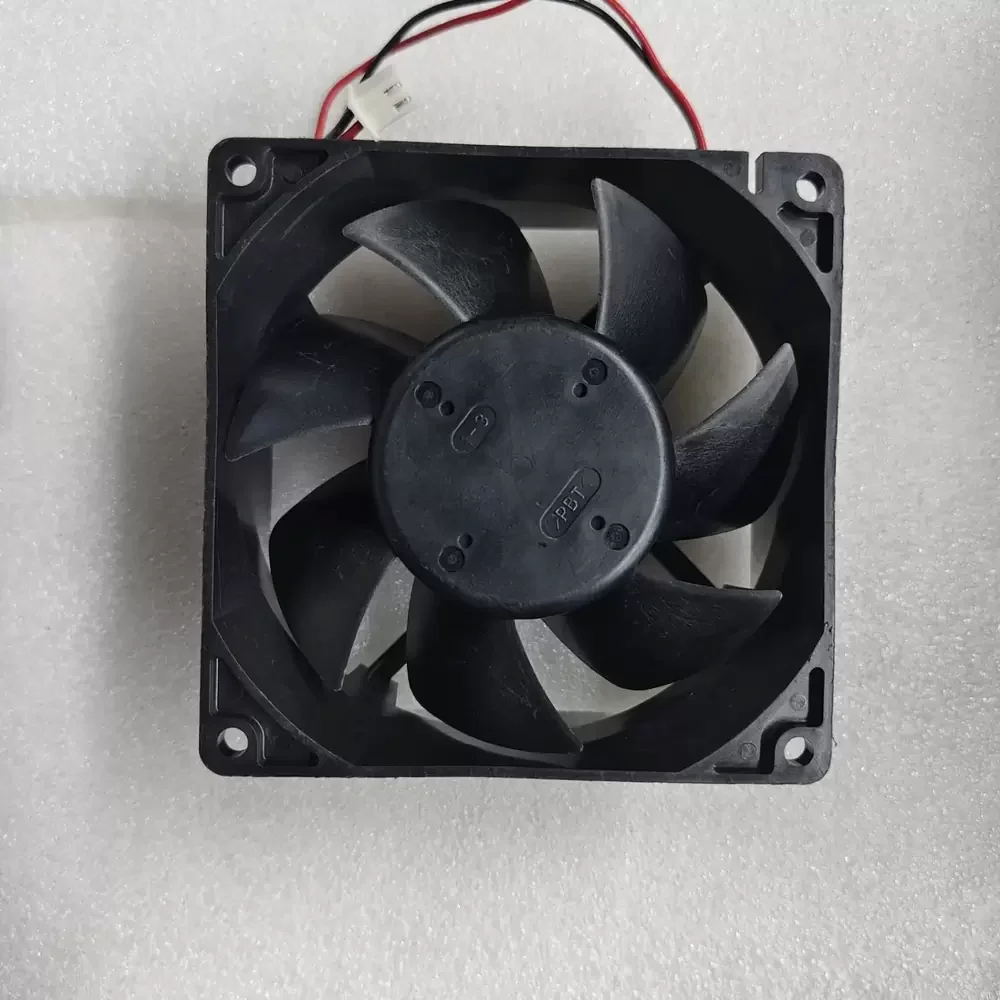

The NMB-MAT 3615KL-05W-B70-EQ4 is a robust axial cooling fan engineered for high-static pressure industrial environments. Utilizing Minebea’s advanced dual ball bearing architecture, this unit ensures minimal friction and extended operational longevity under continuous load. The 92mm frame houses a precision-balanced impeller designed to optimize aerodynamic throughput while maintaining structural rigidity against thermal stress. Operating at 24VDC, the motor assembly features specialized windings to manage thermal impedance effectively, making it an ideal solution for forced convection in densely packed electronic enclosures and variable frequency drive inverters requiring reliable thermal management.

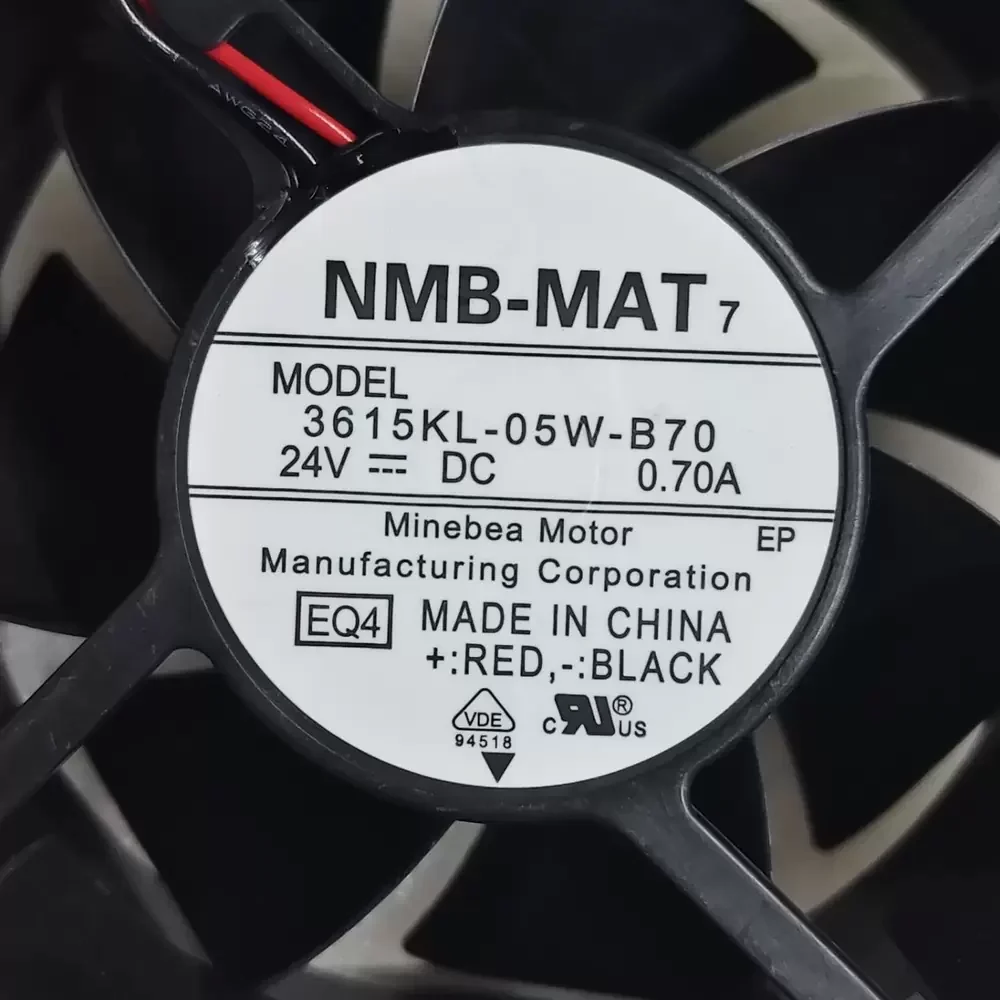

Model Number: 3615KL-05W-B70-EQ4
Brand: NMB-MAT (MinebeaMitsumi)
Product Type: Axial Fan
Rated Voltage: 24V DC
Voltage Range: 14.0 – 27.6 VDC
Rated Current: 0.70 A
Power Consumption: 16.8 W
Rated Speed: 5800 RPM
Bearing Type: Dual Ball Bearing
Max. Air Flow: 110.0 CFM (187 m³/h / 3.11 m³/min)
Max. Static Pressure: 16.2 mmH₂O (159 Pa / 0.64 inH₂O)
Dimensions: 92 x 92 x 38 mm
Weight: 210 g
Life Expectancy: 100,000 Hours at 25°C
Noise Level: 55.0 dBA
Housing Material: Plastic (UL94V-0)
Impeller Material: Plastic (UL94V-0)
Termination: 2-Wire Lead (Red +, Black -)
Operating Temperature: -10°C to +70°C
Storage Temperature: -40°C to +70°C
Protection: Locked Rotor Protection, Reverse Polarity Protection
Mounting Orientation: Any
Ingress Protection: IP20
Designed for critical thermal regulation, the 3615KL-05W-B70-EQ4 excels in cooling variable frequency drives (VFDs) and industrial automation controllers where consistent airflow is paramount. Its high-pressure capabilities make it suitable for server rack ventilation, telecommunications cabinets, and power supply units that face high impedance airflow paths. The 3615KL-05W-B70-EQ4 is also frequently integrated into CNC machinery electronics and medical instrumentation, ensuring components remain within safe operating temperature ranges during prolonged duty cycles.
