Description

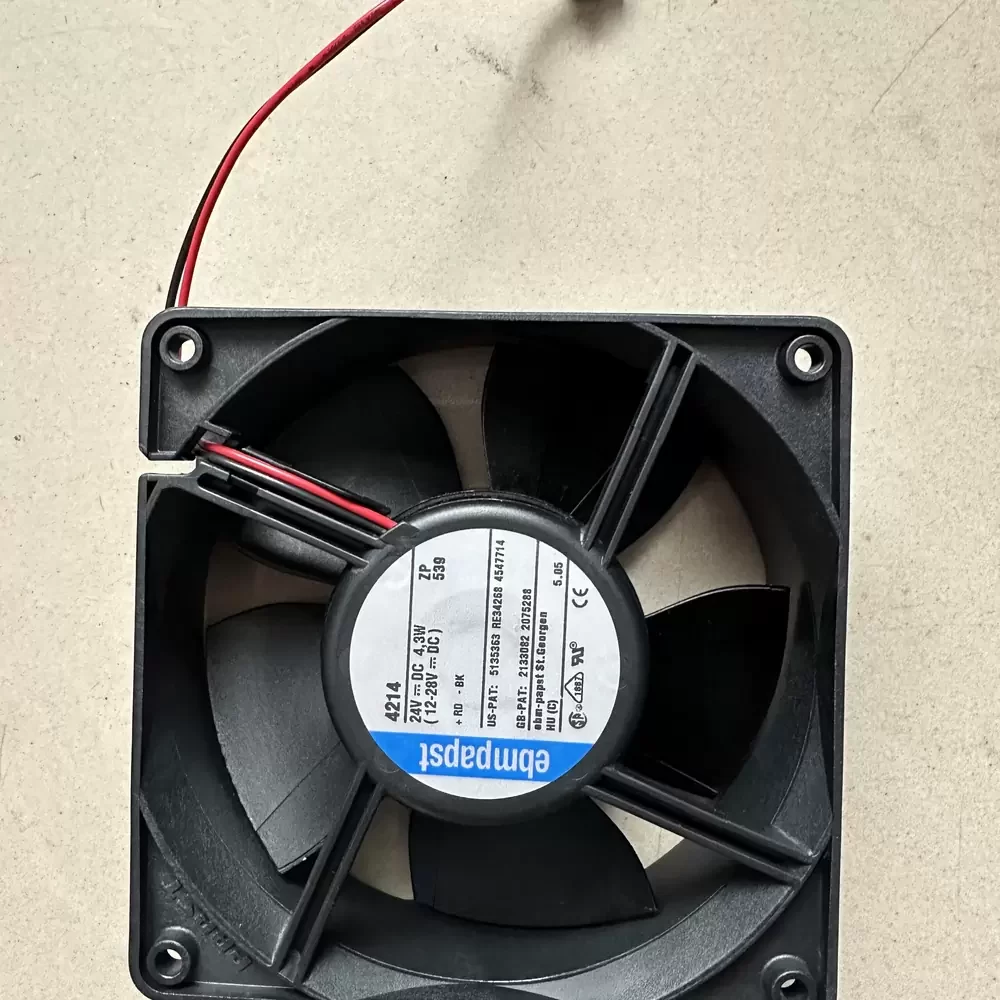

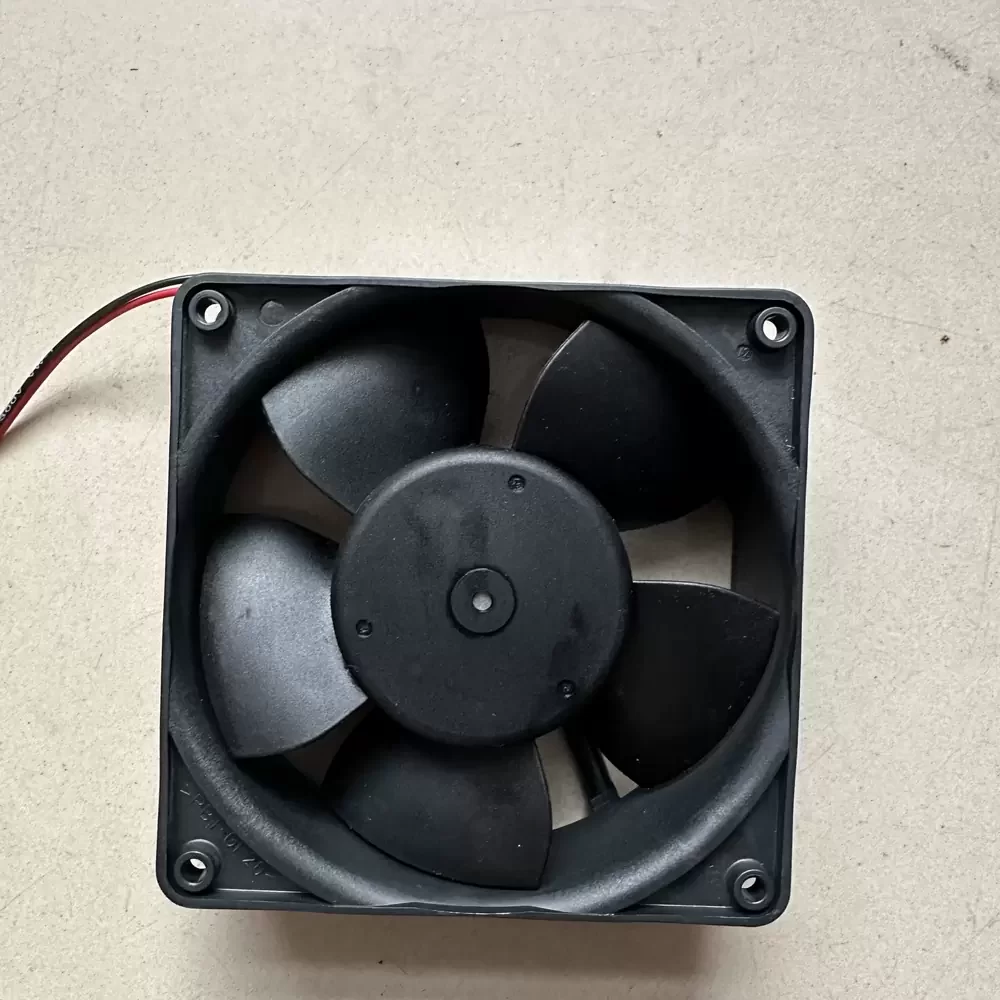

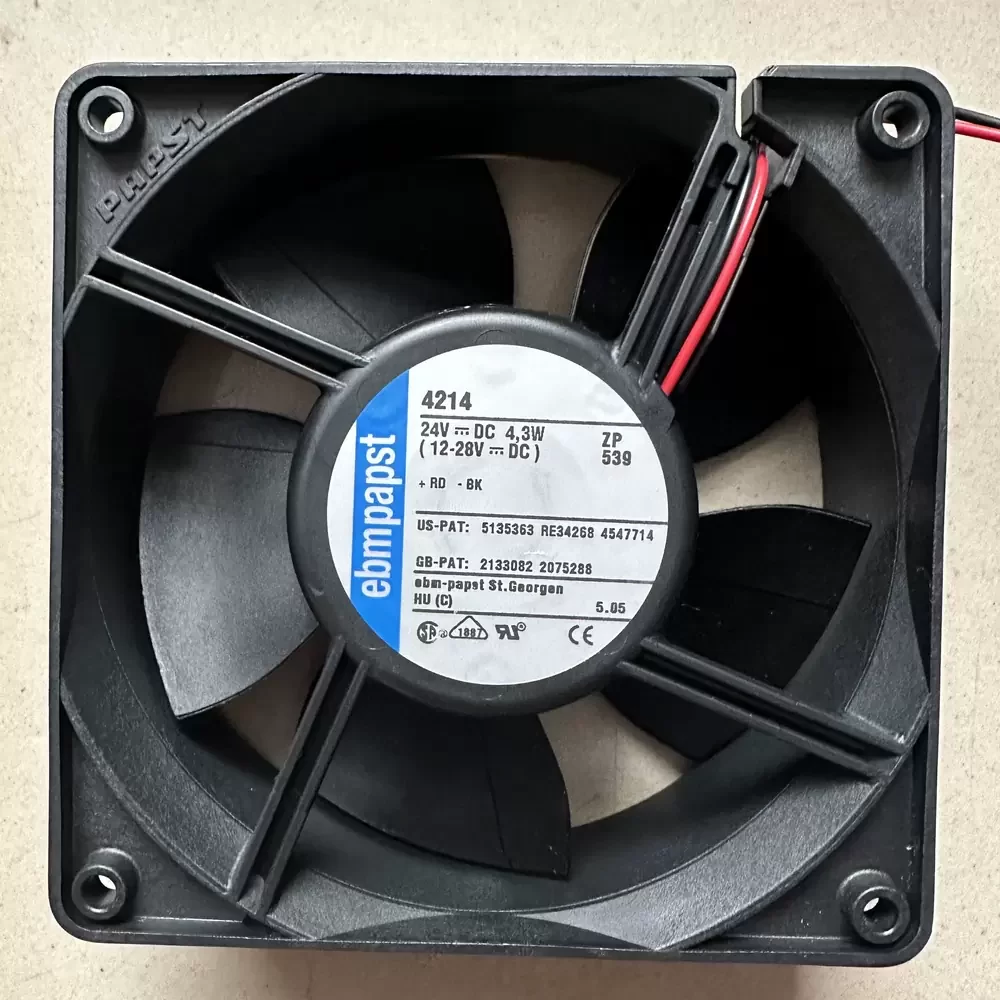

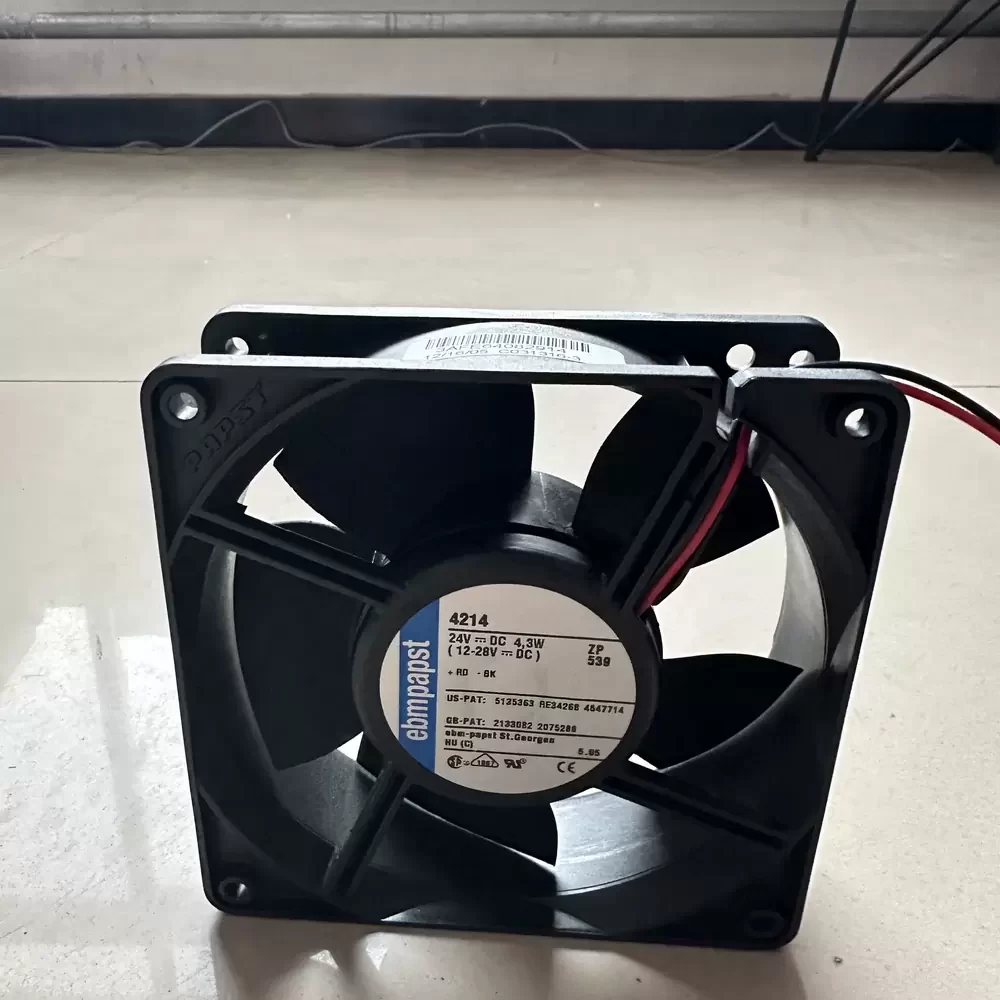

ebmpapst 4214 is a 24VDC 119x119x38mm Axial Fan optimized for high-moisture industrial environments requiring robust thermal management. This DC axial fan features a brushless motor with integrated commutation electronics and a precision ball bearing architecture to minimize thermal impedance and ensure structural rigidity. The aerodynamic design of the fiberglass-reinforced plastic impeller delivers 165 m³/h (97.1 CFM) of airflow at a rated speed of 3000 RPM. Consuming only 4.3W, it operates efficiently across a wide 12-28VDC range, making it a reliable solution for systems with fluctuating power supplies or demanding environmental conditions.
Model Number: 4214
Brand: ebmpapst
Product Type: Axial Fan
Rated Voltage: 24 VDC
Voltage Range: 12.0 – 28.0 VDC
Rated Current: 0.18 A
Power: 4.3 W
Rated Speed: 3000 RPM
Bearing Type: Ball Bearing
Max. Air Flow: 97.1 CFM (165.0 m³/h / 2.75 m³/min)
Max. Static Pressure: 8.16 mmH₂O (80.0 Pa / 0.32 inH₂O)
Dimensions: 119 x 119 x 38 mm
Weight: 0.29 kg
Life Expectancy: 70000 hours
Ingress Protection: IP68 (ZP539)
Noise Level: 45 dB(A)
Housing Material: Fiberglass-reinforced plastic (PBT)
Blade Material: Fiberglass-reinforced plastic (PA)
Termination: 2 Lead wires
Insulation Class: E
Operating Temperature: -20 to +75 C
Protection: Locked rotor and reverse polarity protection
Certifications: VDE, CSA, UL, CE
4214 Applications
1. Outdoor Telecom Enclosures: The IP68 ZP539 rating provides essential protection against moisture and dust ingress in remote base stations.
2. Industrial VFD Cabinets: High static pressure and 38mm depth allow for efficient heat dissipation through dense filter media in motor control centers.
3. Renewable Energy Inverters: Low power consumption (4.3W) and wide voltage tolerance (12-28VDC) make it an ideal replacement fan for solar or wind power conversion systems.
