Description

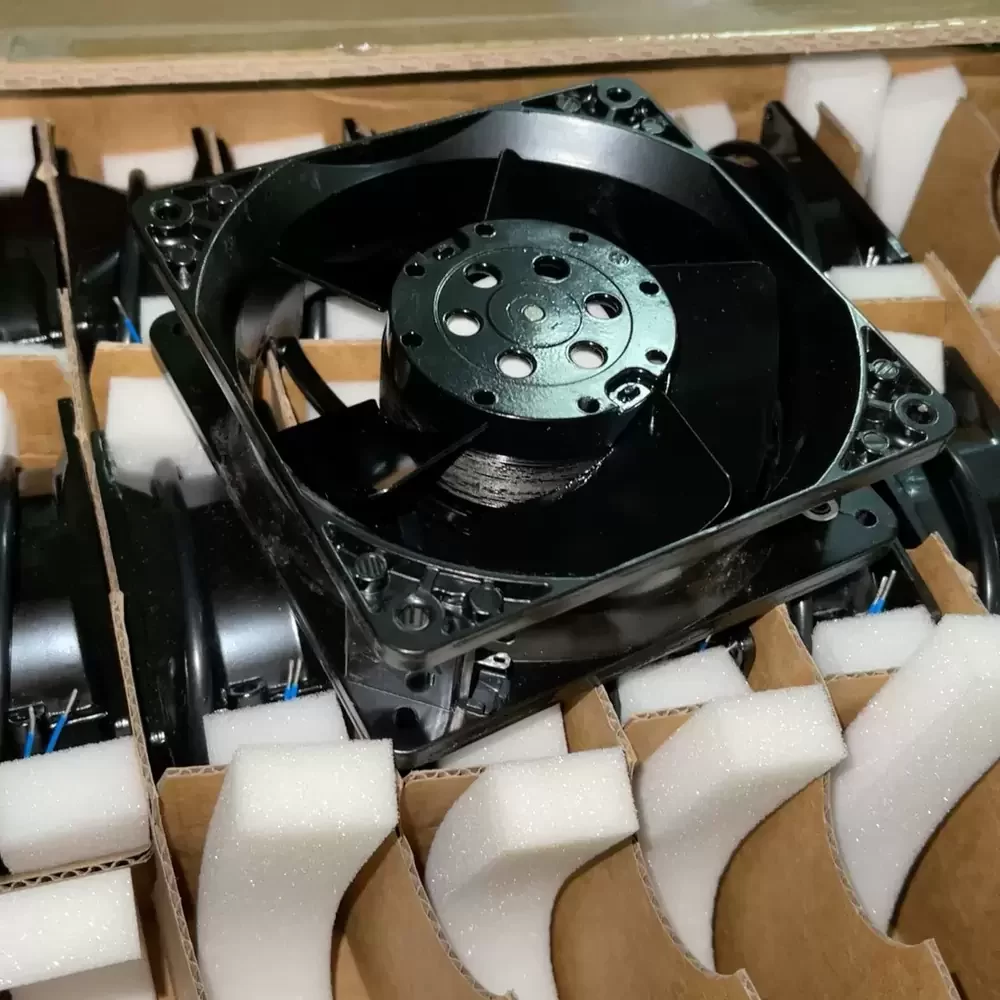

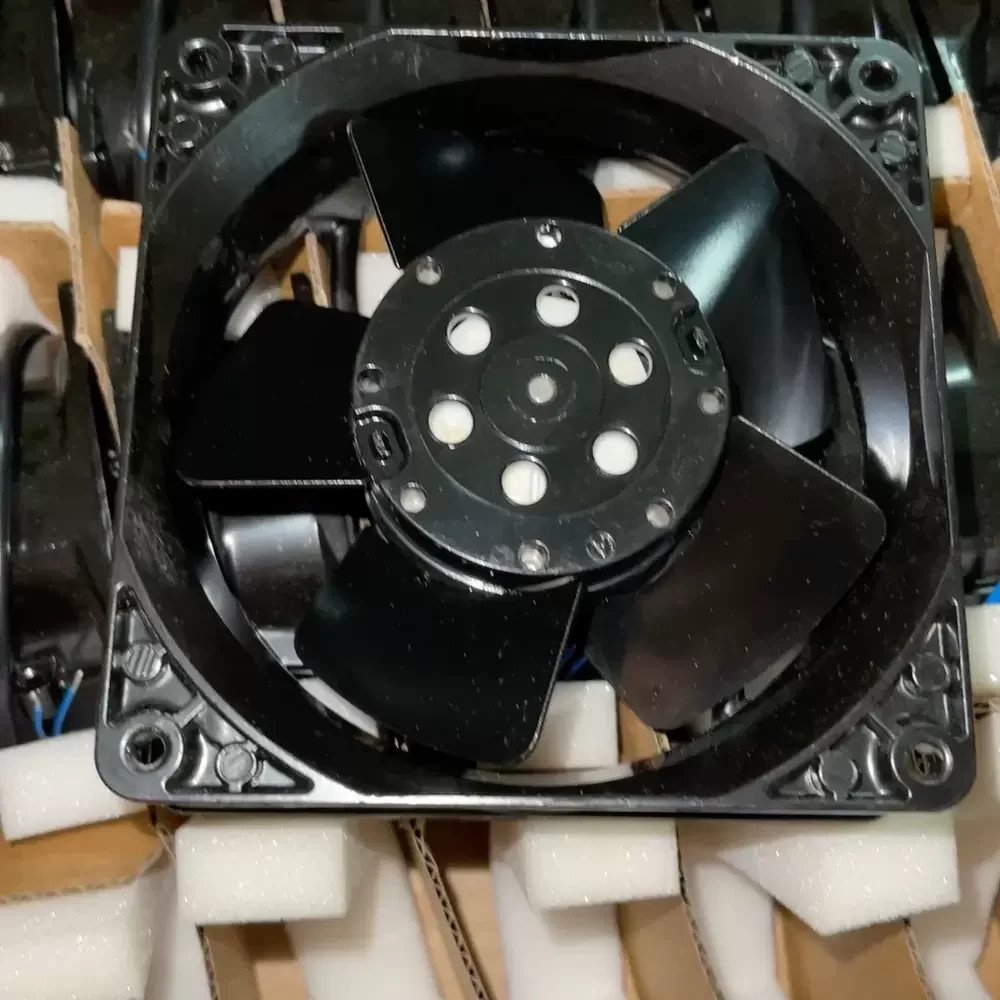

The EBM-Papst 4650N is a robust AC Axial Fan engineered for demanding thermal management applications requiring consistent airflow delivery and structural integrity. Utilizing an advanced external rotor shaded-pole motor, this unit ensures optimal thermal impedance and operational efficiency across dual frequency ranges. The construction features a die-cast aluminum housing providing superior structural rigidity, paired with a sheet steel impeller for long-term durability. Integrated impedance protection safeguards the motor against overload conditions, while the precision-engineered Sintec sleeve bearing system facilitates low-noise operation and extended service life in industrial environments.

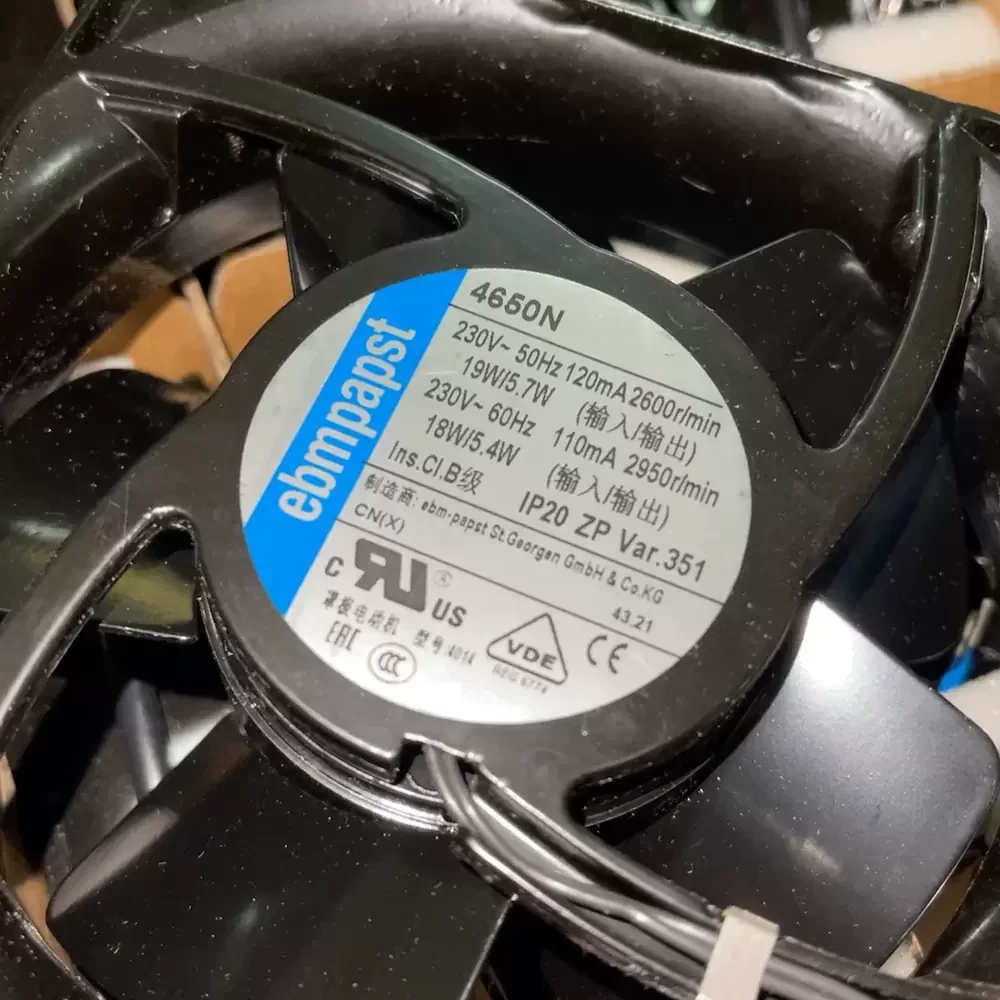

Model Number: 4650N
Brand: EBM-Papst
Product Type: AC Axial Fan
Rated Voltage: 230 VAC
Frequency: 50 / 60 Hz
Rated Current: 0.12 / 0.11 A (120 / 110 mA)
Power Input: 19 / 18 W
Rated Speed: 2600 / 2950 RPM
Max. Air Flow: 94.1 CFM (160 m³/h)
Max. Static Pressure: 80 Pa (0.32 inH₂O)
Bearing Type: Sintec Sleeve Bearing
Dimensions: 119 x 119 x 38 mm
Weight: 0.55 kg
Noise Level: 46 / 50 dB(A)
Housing Material: Die-Cast Aluminum
Impeller Material: Sheet Steel, Painted Black
Ingress Protection: IP20
Insulation Class: Class E
Motor Protection: Impedance Protected
Operating Temperature: -10 to +55 °C
Life Expectancy: 37,500 Hours (40°C)

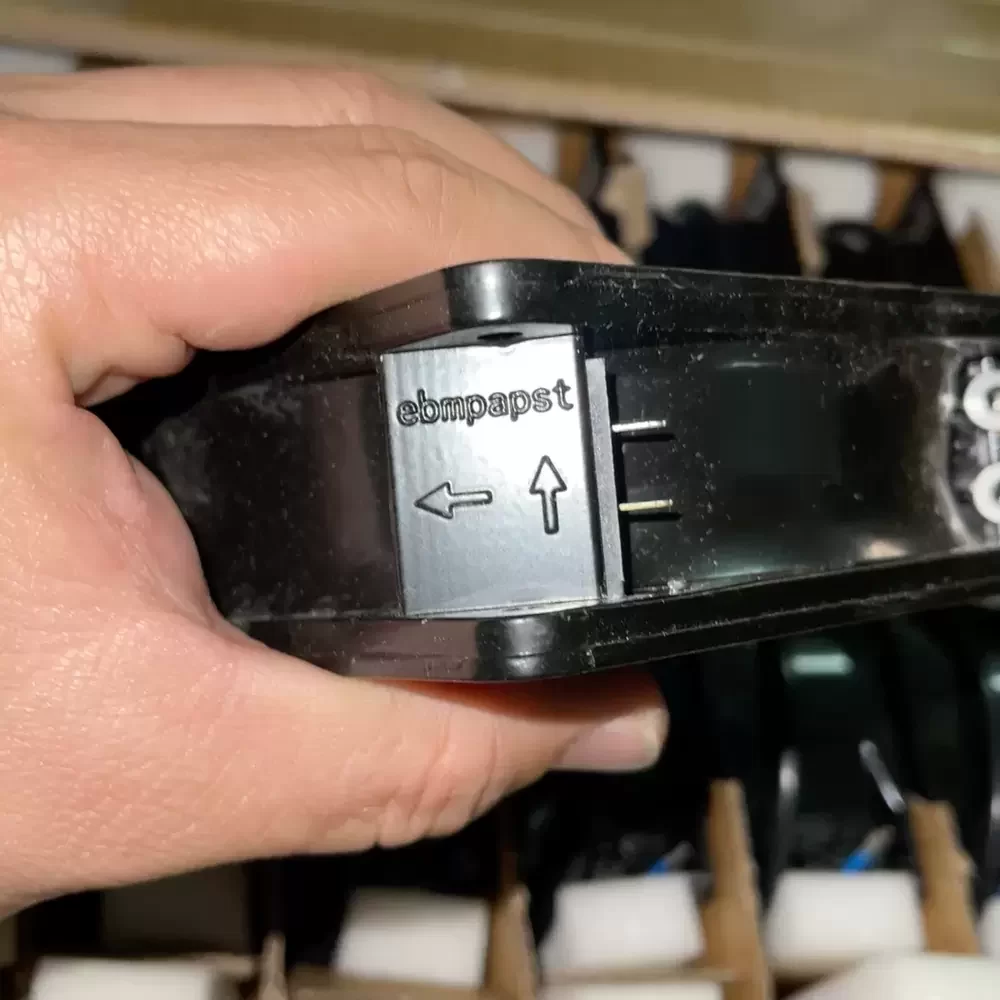

Termination: 2 Flat Plugs 2.8 x 0.5 mm
Direction of Rotation: Clockwise (viewed toward rotor)
Airflow Direction: Intake over struts
The 4650N is specifically calibrated for integration into industrial automation control cabinets, server rack cooling systems, and power supply units where reliable heat dissipation is critical. Its robust metal construction makes the 4650N ideal for CNC machinery ventilation, medical instrumentation, and telecommunications infrastructure, ensuring continuous operation in environments with moderate ingress risks.
