AS2306-02-220-15CKU-MKK Parker Kuroda 220VAC 1MPa Solenoid Valve

Description

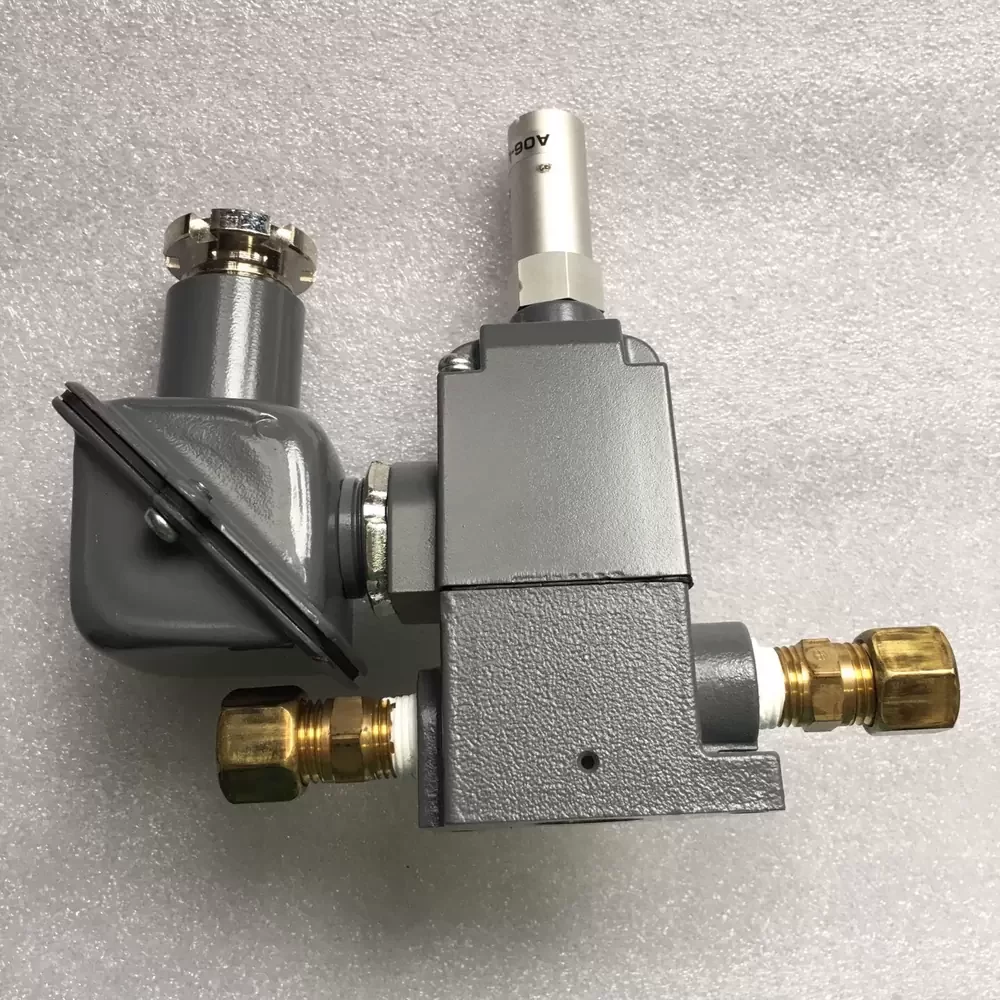

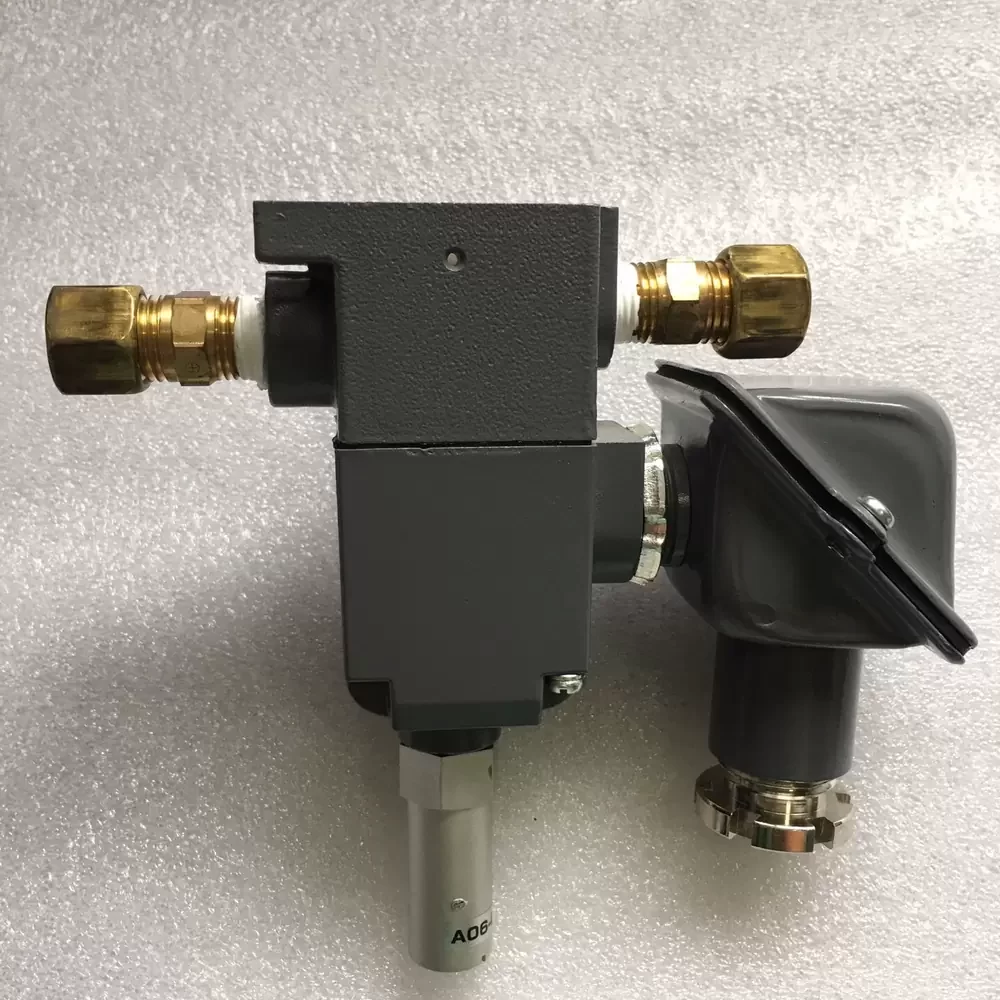

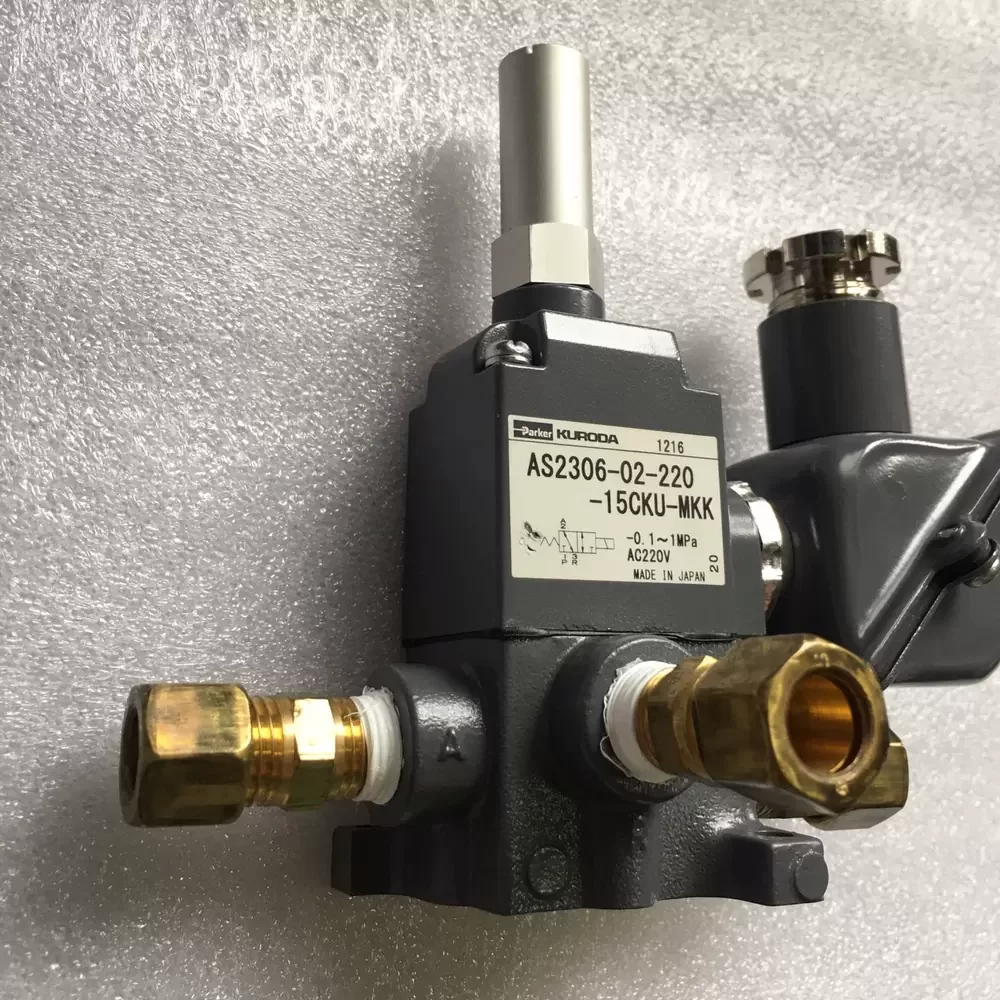

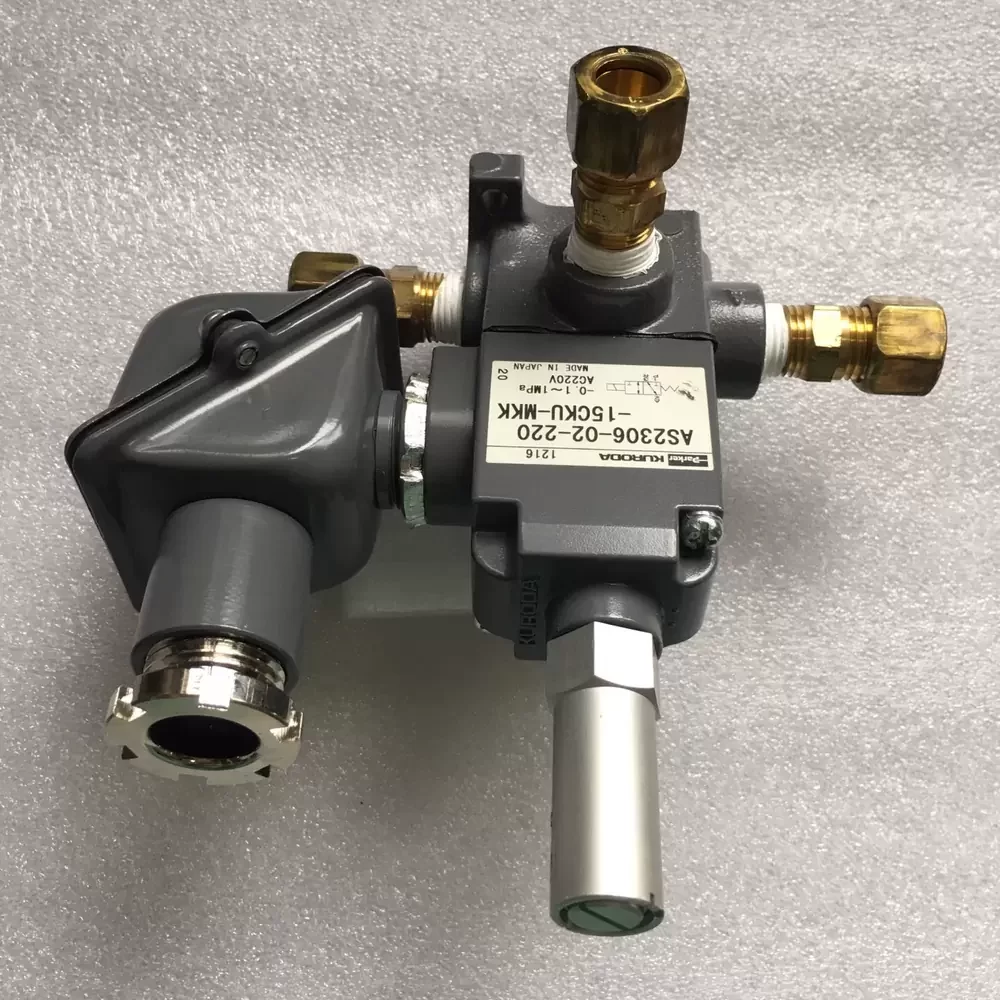

The Parker Kuroda AS2306-02-220-15CKU-MKK is a 3/2-way direct operated solenoid valve featuring a 220 VAC nominal voltage, a -0.1 to 1 MPa operating pressure range, and a 1/4 inch port size. Constructed with a high-strength aluminum alloy casting body and a precision-lapped, heat-treated stainless steel spool and sleeve, this unit ensures exceptional wear and corrosion resistance. The balanced spool design allows for dual-pressure or vacuum operations without affecting internal mechanical performance. Additional hardware features include a unified solenoid cover, a manual piston switch for unpowered actuation, and a spring-washer terminal for secure electrical connections.

AS2306-02-220-15CKU-MKK Specifications
Model Number: AS2306-02-220-15CKU-MKK
Brand: Parker Kuroda
Product Category: Direct Operated Solenoid Valve
Valve Configuration: 3/2-Way (3-Port, 2-Position)
Actuation Type: Single Solenoid
Operating Voltage: 220 VAC
Operating Pressure Range: -0.1 to 1 MPa
Vacuum Capable: Yes
Port Size: 1/4 inch
Body Material: Aluminum Alloy Casting
Spool and Sleeve Material: Heat-Treated Stainless Steel
Weight: 530 g
Country of Origin: Japan
Manual Override: Manual Piston Switch
Terminal Type: Spring-Washer Terminal
Design Feature: Balanced Spool

AS2306-02-220-15CKU-MKK Applications
Primary applications include integration into industrial pneumatic control systems, automated manufacturing machinery, and vacuum diverting circuits. Deployed within robotic assembly stations, packaging equipment, and precision gas routing manifolds where reliable 3/2-way directional control is required.
