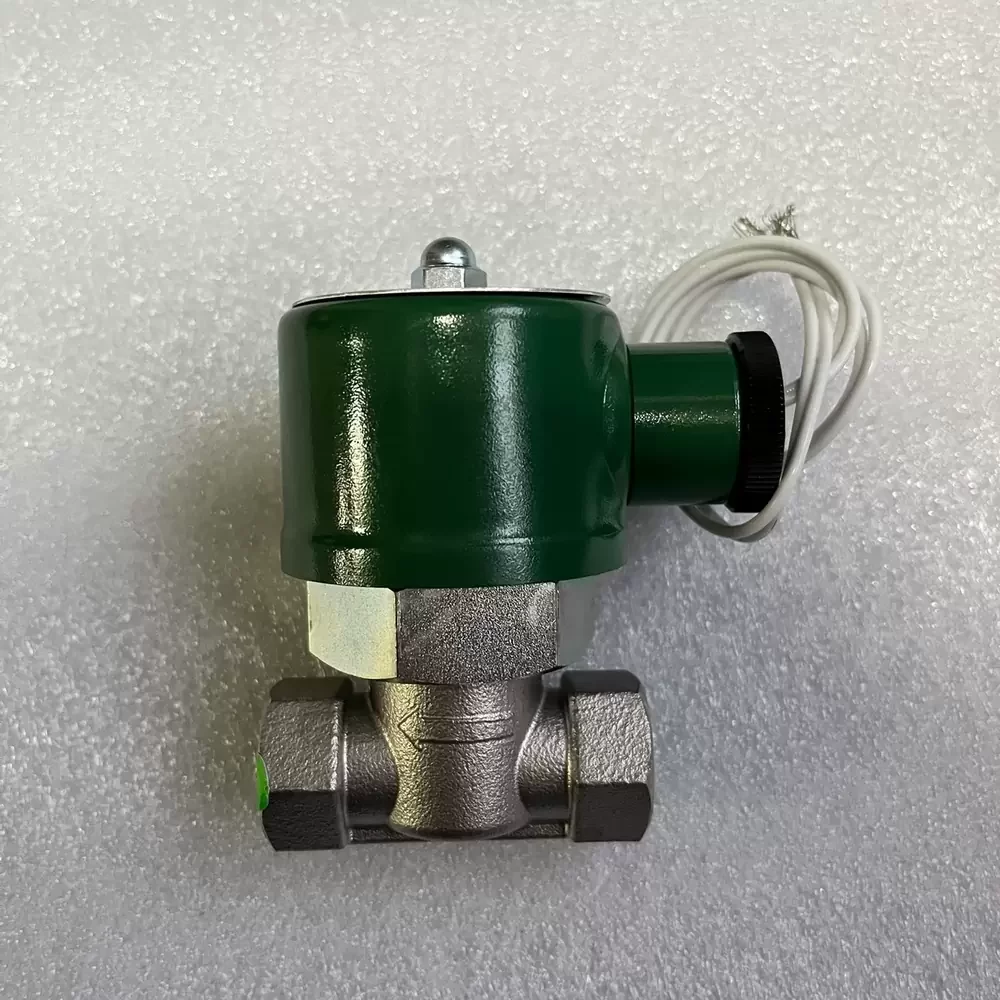

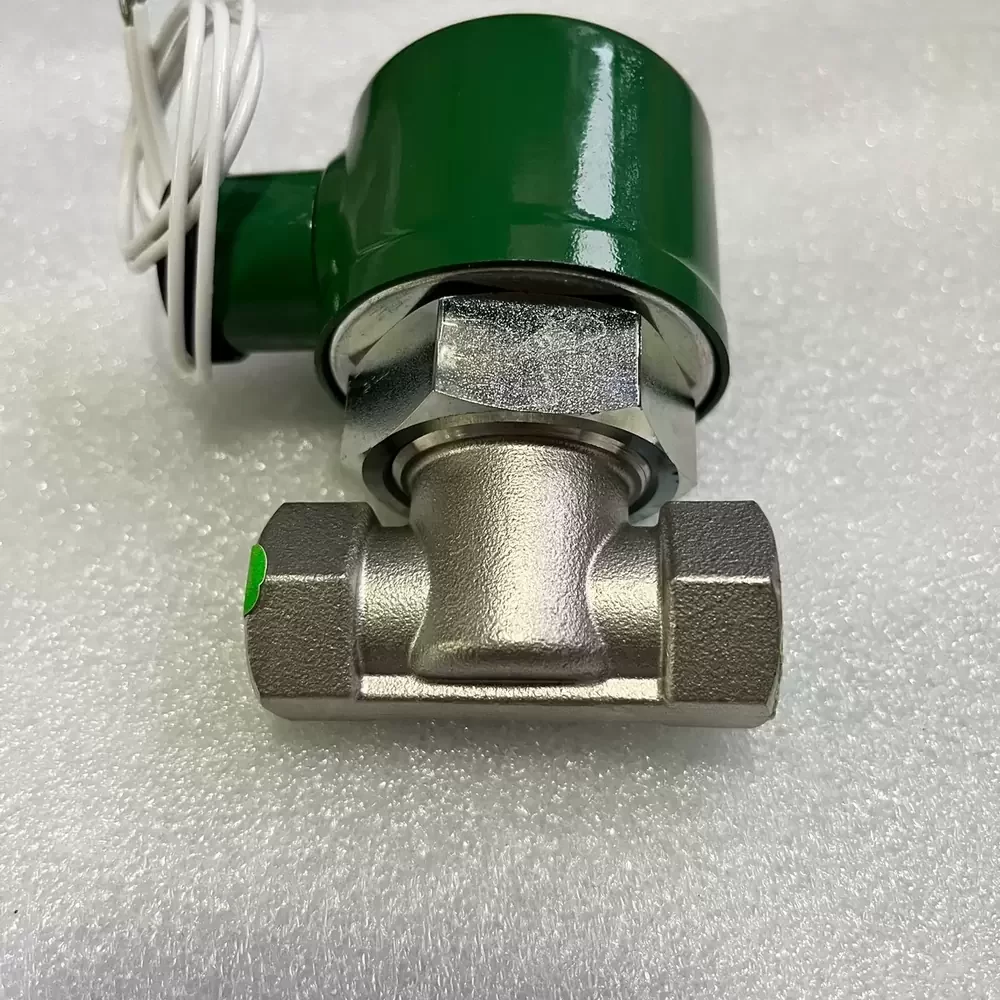

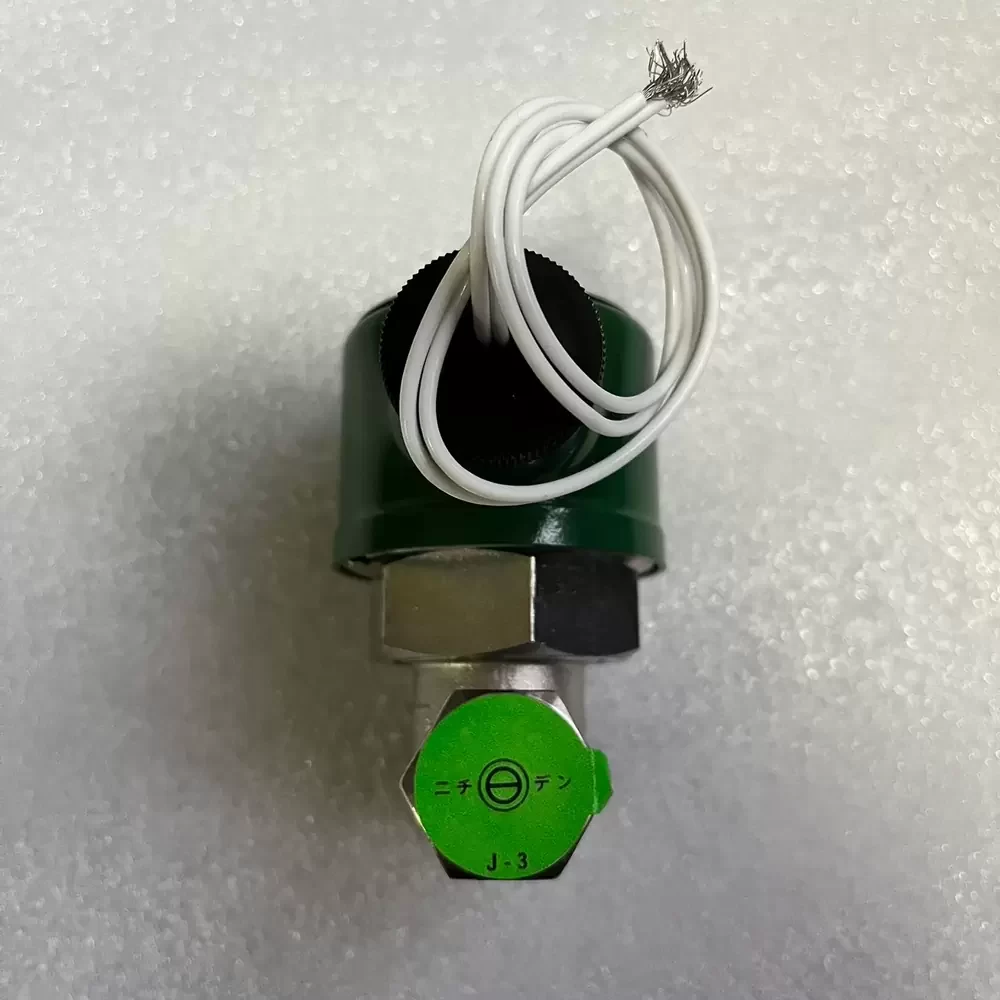

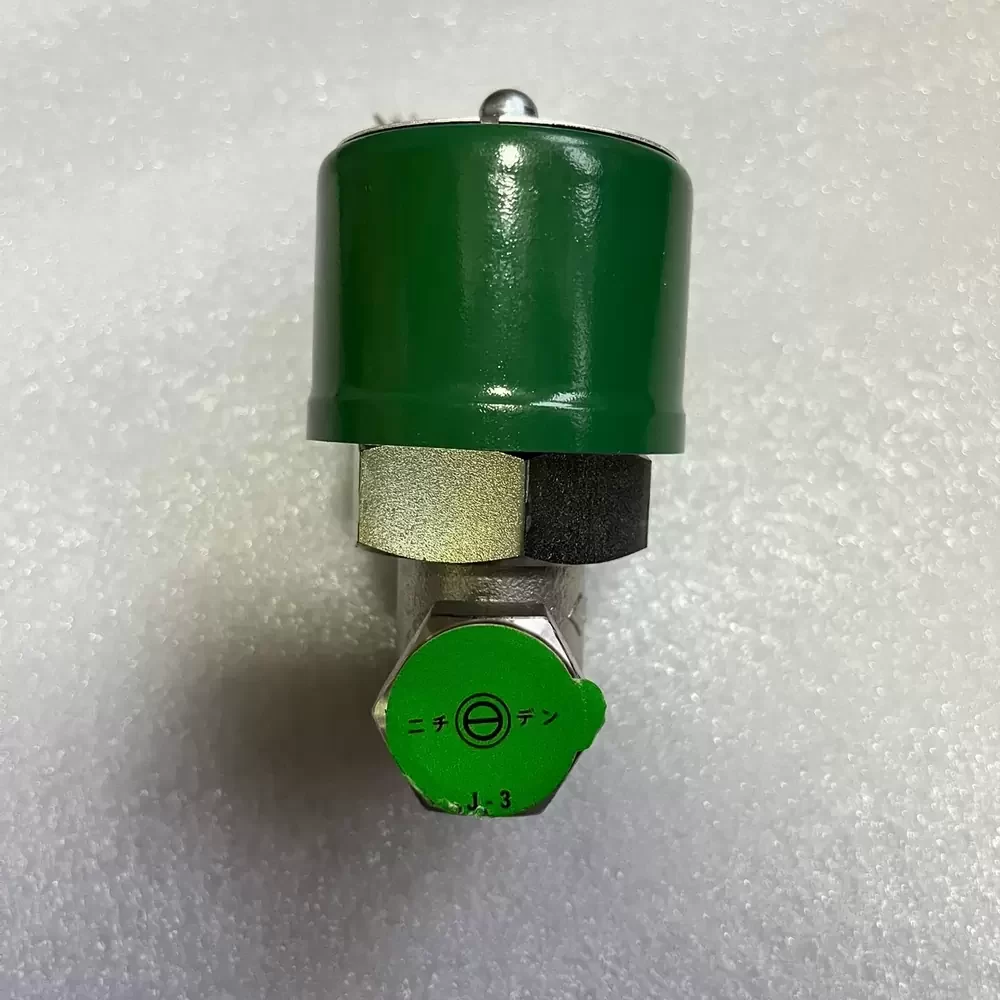

SX3S NICHIDEN KOGYO AC200V 8mm 1.0MPa Solenoid Valve

Description

The NICHIDEN KOGYO SX3S is a high-performance industrial solenoid valve engineered for precision fluid control in demanding environments. Constructed from corrosion-resistant stainless steel and copper alloy, this valve features an 8mm orifice and a Maximum Operating Pressure Differential (MOPD) of 1.0MPa. It operates on AC200V power with a 13W consumption rating, ensuring rapid response times and high-cycle reliability. The unit is designed for stable sealing performance and long-term durability in automated systems.

SX3S Specifications
Model Number: SX3S
Brand: NICHIDEN KOGYO
Category: Solenoid Valve
Rated Voltage: AC200V
Power Consumption: 13W
Frequency: 50/60Hz
Orifice Diameter: 8mm
Maximum Operating Pressure Differential (MOPD): 1.0MPa
Fluid Compatibility: Water, Air, Steam, Refrigerants, Oil
Body Material: Stainless Steel / Copper Alloy
Sealing Material: High-performance Synthetic Rubber/Resin
Mounting Orientation: Free Mounting (Universal)
Operating Temperature Range: -30 to 130°C (Fluid dependent)
Safe Working Pressure: 3.5MPa
Bursting Pressure: 4.5MPa
Country of Manufacture: Japan

SX3S Applications
Automotive fuel injector control, coolant circulation systems, food processing liquid transfer, and chemical gas-liquid switching. Mandatory for industrial boiler blowdown systems, hydraulic control in construction machinery, and high-speed automation in precision instruments.
