Description

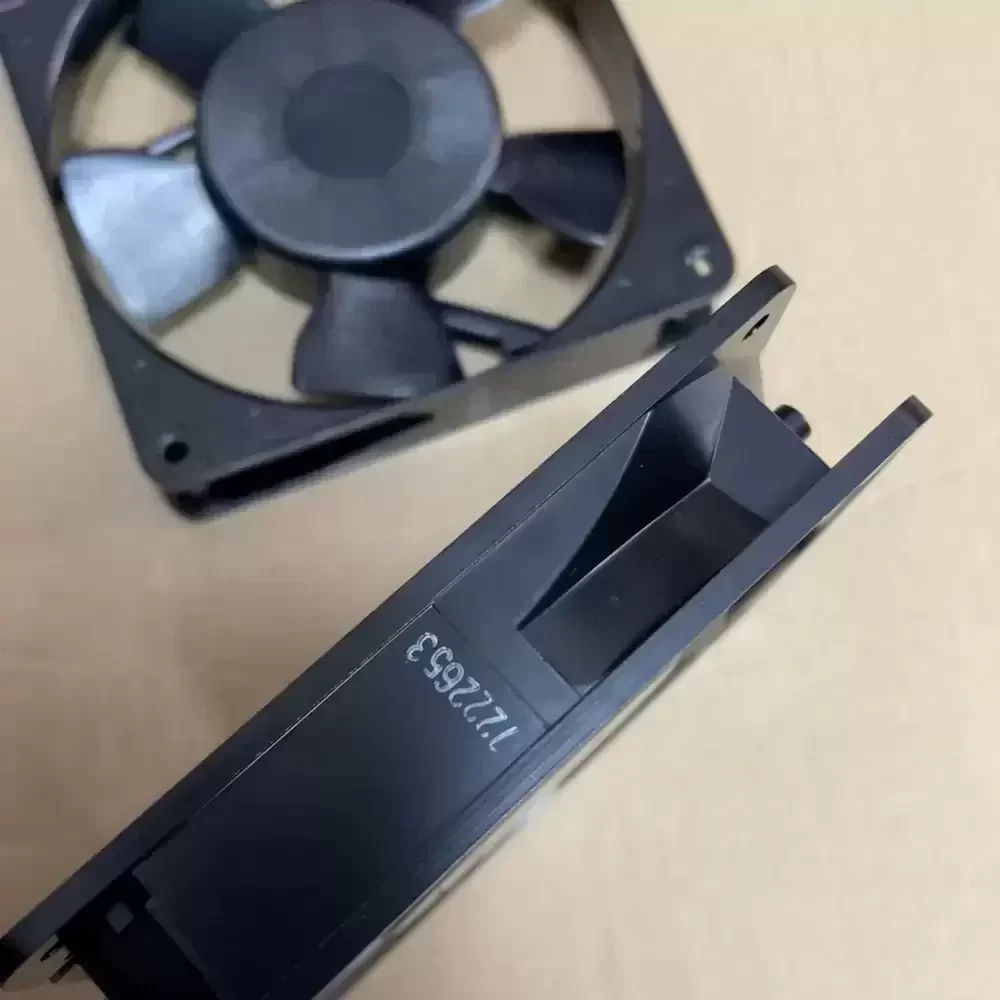

The NMB-MAT 4710PS-20T-B30-B00 is a precision-engineered AC axial fan designed for robust thermal management in industrial environments. Utilizing a reliable shaded pole induction motor architecture, this unit ensures consistent airflow delivery while maintaining optimal energy efficiency. The construction features a durable aluminum die-cast frame paired with a glass-reinforced polycarbonate impeller, providing exceptional structural rigidity and resistance to thermal deformation. Engineered with high-quality ball bearings, the 4710PS-20T-B30-B00 minimizes frictional losses and extends operational lifespan, making it an ideal solution for systems requiring low thermal impedance and continuous duty cycles under varying electrical loads.
Model Number: 4710PS-20T-B30-B00
Brand: NMB-MAT (MinebeaMitsumi)
Product Type: AC Axial Fan
Rated Voltage: 200 VAC
Frequency: 50 / 60 Hz
Input Power: 14.0 / 11.0 W
Rated Current: 0.100 / 0.080 A
Rated Speed: 2700 / 3100 RPM
Max. Air Flow: 88.2 / 102.0 CFM (2.5 / 2.9 m3/min)
Max. Static Pressure: 6.8 / 8.3 mmH2O (66.6 / 81.3 Pa)
Bearing Type: Dual Ball Bearing
Dimensions: 119 x 119 x 25 mm
Weight: 550 g
Noise Level: 40 / 44 dB(A)
Frame Material: Aluminum Die-Cast
Impeller Material: Plastic (UL94V-0)

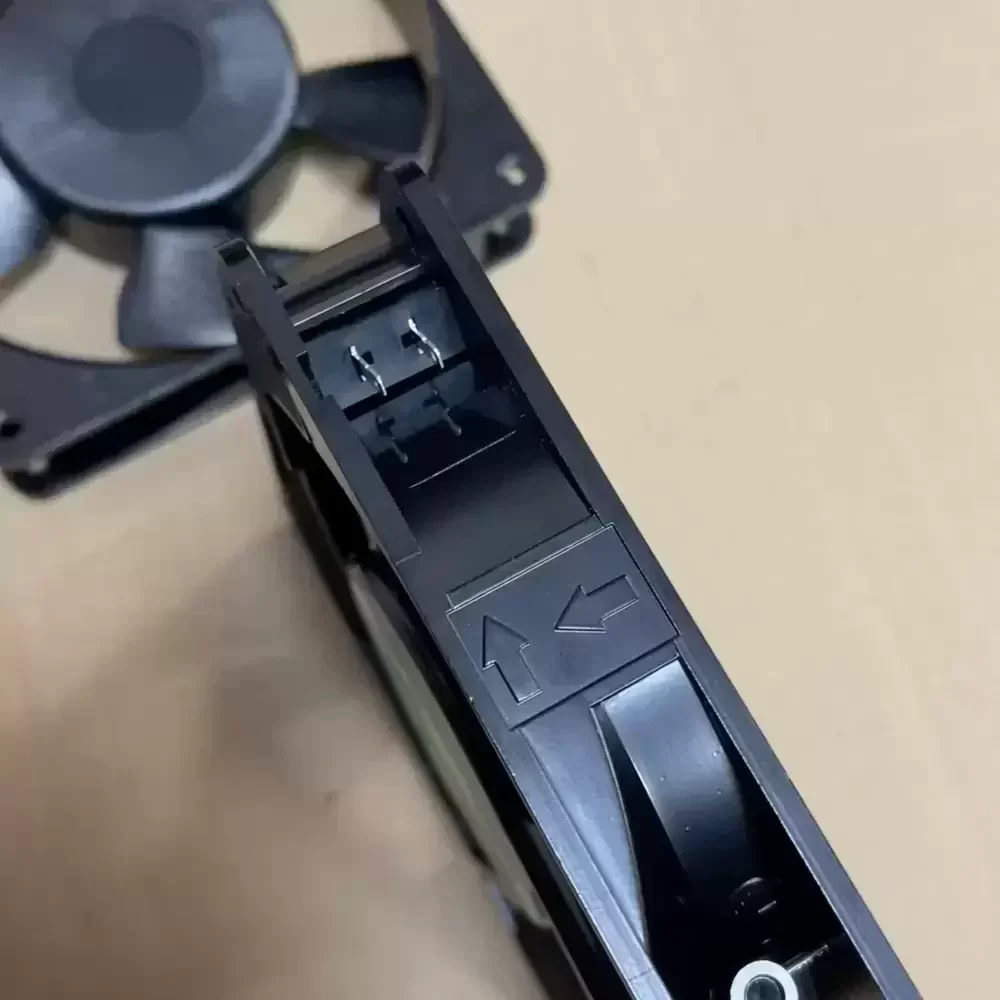

Termination: Terminal Type (Faston #110)
Motor Protection: Impedance Protection
Insulation Resistance: 10M Ohm or over with a DC500V Megger
Dielectric Withstand Voltage: AC 1800V 3s
Operating Temperature: -10 to +70 Degree C
Storage Temperature: -40 to +70 Degree C
Life Expectancy: 50,000 Hours (at 25 Degree C)
Phase: Single Phase
Induction System: Shaded Pole Induction Motor
Designed for versatility, the 4710PS-20T-B30-B00 serves as a critical cooling component in high-density electronic enclosures and industrial automation setups. Its robust AC design makes it suitable for factory automation control panels, large-scale power supply units, and telecommunications equipment racks where reliable heat dissipation is paramount. The 4710PS-20T-B30-B00 is also frequently integrated into medical instrumentation and CNC machinery, ensuring sensitive components remain within safe operating temperature ranges during prolonged operation.
