Description

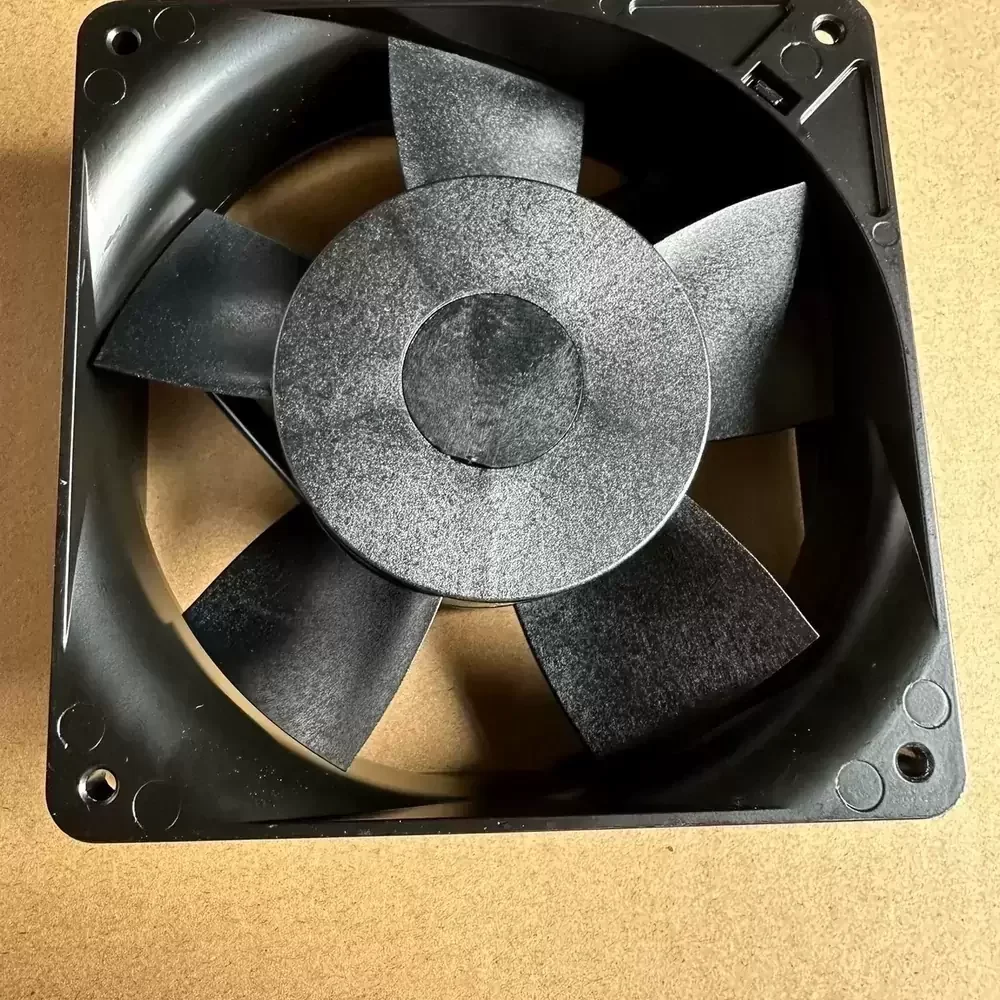

The NMB 4715FS-12T-B50-D00 is a robust AC Axial Fan engineered for rigorous industrial thermal management applications. Utilizing a shaded pole induction motor architecture, this unit delivers consistent airflow performance while maintaining structural rigidity through its aluminum die-cast frame. The fan features a precision dual ball bearing system, significantly reducing friction and thermal impedance to extend operational lifespan under continuous duty cycles. Designed for 115VAC systems, it optimizes aerodynamic efficiency with a UL94V-0 rated plastic impeller, ensuring reliable cooling in high-static pressure environments while adhering to strict safety standards.

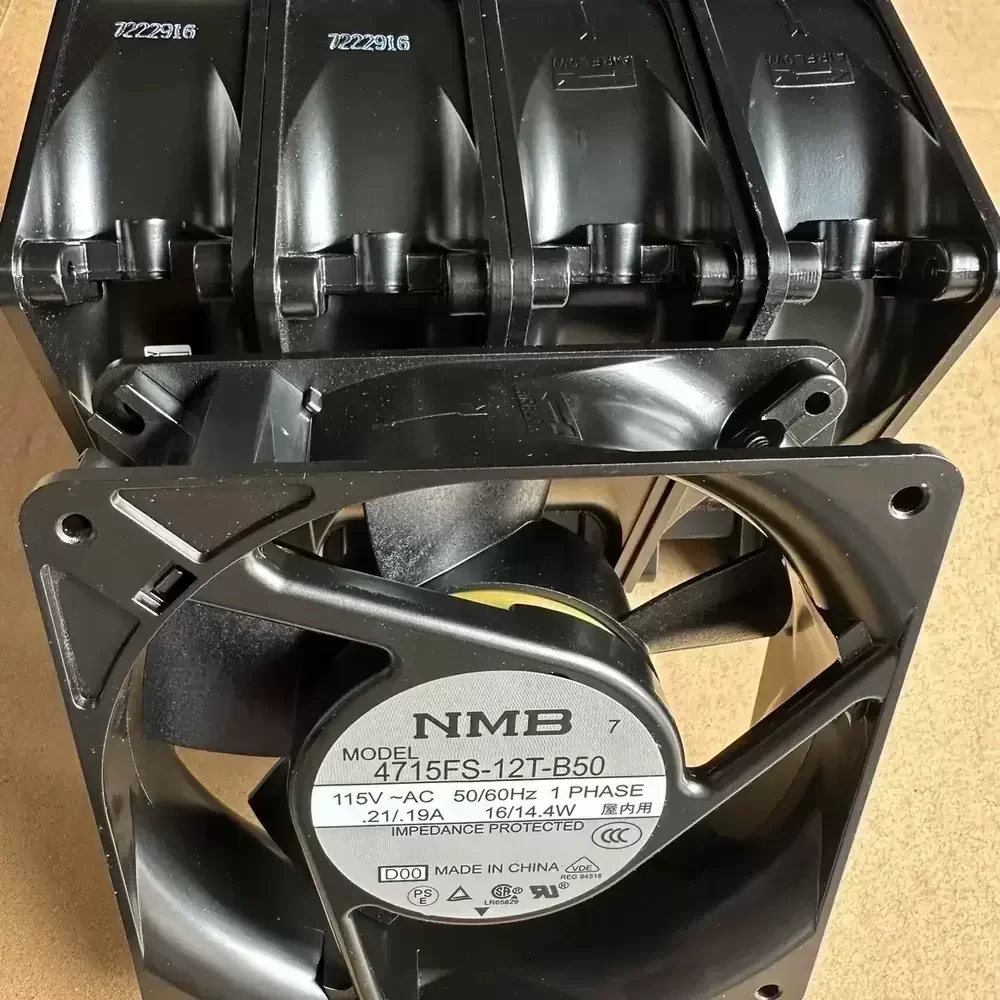

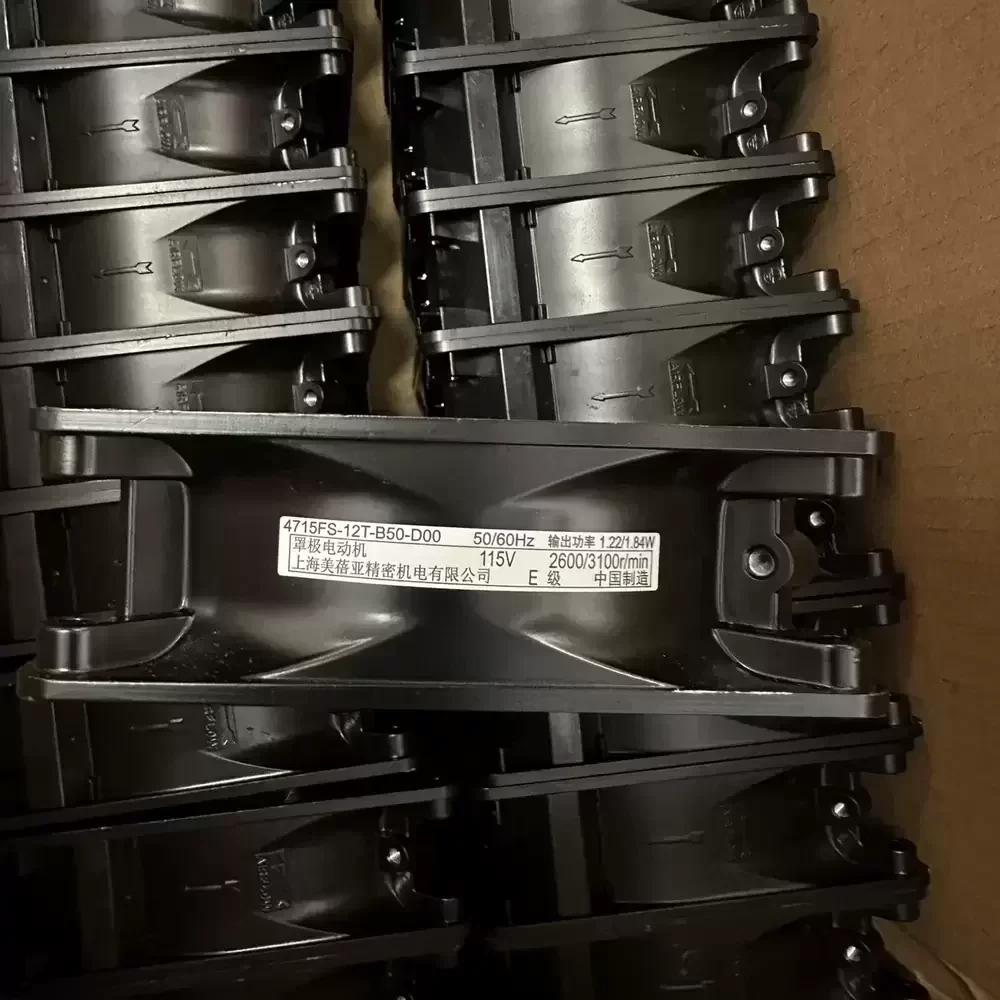

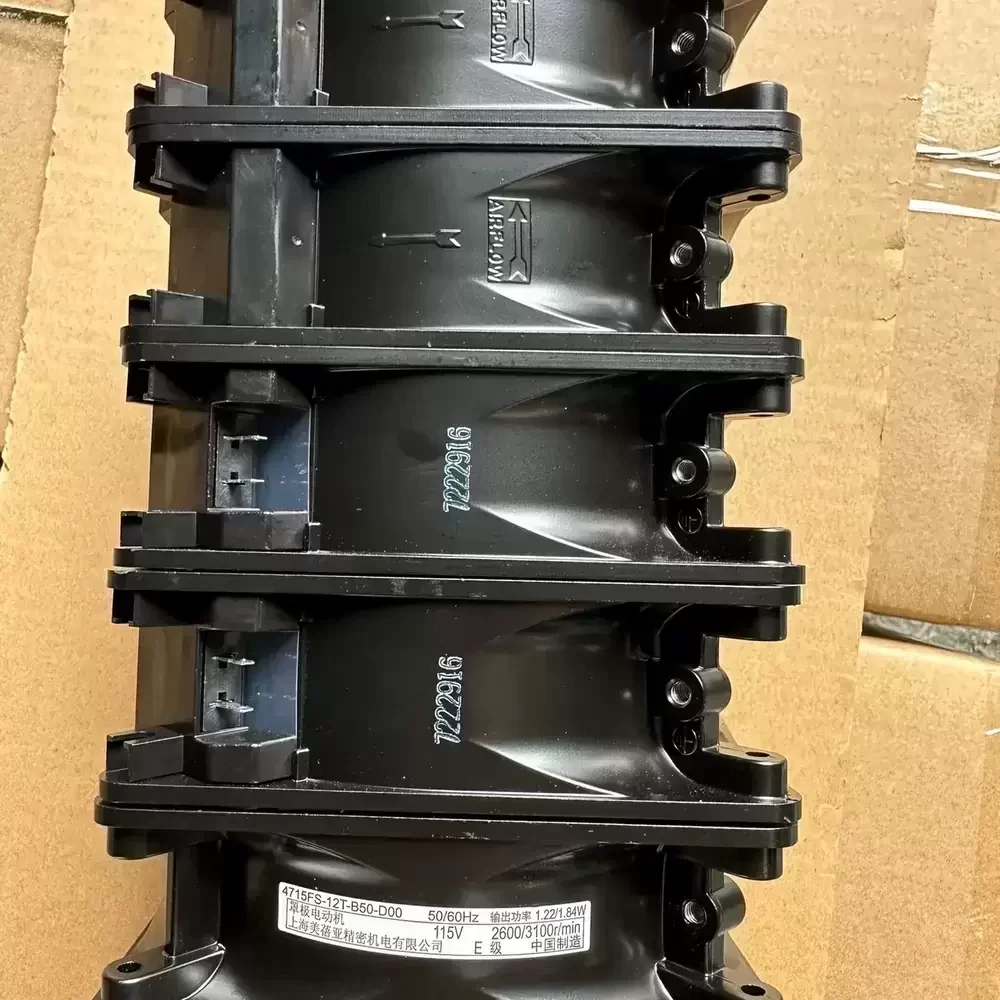

Model Number: 4715FS-12T-B50-D00
Brand: NMB-MAT (MinebeaMitsumi)
Product Type: AC Axial Fan
Rated Voltage: 115 VAC
Frequency: 50 / 60 Hz
Rated Current: 0.21 / 0.19 A
Input Power: 16.0 / 14.4 W
Rated Speed: 2700 / 3100 RPM
Max. Air Flow: 98.8 / 116.5 CFM (2.80 / 3.30 m³/min)
Max. Static Pressure: 7.5 / 8.5 mmH₂O (73.5 / 83.3 Pa)
Bearing Type: Dual Ball Bearing
Dimensions: 119 x 119 x 38 mm
Weight: 550 g
Life Expectancy: 50,000 Hours (25°C)
Frame Material: Aluminum Die-Cast
Impeller Material: Plastic (UL94V-0)
Termination: 2-Terminal Type (Faston #110)
Motor Protection: Impedance Protected
Insulation Resistance: 10M Omega min. at 500VDC
Dielectric Strength: 1500 VAC for 1 minute
Operating Temperature: -10°C to +70°C
Storage Temperature: -40°C to +70°C
Noise Level: 39 / 42 dB(A)
Direction of Rotation: Counter-clockwise (Viewed from Impeller)
The 4715FS-12T-B50-D00 is specifically designed for demanding industrial applications requiring reliable AC cooling solutions. Common deployments include server rack ventilation, industrial control cabinets, and power supply cooling systems where consistent airflow is critical. The 4715FS-12T-B50-D00 also serves effectively in telecommunications equipment and large-scale heat exchangers, providing necessary thermal dissipation to prevent component failure in continuous-operation environments.
