Description

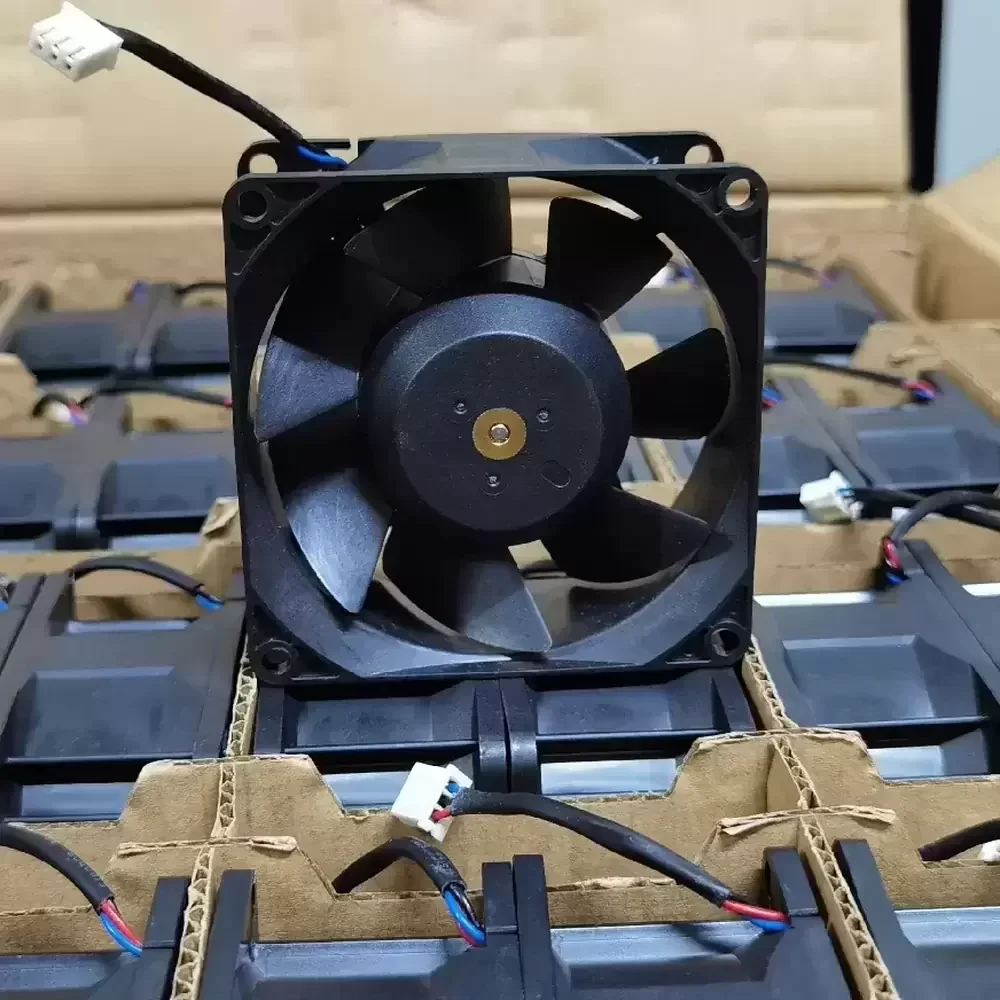

The Foxconn PVA080K12R-R18-AB is a high-performance DC Axial Fan designed to meet the rigorous thermal demands of enterprise computing and industrial automation. Engineered with a robust 12VDC motor drawing 1.35A, this unit generates significant airflow and static pressure, making it highly effective for high-impedance applications such as dense server racks and power supply units. The 80x80x38mm chassis is manufactured from durable thermoplastic to maintain structural rigidity under high-speed rotation. Featuring a precision bearing system and an optimized impeller design, it balances thermal efficiency with mechanical reliability. This fan is an essential component for maintaining optimal operating temperatures in mission-critical hardware, preventing thermal throttling and extending component lifespan.

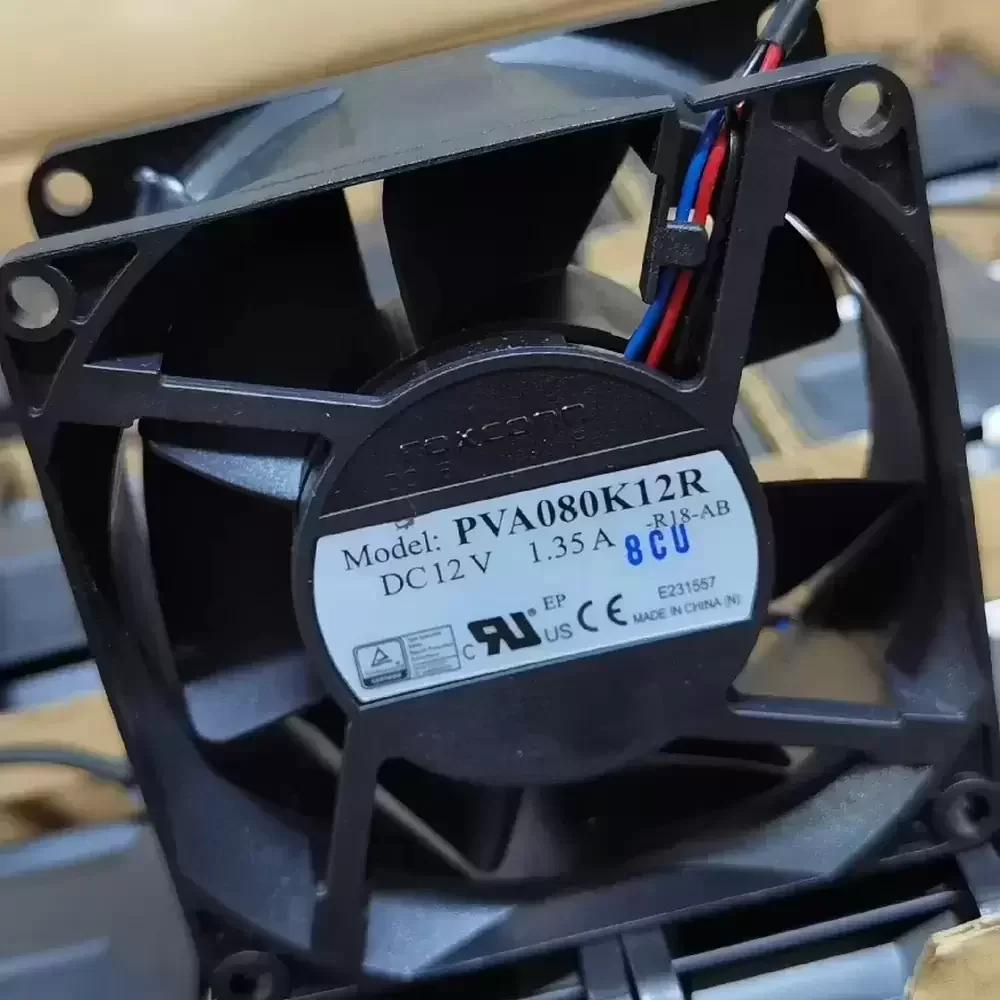

Model Number: PVA080K12R-R18-AB
Brand: Foxconn
Product Type: DC Axial Fan
Rated Voltage: 12 VDC
Voltage Range: 10.2 – 13.8 VDC
Rated Current: 1.35 A
Power Consumption: 16.2 W
Rated Speed: 7500 RPM
Max. Air Flow: 88.5 CFM (150.3 m³/h)
Max. Static Pressure: 19.2 mmH₂O (188.2 Pa / 0.75 inH₂O)
Noise Level: 56.5 dBA
Bearing Type: Hydraulic Bearing
Dimensions: 80 x 80 x 38 mm
Weight: 175 g
Termination: 3-Wire Lead (Tachometer Output)
Wire Configuration: Red (+), Black (-), Yellow (Sensor)
Housing Material: PBT Thermoplastic (UL94V-0)
Blade Material: PBT Thermoplastic (UL94V-0)
Operating Temperature: -10°C to +70°C
Storage Temperature: -40°C to +70°C
Life Expectancy: 60,000 Hours at 40°C
Ingress Protection: IP54 (Dust Protected)
Safety Certifications: UL, cUL, TUV, CE
The PVA080K12R-R18-AB is engineered for integration into high-density server chassis and blade servers where back-pressure resistance is critical. Additionally, this unit serves as a robust cooling solution for industrial power supplies and telecommunications rectifiers. By maintaining consistent airflow, the PVA080K12R-R18-AB ensures the reliability of sensitive electronics in 24/7 operational environments like data centers and automated manufacturing floors.
