Description

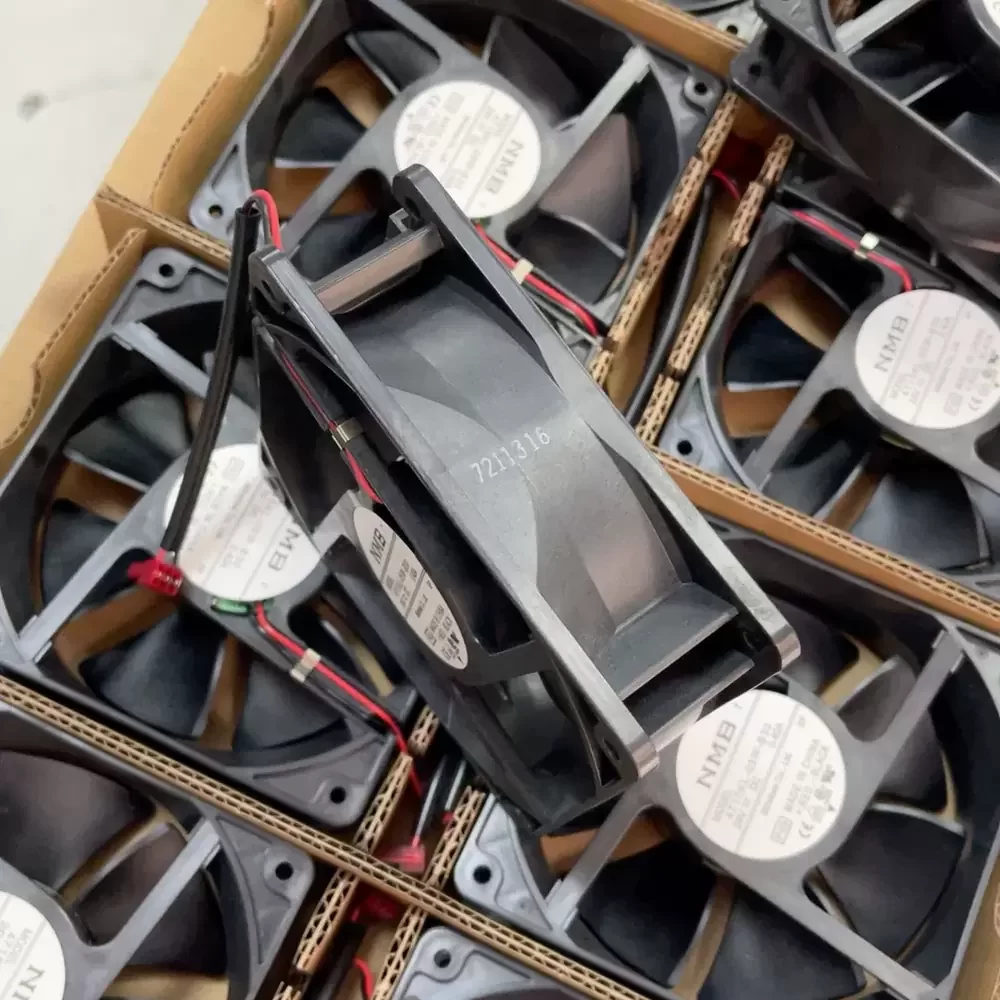

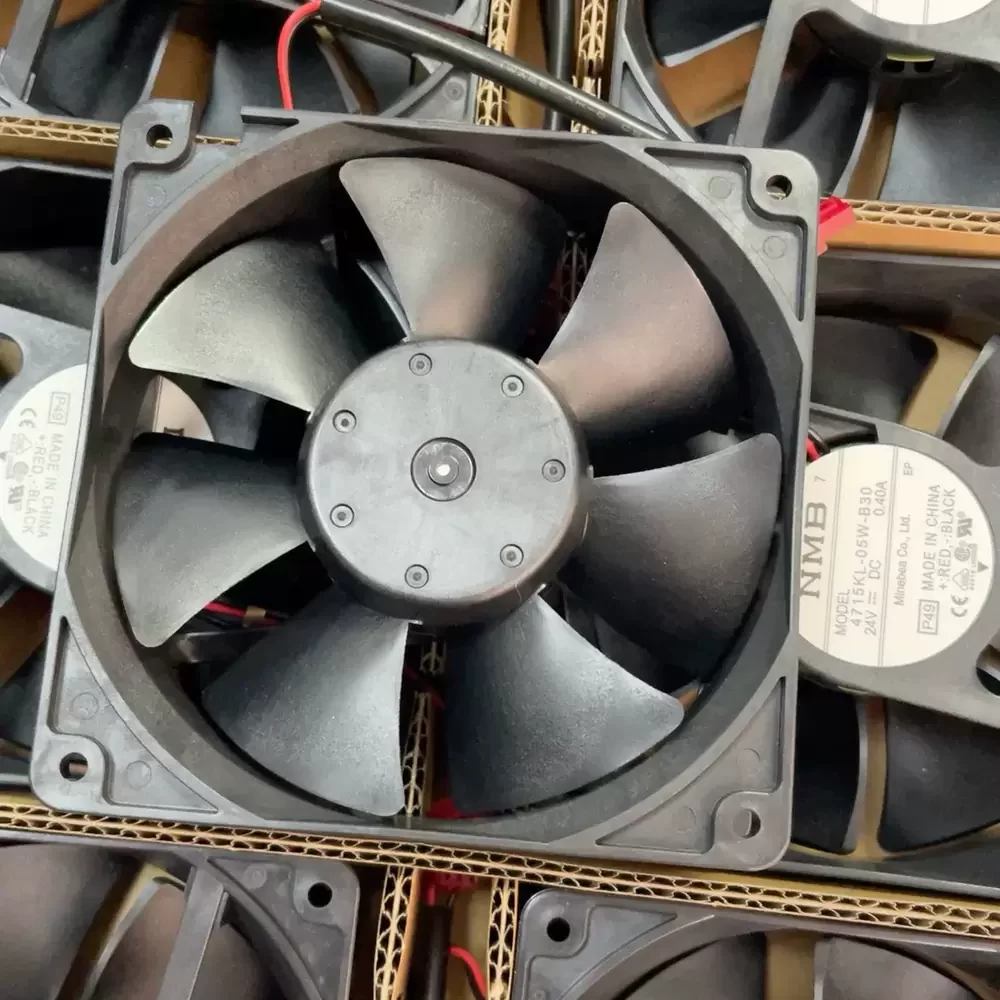

The NMB 4715KL-05W-B30-P48 is a high-performance DC axial fan engineered by MinebeaMitsumi for critical thermal management applications. This unit features a robust dual ball bearing system designed to minimize friction and extend operational lifespan under continuous load. The aerodynamic impeller is housed within a reinforced frame, ensuring structural rigidity and optimal airflow delivery. Operating at a nominal 24VDC, this cooling solution effectively reduces thermal impedance in high-density electronic enclosures, making it suitable for industrial and computing environments requiring reliable heat dissipation.

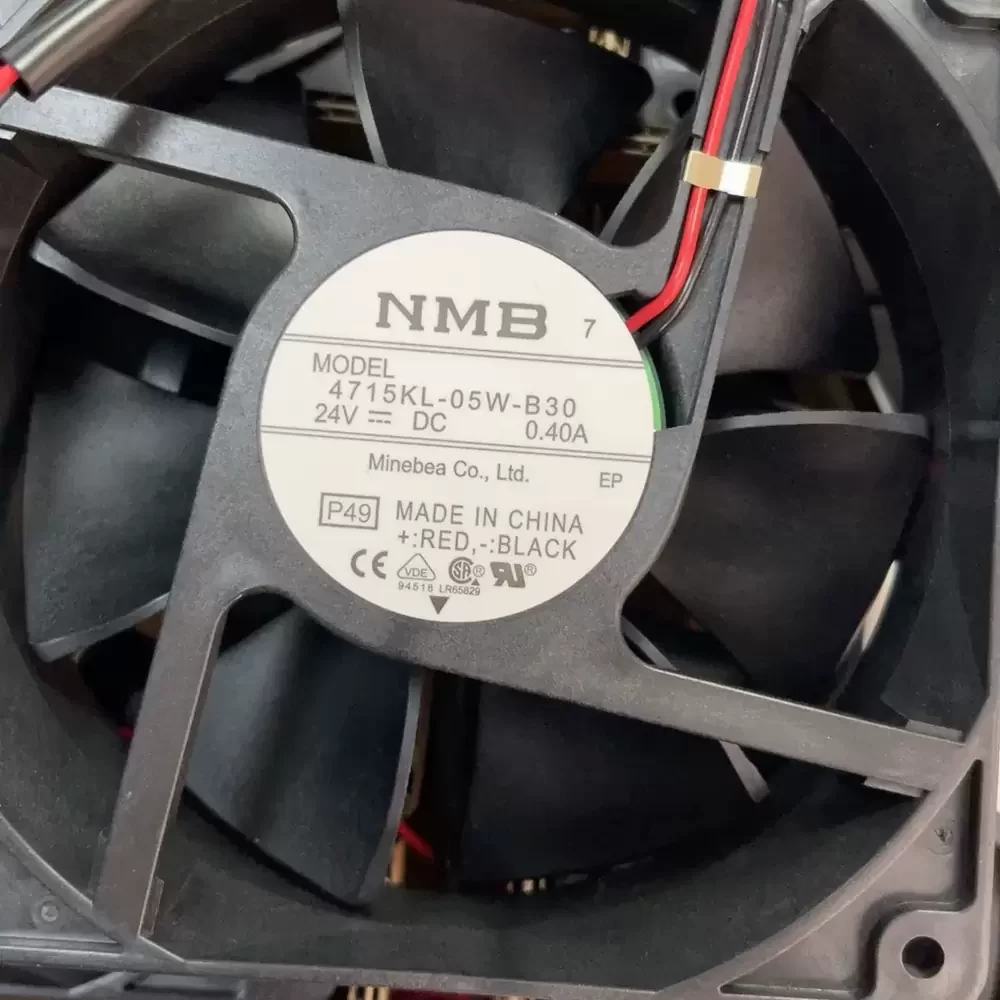

Model Number: 4715KL-05W-B30-P48
Brand: NMB-MAT (MinebeaMitsumi)
Product Type: DC Axial Fan
Rated Voltage: 24VDC
Voltage Range: 10.0 – 27.6 VDC
Rated Current: 0.40 A
Power Input: 9.6 W
Rated Speed: 2950 RPM
Bearing Type: Dual Ball Bearing
Max. Air Flow: 102.0 CFM (173.4 m³/h / 2.89 m³/min)
Max. Static Pressure: 6.8 mmH₂O (66.7 Pa / 0.27 inH₂O)
Dimensions: 119mm x 119mm x 38mm
Weight: 260 g
Noise Level: 42.5 dB(A)
Life Expectancy: 100,000 Hours at 25°C

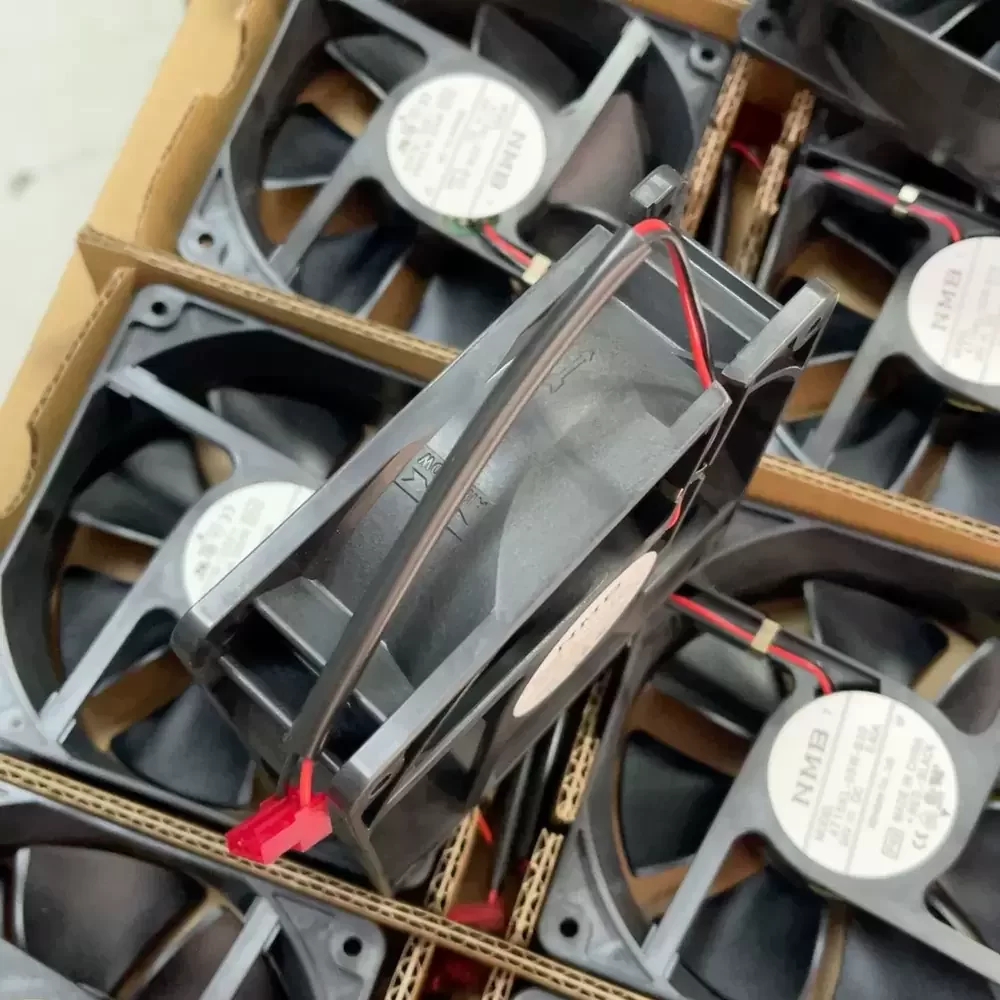

Termination: 2-Wire (Lead Wire)
Frame Material: Plastic (UL94V-0)
Impeller Material: Plastic (UL94V-0)
Operating Temperature: -10°C to +70°C
Storage Temperature: -40°C to +70°C
Ingress Protection: Standard
Motor Protection: Locked Rotor Protection, Reverse Polarity Protection
Dielectric Strength: 50/60 Hz, 500 VAC, 1 minute
Insulation Resistance: 10 MΩ or over with a DC500V Megger
The 4715KL-05W-B30-P48 is specifically designed for demanding cooling scenarios, including computer radiators, server chassis, and industrial automation control panels. Its high static pressure capabilities make the 4715KL-05W-B30-P48 ideal for pushing air through restrictive fins and filters found in telecommunications equipment and power supply units, ensuring component stability during prolonged operation.
