Description

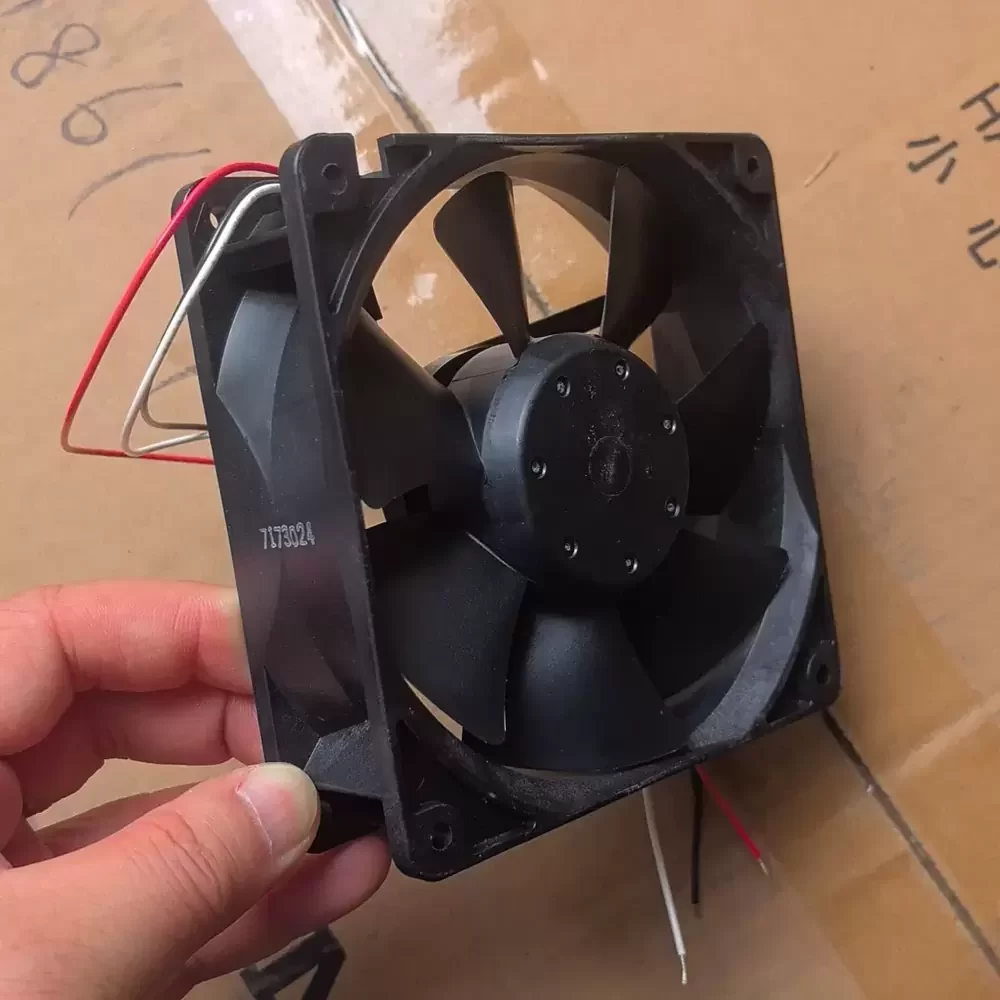

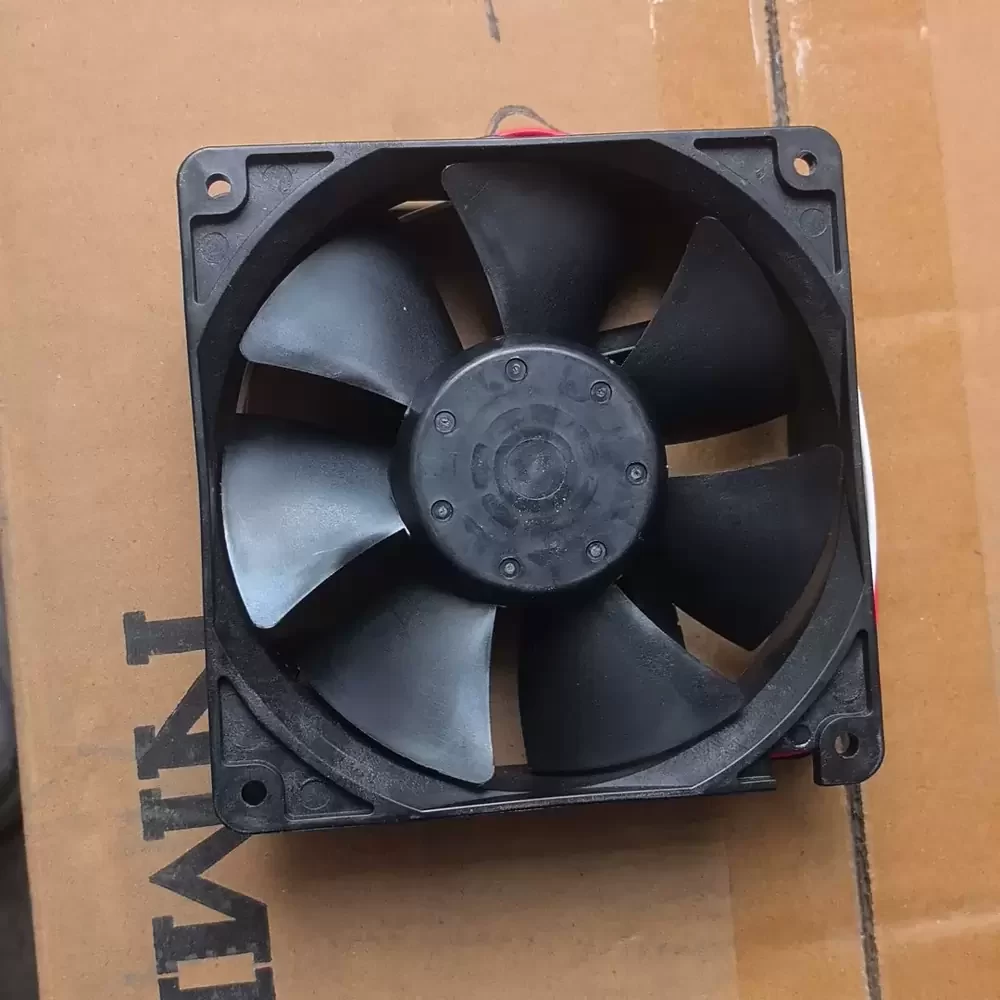

The NMB-MAT 4715KL-05W-B39-E00 is a precision-engineered DC axial fan designed for high-reliability industrial thermal management. Utilizing advanced double ball bearing architecture, this unit ensures minimal friction and extended operational longevity under continuous load. The aerodynamic impeller design optimizes airflow efficiency while maintaining structural rigidity, effectively reducing thermal impedance in dense electronic enclosures. Engineered for stability, the 4715KL-05W-B39-E00 delivers consistent cooling performance, making it an ideal solution for critical inverter systems and automation equipment requiring robust heat dissipation.

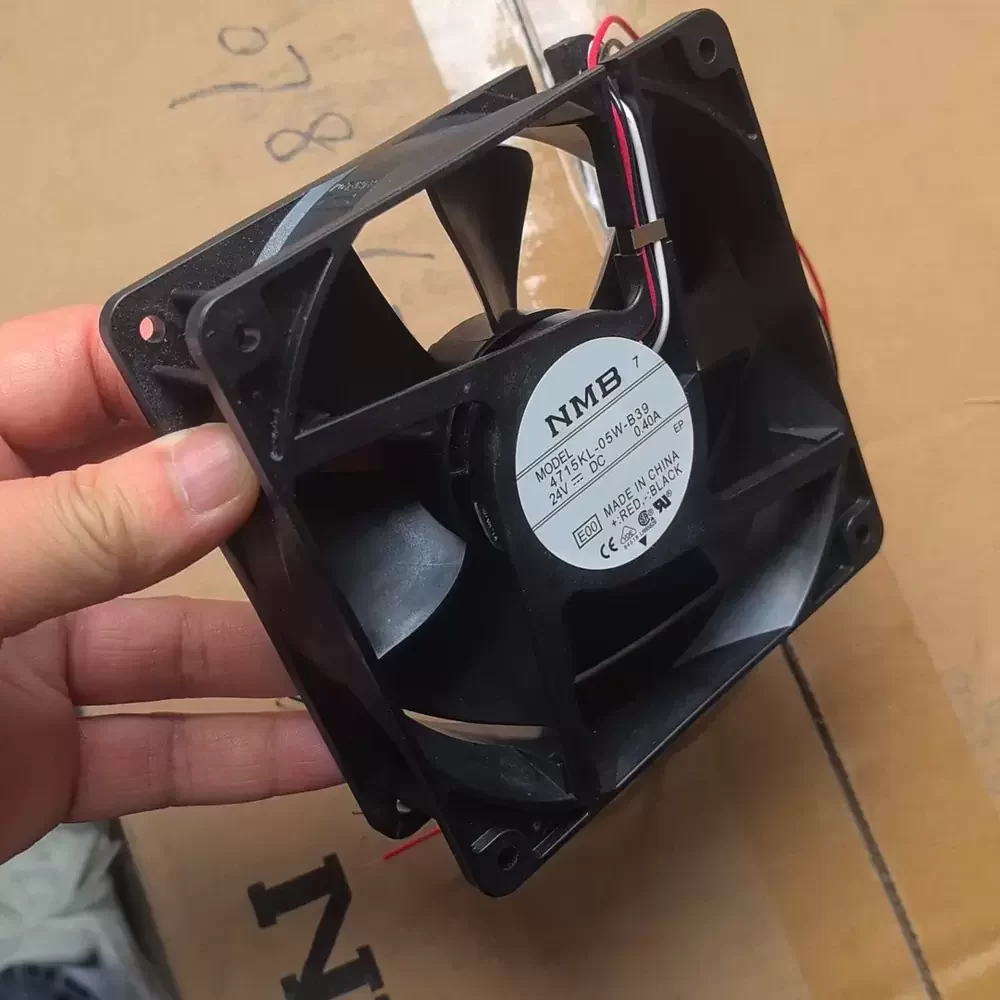

Model Number: 4715KL-05W-B39-E00
Brand: NMB-MAT (MinebeaMitsumi)
Product Type: DC Axial Fan
Rated Voltage: 24VDC
Voltage Range: 14.0 – 27.6 VDC
Rated Current: 0.40 A
Input Power: 9.60 W
Rated Speed: 2950 RPM
Bearing Type: Double Ball Bearing
Max. Air Flow: 108.0 CFM (183.4 m³/h / 3.05 m³/min)
Max. Static Pressure: 68.6 Pa (7.0 mmH₂O / 0.27 inH₂O)
Dimensions: 120mm x 120mm x 38mm
Weight: 260 g
Housing Material: Plastic (UL94V-0)
Impeller Material: Plastic (UL94V-0)
Noise Level: 42.0 dB(A)
Life Expectancy: 100,000 Hours at 25°C
Operating Temperature: -10°C to +70°C
Storage Temperature: -40°C to +70°C
Termination: Lead Wires
Protection: Locked Rotor Protection, Polarity Protection
Application: Fanuc Inverter Cooling
Designed specifically for demanding industrial environments, the 4715KL-05W-B39-E00 excels in cooling variable frequency drives and servo amplifiers, including Fanuc inverter systems. Its robust construction allows for reliable integration into CNC machinery control cabinets, server racks, and telecommunications infrastructure where continuous airflow is paramount. By maintaining optimal operating temperatures, the 4715KL-05W-B39-E00 prevents thermal throttling in power electronics, ensuring system uptime and component longevity in manufacturing and data processing facilities.
