Description

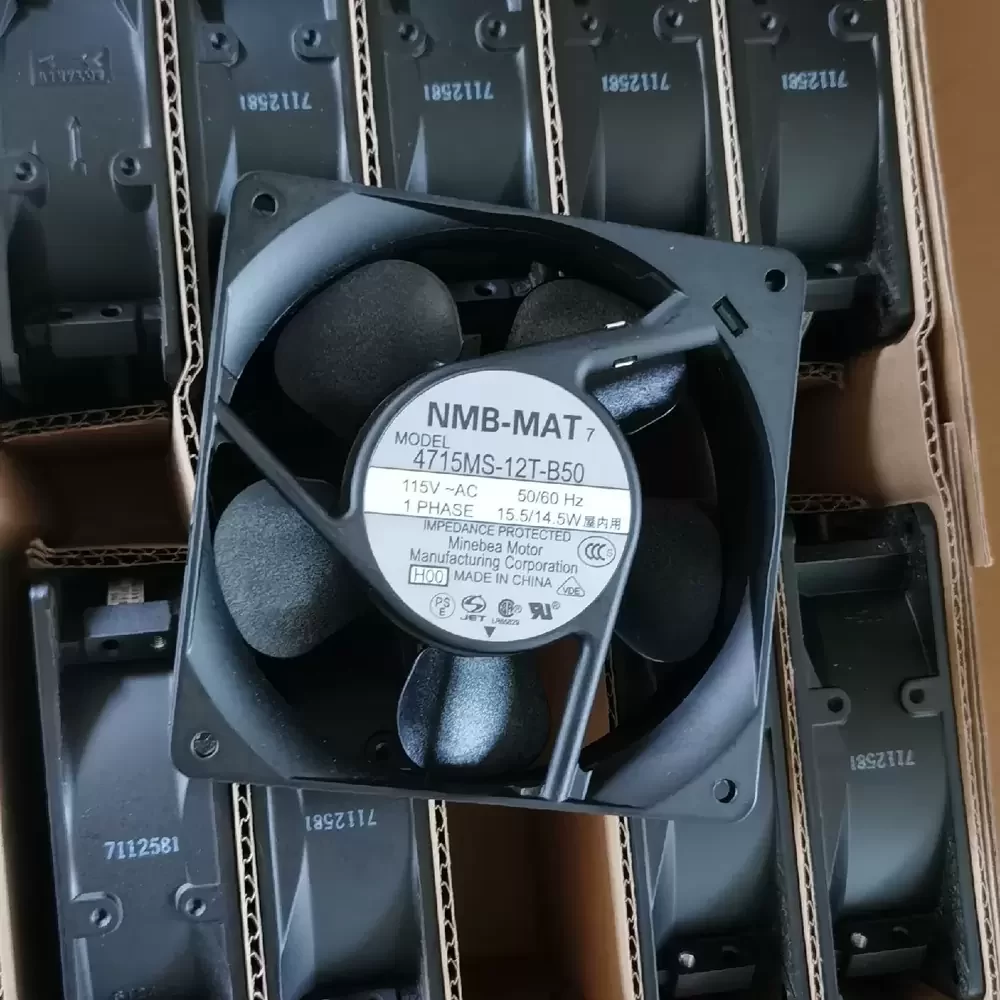

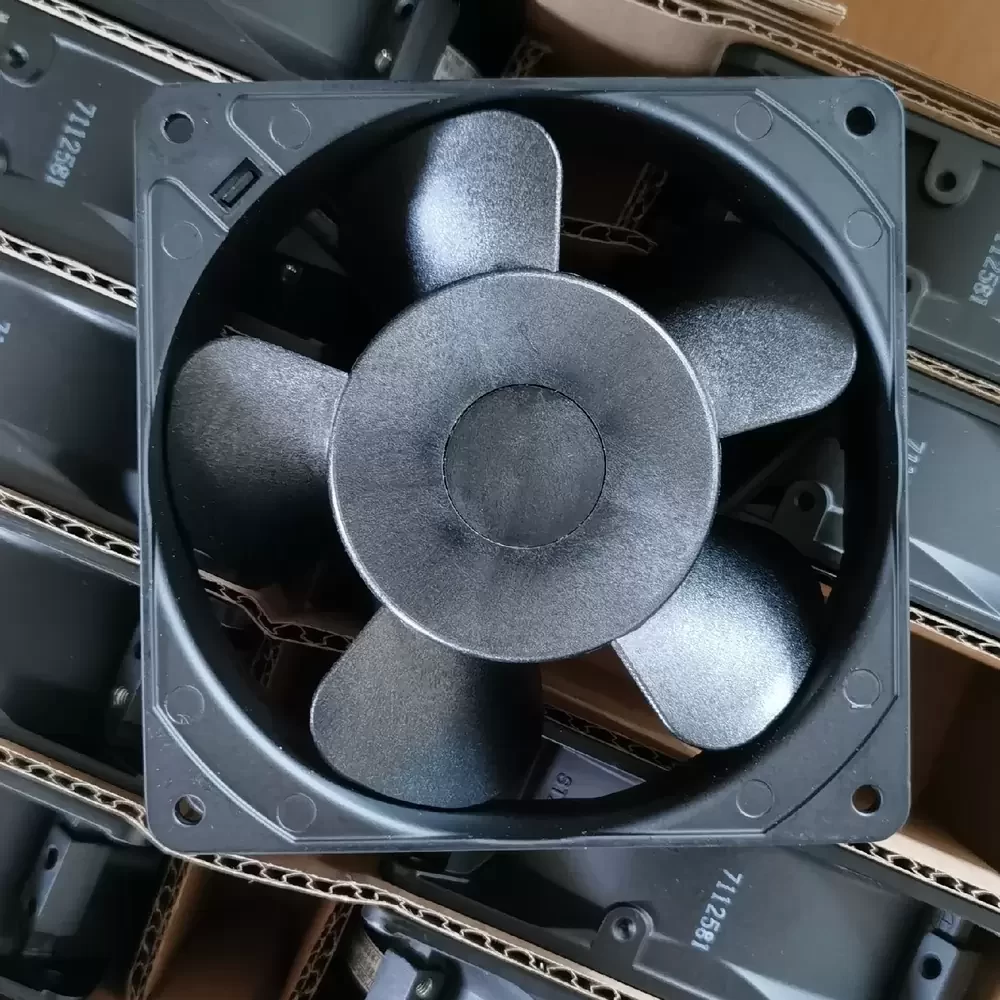

The NMB 4715MS-12T-B50-H00 is a robust AC axial fan engineered for industrial thermal management requiring high reliability and structural rigidity. Utilizing a shaded pole induction motor architecture, this unit features a precision-machined aluminum die-cast housing that acts as a heatsink, significantly lowering thermal impedance during operation. The aerodynamic profile of the impeller is designed to optimize static pressure delivery while minimizing turbulence-induced noise. Equipped with dual ball bearings, the system ensures consistent rotational stability and longevity, making it suitable for continuous duty cycles in harsh environments.
Model Number: 4715MS-12T-B50-H00
Brand: NMB (NMB-MAT / Minebea)
Product Type: AC Axial Fan
Rated Voltage: 115 VAC
Frequency: 50 / 60 Hz
Rated Current: 0.180 / 0.160 A
Input Power: 15.5 / 14.5 W
Rated Speed: 2600 / 2900 RPM
Bearing Type: Dual Ball Bearing
Max. Air Flow: 88.2 / 102.4 CFM (2.5 / 2.9 m³/min)
Max. Static Pressure: 6.49 / 7.49 mmH₂O (63.7 / 73.5 Pa / 0.25 / 0.29 inH₂O)
Dimensions: 119 x 119 x 38 mm
Weight: 550 g
Life Expectancy: 100,000 Hours (at 25°C)
Noise Level: 37 / 41 dB(A)
Frame Material: Aluminum Die-Cast
Impeller Material: Polycarbonate (Black)
Insulation Resistance: 10M Ω or over with a DC500V Megger
Dielectric Strength: AC 1500V 1 min
Motor Protection: Impedance Protection
Termination: Terminal (Faston #110)
Operating Temperature: -10°C to +70°C
Mounting Orientation: Any
The 4715MS-12T-B50-H00 is specifically designed for integration into high-density industrial enclosures, such as CNC machine tool cabinets and power supply units where effective heat dissipation is critical. In telecom infrastructure and server racks, the 4715MS-12T-B50-H00 maintains optimal operating temperatures for sensitive electronics, preventing thermal throttling. Its rugged metal construction also makes it a preferred choice for factory automation equipment exposed to mechanical vibration.
