Description

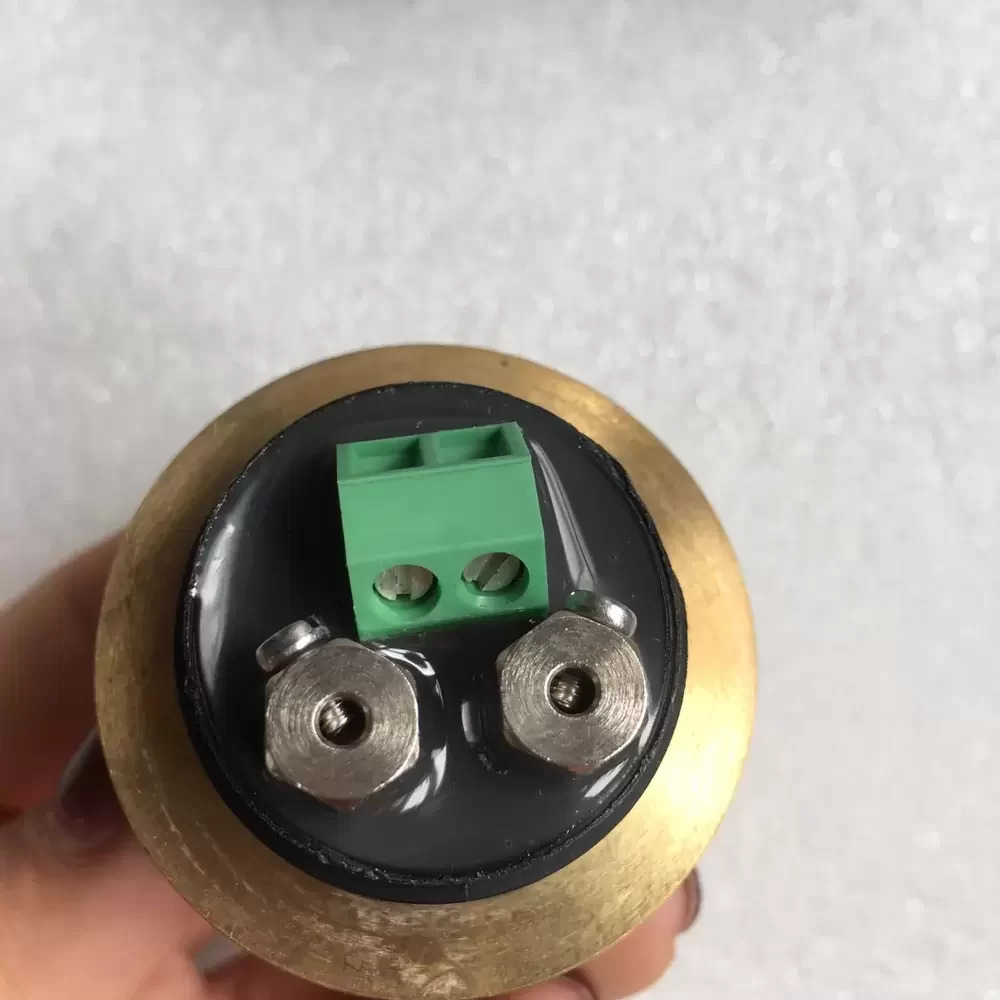

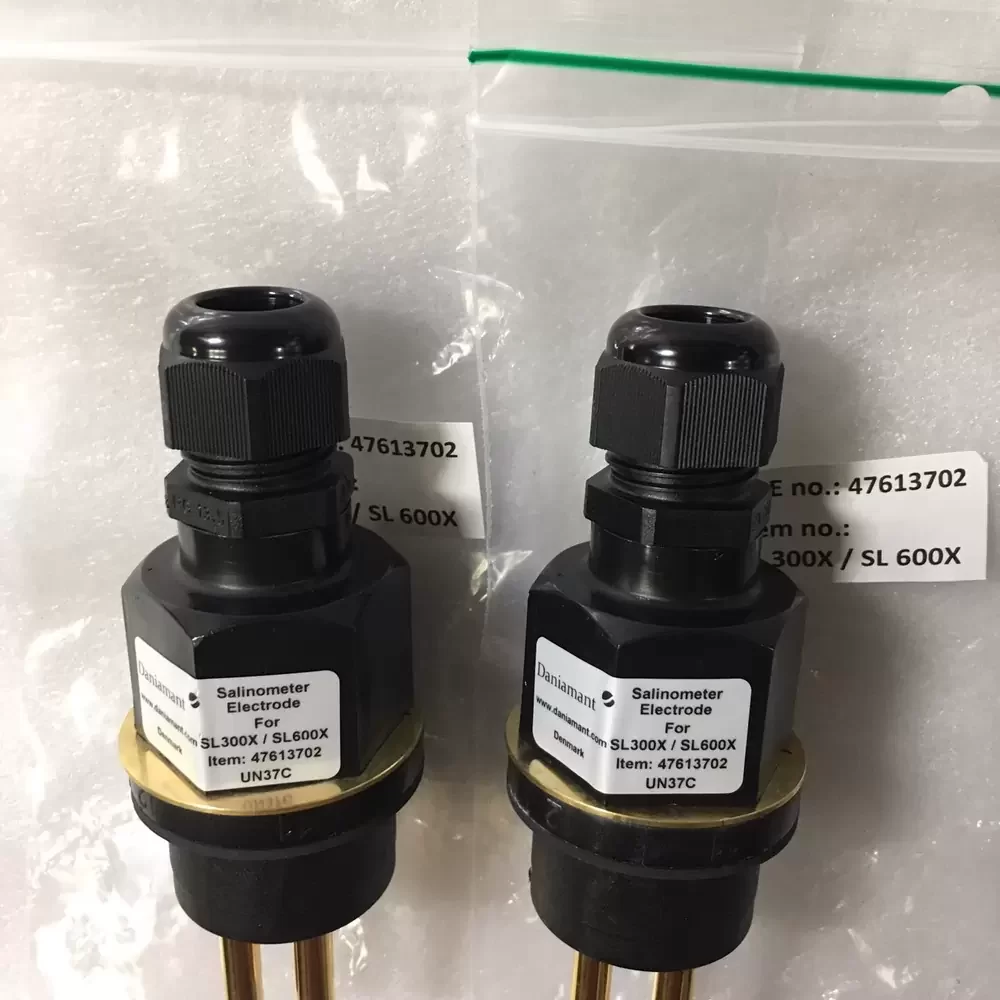

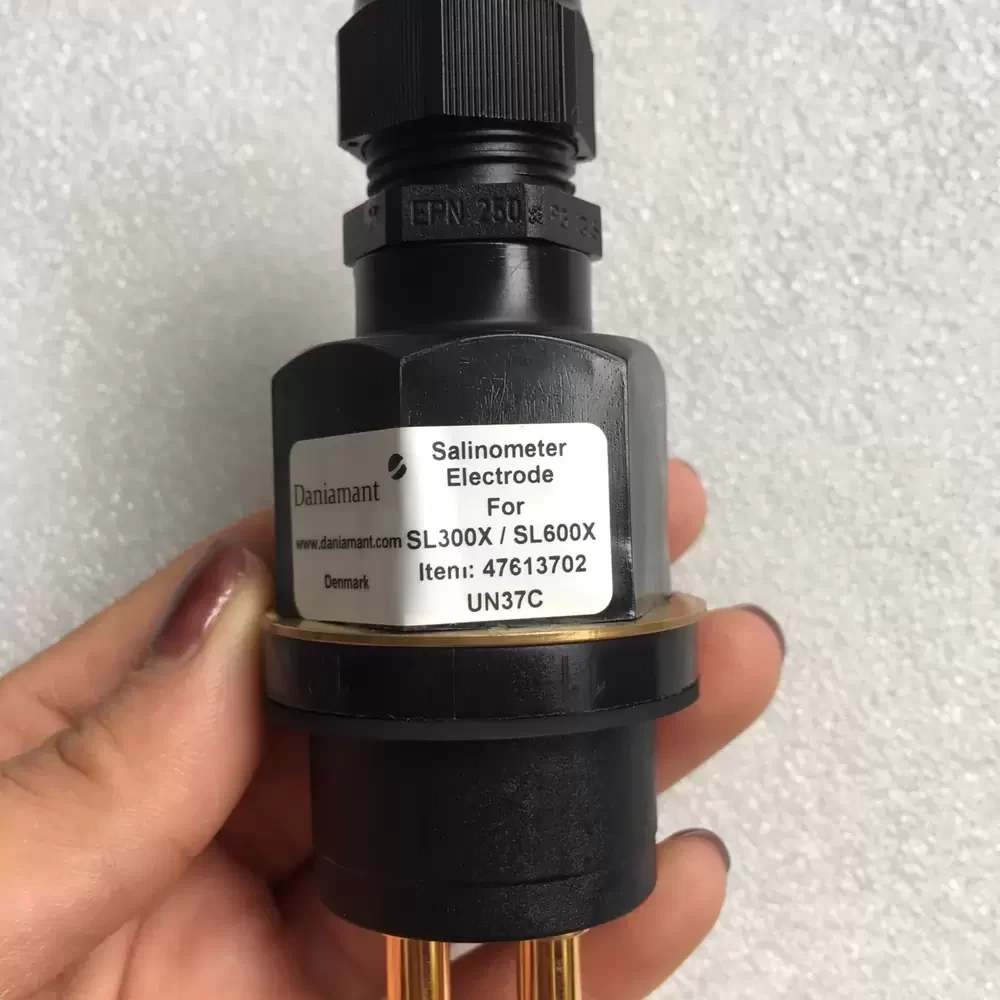

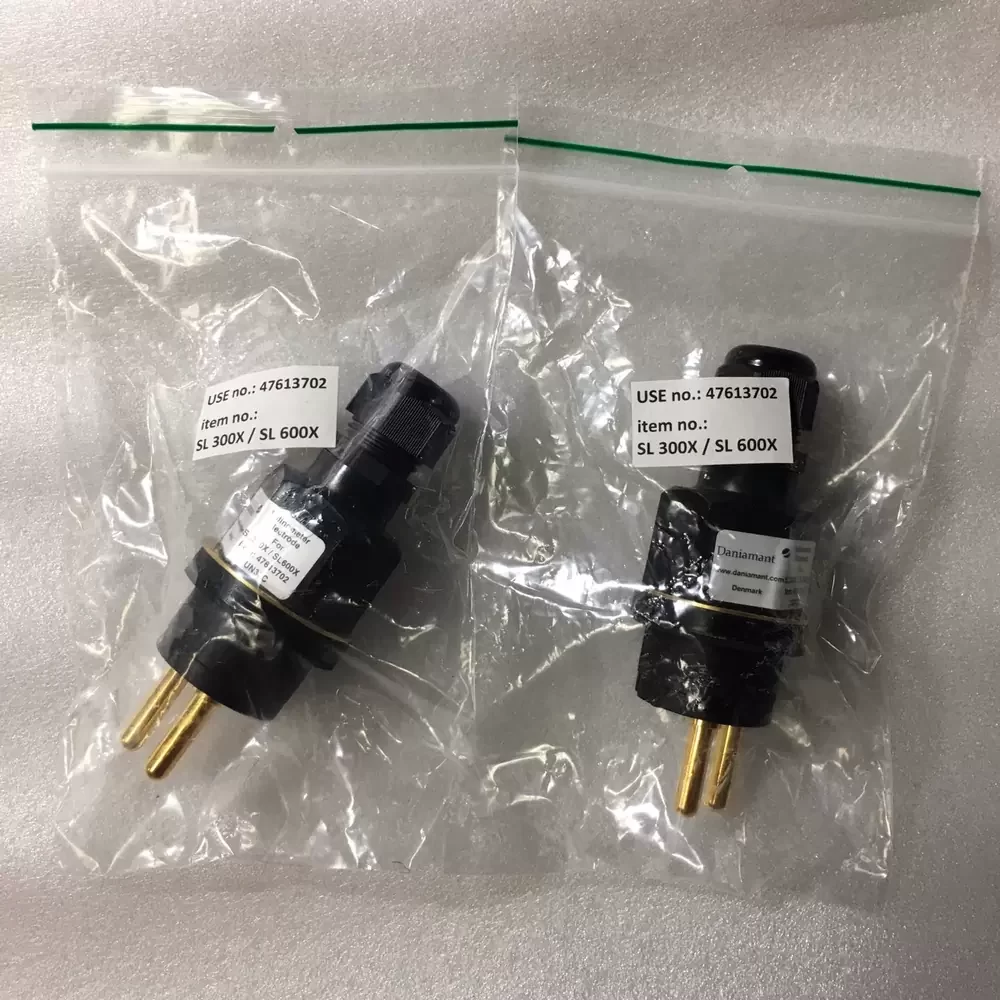

Daniamant 47613702 features a 0 to 200 ppm measurement range, 20 to 90 °C temperature compensation, and a 170 g physical weight. The gold-plated electrode unit is structurally designed for integration into standard 5/4 inch T-piece mounts, enabling direct conductivity measurement. It interfaces with control units providing a 4 to 20 mA output and operates within systems utilizing 90 to 240 VAC mains supply.
47613702 Specifications
Model Number: 47613702
Brand: Daniamant
Product Category: Salinometer Electrode
Measurement Range: 0 to 200 ppm
Temperature Compensation: 20 to 90 °C
Weight: 170 g
Contact Material: Gold-plated
Mounting Interface: Standard 5/4 inch T-piece
Compatible Output: 4 to 20 mA current loop
Compatible Mains Supply: 90 to 120 VAC / 200 to 240 VAC (50 to 60 Hz)
System Power Consumption: Max 10.0 W
Compatible Controllers: SL300X, SL600X, SL3000, SL3005, SL6000, SL6005
Approvals: DNV Type Approval (System)
47613702 Applications
Primary applications include integration into marine freshwater generators, boiler systems, and reversed osmosis (RO) freshwater systems. Deployed within desalination equipment on commercial vessels and submarines to continuously monitor water conductivity and prevent salt contamination in distillate discharge.
Additional information
| Shipping Weight | 1 kg |
|---|
