Description

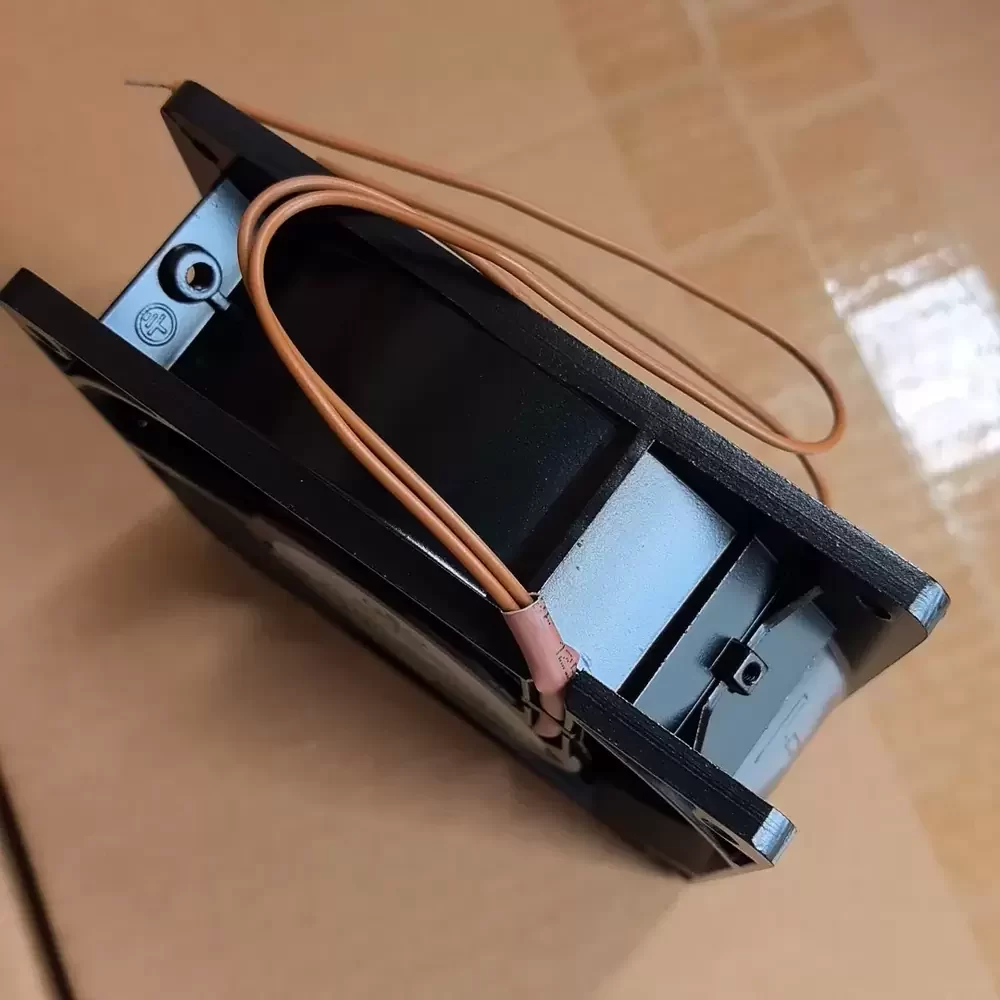

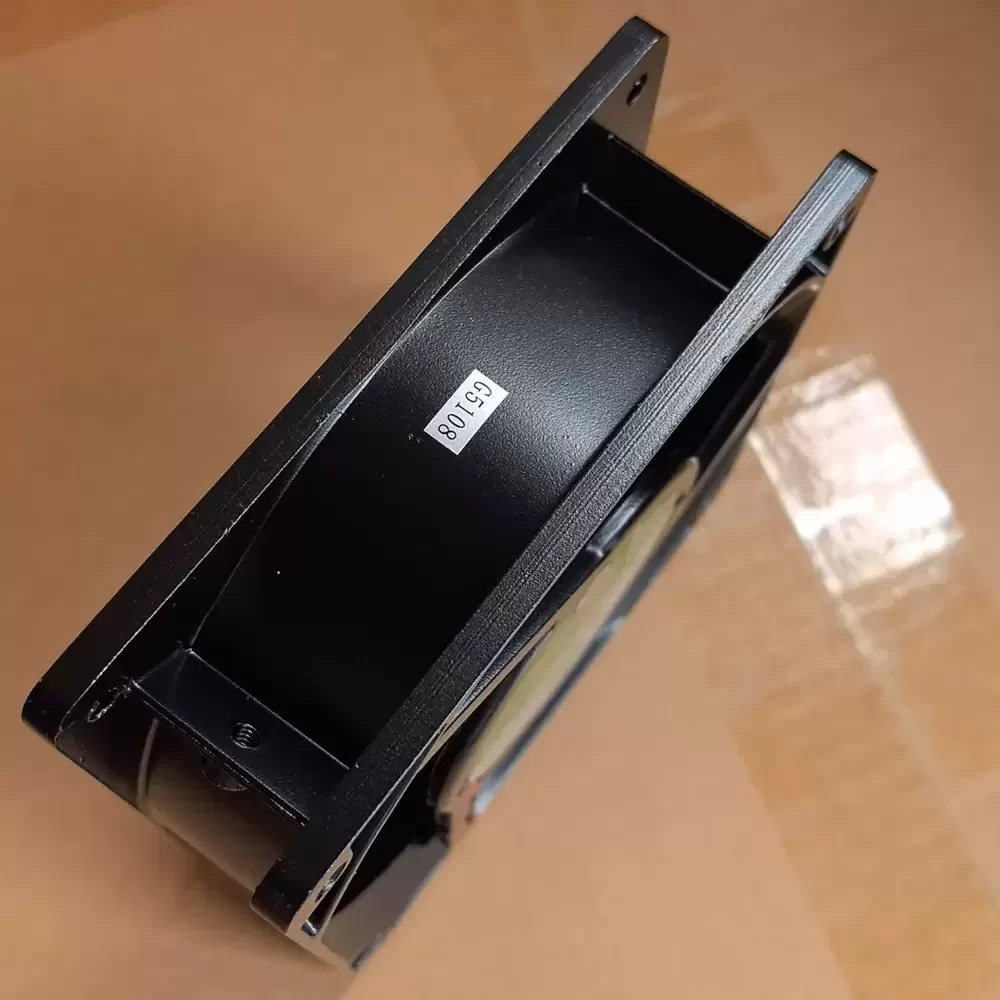

The Bi-Sonic 4C-230HB is a robust AC Axial Fan engineered for high-demand industrial cooling environments requiring superior structural rigidity. Utilizing a reliable shaded pole motor architecture coupled with a precision bearing system, this unit delivers consistent airflow while minimizing thermal impedance. The construction features a heavy-duty die-cast aluminum alloy frame which significantly enhances heat dissipation and vibration resistance compared to standard plastic alternatives. Designed for continuous duty cycles, the aerodynamic impeller profile optimizes pressure generation, ensuring efficient thermal management in systems where durability and performance stability are paramount specifications.
Model Number: 4C-230HB
Brand: Bi-Sonic
Product Type: AC Axial Fan
Rated Voltage: 230 VAC
Voltage Range: 220 – 240 VAC
Frequency: 50 / 60 Hz
Rated Current: 0.14 / 0.11 A
Power Input: 22 / 19 W
Rated Speed: 2650 / 3050 RPM
Bearing Type: Ball Bearing
Max. Air Flow: 100.0 CFM (169.9 m³/h / 2.83 m³/min)
Max. Static Pressure: 7.87 mmH₂O (77.2 Pa / 0.31 inH₂O)
Dimensions: 120 x 120 x 38 mm
Weight: 540 g
Housing Material: Die-Cast Aluminum Alloy
Impeller Material: Thermoplastic PBT (UL94V-0)
Operating Temperature: -10 to +70 °C
Storage Temperature: -40 to +70 °C
Noise Level: 46 dBA
Life Expectancy: 50,000 Hours @ 25°C
Dielectric Strength: 1500 VAC for 1 Min
Insulation Resistance: > 500M Ohms
Motor Protection: Impedance Protected
Termination: Lead Wires / Terminals
The Bi-Sonic 4C-230HB is extensively utilized in industrial automation enclosures, server cabinets, and power supply units where reliable heat extraction is critical. Its robust aluminum construction makes the 4C-230HB particularly suitable for harsh manufacturing environments, including CNC machinery control panels and heavy-duty instrumentation cooling. The fan is also frequently deployed in telecommunications infrastructure and medical equipment racks, ensuring optimal operating temperatures for sensitive electronic components.
