Description

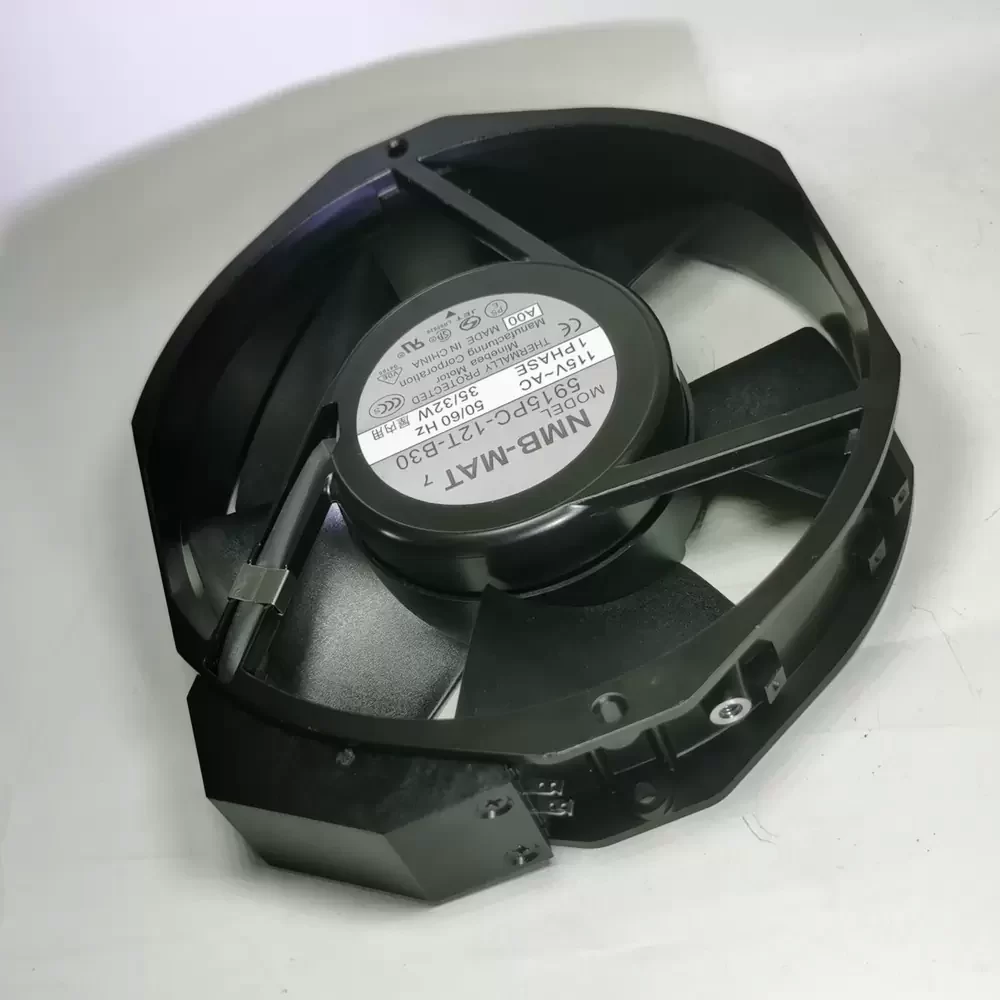

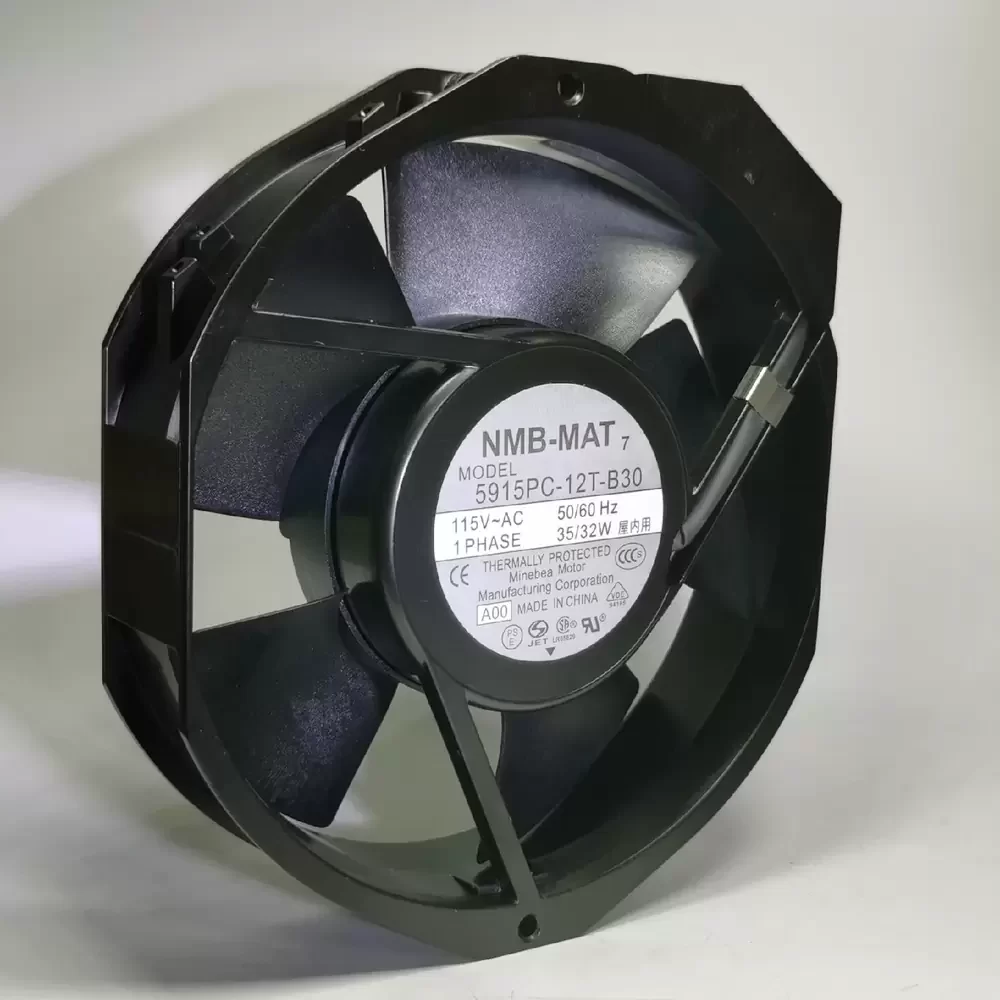

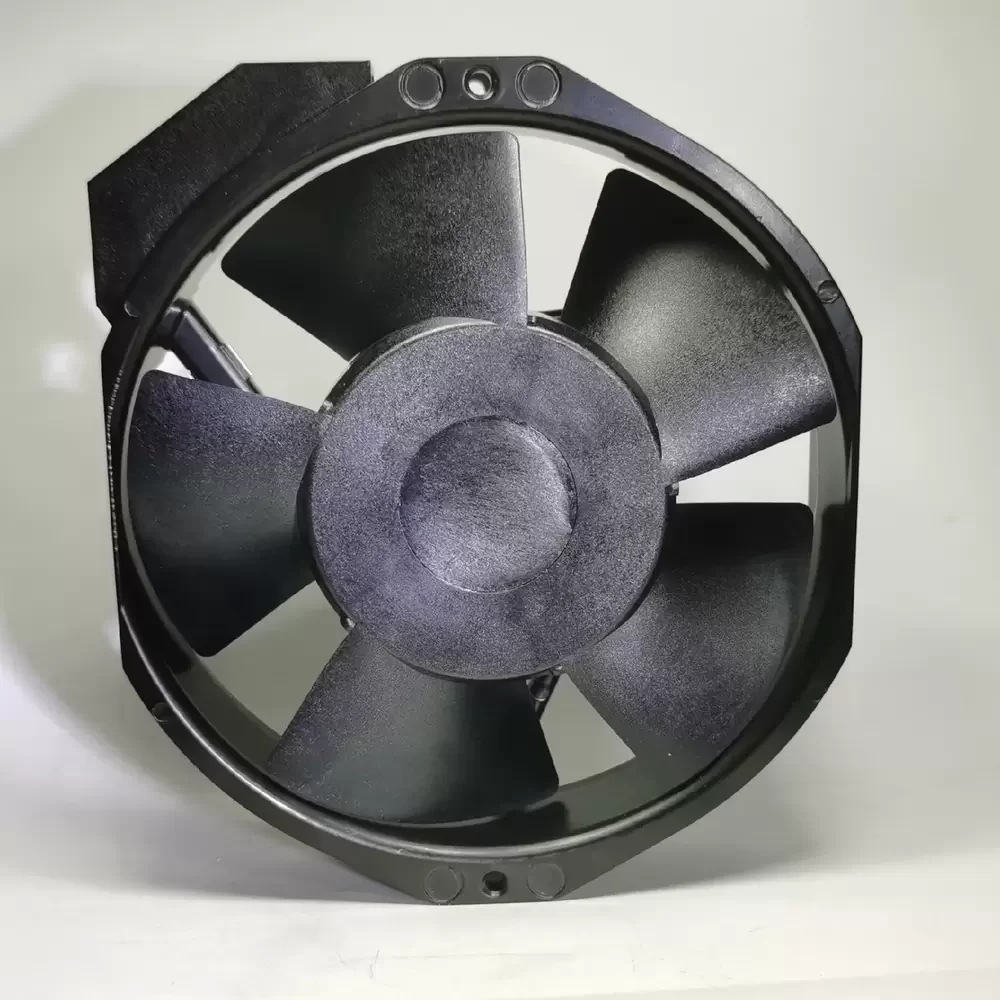

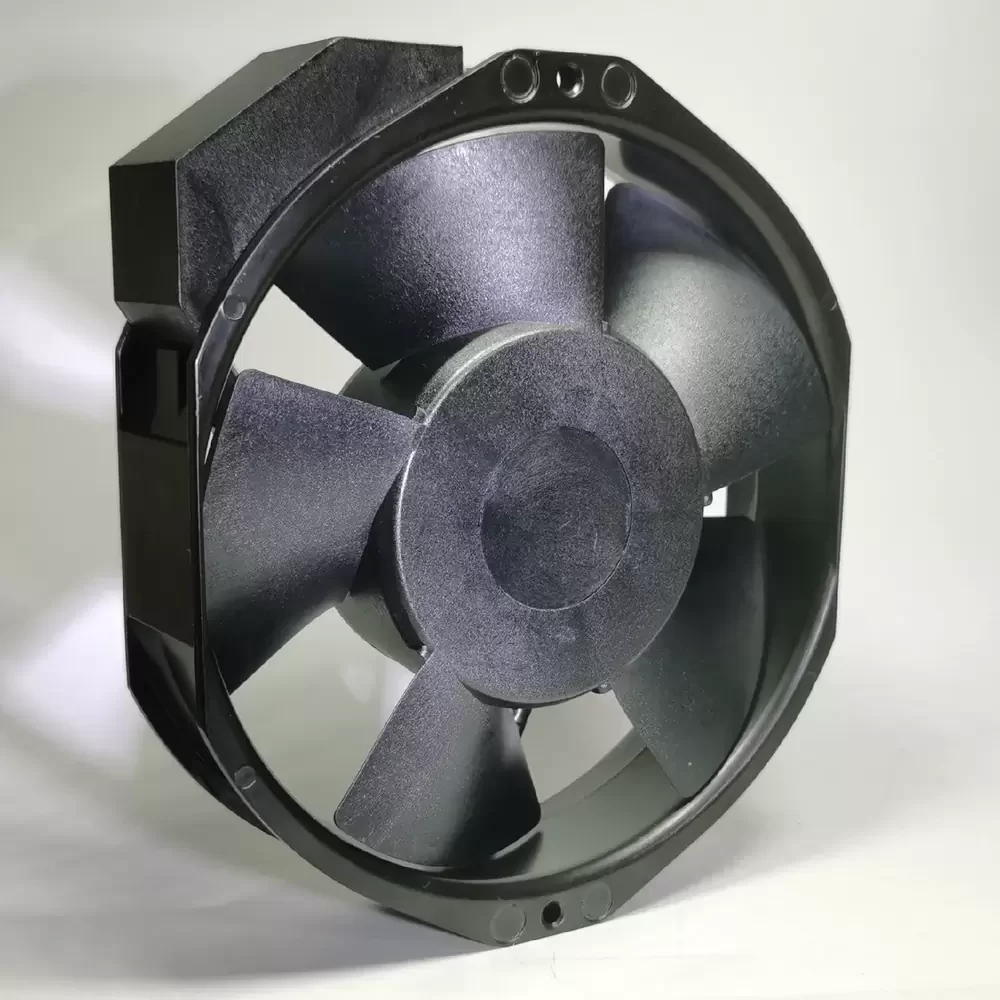

The NMB-MAT 5915PC-12T-B30-A00 is a robust AC Axial Fan engineered for high-reliability industrial cooling applications. Utilizing a precision dual ball bearing architecture, this unit ensures minimal friction and extended operational service life under continuous duty cycles. The aerodynamic impeller design optimizes airflow efficiency while maintaining structural rigidity within the aluminum die-cast frame. Designed for 115VAC operation, it delivers superior thermal impedance management, making it suitable for demanding environments requiring consistent static pressure and volumetric flow.
Model Number: 5915PC-12T-B30-A00
Brand: NMB-MAT (MinebeaMitsumi)
Product Type: AC Axial Fan
Rated Voltage: 115 VAC
Frequency: 50 / 60 Hz
Input Power: 35 / 32 W
Current: 0.360 / 0.320 A
Rated Speed: 2700 / 3100 RPM
Max. Air Flow: 176.5 / 212.0 CFM (300 / 360 m³/h / 5.0 / 6.0 m³/min)
Max. Static Pressure: 14.0 / 17.5 mmH₂O (137.2 / 171.5 Pa / 0.55 / 0.69 inH₂O)
Noise Level: 52 / 56 dB(A)
Bearing Type: Dual Ball Bearing
Dimensions: 172 mm x 150 mm x 38 mm (Side Cut Frame)
Weight: 800 g
Frame Material: Aluminum Die-Cast
Impeller Material: Polycarbonate (Black) UL94V-0
Termination: 2-Terminal (Faston #110)
Operating Temperature: -10°C to +70°C
Storage Temperature: -40°C to +70°C
Life Expectancy: 50,000 Hours (at 25°C)
Protection: Impedance Protected
Phase: 1 Phase
Rotation: Counter-Clockwise
Induction System: Capacitor-Run Induction Motor
This cooling solution is specifically calibrated for industrial machinery and power management systems. The 5915PC-12T-B30-A00 is frequently integrated into CNC machine tool cabinets, such as Haas equipment, to dissipate heat generated by servo drives and spindle motors. Additionally, the 5915PC-12T-B30-A00 serves as a critical component in Uninterruptible Power Supply (UPS) units and server rack enclosures, ensuring thermal stability for sensitive electronics in telecommunications and automation sectors.
