Description

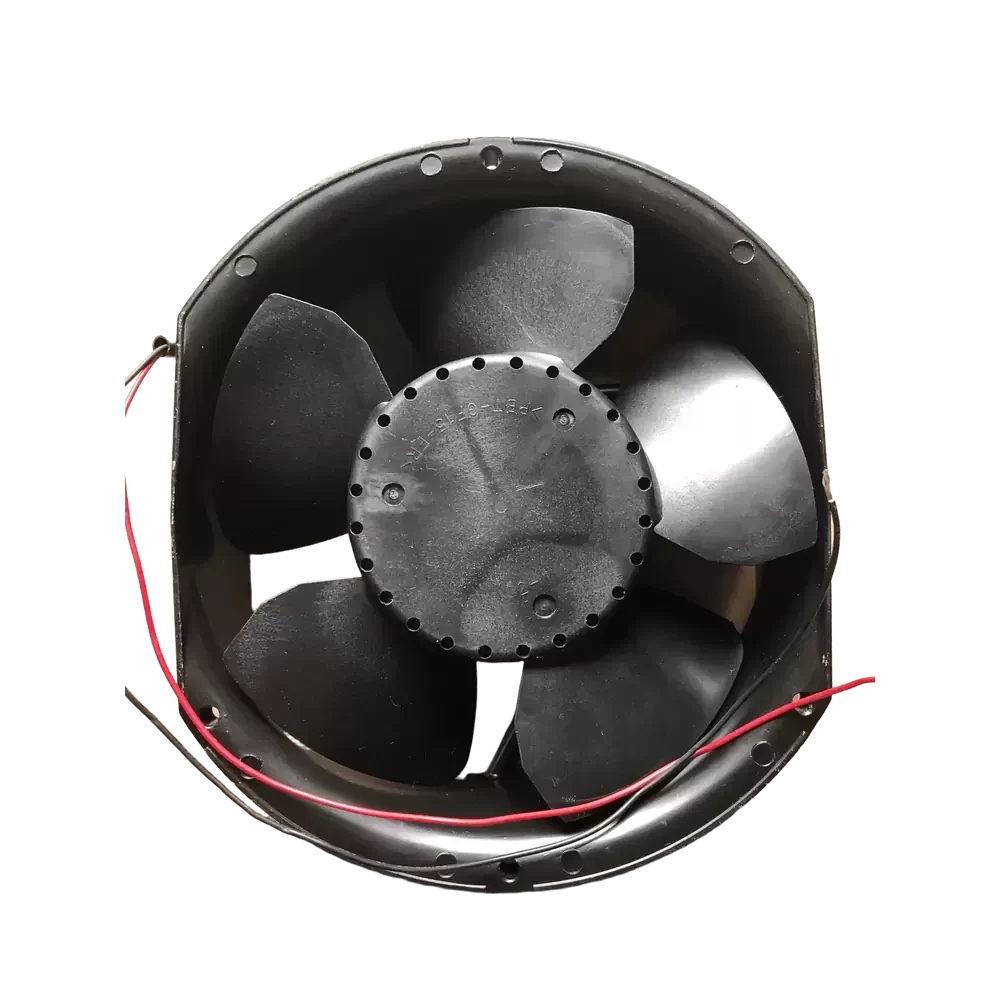

The NMB-MAT 5920VL-05W-B60-DQ1 is a high-performance DC Axial Fan engineered by MinebeaMitsumi for critical thermal management in industrial environments. Utilizing advanced dual ball bearing architecture, this unit ensures exceptional longevity and reduced frictional coefficients under continuous operation, significantly lowering the risk of mechanical failure. The aerodynamic impeller design optimizes airflow dynamics to overcome high system impedance, delivering substantial static pressure required for densely packed electronics. Constructed with a robust aluminum die-cast frame and reinforced plastic impeller, the fan maintains structural rigidity while effectively dissipating heat, making it an ideal solution for high-density electronic enclosures requiring reliable forced convection cooling.
Model Number: 5920VL-05W-B60-DQ1
Brand: NMB-MAT (MinebeaMitsumi)
Product Type: DC Axial Fan
Rated Voltage: 24 VDC
Voltage Range: 18.0 – 27.6 VDC
Rated Current: 1.46 A
Power Consumption: 35.0 W
Rated Speed: 3650 RPM
Bearing Type: Dual Ball Bearing
Max. Air Flow: 285.0 CFM (484.2 m³/h / 8.07 m³/min)
Max. Static Pressure: 21.5 mmH₂O (210.8 Pa / 0.85 inH₂O)
Dimensions: 172mm x 150mm x 51mm
Weight: 830 g
Life Expectancy: 100,000 Hours at 25°C
Noise Level: 61.0 dBA
Frame Material: Aluminum Die-Cast
Impeller Material: Plastic (UL94V-0)
Termination: 2-Wire Lead (Red +, Black -)
Operating Temperature: -10°C to +70°C
Storage Temperature: -40°C to +70°C
Insulation Resistance: 10M Ohm at 500VDC
Dielectric Strength: 700VAC for 3 seconds
Protection: Locked Rotor Protection, Polarity Protection
Mounting: Flange Type
Designed for demanding industrial applications, the 5920VL-05W-B60-DQ1 excels in cooling high-power frequency inverters and variable frequency drives (VFDs) where consistent thermal regulation is paramount. Its robust construction makes it suitable for server rack ventilation, telecommunications base stations, and large-scale power supply units. The 5920VL-05W-B60-DQ1 is also frequently integrated into CNC machinery control panels and medical instrumentation, ensuring component stability by preventing thermal throttling in enclosed spaces.
