Description

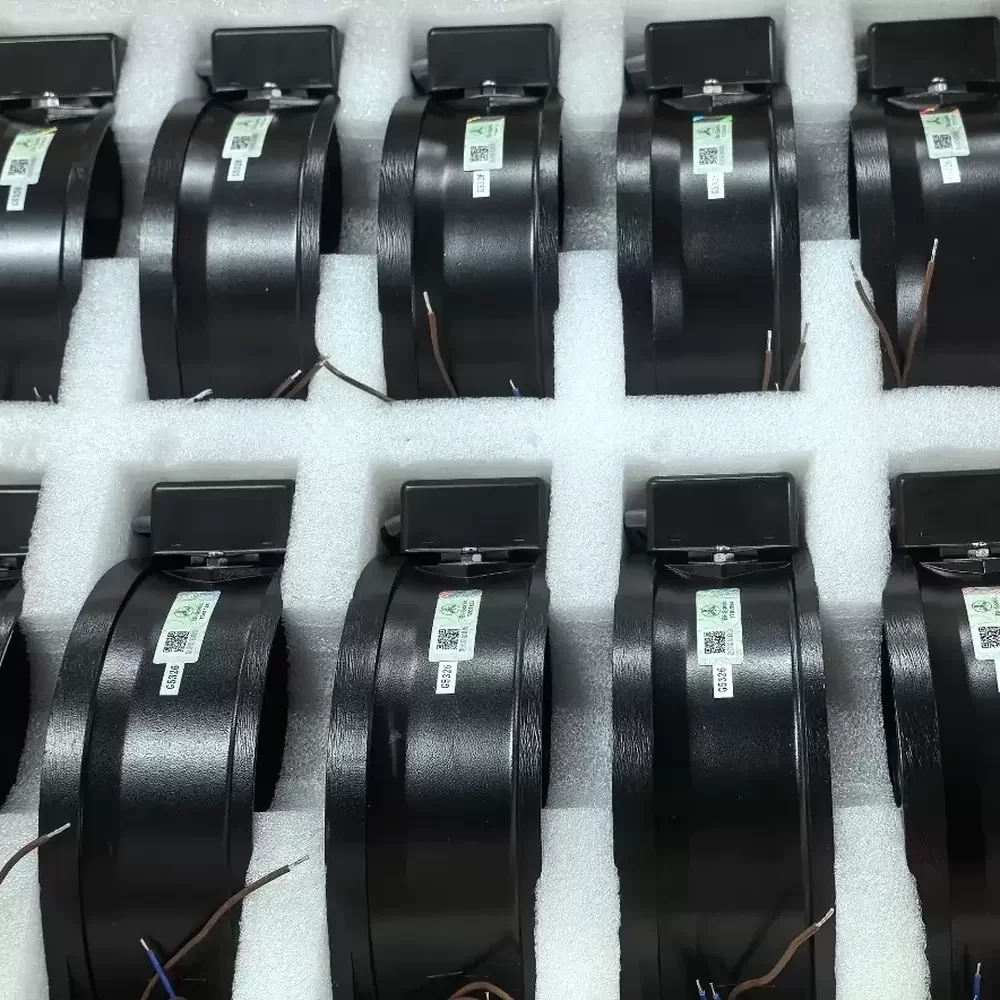

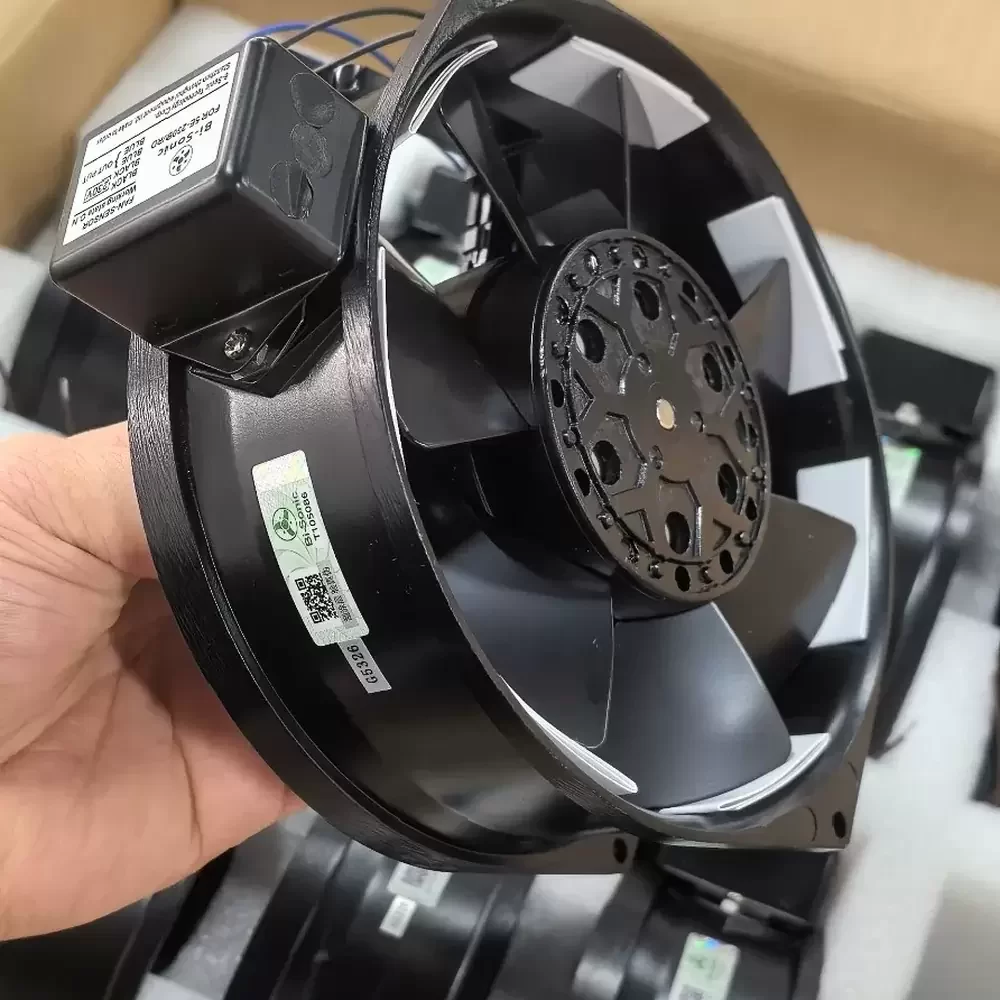

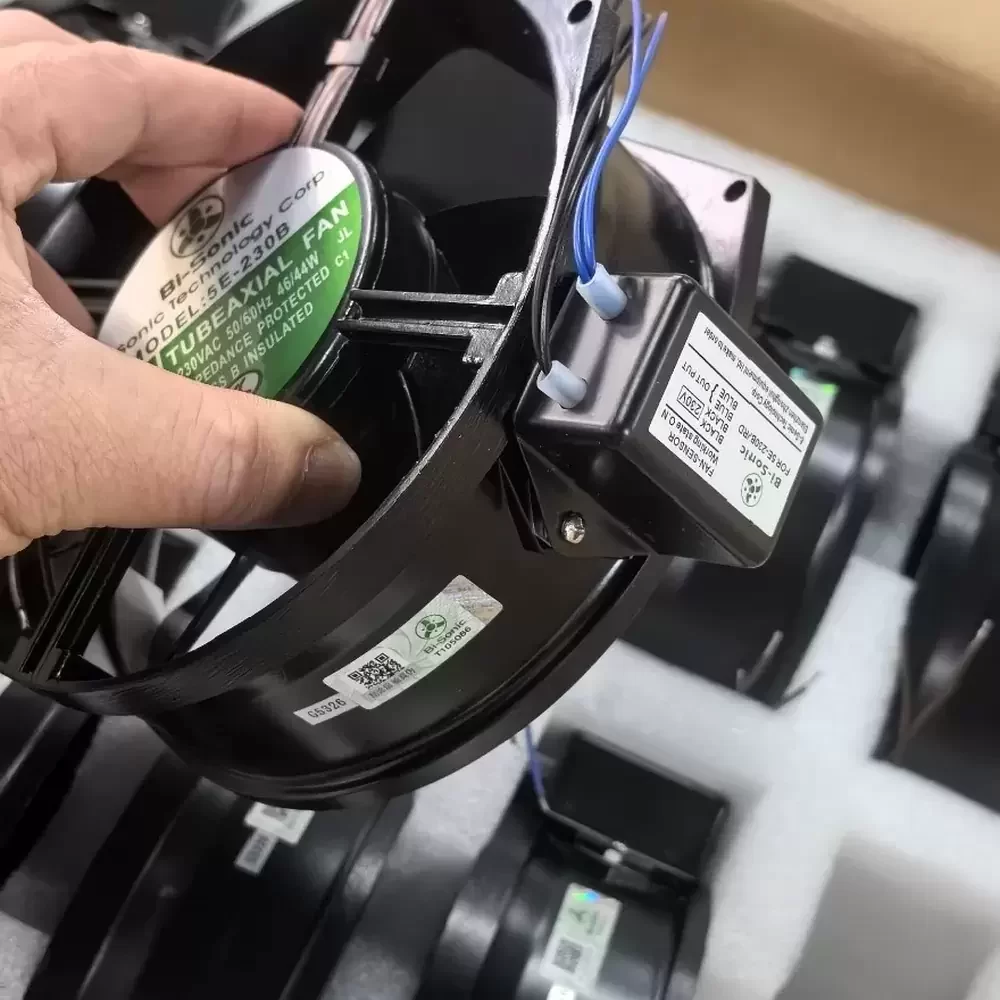

The Bi-Sonic 5E-230B is a heavy-duty AC Axial Fan engineered for rigorous industrial thermal management and high-static pressure environments. Constructed with a robust aluminum die-cast frame and a high-temperature resistant metal impeller, this unit offers superior structural rigidity and durability compared to plastic alternatives. The motor assembly utilizes a precision ball bearing architecture to minimize friction and thermal impedance, ensuring extended operational life under continuous load. Featuring a specialized 4-wire configuration with an RD (Rotation Detector) alarm signal, this fan provides critical failure monitoring capabilities essential for safeguarding mission-critical electronics.
Model Number: 5E-230B
Brand: Bi-Sonic
Product Type: AC Axial Fan
Rated Voltage: 230 VAC
Frequency: 50/60 Hz
Power: 46/44 W
Rated Speed: 2700/3100 RPM
Max. Air Flow: 235 CFM (399 m³/h / 6.65 m³/min)
Max. Static Pressure: 16.5 mmH₂O (161 Pa / 0.65 inH₂O)
Bearing Type: Dual Ball Bearing
Dimensions: 172 x 150 x 55 mm
Frame Material: Aluminum Die-Cast (Black Coating)
Impeller Material: Metal
Features: RD Alarm (Rotation Detector), Impedance Protected
Termination: 4-Wire Lead
Operating Temperature: -30°C to +80°C
Life Expectancy: 50,000 Hours at 25°C
Weight: 1100 g
Designed for high-density industrial applications, the 5E-230B provides reliable airflow for server cabinets, telecommunications racks, and heavy-duty machinery. Its all-metal construction makes the 5E-230B particularly suitable for UPS systems and power supply units where high ambient temperatures and mechanical stability are required, effectively preventing thermal saturation in enclosed spaces.
