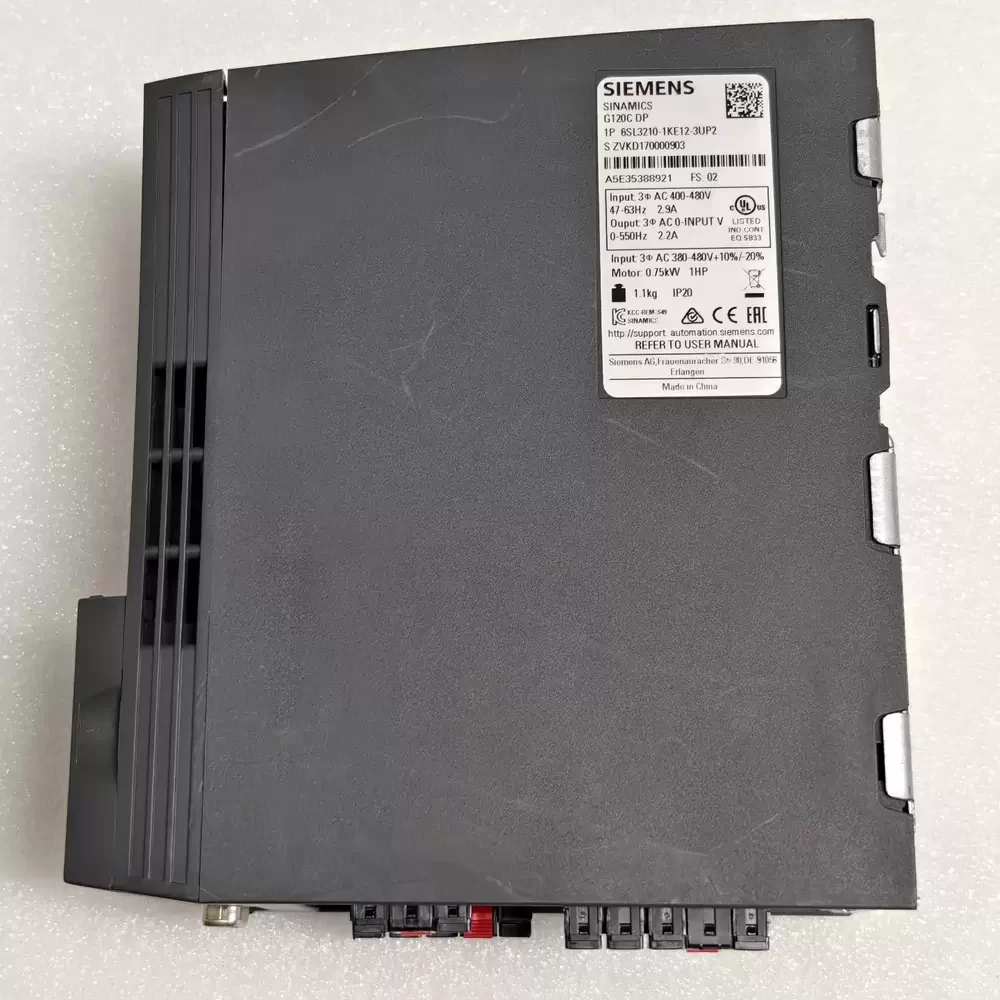

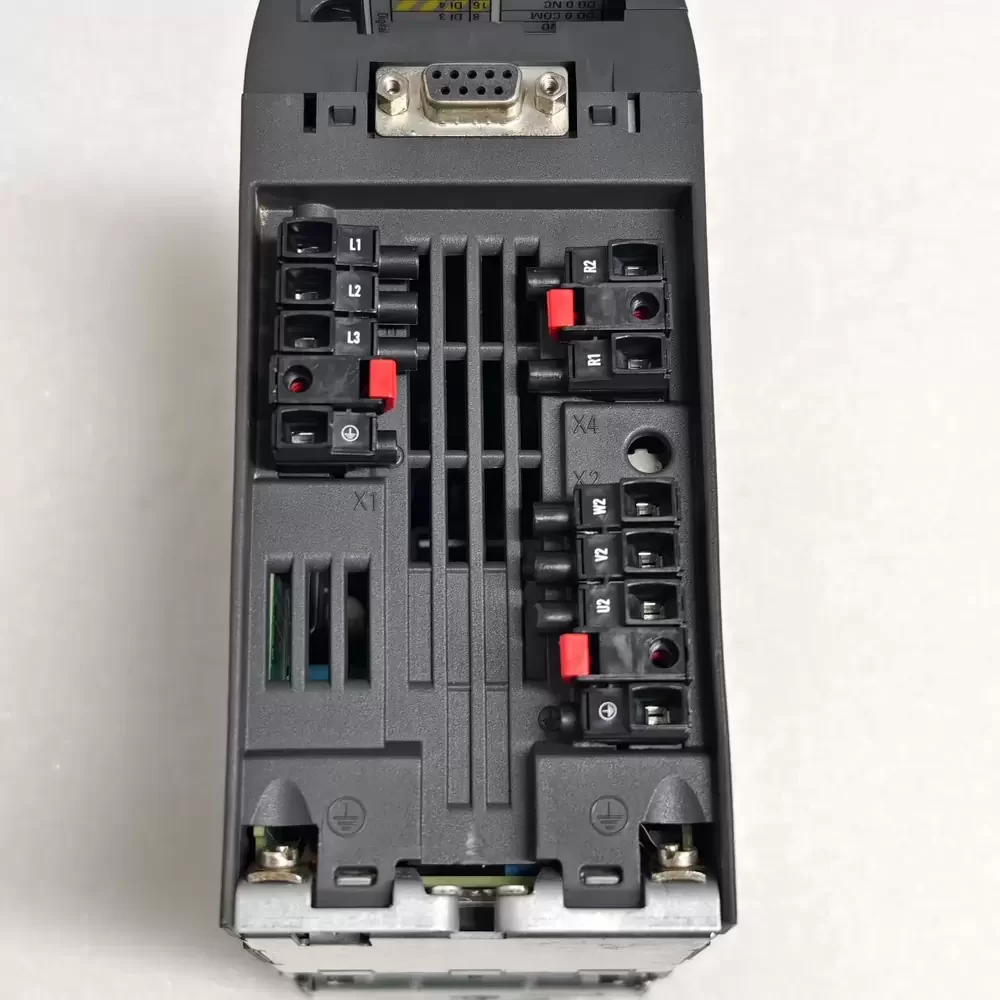

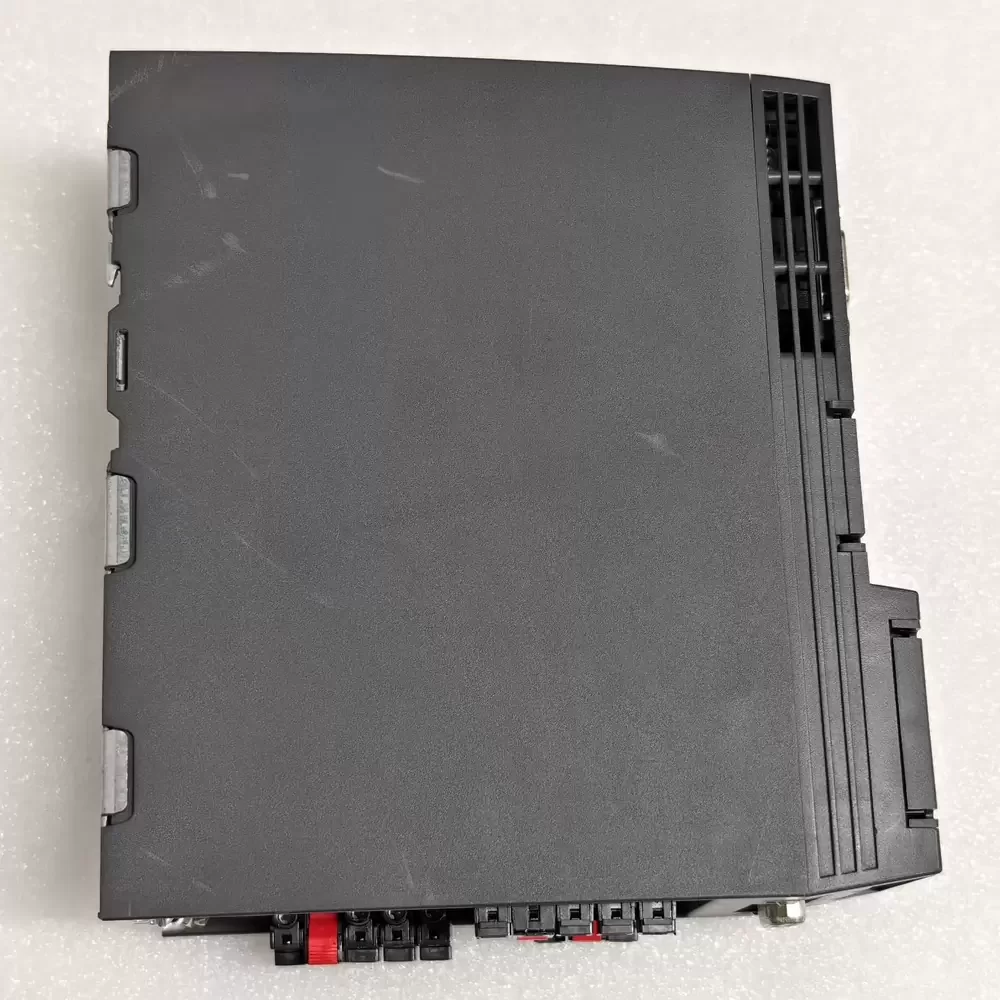

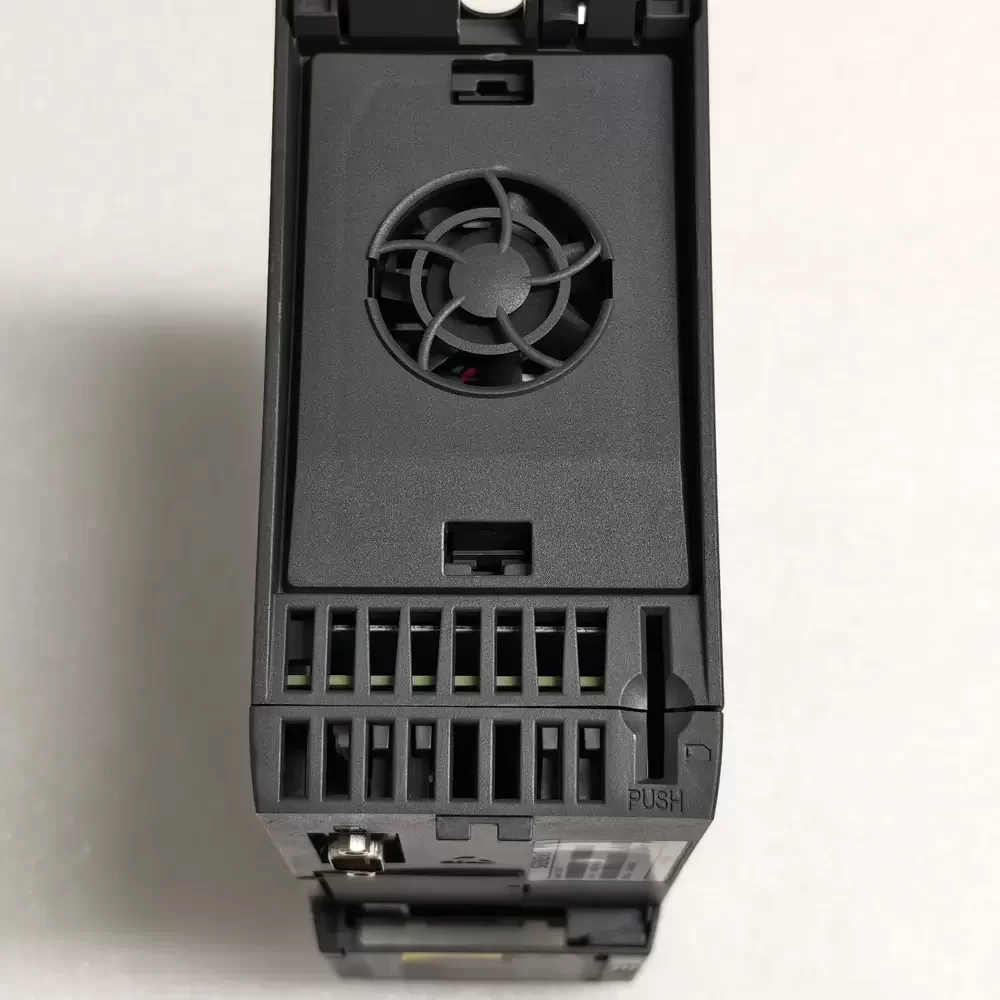

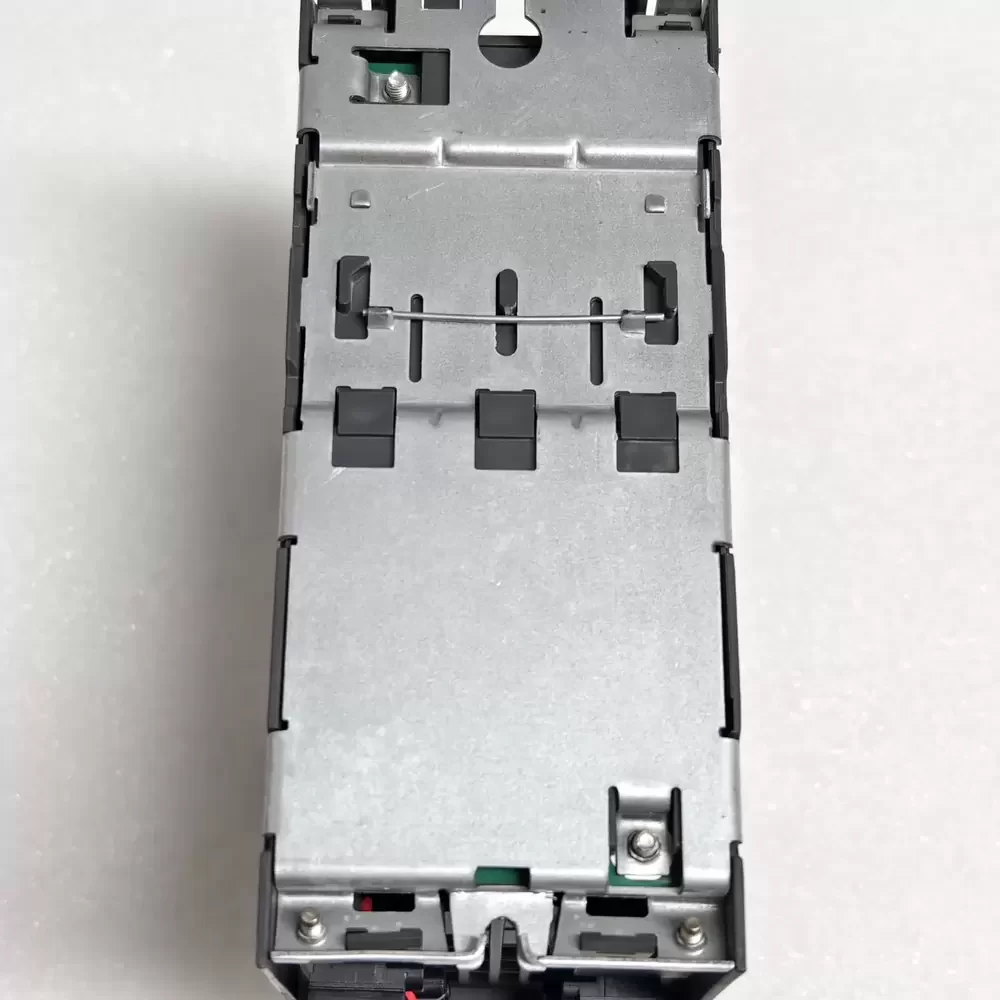

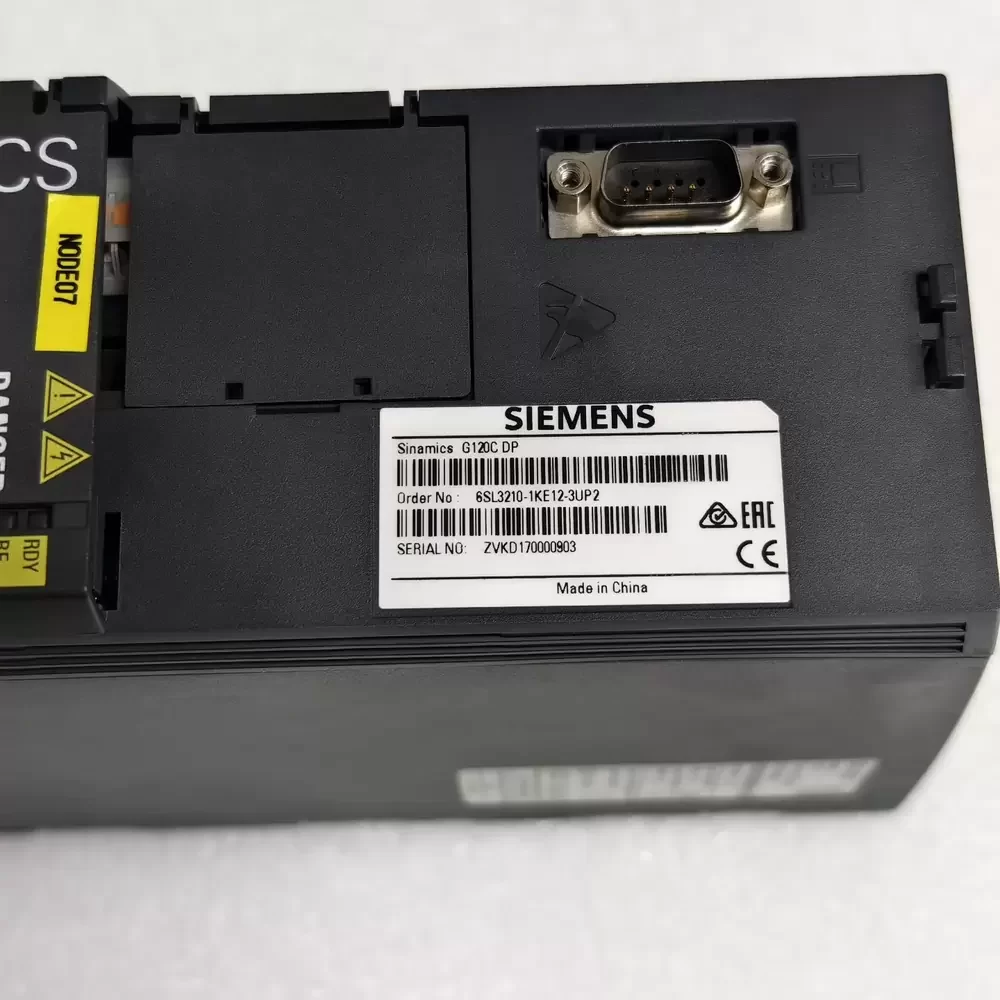

6SL3210-1KE12-3UP2 Siemens 0.75kW 400V USS/Modbus Inverter

Description

Siemens 6SL3210-1KE12-3UP2 is a compact frequency inverter measuring 73 x 173 x 155 mm with a nominal power rating of 0.75 kW and an input voltage range of 380 to 480 V AC. The unit features an FSAA frame size construction with an IP 20 protection rating and utilizes an unfiltered design for electromagnetic compatibility. It incorporates a side-by-side mounting capability, integrated USS and Modbus RTU communication interfaces, and a cooling system based on a built-in fan. The internal architecture supports V/f control, flux current control, and sensorless vector control with a pulse frequency of 4 kHz.

6SL3210-1KE12-3UP2 Specifications
Model Number: 6SL3210-1KE12-3UP2
Brand: Siemens
Product Series: SINAMICS G120C
Frame Size: FSAA
Rated Power (LO): 0.75 kW
Rated Power (HO): 0.55 kW
Input Voltage: 380 to 480 V AC (+10% / -20%)
Line Frequency: 47 to 63 Hz
Rated Input Current (LO): 2.90 A
Rated Input Current (HO): 2.50 A
Rated Output Current (LO): 2.20 A
Rated Output Current (HO): 1.70 A
Max Output Current: 3.40 A
Output Frequency (V/f): 0 to 550 Hz
Output Frequency (Vector): 0 to 240 Hz
Pulse Frequency: 4 kHz
Efficiency: 0.97
Power Factor: 0.70 to 0.85
Communication: USS / Modbus RTU
Filter Class: Unfiltered
Digital Inputs: 6 (Standard), 1 (Fail-safe)
Digital Outputs: 1 (Relay), 1 (Transistor)
Analog Inputs: 1 (Differential)
Analog Outputs: 1 (Non-isolated)
IP Rating: IP 20
Operating Temperature: -10 to 40 °C
Storage Temperature: -40 to 70 °C
Dimensions: 73 x 173 x 155 mm
Weight: 1.10 kg
Certifications: UL, cUL, CE, RCM, SEMI F47

6SL3210-1KE12-3UP2 Applications
Primary applications include integration into conveyor belts, centrifugal pumps, radial fans, and industrial mixers. Deployed within automated packaging machinery and textile processing equipment for precise motor speed regulation.
