Description

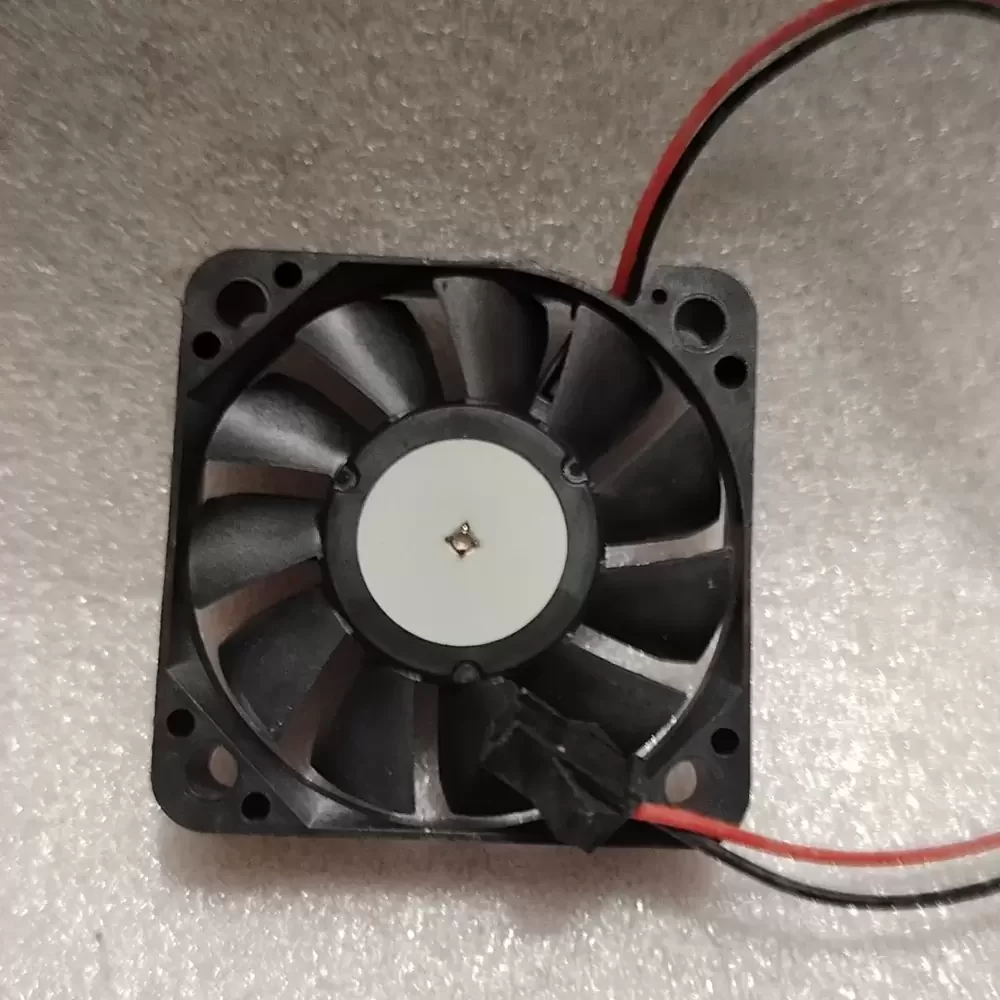

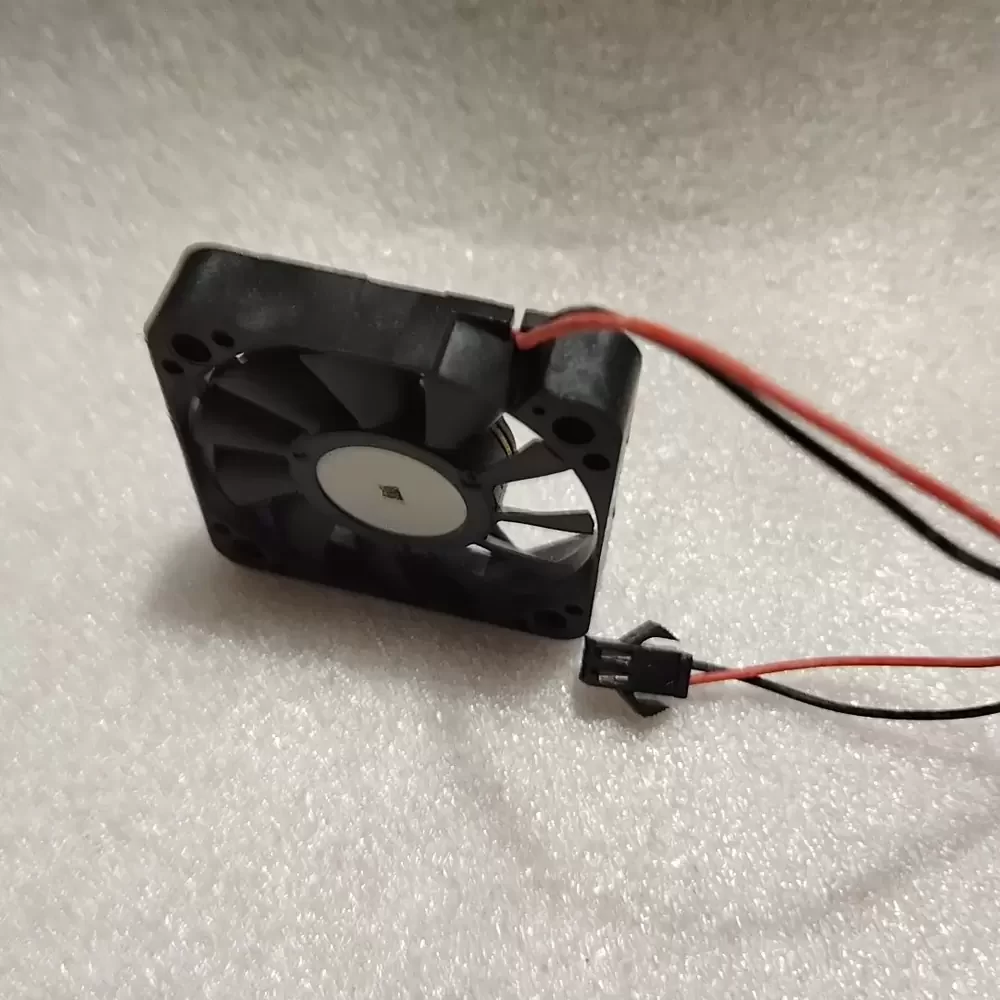

NMB-MAT 2004KL-04W-B59-M08 is a 24VDC 50x50x10mm Axial Fan optimized for high-density electronic cooling where space constraints and thermal impedance are critical factors. This DC brushless motor utilizes a precision-engineered dual ball bearing architecture to ensure structural rigidity and extended operational longevity. The aerodynamic impeller design is crafted from UL94V-0 reinforced plastic to maximize laminar flow while minimizing acoustic turbulence. Operating at a rated current of 0.14A and a speed of 5500 RPM, this unit delivers a static pressure of 38.2 Pa, making it an ideal solution for overcoming localized heat concentrations in industrial power supplies and compact telecommunications hardware.
Model Number: 2004KL-04W-B59-M08
Brand: NMB-MAT
Product Type: Axial Fan
Rated Voltage: 24 VDC
Voltage Range: 14.0 – 27.6 VDC
Rated Current: 0.14 A
Power: 3.36 W
Rated Speed: 5500 RPM
Bearing Type: Dual Ball Bearing
Max. Air Flow: 11.3 CFM (0.32 m³/min)
Max. Static Pressure: 3.90 mmH₂O (38.2 Pa / 0.15 inH₂O)
Dimensions: 50 x 50 x 10 mm
Weight: 25 g
Life Expectancy: 100,000 Hours
Noise Level: 30.0 dB
Housing Material: Plastic (Black) UL94V-0
Blade Material: Plastic (Black) UL94V-0
Termination: 2 Lead Wires
Operating Temperature: -10 to +70 C
Storage Temperature: -40 to +70 C
Insulation Resistance: 10M Ohm min. at 500VDC
Protection: Auto Restart, Polarity Protection
2004KL-04W-B59-M08 Applications
1. Compact VFD Inverters: The 10mm slim profile and 24VDC compatibility allow for integrated cooling within variable frequency drive housings where internal clearance is minimal.
2. Industrial Power Supply Replacement Fan: Specifically engineered to replace failed units in 1U rackmount power modules requiring high static pressure to move air through tightly packed capacitors.
3. Medical Diagnostic Equipment: Low-vibration dual ball bearings provide the mechanical stability necessary for sensitive optical or laboratory analysis hardware requiring consistent thermal regulation.
