Description

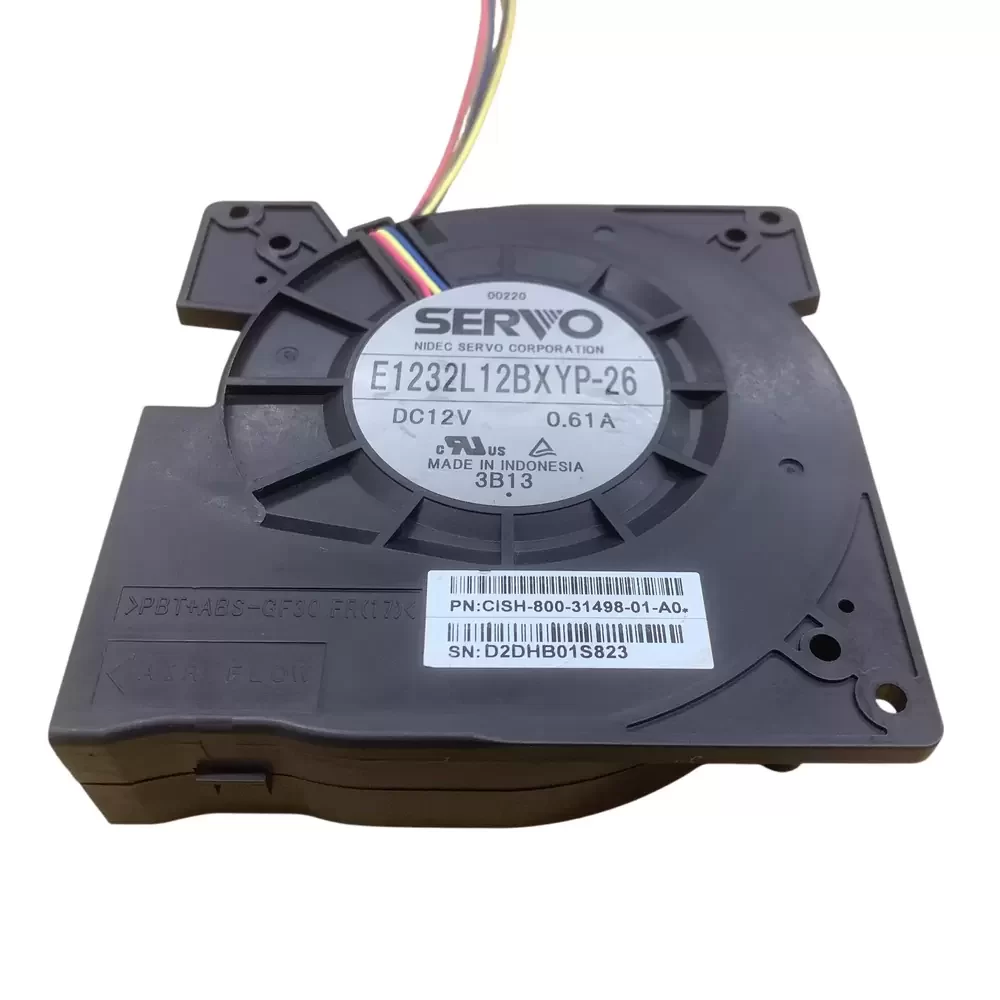

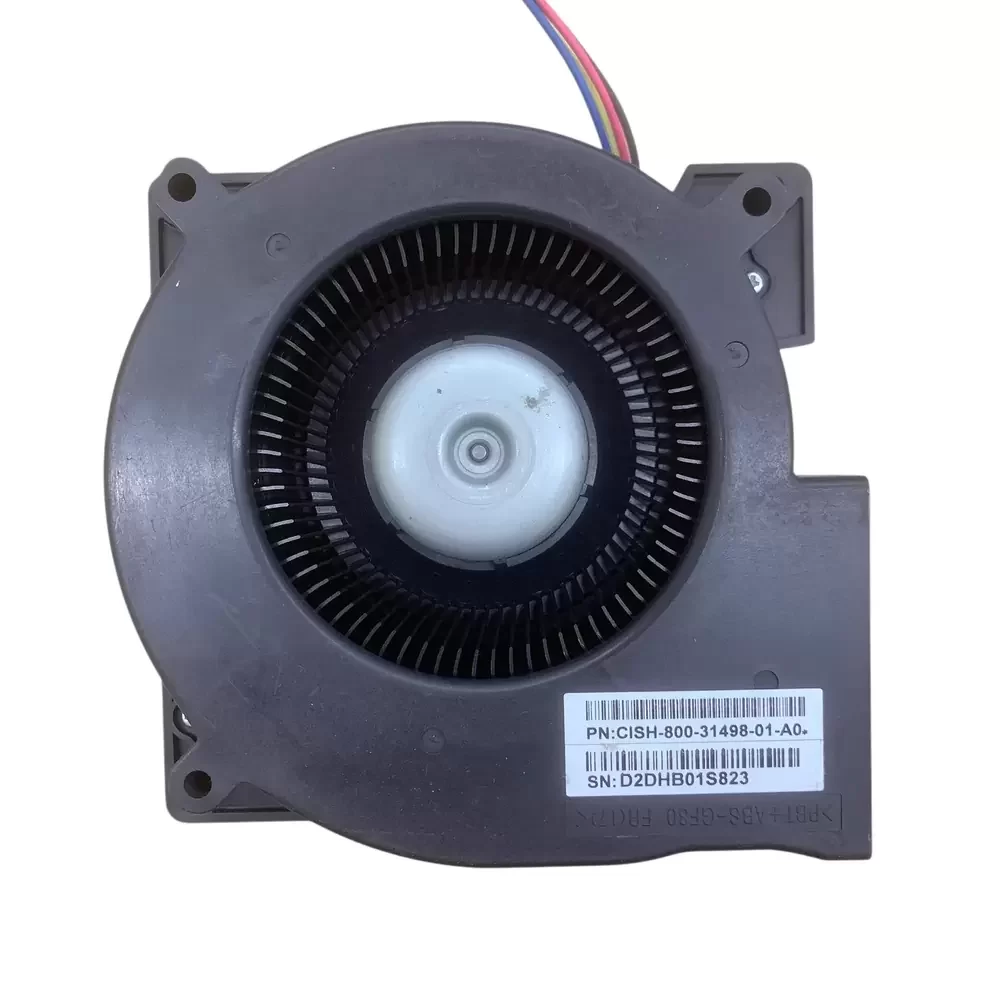

SERVO E1232L12BXYP-26 is a 12VDC 120x120x32mm Blower optimized for overcoming high system impedance in densely packed electronic enclosures. Engineered by Nidec, this unit features a sophisticated DC brushless motor architecture paired with a precision dual ball bearing system to minimize thermal impedance and ensure long-term structural rigidity. Operating at a rated current of 0.61A, the fan delivers high-velocity airflow and significant static pressure, making it ideal for localized cooling in industrial environments. The integrated 4-wire PWM control allows for dynamic speed modulation, ensuring efficient thermal management while maintaining stable performance metrics across its operational lifespan.
Model Number: E1232L12BXYP-26
Brand: SERVO (Nidec)
Product Type: Centrifugal Blower
Rated Voltage: 12 VDC
Voltage Range: 7.0 – 13.8 VDC
Rated Current: 0.61 A
Power: 7.32 W
Rated Speed: 3200 RPM
Bearing Type: Dual Ball Bearing
Max. Air Flow: 35.3 CFM (1.00 m³/min)
Max. Static Pressure: 24.5 mmH₂O (240.2 Pa)
Dimensions: 120 x 120 x 32 mm
Weight: 230 g
Life Expectancy: 50,000 Hours at 40°C
Speed Control: PWM Signal / Tachometer Output

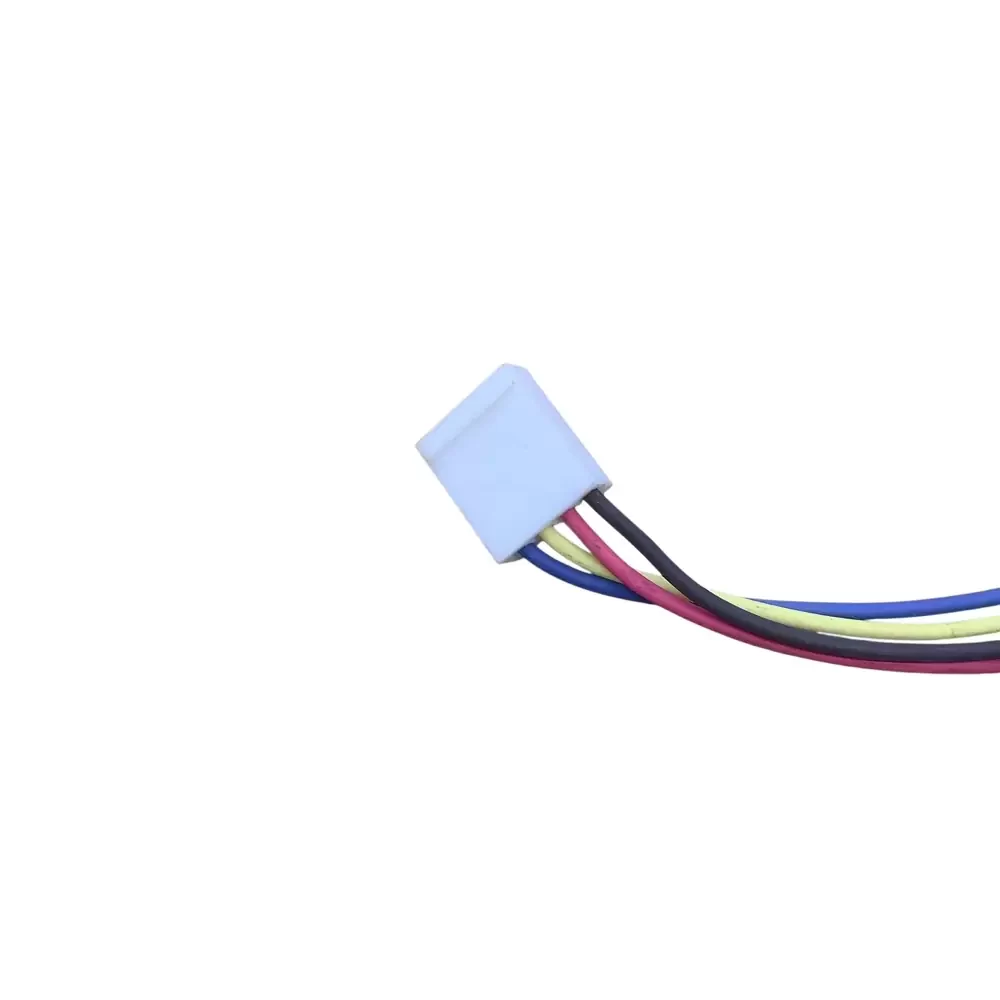

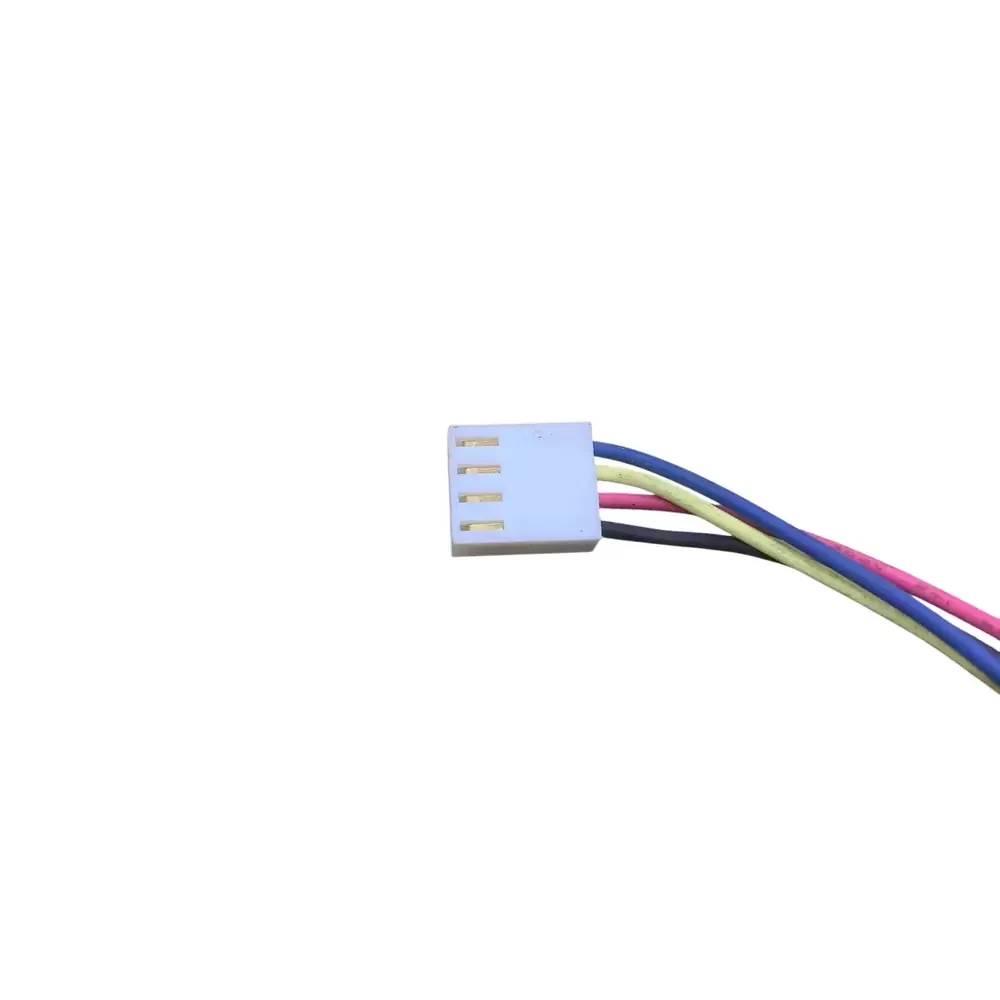

Termination: 4-Lead Wires
Housing Material: Reinforced PBT Plastic (UL94V-0)
Blade Material: Reinforced PBT Plastic (UL94V-0)
Operating Temperature: -10 to +70 °C
Storage Temperature: -40 to +75 °C
Protection Features: Locked Rotor Protection, Reverse Polarity Protection
Certifications: UL, CSA, TUV, CE
E1232L12BXYP-26 Applications
1. Industrial Control Cabinets: High static pressure overcomes the resistance of fine-mesh dust filters to maintain internal component longevity.
2. High-End Photocopiers and Printing Presses: Targeted airflow cools fuser units and optical sensors where low-vibration is critical for image precision.
3. 2U Rackmount Servers: The 32mm profile and centrifugal design are ideal for lateral heat dissipation in height-constrained chassis as a high-reliability replacement fan.
