Description

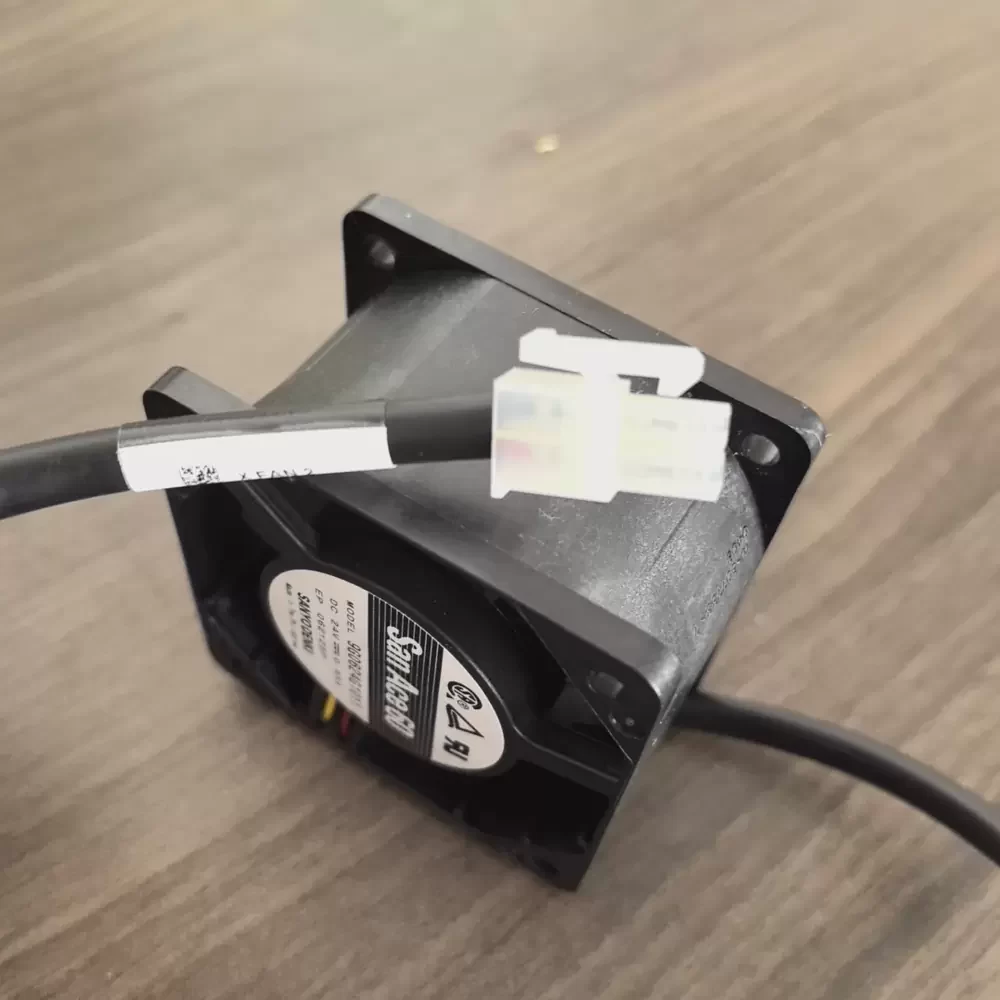

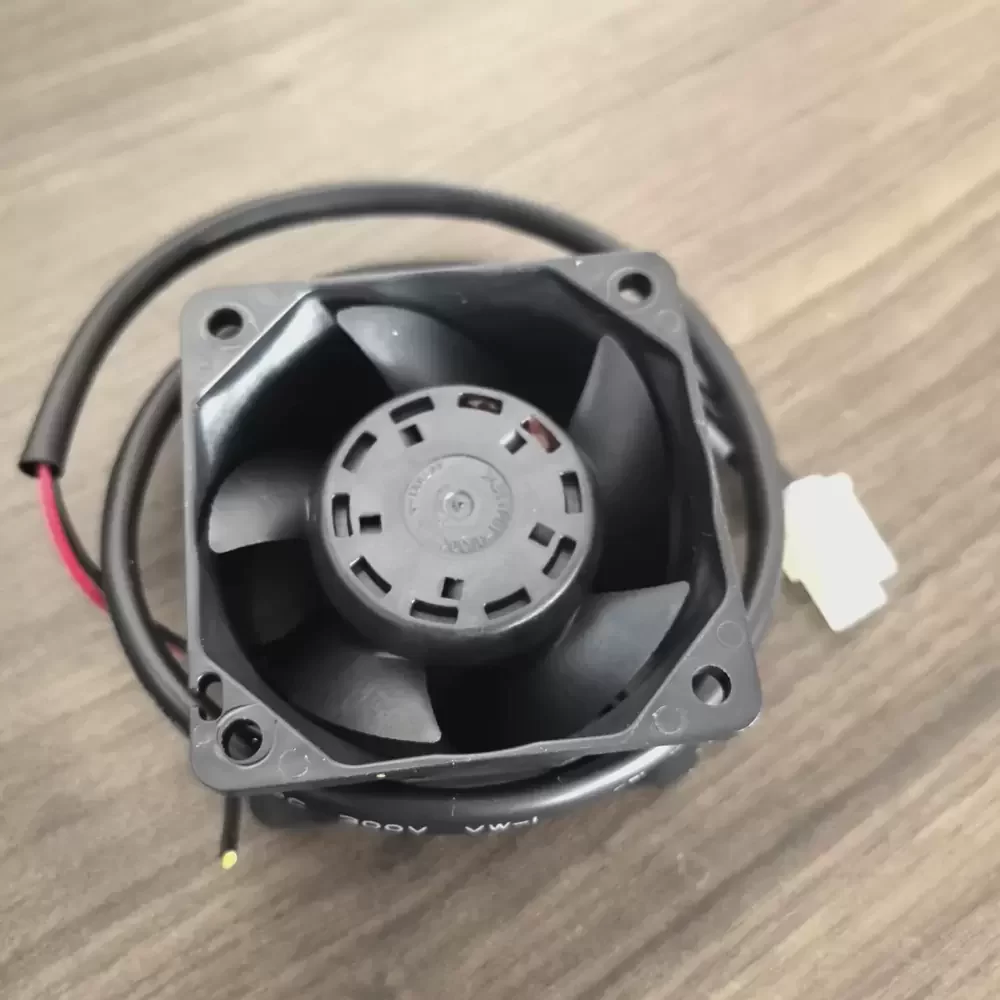

The Sanyo Denki 9G0624G1011 is a high-performance DC axial fan engineered for demanding industrial thermal management applications requiring substantial airflow against high system impedance. Part of the distinguished San Ace 60 series, this unit features a robust 60x60x38mm frame and a high-efficiency DC motor designed to deliver exceptional static pressure. Utilizing a precision dual ball bearing architecture, the fan ensures superior structural rigidity and long-term operational reliability, effectively minimizing thermal impedance in densely packed electronic enclosures. The aerodynamic impeller geometry is optimized to maximize cooling efficiency, making it a critical component for maintaining system stability in high-load environments.
Model Number: 9G0624G1011
Brand: Sanyo Denki
Series: San Ace 60 (9G Type)
Product Type: DC Axial Fan
Rated Voltage: 24VDC
Voltage Range: 14.0 – 27.6 VDC
Rated Current: 0.85 A
Rated Power: 20.4 W
Rated Speed: 12500 RPM
Bearing Type: Dual Ball Bearing
Max. Air Flow: 62.15 CFM (1.76 m³/min)
Max. Static Pressure: 520 Pa (2.09 inH₂O / 53.0 mmH₂O)
Dimensions: 60 x 60 x 38 mm
Weight: 140 g
Life Expectancy: 40,000 Hours (at 60°C)
Noise Level: 58 dB(A)
Frame Material: Plastics (UL94V-0)
Impeller Material: Plastics (UL94V-0)
Termination: 3-Wire Lead (Red +, Black -, Yellow Sensor)
Output Signal: Pulse Sensor (Tachometer)
Operating Temperature: -20°C to +70°C
Storage Temperature: -30°C to +70°C
Ingress Protection: IP Ratings Available
Motor Protection: Locked Rotor Protection, Reverse Polarity Protection
The 9G0624G1011 is specifically engineered for applications where high static pressure is necessary to force air through restricted spaces. It is widely adopted in industrial inverters, high-density server racks, and telecommunications equipment where component density restricts natural airflow. The 9G0624G1011 also serves as a critical cooling solution for precision medical devices, power supply units, and CNC machinery chassis, ensuring that sensitive electronics operate within their specified thermal envelopes to prevent overheating and system failure.
