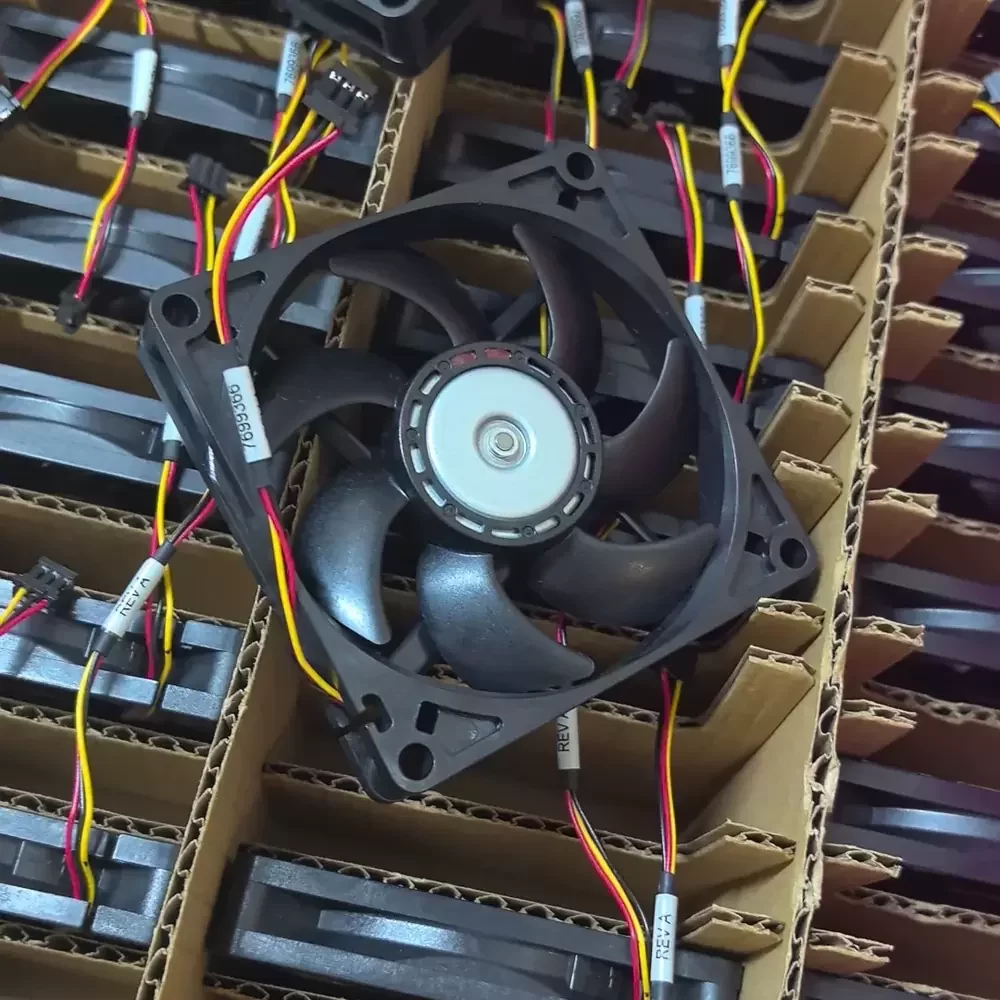

9GA0812H7003 Sanyo Denki 12VDC 80x80x15mm Low Power Axial Fan

Description

The Sanyo Denki 9GA0812H7003 is a precision-engineered DC Axial Fan belonging to the renowned San Ace 80 9GA Low Power Consumption series. Designed for optimal energy efficiency, this unit utilizes advanced motor technology to deliver significant airflow while maintaining a minimal power footprint of just 1.08W. The construction features a robust dual ball bearing architecture, ensuring long-term reliability and reduced mechanical friction, which contributes to an extended service life. Its aerodynamic impeller design minimizes turbulence and noise generation, making it an ideal solution for applications requiring a balance between thermal impedance management and acoustic performance. The frame offers high structural rigidity, suitable for demanding industrial environments.

Model Number: 9GA0812H7003
Brand: Sanyo Denki (San Ace)
Product Type: DC Axial Fan
Series: San Ace 80 (9GA Type)
Rated Voltage: 12VDC
Operating Voltage Range: 7.0 – 13.8 VDC
Rated Current: 0.09 A
Input Power: 1.08 W
Rated Speed: 3800 RPM
Bearing Type: Dual Ball Bearing
Max. Air Flow: 34.6 CFM (0.98 m³/min)
Max. Static Pressure: 2.7 mmH₂O (26.5 Pa / 0.11 inH₂O)
Dimensions: 80x80x15 mm
Noise Level: 28 dB(A)
Life Expectancy: 40,000 Hours @ 60°C / 60,000 Hours @ 40°C
Termination: 3-Wire Leads
Speed Control: Pulse Sensor (Tachometer)
Frame Material: Plastics (UL94V-0)
Impeller Material: Plastics (UL94V-0)
Operating Temperature: -10°C to +70°C
Storage Temperature: -30°C to +70°C
Weight: 65 g
Motor Protection: Locked Rotor Burnout Protection, Reverse Polarity Protection
Dielectric Strength: 50/60 Hz, 500 VAC, 1 minute

This cooling solution is engineered for diverse thermal management scenarios, ranging from compact server racks to precision medical instrumentation. The 9GA0812H7003 excels in environments where energy conservation is critical without compromising airflow, such as in telecommunications equipment and power supply units. Additionally, the low noise profile of the 9GA0812H7003 makes it highly suitable for office automation devices and desktop computing chassis where acoustic comfort is paramount. Its slim 15mm profile allows for integration into space-constrained enclosures requiring reliable forced air convection.
