Description

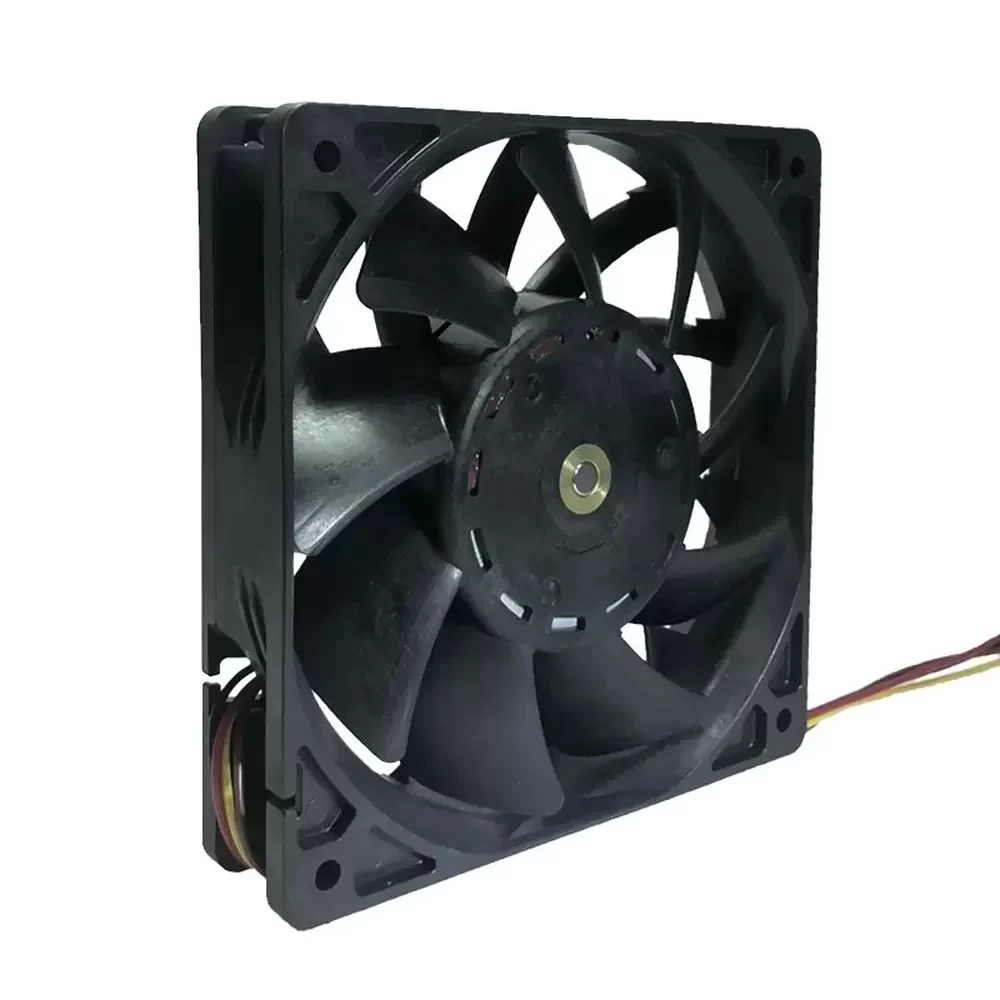

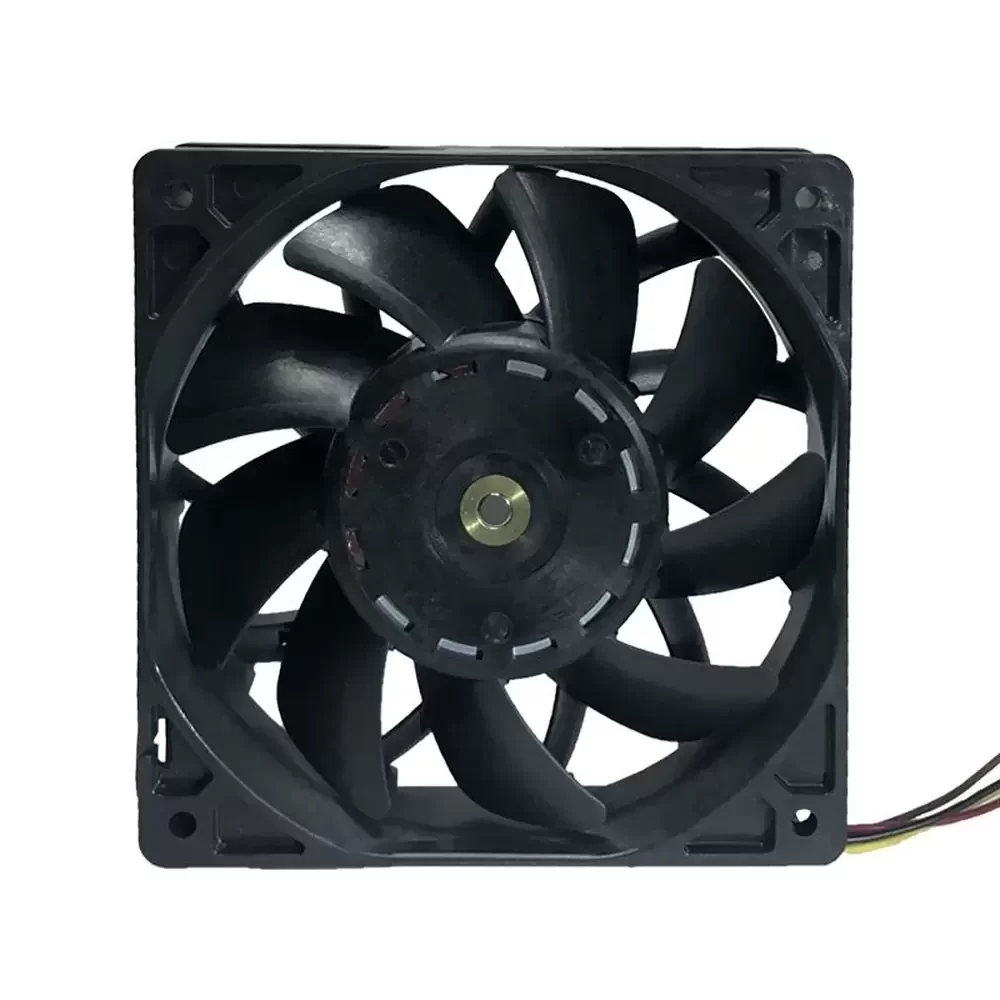

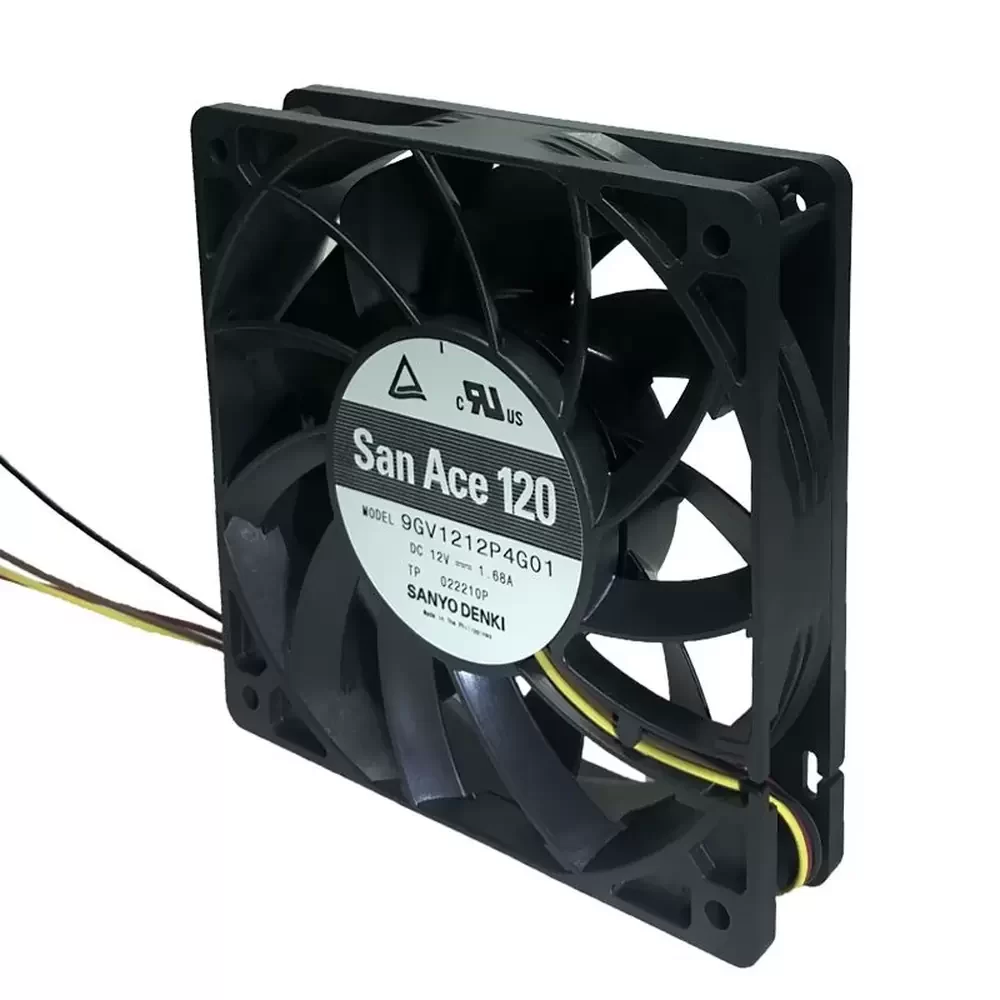

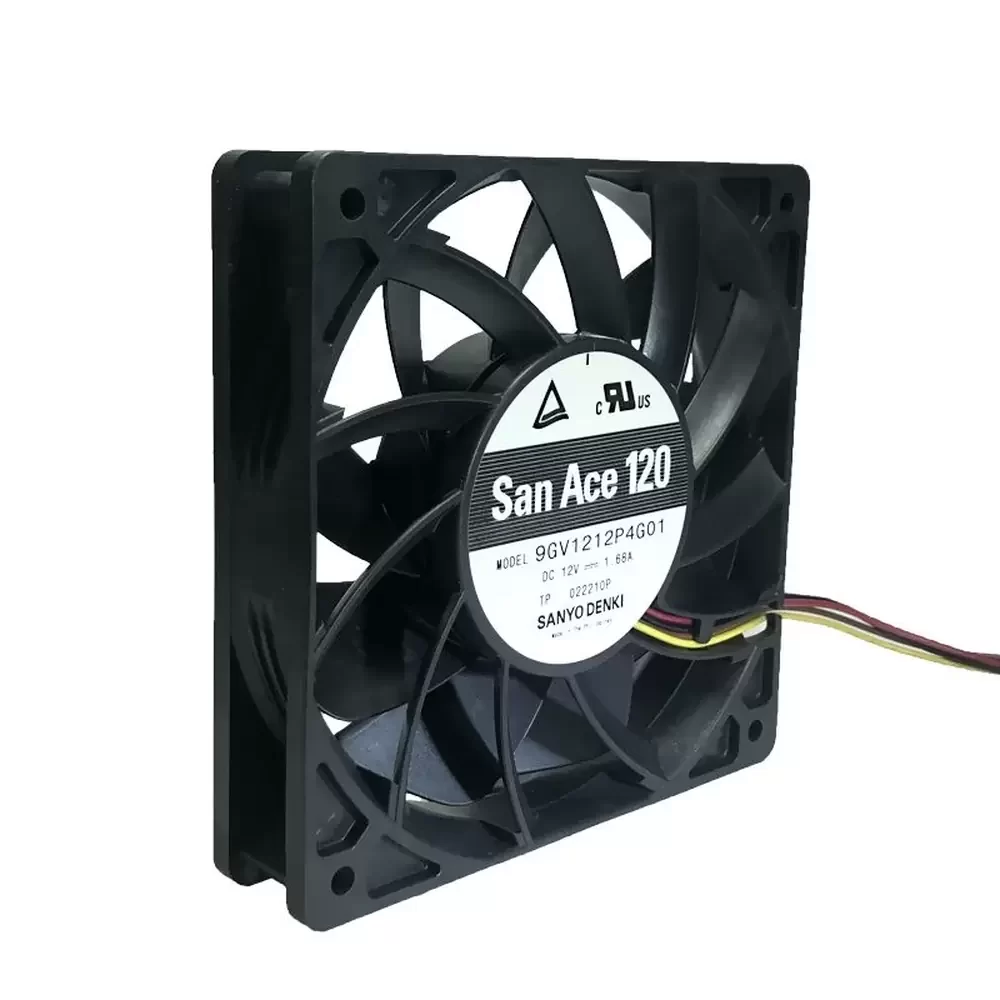

The Sanyo Denki 9GB1212P4G01 is a high-performance DC axial fan engineered for mission-critical thermal management. Utilizing a sophisticated brushless DC motor architecture and precision dual ball bearing system, this unit minimizes thermal impedance while maintaining structural rigidity under high rotational velocities. The aerodynamic impeller design is optimized for high static pressure, ensuring efficient heat dissipation in densely packed electronic environments. Integrated pulse width modulation (PWM) allows for precise speed control, optimizing the balance between airflow requirements and acoustic output while extending the operational lifecycle of the internal components.
Model Number: 9GB1212P4G01
Brand: Sanyo Denki
Product Type: Axial Fan
Rated Voltage: 12VDC
Voltage Range: 10.2 – 13.8 VDC
Rated Current: 1.68A
Power: 20.16W
Rated Speed: 4500 RPM
Bearing Type: Dual Ball Bearing
Max. Air Flow: 148.3 CFM (4.2 m³/min)
Max. Static Pressure: 160 Pa (0.64 inH₂O)
Dimensions: 120x120x25mm
Weight: 290g
Life Expectancy: 40,000 Hours at 60°C
Speed Control: PWM Control
Output Signal: Tachometer (Pulse Sensor)
Noise Level: 54 dB(A)
Housing Material: Plastic (UL94V-0)
Blade Material: Plastic (UL94V-0)
Termination: 4-Wire Lead Wires
Operating Temperature: -20 to +70°C
Storage Temperature: -30 to +70°C
Protection Features: Locked Rotor Protection, Reverse Polarity Protection
Insulation Class: Class E
Certifications: UL, CSA, TUV, CE, RoHS
This high-velocity axial fan is specifically designed for integration into enterprise-grade server racks and telecommunications infrastructure where the 9GB1212P4G01 provides essential cooling for high-density blade servers. Beyond data centers, the 9GB1212P4G01 is frequently utilized in industrial automation cabinets and medical imaging equipment to prevent component overheating. Its robust construction ensures reliable performance in CNC machinery and power supply units requiring consistent, high-pressure airflow.
