Description

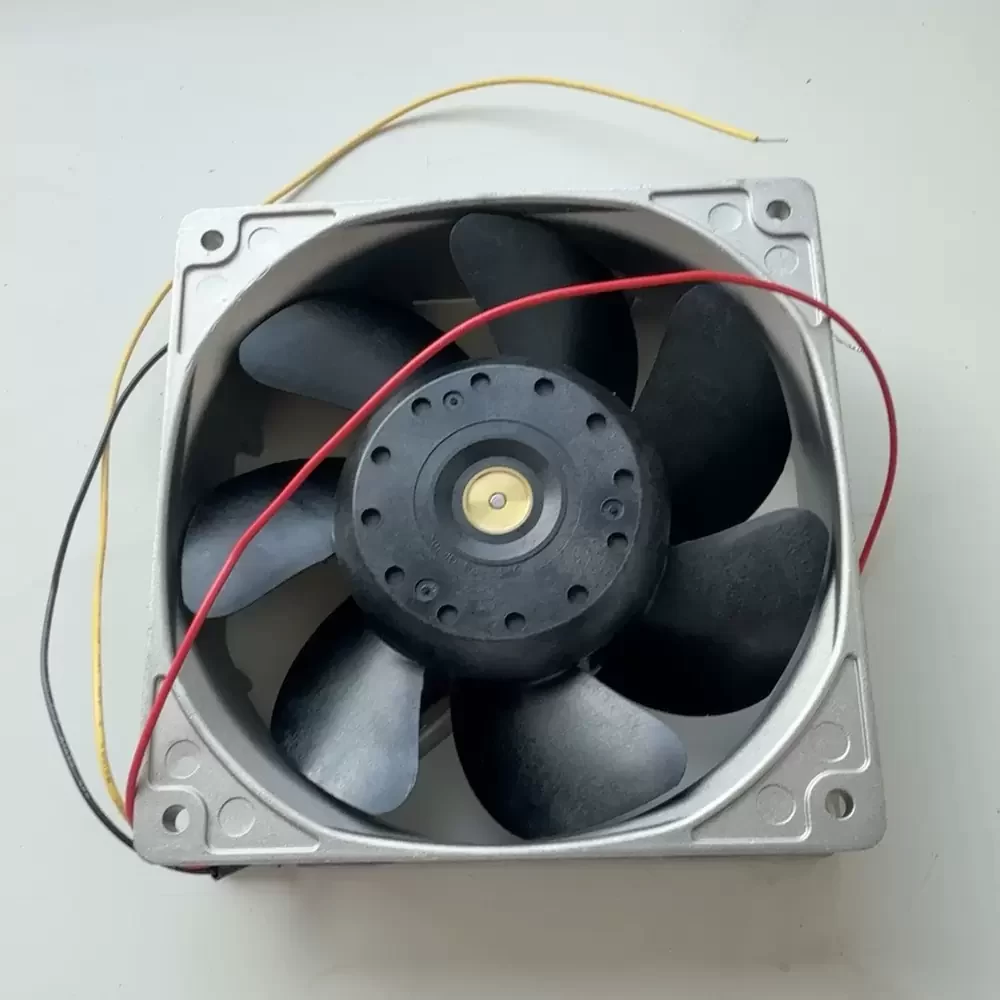

The Sanyo Denki 9GL1224G1D01 is a robust industrial axial fan designed for mission-critical cooling applications requiring extended operational lifespans. Part of the renowned San Ace 120L Long Life series, this unit integrates a high-efficiency DC motor with a precision dual ball bearing architecture, ensuring superior rotational stability and minimized frictional wear. The aerodynamic impeller is engineered to deliver high volumetric airflow while maintaining a manageable thermal impedance profile. Its structural rigidity is reinforced by a die-cast aluminum frame, providing exceptional resistance to vibration and thermal stress in demanding industrial environments.
Model Number: 9GL1224G1D01
Brand: Sanyo Denki
Series: San Ace 120L (Long Life)
Product Type: DC Axial Fan
Rated Voltage: 24 VDC
Voltage Range: 14.0 – 27.6 VDC
Rated Current: 0.50 A
Power Consumption: 12.0 W
Rated Speed: 3100 RPM
Bearing Type: Dual Ball Bearing
Max. Air Flow: 109 CFM (3.1 m³/min)
Max. Static Pressure: 7.1 mmH₂O (69.6 Pa / 0.28 inH₂O)
Dimensions: 120x120x38 mm
Weight: 370 g
Life Expectancy: 100,000 Hours (at 60°C)
Noise Level: 42 dBA
Frame Material: Die-cast Aluminum
Impeller Material: Plastic (UL94V-1)
Termination: 3-Wire (Lead Wires)
Sensor Type: Pulse Sensor (Tachometer / D01)
Operating Temperature: -10 to +70°C
Storage Temperature: -30 to +70°C
Dielectric Strength: 50/60 Hz, 500 VAC, 1 minute
Motor Protection: Locked Rotor Protection, Reverse Polarity Protection
Flammability Rating: UL94V-1
The 9GL1224G1D01 is specifically engineered for high-availability systems where maintenance intervals must be maximized, such as in remote telecommunications infrastructure, server racks, and continuous-duty industrial automation cabinets. Due to its aluminum construction and long-life bearing system, the 9GL1224G1D01 effectively manages heat dissipation in power supply units and solar inverters, ensuring component reliability over extended periods.
