Description

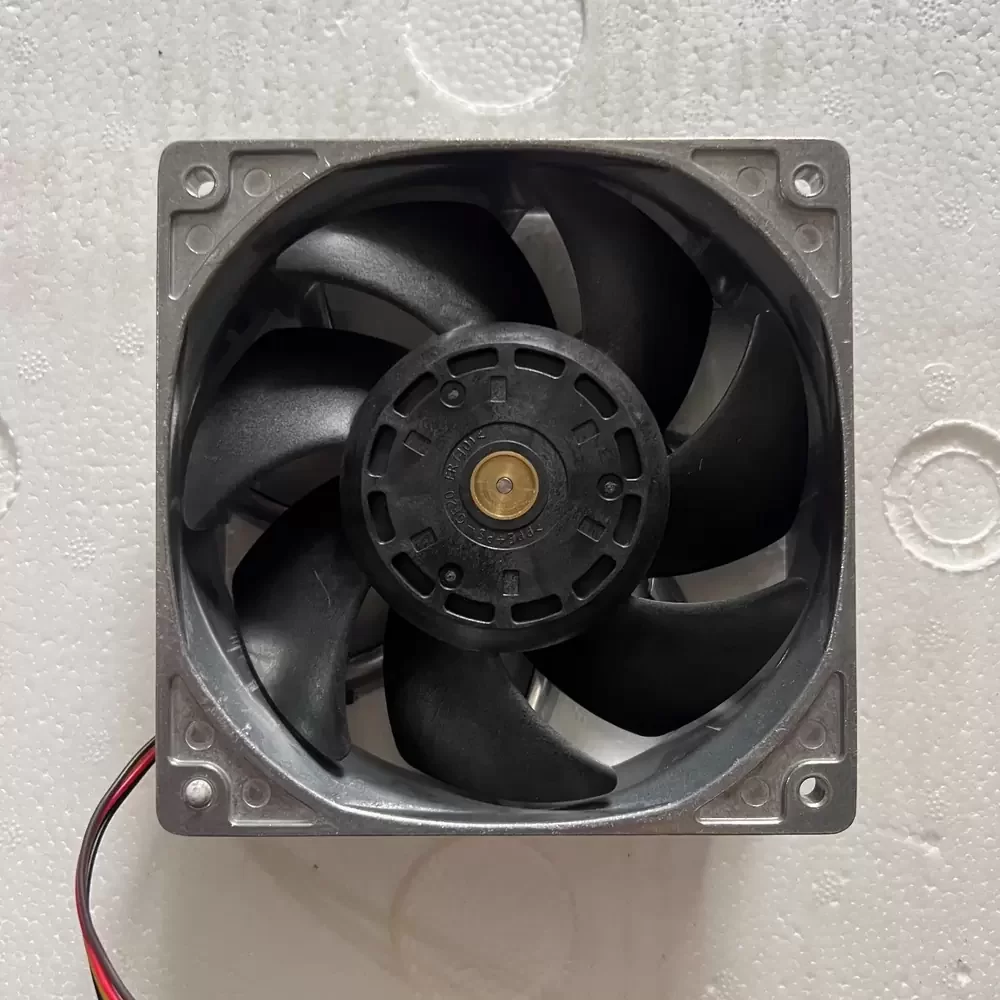

The Sanyo Denki 9LG1224M1D001 is a precision-engineered Axial Fan designed for mission-critical thermal management within the renowned San Ace 120L Long Life series. Utilizing advanced DC brushless motor technology paired with a robust dual ball bearing architecture, this unit ensures exceptional rotational stability and minimized friction for extended operational lifecycles. The 120mm chassis features a high-rigidity aluminum die-cast frame construction that optimizes aerodynamic throughput while reducing vibration-induced noise. Engineered for continuous duty, it delivers superior airflow-to-static pressure ratios, making it an ideal solution for systems requiring low thermal impedance and high reliability under demanding industrial conditions.
Model Number: 9LG1224M1D001
Brand: Sanyo Denki
Product Type: DC Axial Fan
Series: San Ace 120L (Long Life)
Rated Voltage: 24VDC
Operating Voltage Range: 14.0 – 27.6 VDC
Rated Current: 0.11 A
Power Consumption: 2.64 W
Rated Speed: 2000 RPM
Bearing Type: Dual Ball Bearing
Max. Air Flow: 76.6 CFM (130 m³/h / 2.17 m³/min)
Max. Static Pressure: 5.0 mmH₂O (49 Pa / 0.19 inH₂O)
Dimensions: 120x120x38mm
Weight: 370 g
Life Expectancy: 100,000 Hours (L10 at 60°C)
Frame Material: Aluminum Die-cast
Impeller Material: Plastic (UL94V-0)
Noise Level: 33 dB(A)
Termination: 4-Wire Lead
Ingress Protection: IP54 (Optional)
Operating Temperature: -10°C to +70°C
Storage Temperature: -30°C to +70°C
Motor Protection: Locked Rotor Protection, Reverse Polarity Protection
Sensor Output: Locked Rotor Sensor (Pulse Sensor)
Mounting Orientation: Any
The 9LG1224M1D001 is extensively utilized in high-density server racks and telecommunications infrastructure where continuous uptime is non-negotiable. Its robust metal frame construction makes it equally suitable for industrial automation enclosures and CNC machinery requiring consistent thermal dissipation. By integrating the 9LG1224M1D001 into power supply units and medical instrumentation, engineers ensure long-term component stability through efficient heat evacuation in restricted airflow environments.
