Description

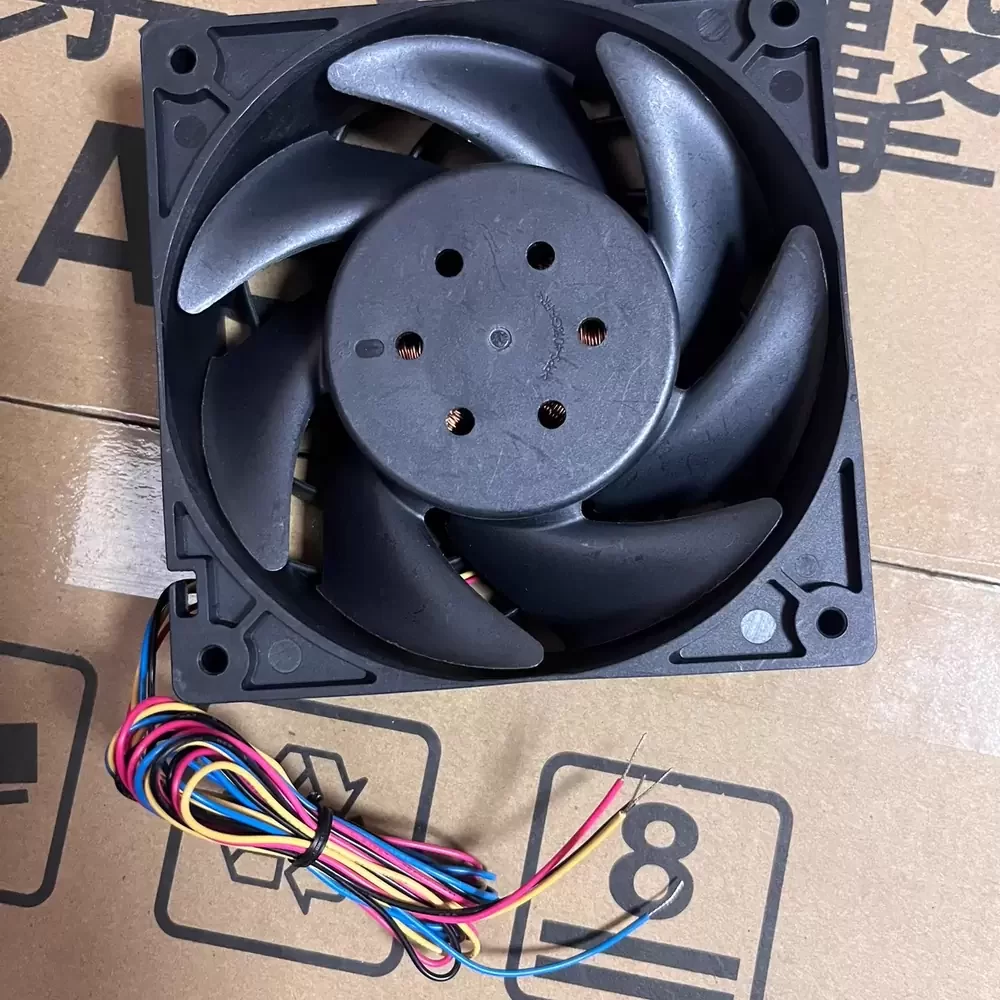

The Delta THD1212ME-00G7U is a high-performance DC Axial Fan engineered for critical thermal management in high-impedance systems. Utilizing advanced motor technology and a robust aerodynamic blade design, this unit delivers exceptional airflow while maintaining structural rigidity under high-speed operation. The fan features a precision dual ball bearing architecture, ensuring longevity and stability even in continuous duty cycles. Designed to minimize thermal impedance in dense electronic enclosures, the THD1212ME-00G7U integrates sophisticated commutation electronics to optimize power efficiency and reduce electromagnetic interference, making it an ideal solution for demanding industrial and server-grade cooling requirements.
Model Number: THD1212ME-00G7U
Brand: Delta Electronics
Product Type: DC Axial Fan
Rated Voltage: 12 VDC
Voltage Range: 7.0 – 13.2 VDC
Rated Current: 4.00 A
Power Input: 48.00 W
Rated Speed: 5300 RPM
Bearing Type: Dual Ball Bearing
Max. Air Flow: 210.38 CFM (357.4 m³/h / 5.95 m³/min)
Max. Static Pressure: 28.50 mmH₂O (279.49 Pa / 1.12 inH₂O)
Dimensions: 120 x 120 x 38 mm
Weight: 420 g
Life Expectancy: 70,000 Hours at 40°C
Speed Control: PWM (Pulse Width Modulation)
Signal Output: Tachometer (Frequency Generator)
Noise Level: 66.5 dBA
Housing Material: PBT Plastic (UL94V-0)
Impeller Material: PBT Plastic (UL94V-0)
Termination: 4-Wire Leads
Wire Configuration: Red (+), Black (-), Blue (PWM), Yellow (Tach)
Operating Temperature: -10°C to +70°C
Storage Temperature: -40°C to +75°C
Ingress Protection: IP51
Insulation Class: Class A
Safety Certifications: UL, cUL, TUV, CE
Protection: Locked Rotor Protection, Polarity Protection
The THD1212ME-00G7U is specifically designed for applications requiring high static pressure to overcome airflow resistance in densely packed chassis. Common deployments include enterprise server racks, telecommunications base stations, and high-performance computing clusters where reliable heat dissipation is critical. The THD1212ME-00G7U is also frequently utilized in industrial automation equipment, such as CNC machines and power supply units, ensuring components remain within safe operating temperature ranges during peak loads.
