Description

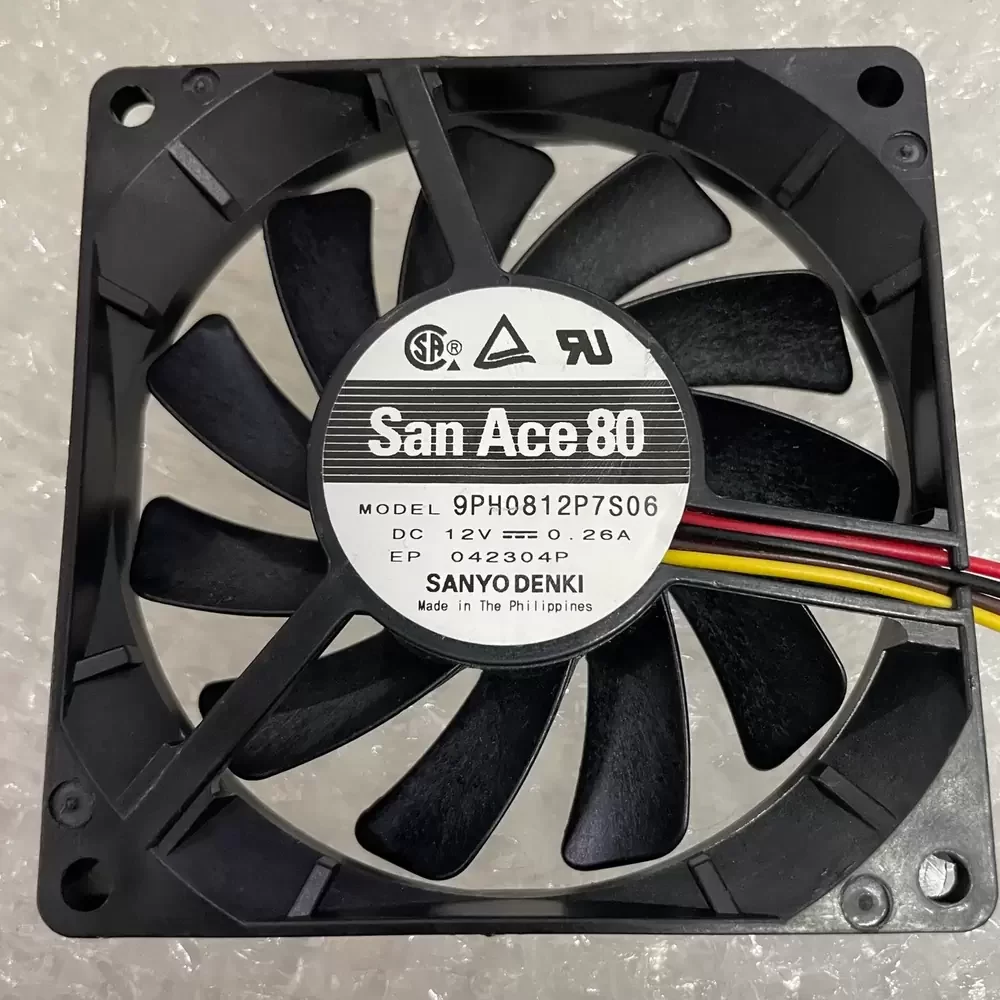

Sanyo Denki 9PH0812P7S06 is a 12VDC 80x80x15mm Axial Fan optimized for high-density thermal management in space-constrained enclosures. This San Ace 80 series model utilizes a sophisticated dual ball bearing architecture to minimize mechanical friction and extend service life in continuous duty cycles. The aerodynamic impeller design is engineered to reduce thermal impedance while maintaining structural rigidity under high rotational velocities. Operating at a rated current of 0.26A, this DC fan delivers a balanced performance profile with a nominal speed of approximately 3500 RPM, ensuring efficient heat dissipation with low acoustic signatures. The integrated 4-wire PWM control allows for precise thermal regulation, making it a critical component for systems requiring dynamic cooling response.
Model Number: 9PH0812P7S06
Brand: Sanyo Denki
Product Type: Axial Fan
Rated Voltage: 12 VDC
Voltage Range: 7.0 – 13.8 VDC
Rated Current: 0.26 A
Power: 3.12 W
Rated Speed: 3500 RPM
Bearing Type: Dual Ball Bearing
Max. Air Flow: 35.3 CFM (1.0 m³/min)
Max. Static Pressure: 42.1 Pa (0.169 inH₂O)
Dimensions: 80 x 80 x 15 mm
Weight: 70 g
Life Expectancy: 40000 h at 60°C
Speed Control: PWM Control
Output Signal: Tachometer (Pulse Sensor)
Noise Level: 33 dB(A)
Housing Material: Plastic (UL94V-0)
Blade Material: Plastic (UL94V-0)
Termination: 4-Lead Wires
Operating Temperature: -20 to +70 °C
Storage Temperature: -30 to +70 °C
Protection Features: Locked Rotor Burnout Protection, Reverse Polarity Protection
Certifications: UL, CSA, TUV, RoHS
9PH0812P7S06 Applications
1. 1U/2U Rackmount Servers: The 15mm low-profile form factor allows for high-velocity airflow in slim chassis where standard 25mm fans cannot fit.
2. Industrial Power Supply Units: High-reliability dual ball bearings ensure consistent cooling for internal switching components, serving as a premium replacement fan for aging PSU units.
3. Telecommunications Control Cabinets: Optimized for overcoming moderate system impedance in sealed environments while maintaining low vibration for sensitive optical or radio hardware.
