Description

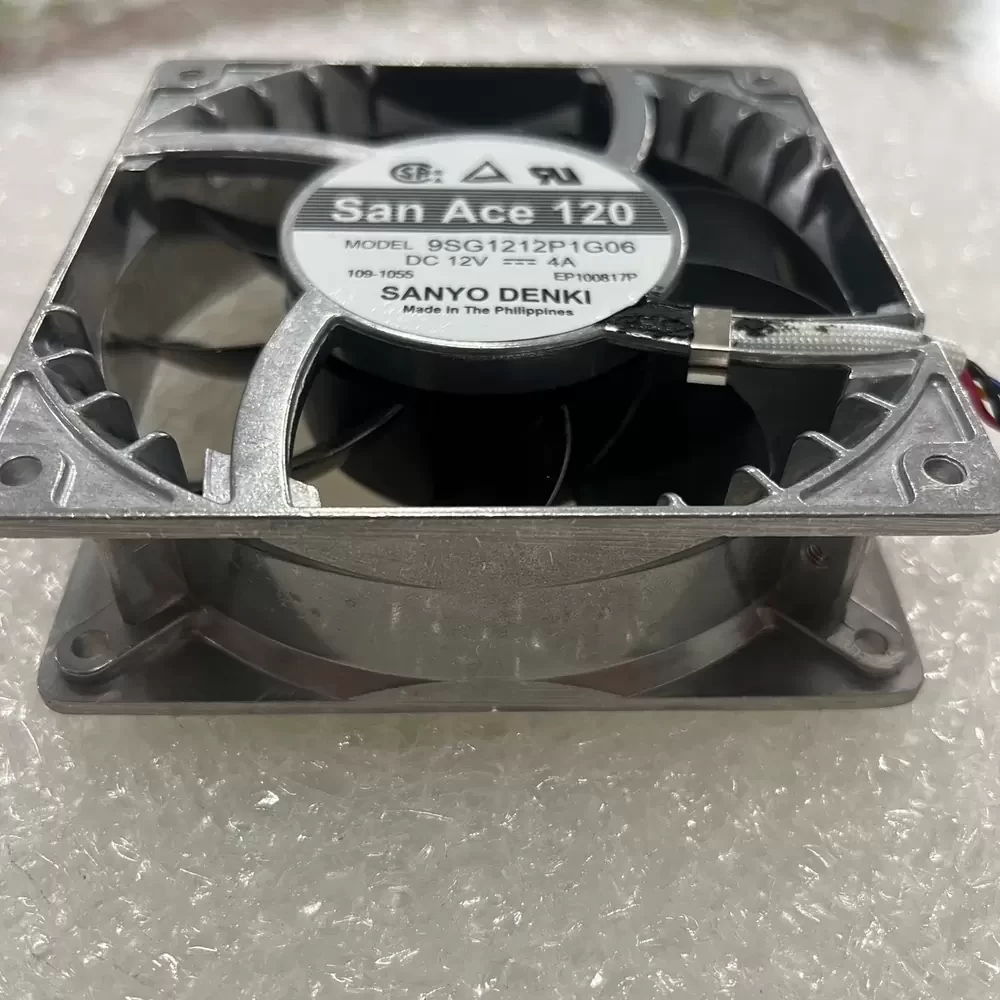

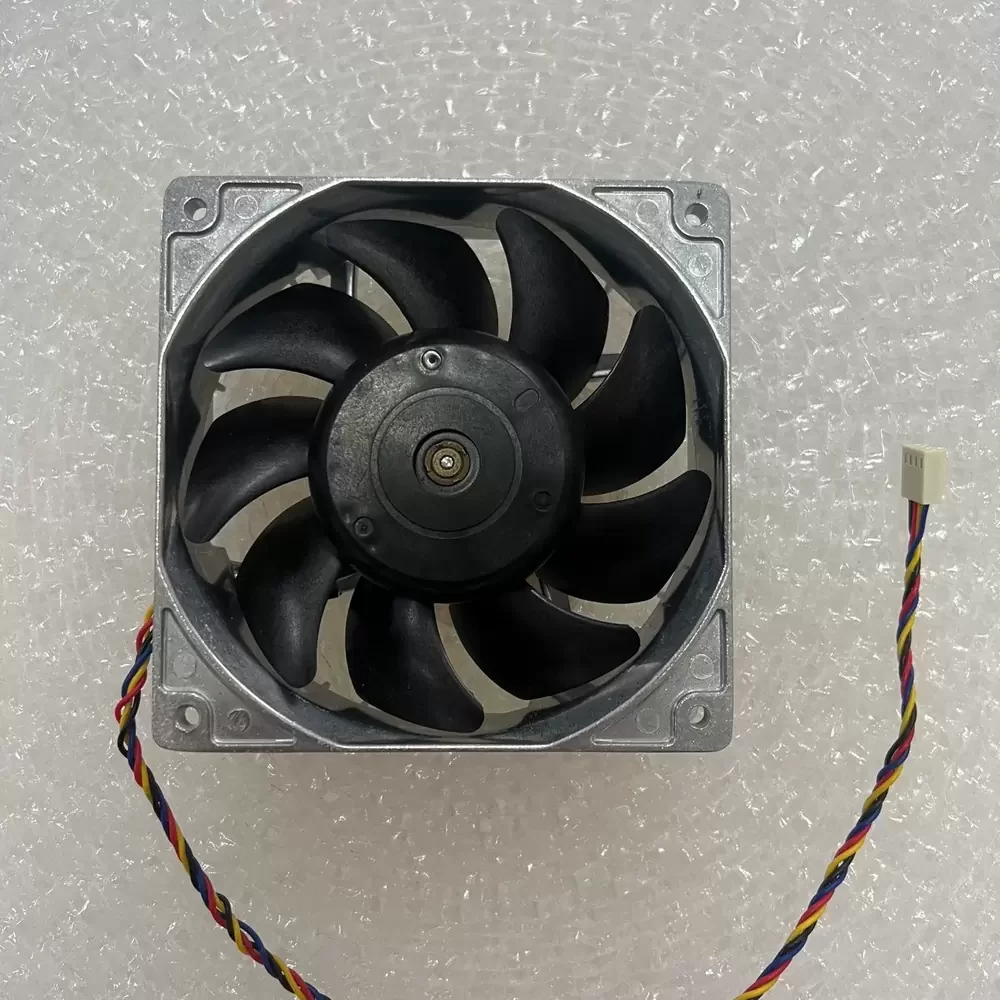

The Sanyo Denki 9SG1212P1G06 is a high-performance DC axial fan engineered for industrial environments requiring exceptional thermal management and structural rigidity. Part of the renowned San Ace 120 series, this unit features a durable aluminum alloy frame that provides superior stability and heat dissipation properties compared to standard plastic housings. The motor architecture incorporates a robust dual ball bearing system designed to sustain high rotational speeds and ensure longevity under continuous operation. With its advanced 9-blade impeller design and PWM speed control capabilities, the fan delivers a high-density airflow profile while allowing for precise thermal regulation, making it an optimal solution for systems with high thermal impedance.
Model Number: 9SG1212P1G06
Brand: Sanyo Denki
Product Type: DC Axial Fan
Rated Voltage: 12VDC
Rated Current: 4.0 A
Power Consumption: 42.0 W
Rated Speed: 14000 RPM
Bearing Type: Dual Ball Bearing
Max. Air Flow: 260.0 CFM (7.36 m³/min)
Max. Static Pressure: 290.0 Pa (1.16 inH₂O)
Dimensions: 120x120x38mm
Frame Material: Aluminum Alloy
Blade Design: 9 Blades
Speed Control: 4-Wire PWM
Ingress Protection: Waterproof Design
Termination: Lead Wires
Operating Temperature: -10°C to +70°C
Life Expectancy: 40,000 Hours (at 60°C)
Mounting Orientation: Any
The 9SG1212P1G06 is specifically designed for mission-critical applications where reliability and airflow pressure are non-negotiable. It is frequently deployed in high-density server racks, telecommunications cabinets, and industrial power supply units that generate significant heat loads. The robust aluminum construction of the 9SG1212P1G06 also makes it suitable for harsh industrial automation environments, such as CNC machinery and outdoor enclosures, where resistance to environmental factors and vibration is essential for maintaining system integrity.
