Description

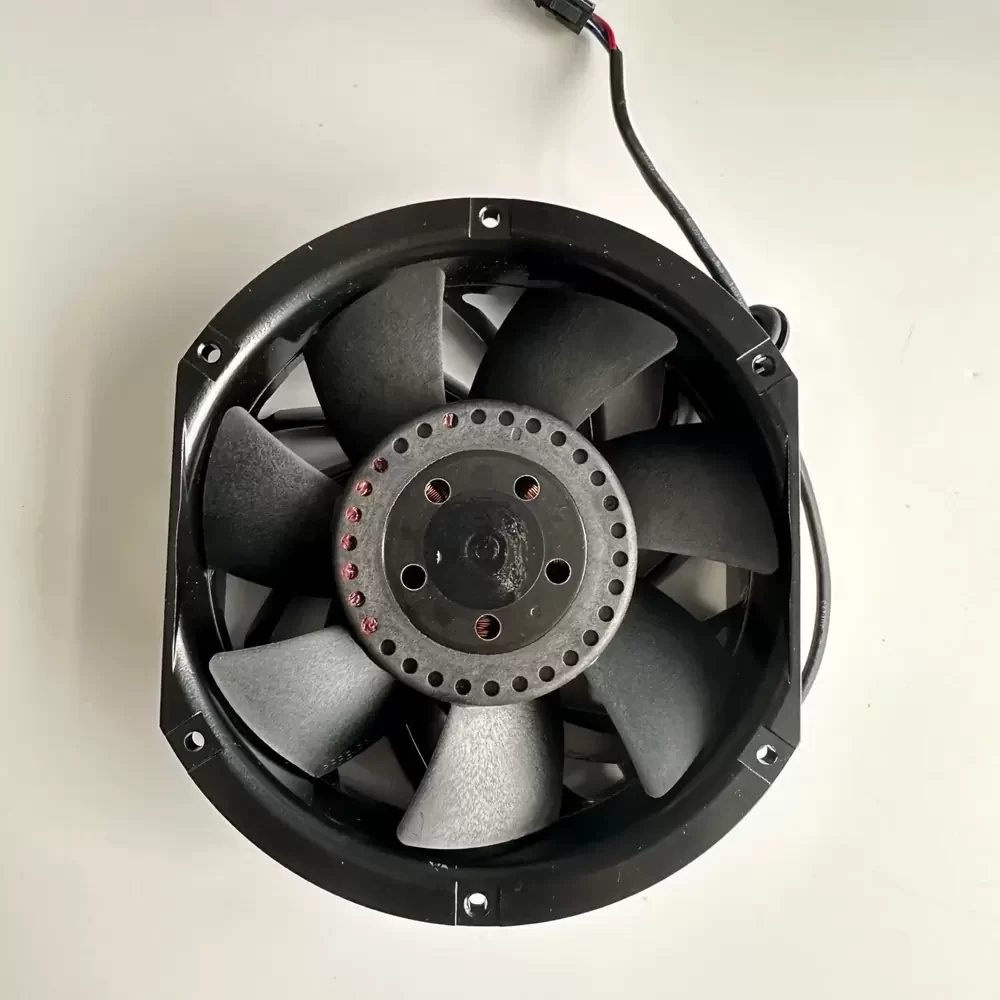

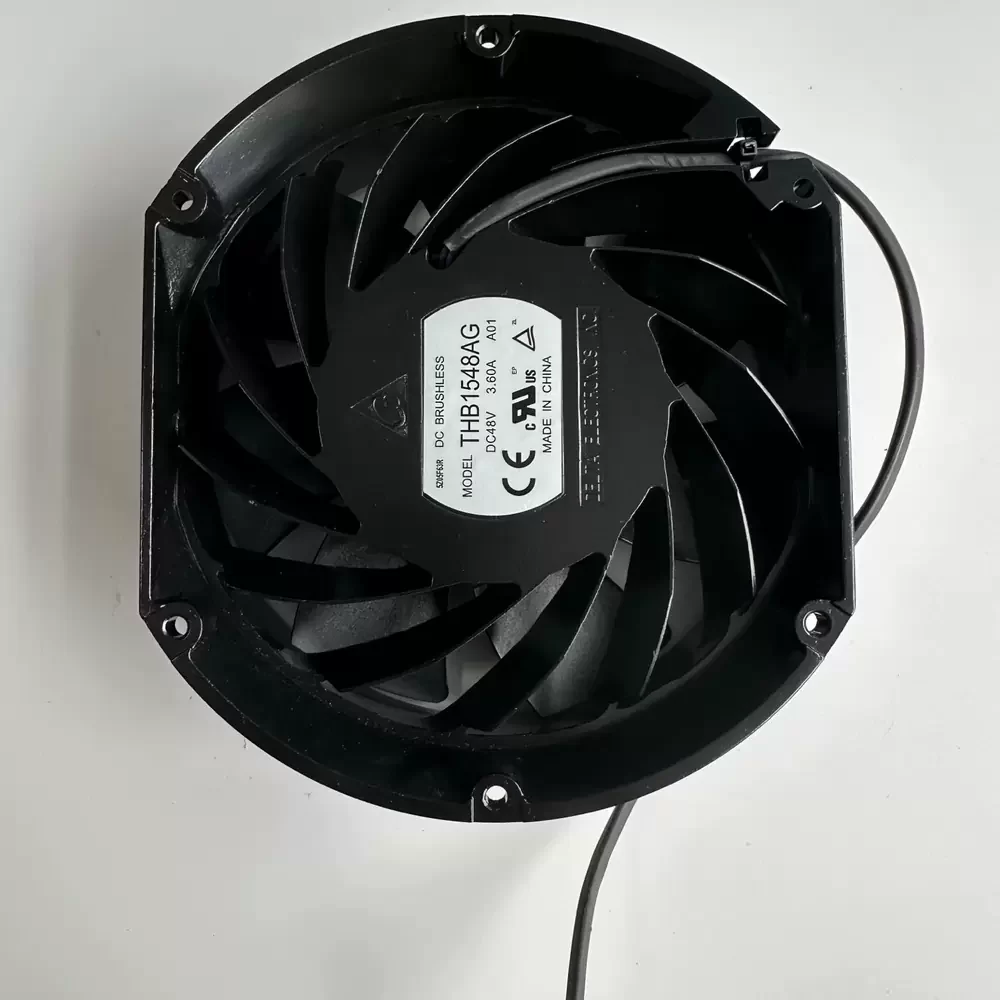

The Delta THB1548AG-A01 is a high-performance DC axial fan engineered for critical thermal management in high-impedance industrial environments. Featuring a precision-balanced thermoplastic impeller and a robust die-cast aluminum housing, this unit ensures superior structural rigidity and vibration dampening under high-load operations. The motor utilizes advanced dual ball bearing architecture to minimize friction and extend service life, while the aerodynamic blade design optimizes static pressure delivery. Designed for heavy-duty applications, it effectively reduces thermal impedance in densely packed electronic enclosures, ensuring reliable performance for variable frequency drives and server systems.
Model Number: THB1548AG-A01
Brand: Delta Electronics
Product Type: DC Axial Fan
Rated Voltage: 48 VDC
Voltage Range: 36.0 – 60.0 VDC
Rated Current: 3.60 A
Power: 172.8 W
Rated Speed: 6800 RPM
Bearing Type: Dual Ball Bearing
Max. Air Flow: 460.2 CFM (781.9 m³/h / 13.03 m³/min)
Max. Static Pressure: 48.2 mmH₂O (472.6 Pa / 1.90 inH₂O)
Dimensions: 172 x 150 x 51 mm
Weight: 820 g
Life Expectancy: 70000 Hours @ 40°C
Speed Control: PWM / Tachometer Output
Ingress Protection: IP55
Housing Material: Die-Cast Aluminum
Impeller Material: Thermoplastic UL94V-0
Noise Level: 76.5 dB-A
Operating Temperature: -10 to +70 °C
Storage Temperature: -40 to +75 °C
Termination: 4-Wire Leads
Mounting Orientation: Any
The THB1548AG-A01 is specifically calibrated for high-static pressure requirements found in industrial automation and telecommunications infrastructure. Its robust airflow capabilities make it an ideal solution for cooling Yaskawa variable frequency drives, large-scale server racks, and three-phase booster systems where back pressure is significant. By maintaining optimal operating temperatures, the THB1548AG-A01 prevents thermal throttling in CNC machinery and renewable energy inverters, ensuring continuous system reliability in harsh operational environments.
