Description
The Delta AFB0824HH-AAN is a precision-engineered Axial Fan designed for demanding thermal management applications requiring sustained reliability. Utilizing advanced DC motor technology coupled with a robust dual ball bearing architecture, this unit ensures minimal friction and extended operational lifespan under continuous load. The aerodynamic impeller design optimizes airflow efficiency while maintaining structural rigidity, effectively reducing thermal impedance within high-density electronic enclosures. Engineered with a UL94V-0 rated thermoplastic housing, the AFB0824HH-AAN delivers consistent cooling performance, balancing static pressure and volumetric flow to mitigate heat accumulation in critical industrial components.

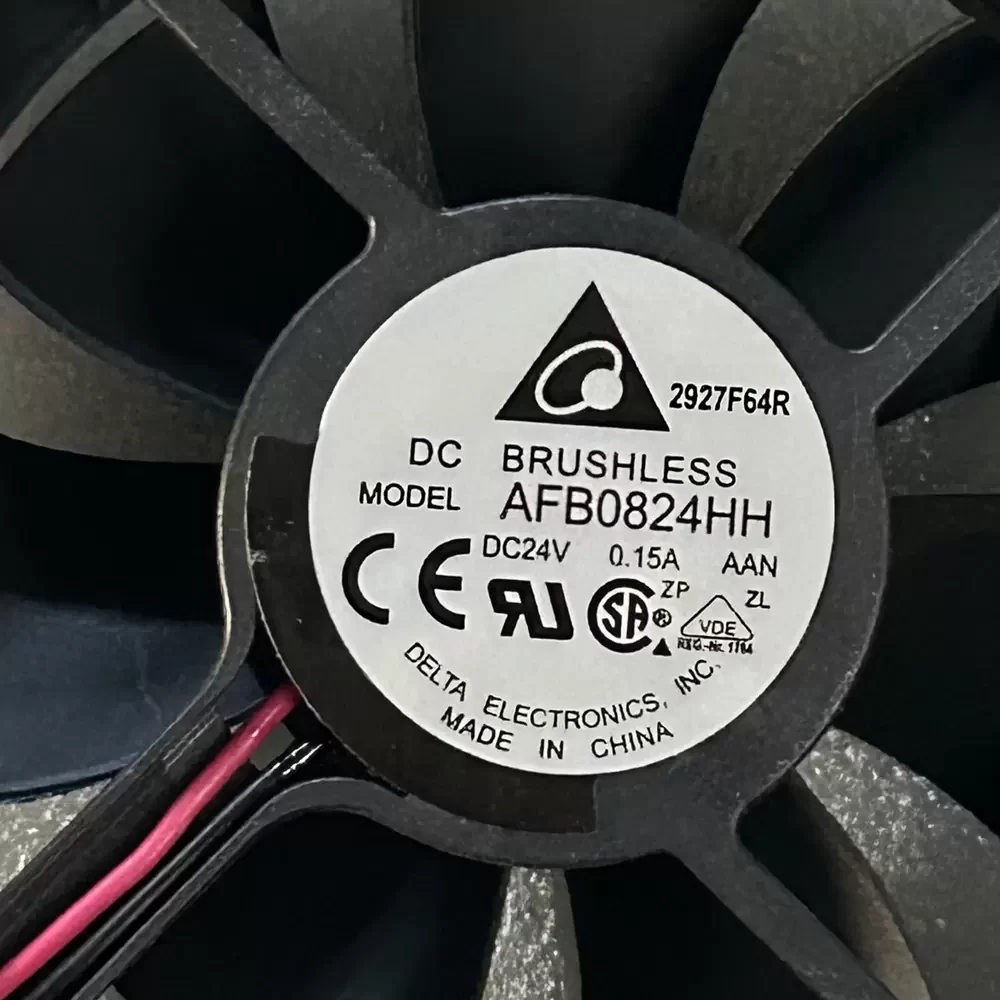

Model Number: AFB0824HH-AAN
Brand: Delta Electronics
Product Type: DC Axial Fan
Rated Voltage: 24VDC
Voltage Range: 14.0 – 27.6 VDC
Rated Current: 0.15 A
Input Power: 3.60 W
Rated Speed: 3250 RPM
Bearing Type: Dual Ball Bearing
Max. Air Flow: 37.43 CFM (63.6 m³/h / 1.06 m³/min)
Max. Static Pressure: 4.59 mmH₂O (45.0 Pa / 0.18 inH₂O)

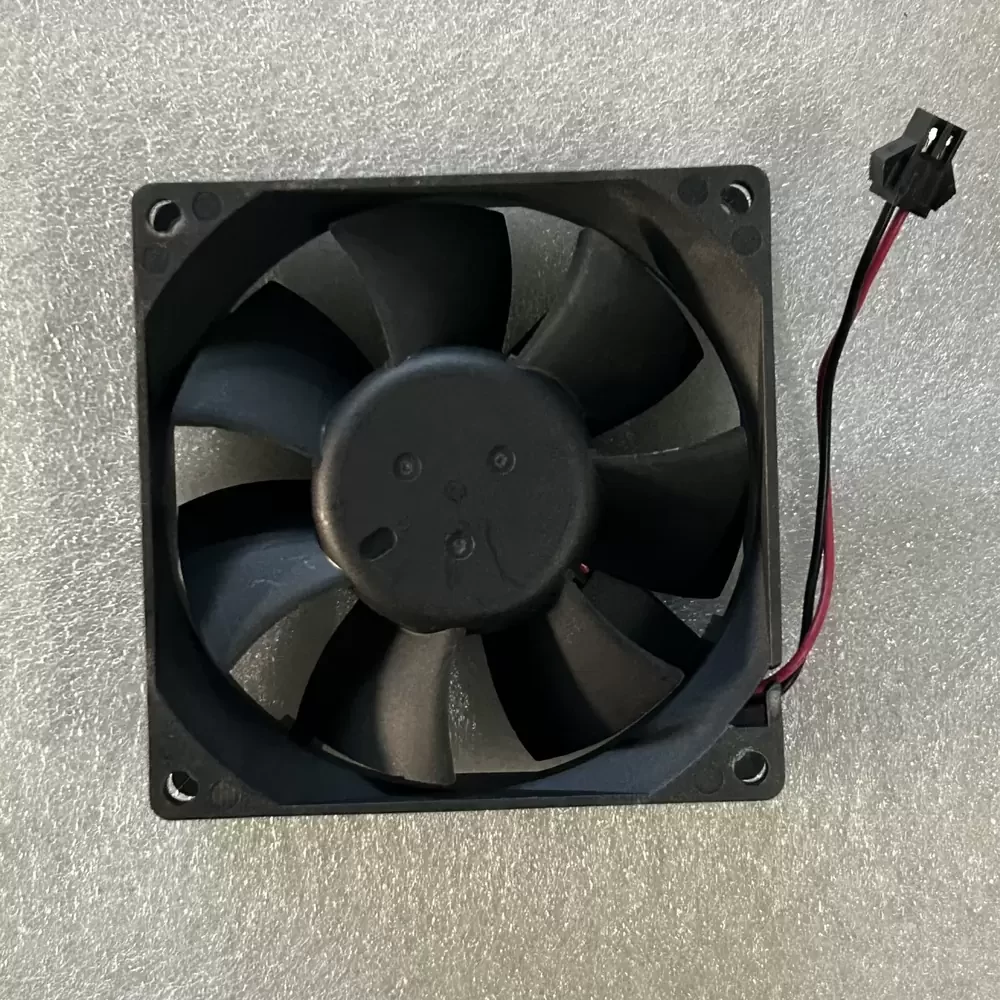

Dimensions: 80 x 80 x 25.4 mm
Weight: 80 g
Life Expectancy: 70,000 Hours at 40°C
Noise Level: 34.0 dB-A
Housing Material: Plastic (UL94V-0)
Impeller Material: Plastic (UL94V-0)
Termination: 2-Wire (Red +, Black -)
Operating Temperature: -10°C to +70°C
Storage Temperature: -40°C to +75°C
Protection: Locked Rotor Protection, Polarity Protection
Safety Approvals: UL, cUL, TUV, CE
The AFB0824HH-AAN is frequently deployed in industrial automation environments where consistent thermal regulation is paramount. Common integration points include server rack cooling modules, power supply units, and telecommunications equipment requiring compact yet powerful airflow solutions. The AFB0824HH-AAN is also suitable for CNC machinery control panels and medical instrumentation, ensuring sensitive electronics operate within safe temperature ranges to prevent thermal throttling or component failure.
