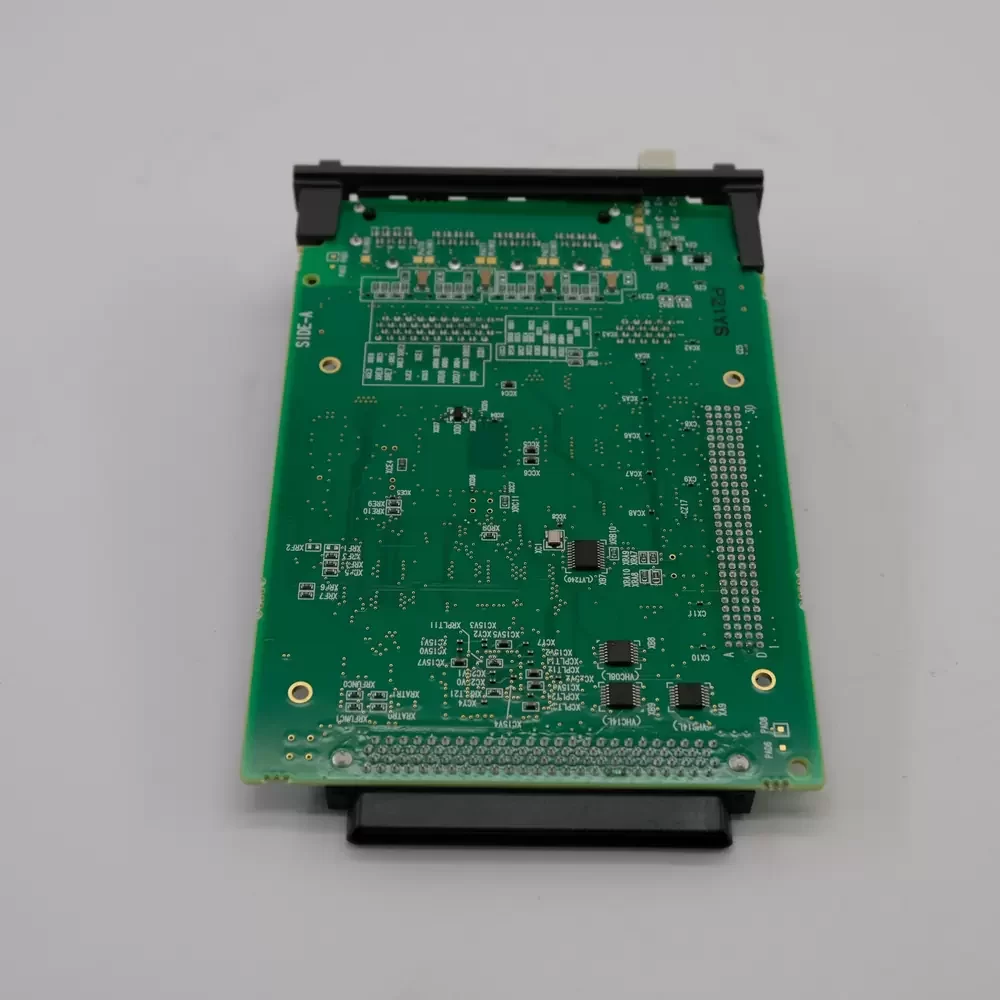

A20B-8201-0020 Fanuc 4-Port PROFINET Communication PCB

Description

Fanuc A20B-8201-0020 4-port PROFINET communication PCB weighing 0.10 lbs and featuring a slot-in mounting architecture. The printed circuit board utilizes a multi-port network interface engineered for real-time industrial data exchange and servo communication. Constructed with high-density electronic components and standard industrial connectors, the module operates directly from an internal 24 VDC power supply to facilitate seamless I/O processing and motion sequence management.

A20B-8201-0020 Specifications
Model Number: A20B-8201-0020
Brand: FANUC
Product Category: Communication Board / PC Board
Network Protocol: PROFINET
Port Configuration: 4-Port
Mounting Type: Slot-in PCB Module
Weight: 0.10 lbs (0.05 kg)
Power Supply: Internal Controller DC Voltage
Function: Motion sequencing, servo communication, I/O processing
Origin: Japan

A20B-8201-0020 Applications
Primary applications include integration into FANUC R-30iA and R-30iB robotic control cabinets for high-speed automated manufacturing lines. Deployed within industrial robotic cells, CNC machine tending systems, and automated welding stations requiring real-time PROFINET network synchronization between the robot controller and external PLCs or peripheral I/O devices.
