Description

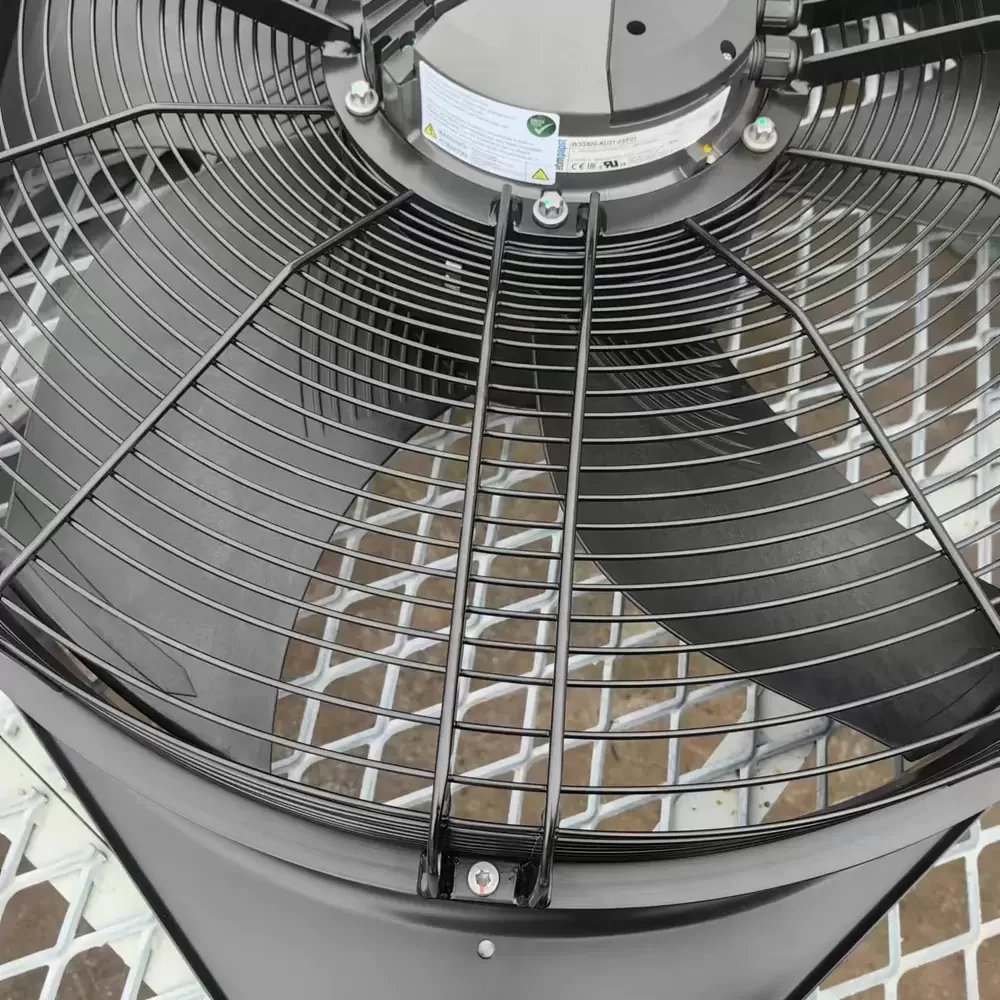

The ebm-papst W3G800-KU21-05/F01 is a high-efficiency EC Axial Fan engineered for demanding thermal management applications requiring substantial airflow and reliability. Featuring advanced GreenTech EC motor technology, this unit delivers superior aerodynamic performance through its optimized HyBlade geometry, which significantly reduces noise emissions while maximizing static pressure capabilities. The robust construction ensures structural rigidity under high back-pressure conditions, making it an ideal solution for precision cooling systems. Its integrated electronics provide precise speed control and monitoring, optimizing thermal impedance and energy consumption in critical industrial environments.
Model Number: W3G800-KU21-05/F01
Brand: ebm-papst
Product Type: EC Axial Fan
Rated Voltage: 380 – 480 VAC (3-Phase)
Frequency: 50 / 60 Hz
Power Input: 2900 W
Current Draw: 4.4 A
Rated Speed: 1130 RPM
Blade Diameter: 800 mm
Motor Type: M3G150 (EC External Rotor)
Bearing Type: Maintenance-free Ball Bearing
Max. Air Flow: 13831 CFM (23500 m³/h)
Max. Static Pressure: 1.08 inH₂O (270 Pa)
Material (Blades): PP Plastic (HyBlade)
Material (Housing): Die-cast Aluminum
Ingress Protection: IP54
Insulation Class: F
Operating Temperature: -25°C to +60°C
Control Interface: 0-10V / PWM / MODBUS-RTU
Weight: 32.5 kg
Phase: 3~
Direction of Rotation: Clockwise (viewed toward rotor)
Mounting Orientation: Any
This high-performance fan is specifically designed for critical cooling infrastructures, including precision air conditioning units in data centers and server farms. The W3G800-KU21-05/F01 excels in heat exchangers, condensers, and chillers where consistent airflow is paramount for system stability. Additionally, the W3G800-KU21-05/F01 is utilized in large-scale ventilation systems and industrial process cooling, ensuring reliable operation in continuous-duty environments.
