Description

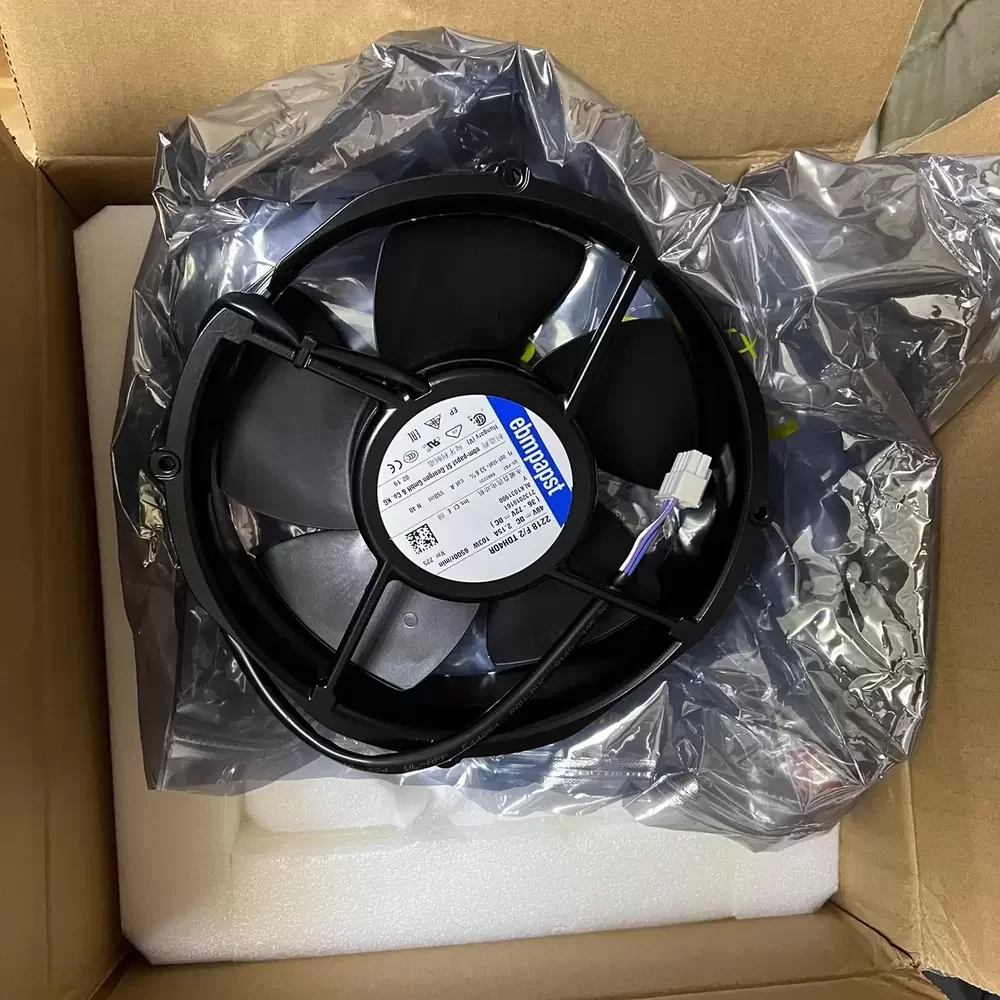

The ebmpapst 2218F/2TDH40R-225 is a Tubeaxial Fan engineered for demanding industrial thermal management applications requiring exceptional volumetric flow and static pressure. This unit features a robust 3-phase DC motor architecture paired with precision ball bearings to ensure operational longevity and reduced frictional wear under high-load conditions. The aerodynamic impeller design optimizes airflow efficiency while minimizing turbulence, effectively lowering thermal impedance within enclosed systems. Constructed with a die-cast aluminum housing for structural rigidity, this fan delivers consistent performance in environments requiring substantial cooling capacity and reliability.
Model Number: 2218F/2TDH40R-225
Brand: ebmpapst
Product Type: Tubeaxial Fan
Rated Voltage: 48 VDC
Voltage Range: 36 – 72 VDC
Rated Current: 2.15 A
Power Consumption: 103 W
Rated Speed: 6500 RPM
Bearing Type: Ball Bearing
Max. Air Flow: 718.0 CFM (1220 m³/h / 20.33 m³/min)
Max. Static Pressure: 4.82 inH₂O (1200 Pa / 122.3 mmH₂O)
Dimensions: 200mm Diameter x 51mm Depth
Weight: 1.0 kg (2.2 lbs)
Housing Material: Die-Cast Aluminum
Impeller Material: PA Plastic (UL94V-0)
Operating Temperature: -20°C to +75°C
Life Expectancy: 70,000 Hours (at 40°C)
Motor Type: 3-Phase DC Motor
Ingress Protection: IP20
Termination: Lead Wires
Speed Control: PWM Control / Tachometer Output
The 2218F/2TDH40R-225 is engineered for critical thermal management in high-power industrial sectors, particularly within telecommunications infrastructure and large-scale data center server racks. This fan excels in environments requiring substantial airflow to counteract high static pressure, such as variable frequency drives (VFDs) and solar inverters. Furthermore, the 2218F/2TDH40R-225 is utilized in medical diagnostic equipment and CNC machinery, ensuring continuous operation by effectively dissipating heat from sensitive electronic components.
