Description

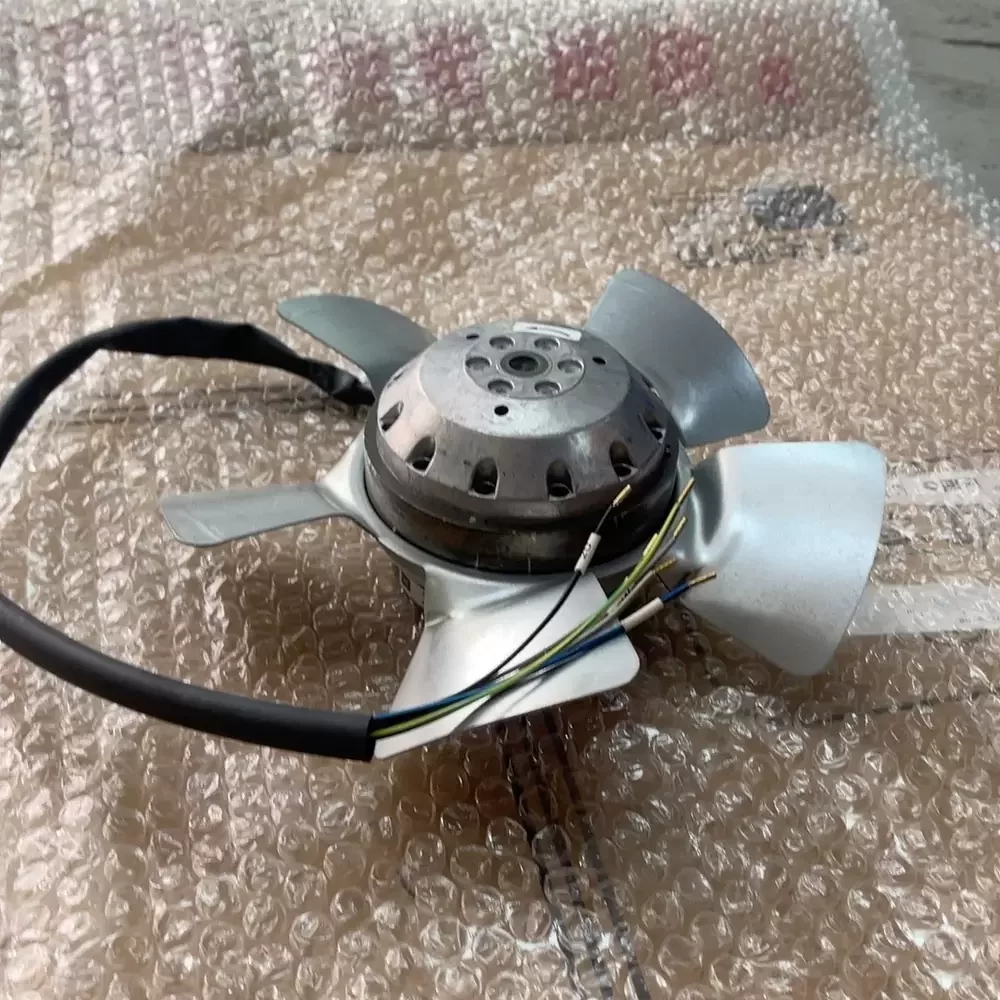

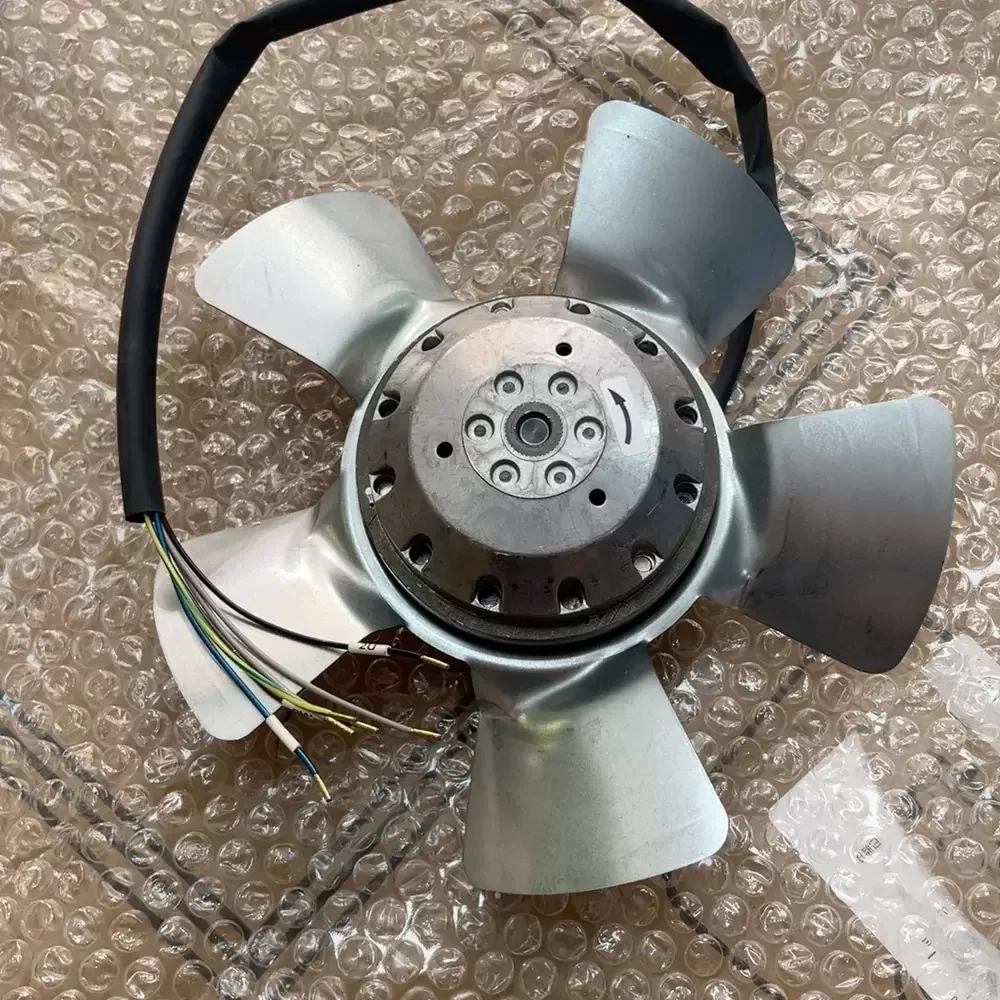

The ebm-papst A2D210-AA02-11 is a high-efficiency AC Axial Fan designed for rigorous industrial thermal management applications. Featuring an external rotor motor configuration, this unit drives a precision-balanced 5-blade metal impeller, optimizing aerodynamic throughput while maintaining structural rigidity. The motor is supported by maintenance-free ball bearings, which significantly reduce thermal impedance and extend operational lifespan under continuous load. Engineered for durability, the fan operates effectively within harsh environments, delivering consistent static pressure and airflow. Its robust construction ensures minimal vibration and reliable performance in critical cooling systems requiring stable heat dissipation.

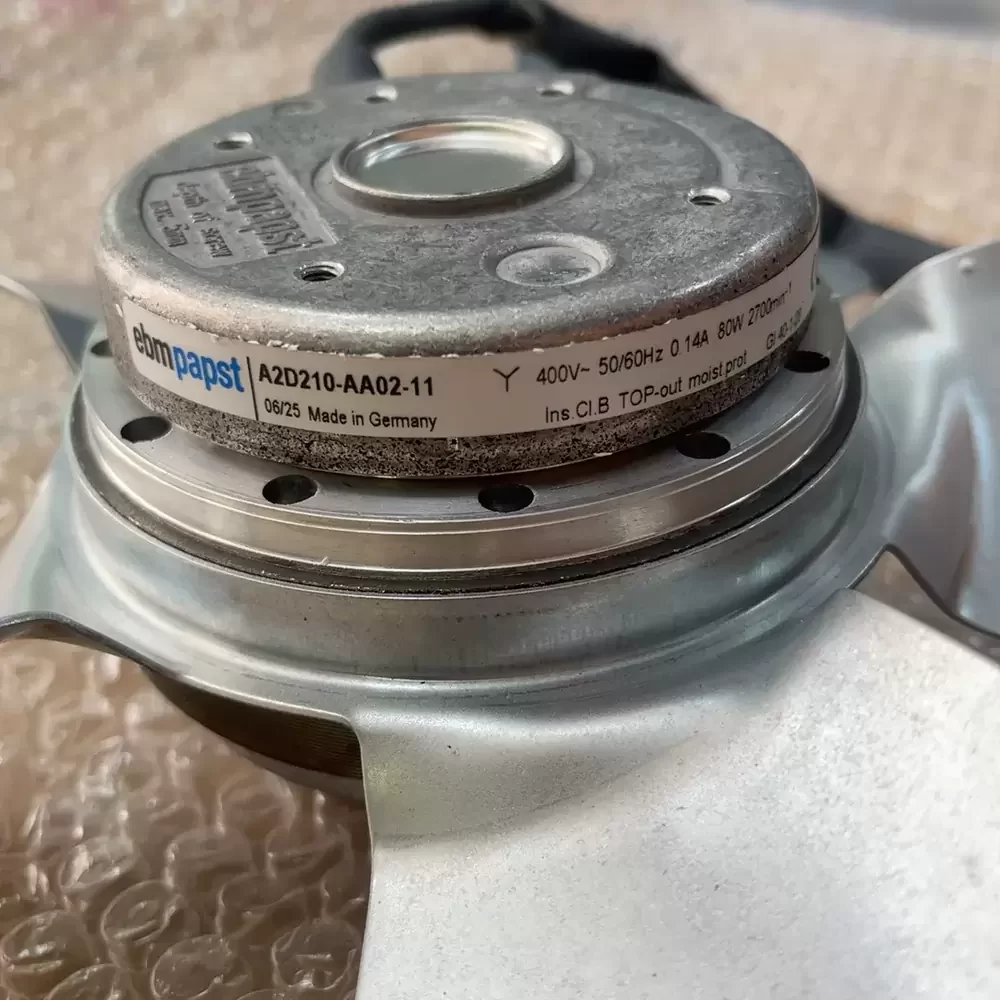

Model Number: A2D210-AA02-11
Brand: ebm-papst
Product Type: AC Axial Fan
Rated Voltage: 400VAC
Phase: 3-Phase
Frequency: 50/60 Hz
Power Input: 80 W
Rated Speed: 2700 RPM
Impeller Diameter: 210mm
Bearing Type: Ball Bearing
Max. Air Flow: 1000 m³/h (588 CFM)
Material: Sheet Steel (Coated Black)
Number of Blades: 5
Direction of Rotation: Counter-clockwise (seen on rotor)
Insulation Class: F
Motor Protection: Thermal Overload Protector (TOP)
Ingress Protection: IP44
Operating Temperature: -25°C to +70°C
Mounting Orientation: Any
Weight: 2.0 kg

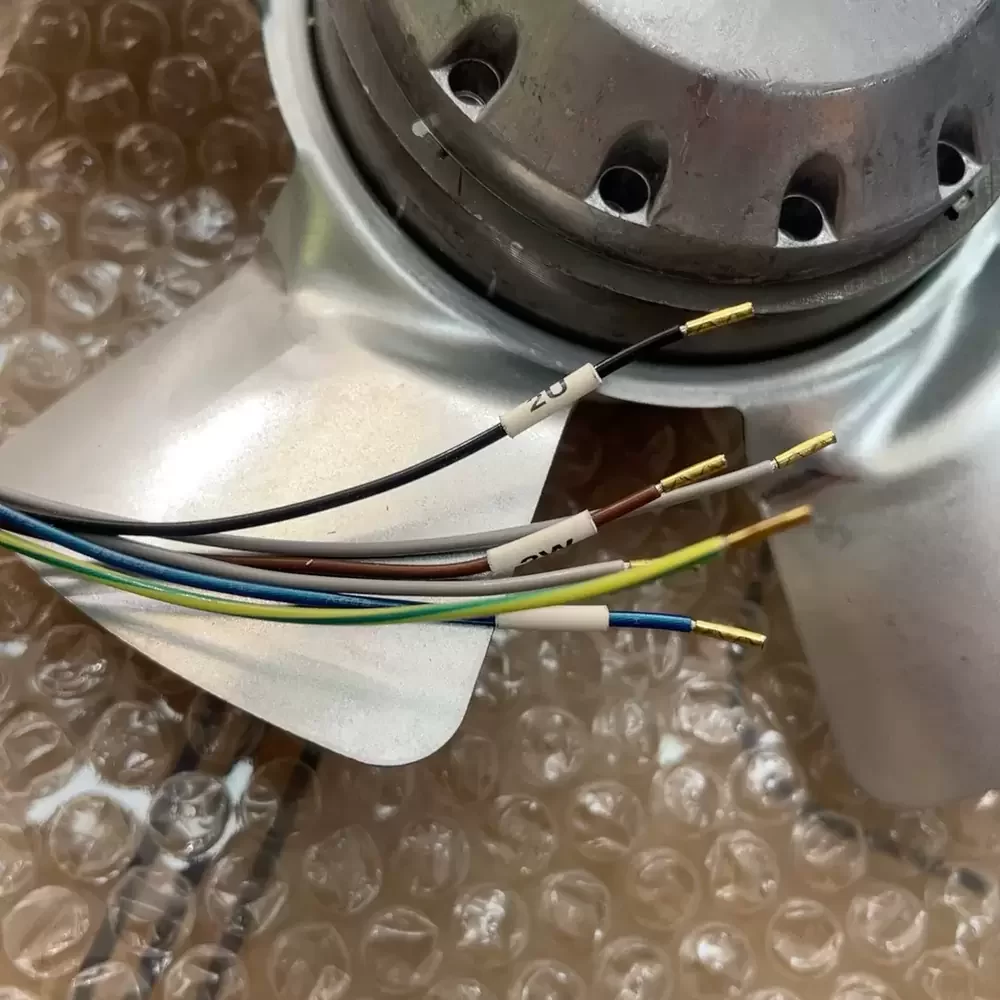

Termination: Lead Wires
Compliance: CE, CCC
The A2D210-AA02-11 is widely utilized in industrial automation and power electronics sectors where consistent cooling is mandatory. Typical installations include ventilation for large control cabinets, cooling systems for welding equipment, and thermal regulation in power inverters. The A2D210-AA02-11 is also frequently deployed in commercial refrigeration condensers and transformer cooling arrays, ensuring critical components operate within safe thermal limits to prevent downtime.
