Description

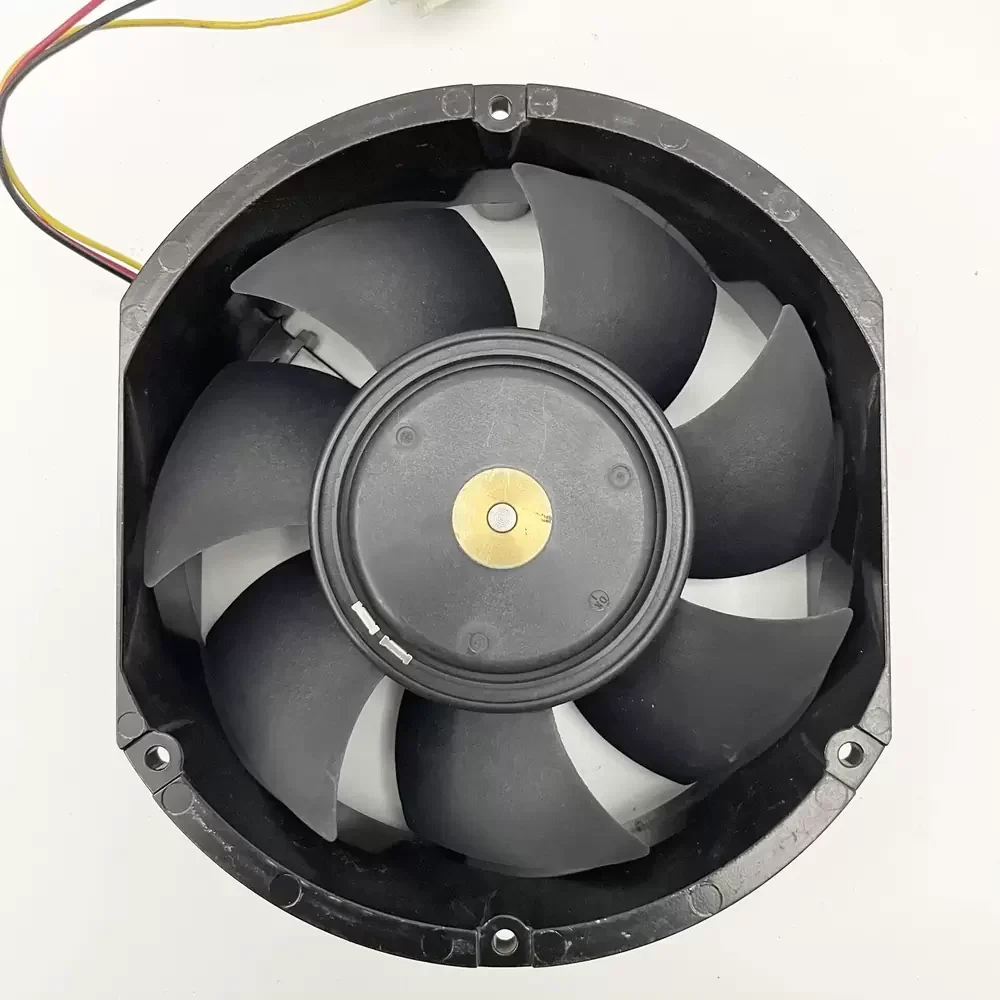

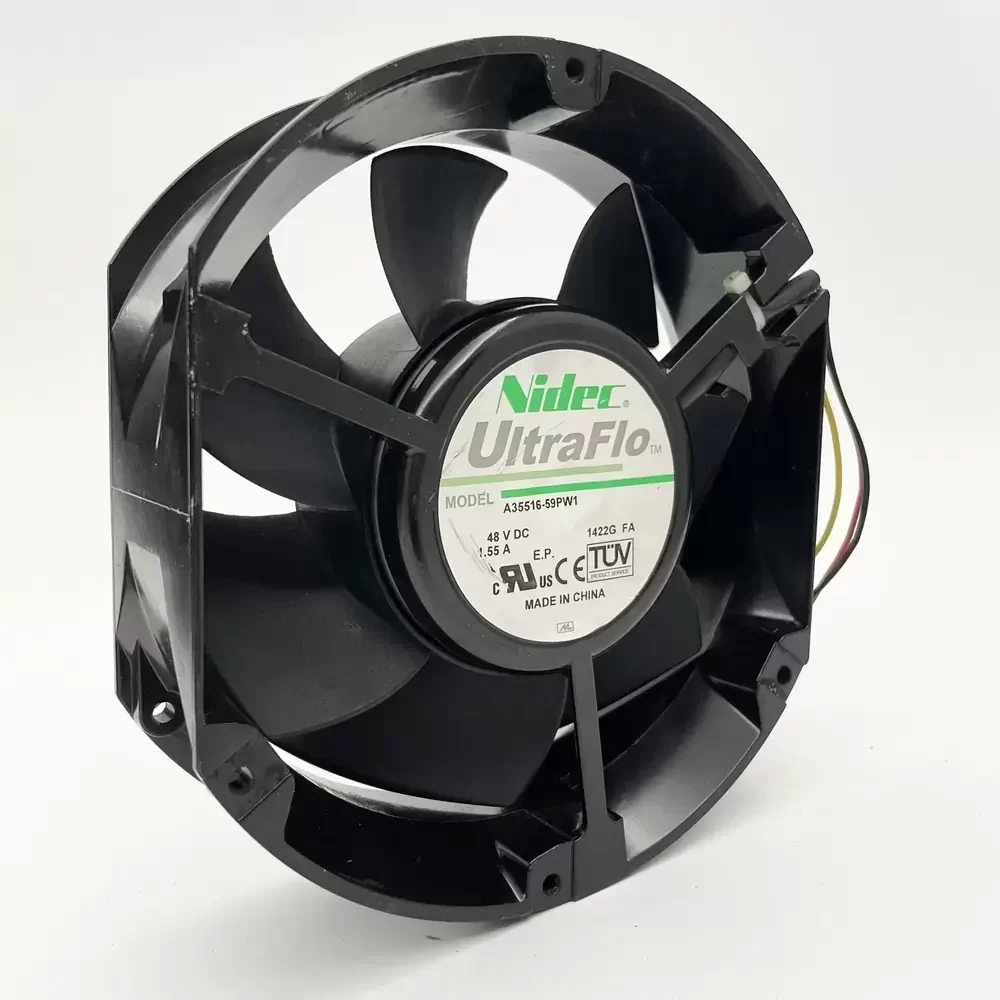

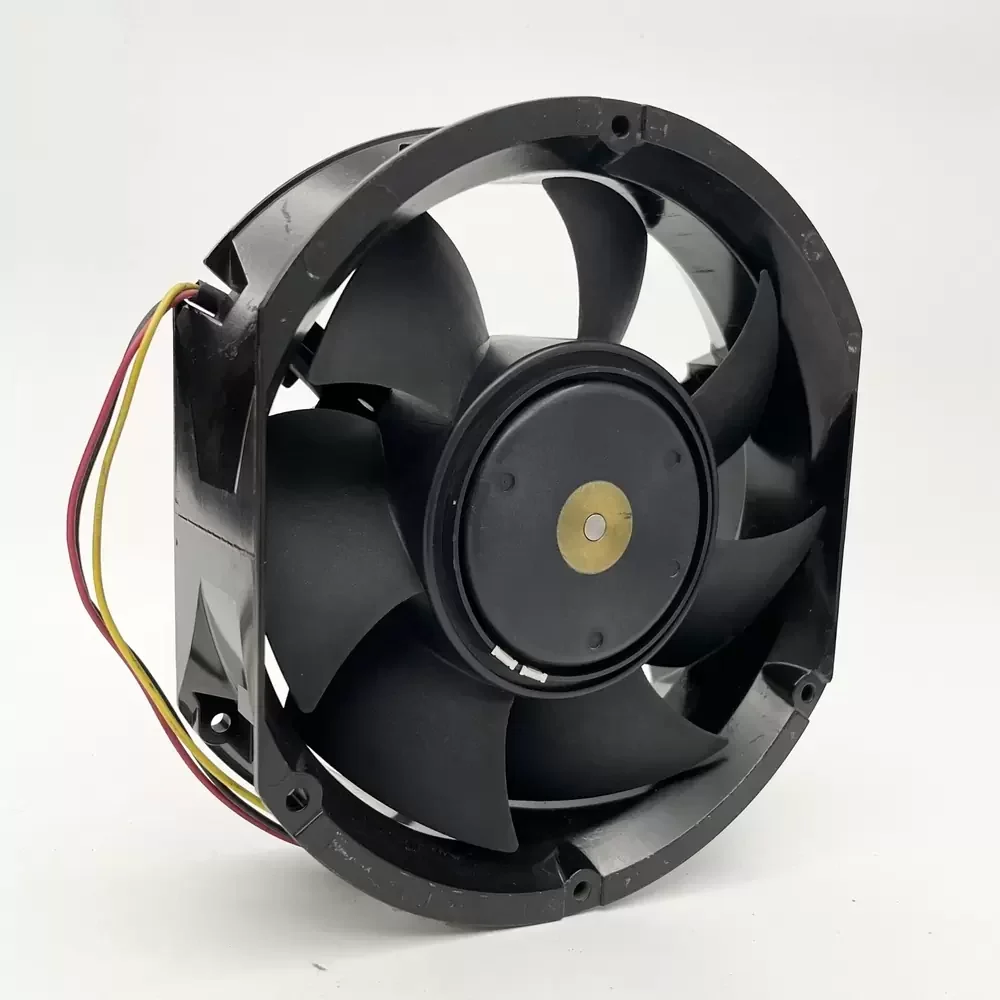

The Nidec A35516-59PW1 is a high-performance Axial Fan engineered for rigorous industrial thermal management applications. Utilizing advanced DC motor technology and a precision-balanced impeller, this unit delivers exceptional airflow while maintaining structural rigidity under continuous operation. The fan features a robust dual ball bearing architecture, designed to minimize friction and extend service life in high-temperature environments. Its aerodynamic profile is optimized to reduce thermal impedance, making it a critical component for maintaining system stability in power electronics and high-density enclosures.
Model Number: A35516-59PW1
Brand: Nidec
Product Type: DC Axial Fan
Rated Voltage: 48 VDC
Voltage Range: 28.0 – 56.0 VDC
Rated Current: 1.55 A
Input Power: 74.4 W
Rated Speed: 4000 RPM
Max. Air Flow: 235.0 CFM (399.2 m³/h)
Max. Static Pressure: 22.5 mmH₂O (220 Pa)
Dimensions: 172 mm x 150 mm x 51 mm
Bearing Type: Dual Ball Bearing
Noise Level: 58.0 dB(A)
Housing Material: Die-Cast Aluminum
Impeller Material: Reinforced Plastic (UL94V-0)
Termination: Lead Wires
Operating Temperature: -10°C to +70°C
Storage Temperature: -40°C to +70°C
Life Expectancy: 70,000 Hours at 40°C
Mounting: Flange Mount
Protection: Locked Rotor Protection, Reverse Polarity Protection
Application: Yaskawa Inverter, UPS Power Supply
The A35516-59PW1 is specifically calibrated for mission-critical hardware, serving as a primary cooling solution for Yaskawa frequency inverters and industrial UPS power supplies. Its high-static pressure capabilities allow it to effectively push air through dense component arrays found in server racks and telecommunication equipment. By ensuring rapid heat dissipation, the A35516-59PW1 prevents thermal throttling and component failure in automated CNC machinery and large-scale power conversion systems.
