Description

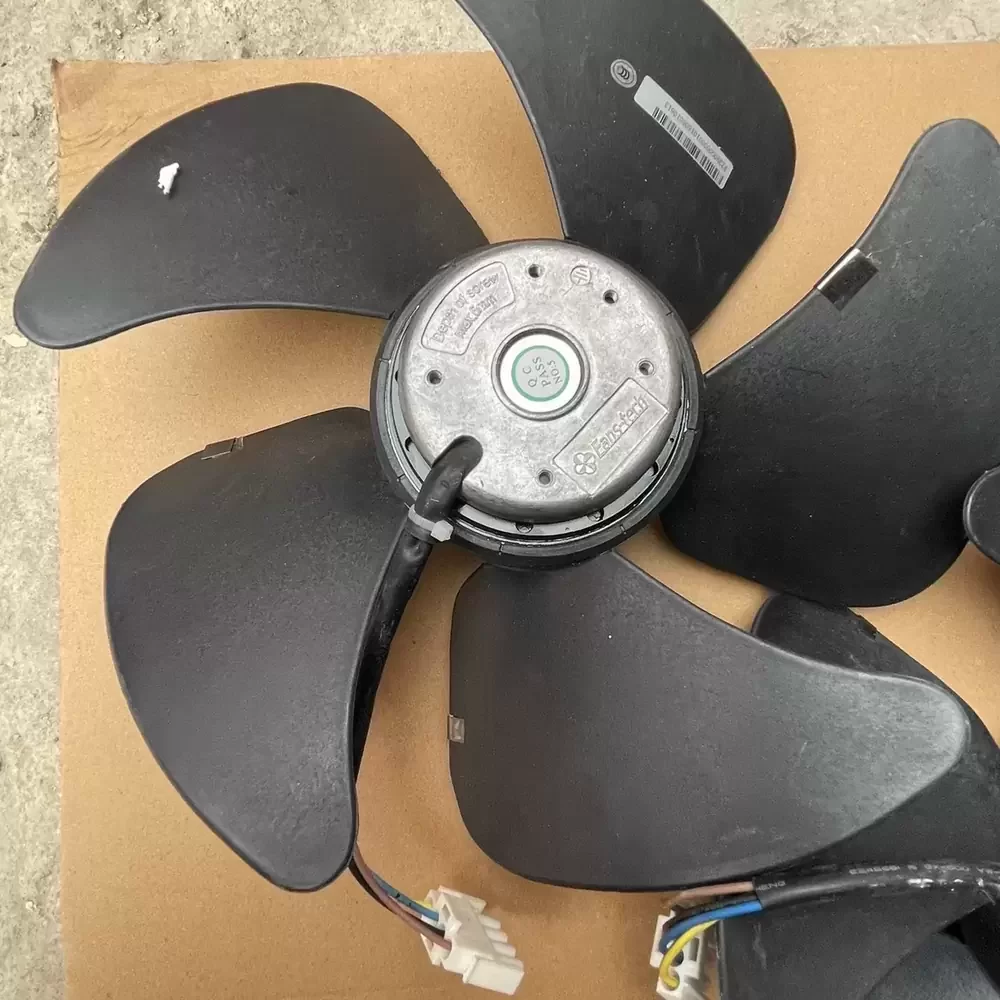

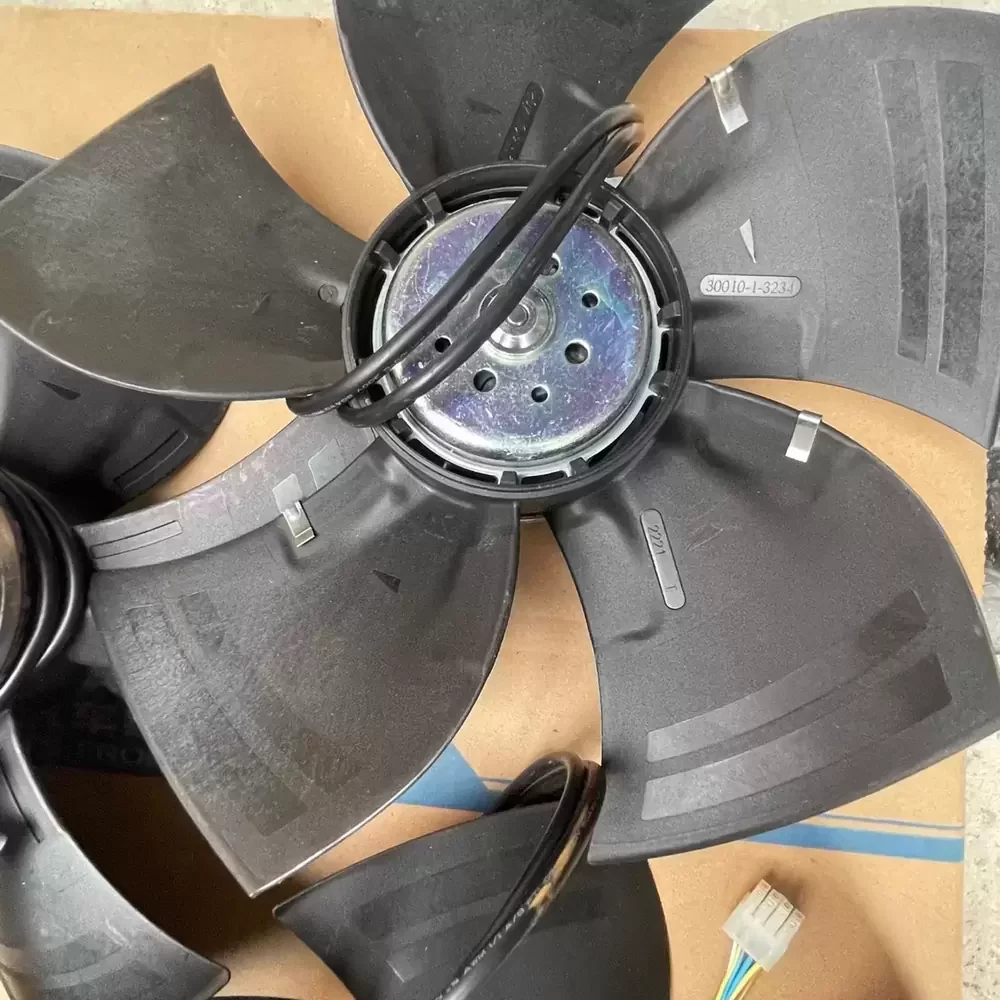

The ebm-papst A3G300-8317075044 is a high-efficiency EC axial fan engineered for demanding thermal management applications requiring precise airflow regulation. Utilizing advanced GreenTech EC motor technology, this unit offers superior aerodynamic performance through its optimized HyBlade impeller design, which significantly reduces noise generation while maximizing throughput. The construction features a robust die-cast aluminum electronics housing and fiberglass-reinforced plastic blades, ensuring structural rigidity and long-term reliability under continuous operation. Designed with low thermal impedance and integrated electronics, it provides seamless speed control via PWM or 0-10V interfaces. The fan operates efficiently across a wide voltage range, making it suitable for global industrial grids requiring consistent cooling performance and energy savings.
Model Number: A3G300-8317075044
Brand: ebm-papst
Product Type: EC Axial Fan
Rated Voltage: 230 VAC
Voltage Range: 200 – 240 VAC
Frequency: 50 / 60 Hz
Rated Current: 0.75 A
Power Input: 85 W
Rated Speed: 1600 RPM
Bearing Type: Ball Bearing
Max. Air Flow: 1353 CFM (2300 m³/h / 38.33 m³/min)
Max. Static Pressure: 12.24 mmH₂O (120 Pa / 0.48 inH₂O)
Dimensions: 300mm (Blade Diameter)
Weight: 2.8 kg
Life Expectancy: 40,000 hrs @ 40°C (L10)
Motor Type: M3G055-CF
Speed Control: 0-10 VDC / PWM
Ingress Protection: IP54
Insulation Class: Class B
Noise Level: 62 dB(A)
Blade Material: PA Plastic (Glass-fiber reinforced)
Housing Material: Die-cast Aluminum
Operating Temperature: -25°C to +60°C
Storage Temperature: -40°C to +80°C
Mounting Orientation: Any
Protection: Thermal Overload Protector (TOP), Reverse Polarity, Locked Rotor Protection
Certifications: CE, UL, CSA, VDE, CCC
This unit is specifically engineered for critical ventilation systems where energy efficiency and precise control are paramount. The A3G300-8317075044 is frequently deployed in condenser units, heat pumps, and industrial air conditioning systems requiring sustained airflow against moderate static pressure. Additionally, the A3G300-8317075044 serves as a reliable component in electronics cabinet cooling and IT infrastructure, ensuring optimal thermal regulation for sensitive equipment in data centers and telecommunication base stations.
