Description
The ADDA AD0824UB-A71GLG is a precision-engineered DC Axial Fan designed to deliver optimal airflow in demanding industrial environments. Utilizing advanced Brushless DC motor technology combined with a robust double ball bearing architecture, this unit ensures long-term operational stability and reduced friction. The aerodynamic impeller design minimizes turbulence while maximizing static pressure, effectively lowering thermal impedance within high-density enclosures. Constructed with high-quality materials for structural rigidity, the AD0824UB-A71GLG maintains consistent performance under continuous load, making it a reliable solution for critical thermal management applications requiring sustained cooling efficiency.
Model Number: AD0824UB-A71GLG
Brand: ADDA
Product Type: DC Axial Fan
Rated Voltage: 24 VDC
Voltage Range: 14.0 – 27.6 VDC
Rated Current: 0.26 A
Input Power: 6.24 W
Rated Speed: 3900 RPM
Bearing Type: Double Ball Bearing
Max. Air Flow: 52.5 CFM (89.2 m³/h / 1.48 m³/min)
Max. Static Pressure: 5.84 mmH₂O (57.2 Pa / 0.23 inH₂O)
Dimensions: 80 x 80 x 25 mm
Weight: 86 g
Life Expectancy: 70,000 Hours at 40°C
Noise Level: 40.0 dB(A)
Frame Material: PBT Thermoplastic (UL94V-0)
Impeller Material: PBT Thermoplastic (UL94V-0)

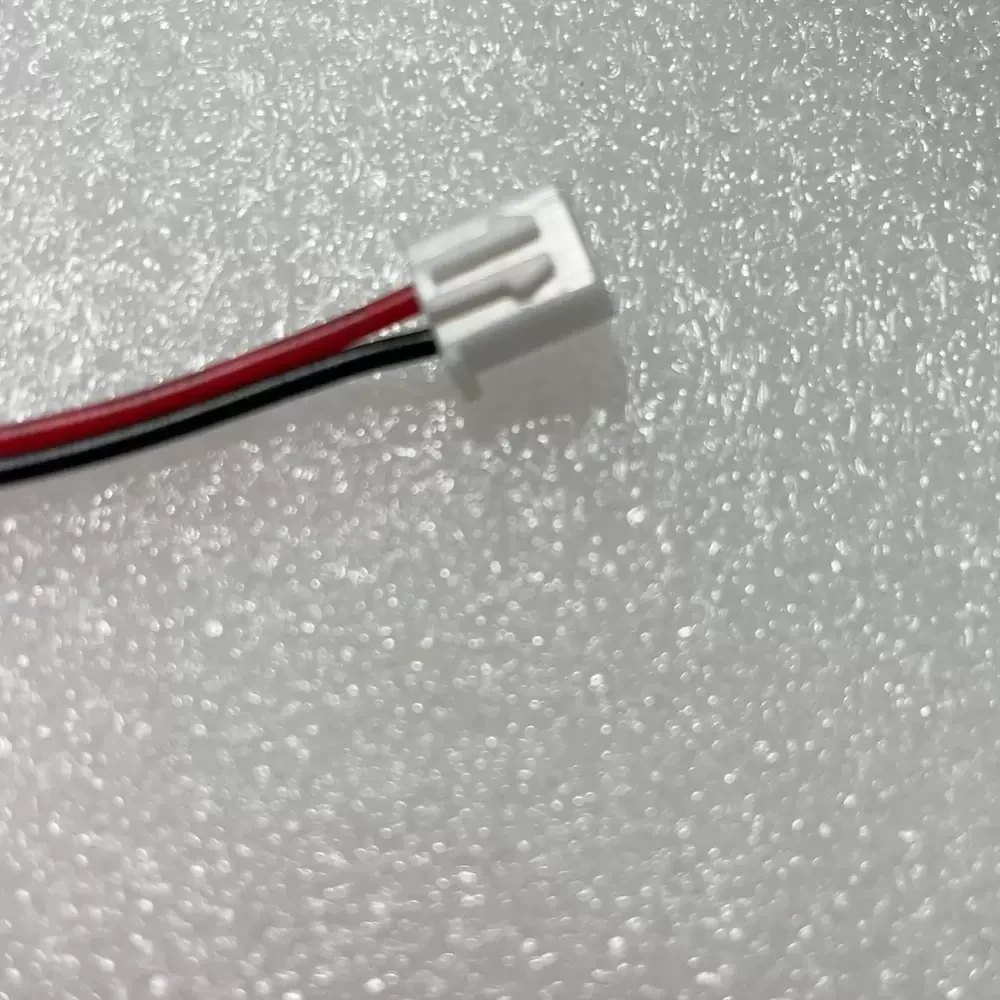

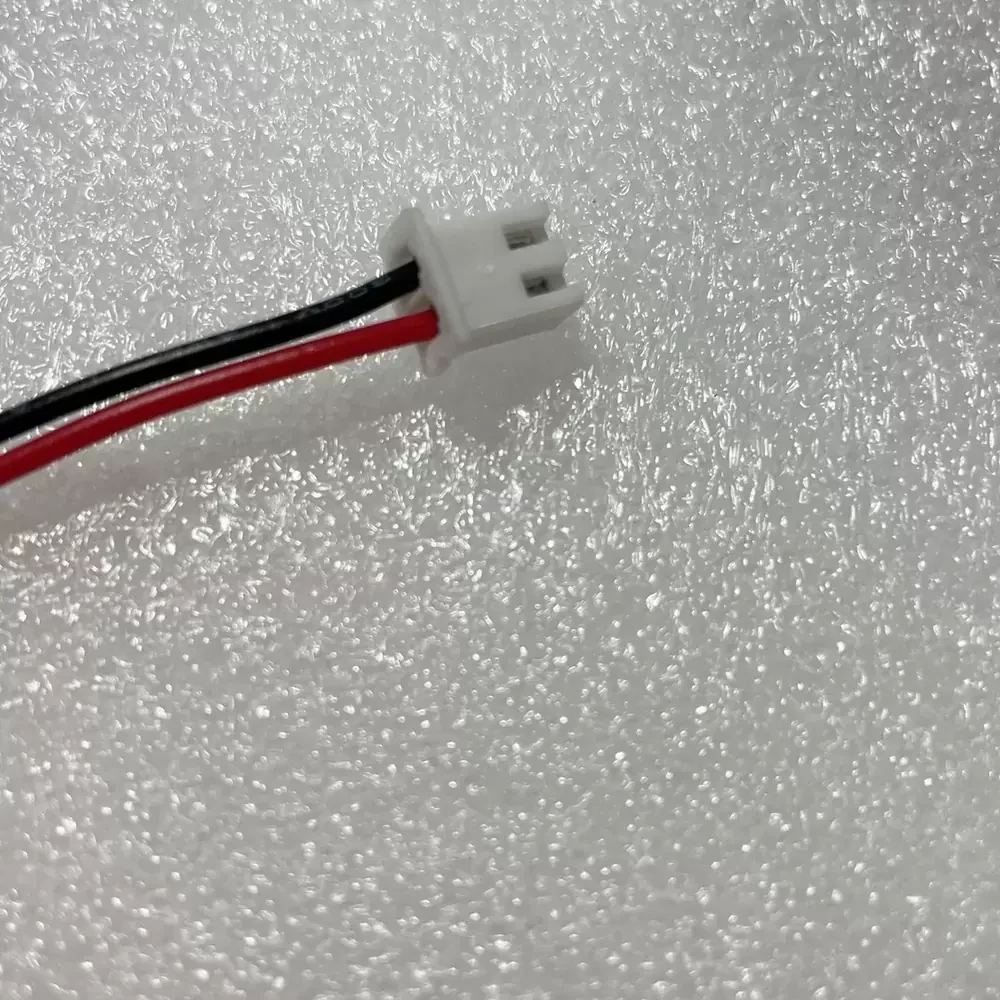

Termination: 2-Wire Leads (Red +, Black -)
Connector: 2-Pin Standard
Operating Temperature: -10°C to +70°C
Storage Temperature: -40°C to +70°C
Ingress Protection: IP20
Safety Protection: Impedance Protected, Reverse Polarity
The AD0824UB-A71GLG is specifically engineered for thermal regulation in industrial electronics, particularly within variable frequency drive inverters and server chassis environments. Its compact 80mm form factor allows for seamless integration into limited-space enclosures where efficient heat dissipation is critical for component longevity. Additionally, the AD0824UB-A71GLG is widely utilized in telecommunications equipment, power supply units, and automation control panels, ensuring reliable operation by preventing thermal throttling in continuous-duty cycles.
