Description

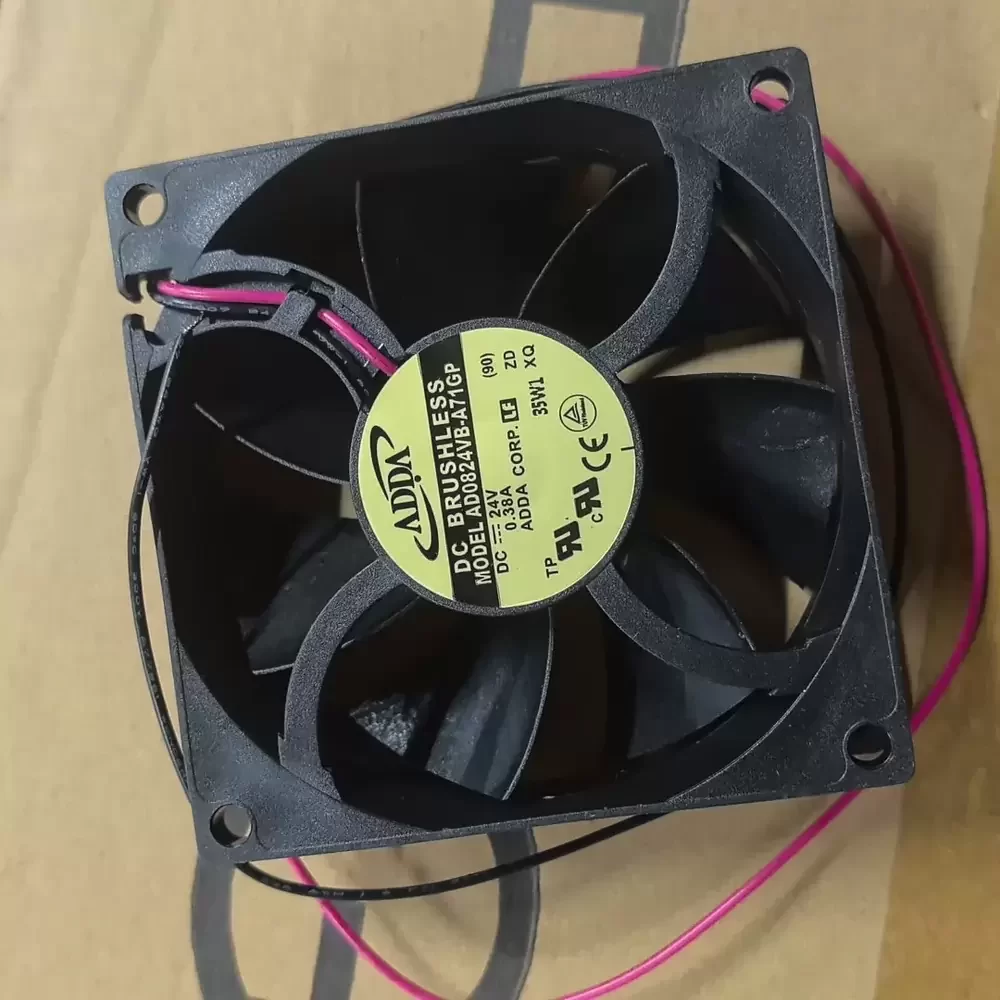

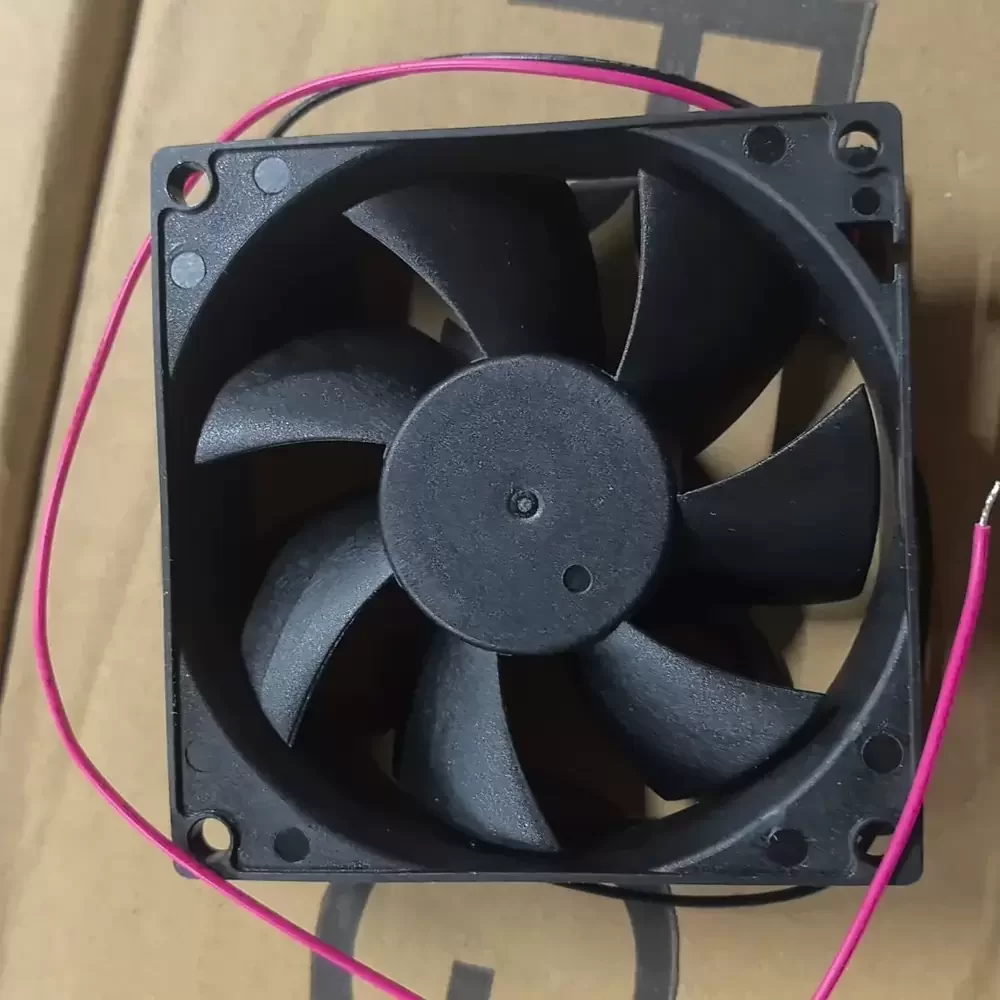

The ADDA AD0824VB-A71GP is a precision-engineered DC Axial Fan designed for critical thermal management in industrial environments. Utilizing advanced DC brushless motor technology combined with a durable two-ball bearing architecture, this unit ensures minimal friction and extended operational longevity under continuous load. The aerodynamic impeller design optimizes airflow dynamics to reduce thermal impedance within high-density enclosures, while the reinforced PBT housing provides necessary structural rigidity. This component is specifically calibrated for stability and efficiency in demanding electrical applications, offering a robust solution for heat dissipation in power electronics.
Model Number: AD0824VB-A71GP
Brand: ADDA
Product Type: DC Axial Fan
Rated Voltage: 24VDC
Voltage Range: 14.0 – 27.6 VDC
Rated Current: 0.38 A
Input Power: 9.12 W
Rated Speed: 4200 RPM
Bearing Type: Two Ball Bearing
Max. Air Flow: 60.0 CFM (101.9 m³/h / 1.70 m³/min)
Max. Static Pressure: 8.1 mmH₂O (79.4 Pa / 0.32 inH₂O)
Dimensions: 80 x 80 x 25 mm
Weight: 86 g
Life Expectancy: 70,000 Hours at 40°C
Noise Level: 42.5 dB-A
Housing Material: PBT (UL94V-0)
Impeller Material: PBT (UL94V-0)
Ingress Protection: IP20
Insulation Class: Class A
Operating Temperature: -10°C to +70°C
Storage Temperature: -40°C to +70°C
Termination: Lead Wires
Mounting Orientation: Any
Safety Approvals: CE, TUV, UL, cUL
The AD0824VB-A71GP is engineered for robust performance in industrial automation and power conversion systems. It serves as a critical cooling component in variable frequency drives (VFDs) and solar inverters, ensuring optimal operating temperatures for sensitive power electronics. Additionally, the AD0824VB-A71GP is widely utilized in server rack ventilation, CNC machinery control cabinets, and telecommunications equipment where consistent airflow is required to prevent thermal throttling and component degradation.
