Description

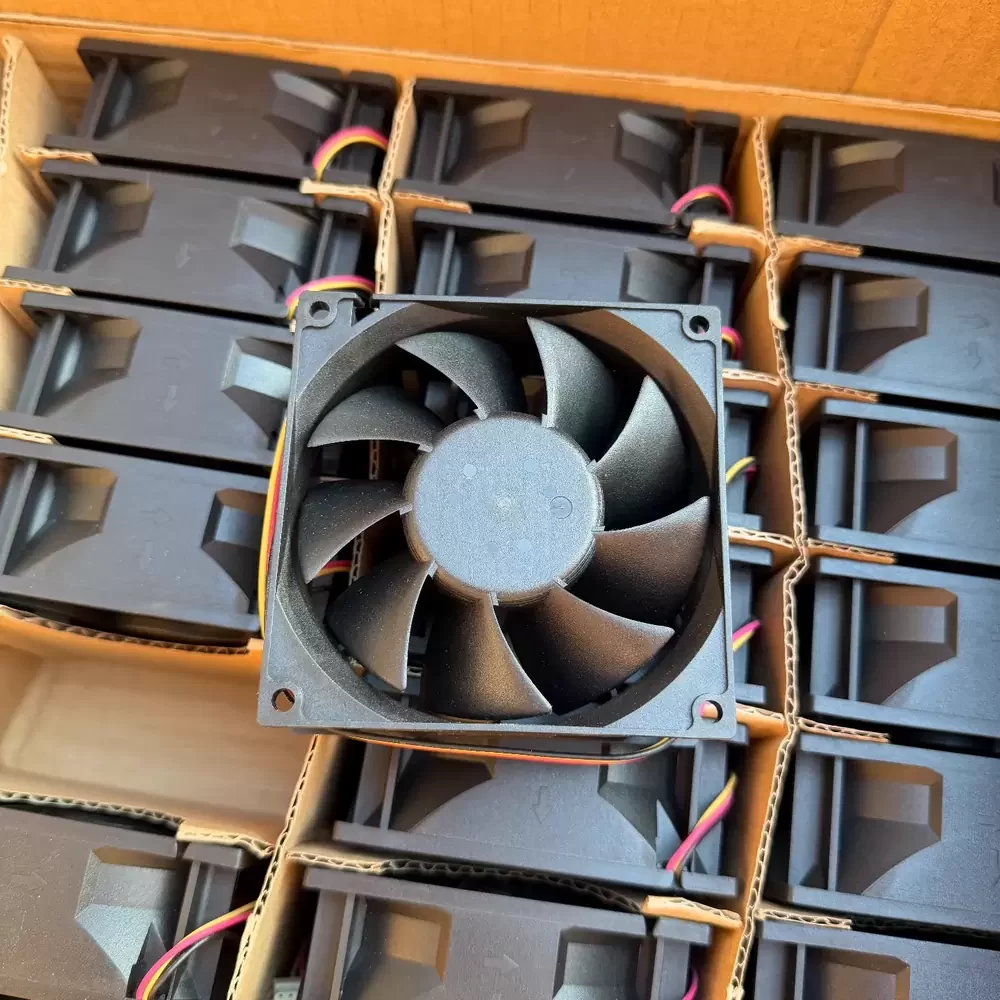

The ADDA AD0912HB-F93GP is a precision-engineered DC axial fan designed for critical thermal management applications requiring high static pressure and robust airflow. Featuring a durable dual ball bearing architecture, this unit ensures long-term operational stability and reduced friction coefficients under continuous load. The 92mm frame is constructed to maximize structural rigidity while minimizing vibration-induced noise. Equipped with a Rotation Detector (RD) alarm, the fan provides real-time status monitoring, essential for preventing thermal runaway in sensitive electronics. Its aerodynamic impeller design optimizes the P-Q curve, delivering efficient cooling performance with low thermal impedance.
Model Number: AD0912HB-F93GP
Brand: ADDA
Product Type: DC Axial Fan
Rated Voltage: 12VDC
Voltage Range: 10.8 – 13.2 VDC
Rated Current: 1.00 A
Input Power: 12.0 W
Rated Speed: 4800 RPM
Bearing Type: Dual Ball Bearing
Max. Air Flow: 105.0 CFM (178.4 m³/h / 2.97 m³/min)
Max. Static Pressure: 14.5 mmH₂O (142.2 Pa / 0.57 inH₂O)
Dimensions: 92 x 92 x 38 mm
Weight: 190 g
Life Expectancy: 70,000 Hours at 40°C
Noise Level: 55.0 dB(A)
Output Signal: RD (Rotation Detector/Locked Rotor Alarm)
Frame Material: Glass Fiber Reinforced PBT (UL94V-0)
Impeller Material: Glass Fiber Reinforced PBT (UL94V-0)
Operating Temperature: -10°C to +70°C
Storage Temperature: -40°C to +70°C
Ingress Protection: IP20
Termination: Lead Wires
This high-performance cooling solution is specifically engineered for demanding industrial environments such as server rack enclosures, telecommunications base stations, and power supply units where consistent airflow is paramount. The AD0912HB-F93GP excels in systems requiring active monitoring of fan status to trigger fail-safe protocols during maintenance cycles. Additionally, the AD0912HB-F93GP is widely utilized in CNC machinery and medical instrumentation, ensuring components remain within safe thermal operating limits to prevent hardware degradation.
