Description

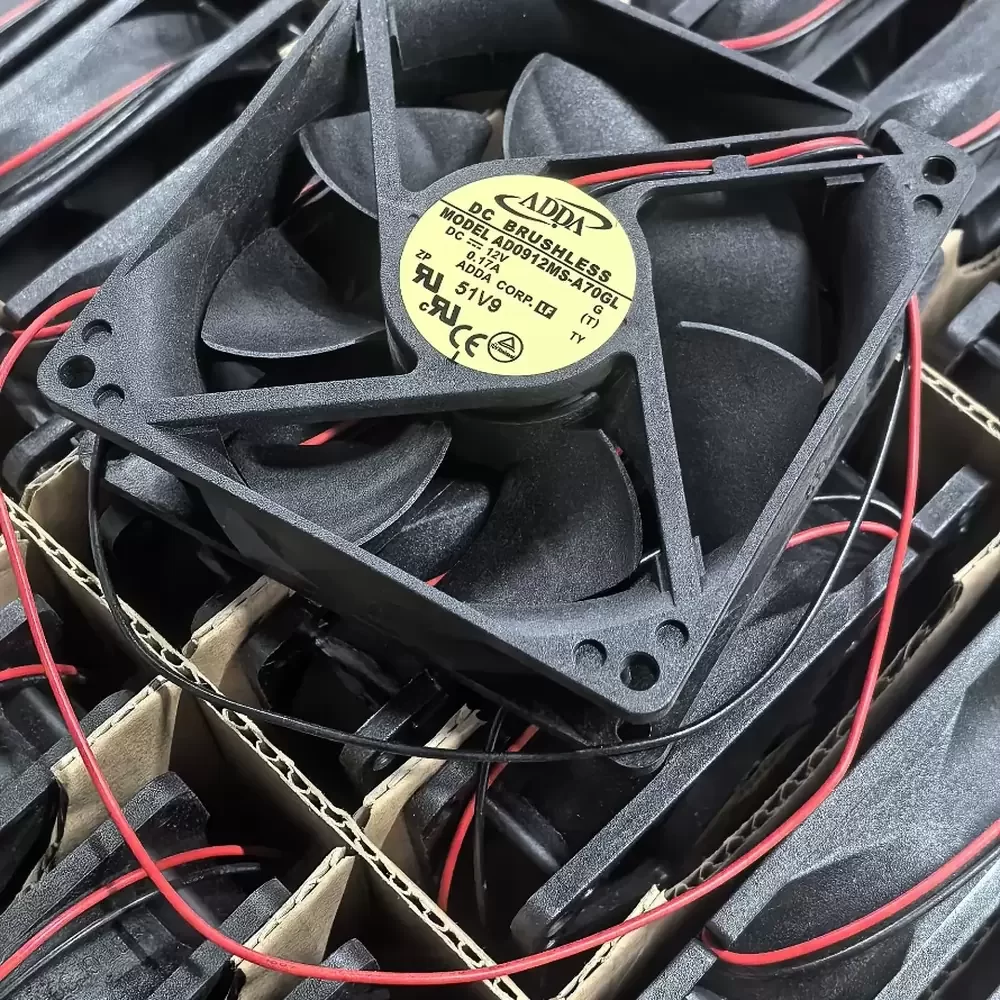

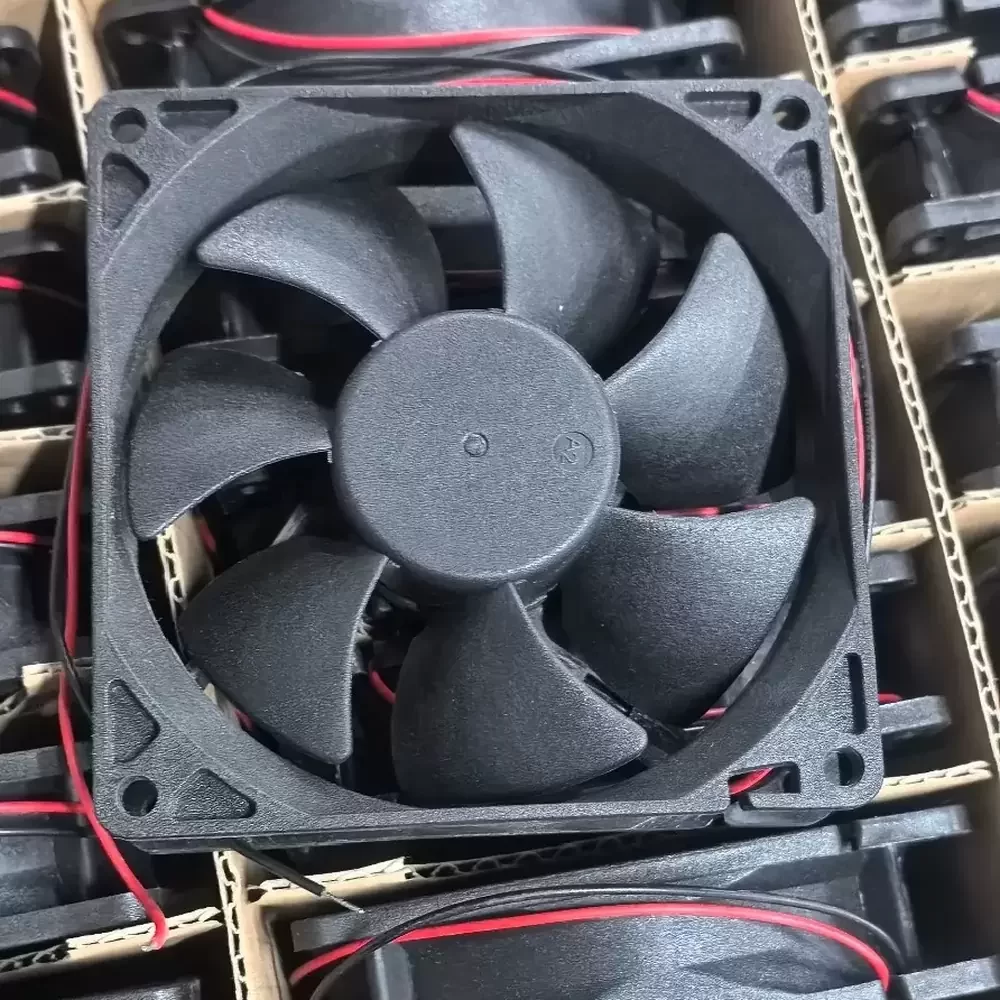

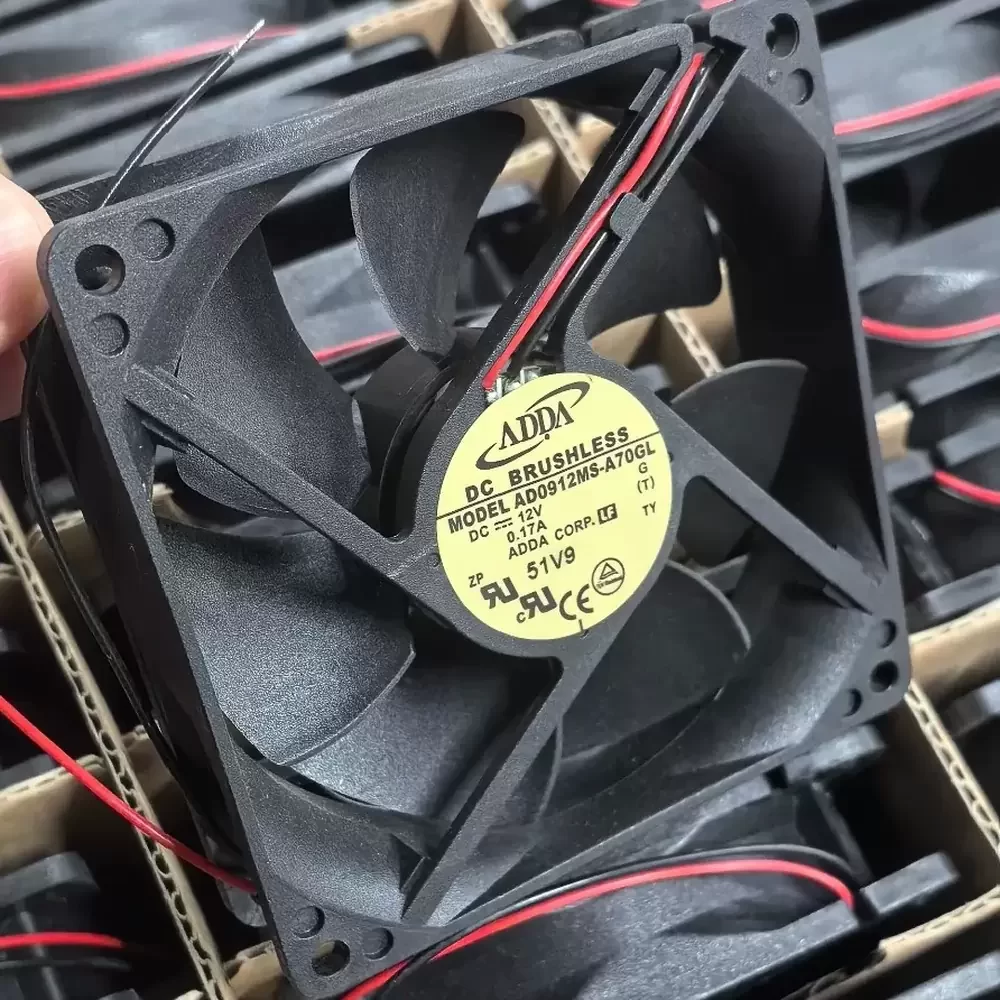

The ADDA AD0912MS-A70GL is a DC Axial Fan engineered for efficient thermal management in compact electronic enclosures and industrial chassis. Utilizing advanced Brushless DC (BLDC) motor technology combined with a precision Sleeve Bearing architecture, this unit ensures stable rotational stability and optimized airflow characteristics while maintaining a compact form factor. The aerodynamic impeller design reduces turbulence-induced noise, offering an improved acoustic profile relative to airflow performance. Constructed with high-grade thermal plastic housing, the frame offers superior structural rigidity and resistance to thermal impedance, making it a reliable solution for continuous operation in standard industrial environments requiring consistent heat dissipation and low-vibration performance.
Model Number: AD0912MS-A70GL
Brand: ADDA
Product Type: DC Axial Fan
Rated Voltage: 12 VDC
Voltage Range: 10.8 – 13.2 VDC
Rated Current: 0.17 A
Power Consumption: 2.04 W
Rated Speed: 2500 RPM
Bearing Type: Sleeve Bearing
Max. Air Flow: 42.50 CFM (72.2 m³/h / 1.20 m³/min)
Max. Static Pressure: 2.80 mmH₂O (27.4 Pa / 0.11 inH₂O)
Dimensions: 92 x 92 x 25 mm
Weight: 92 g
Noise Level: 28.0 dB(A)
Frame Material: PBT (UL94V-0)
Impeller Material: PBT (UL94V-0)
Termination: 2-Wire Leads (Red +, Black -)
Operating Temperature: -10°C to +70°C
Storage Temperature: -40°C to +70°C
Life Expectancy: 30,000 Hours (at 40°C)
Ingress Protection: IP20
Motor Protection: Impedance Protected
Mounting Holes: 8 x 4.3 mm
This cooling unit is specifically designed to facilitate heat exchange in restricted spaces such as computer chassis, server cabinet exhaust systems, and industrial automation control panels. The AD0912MS-A70GL effectively mitigates thermal buildup in power supply units and telecommunication equipment, ensuring component longevity through consistent forced convection. By integrating the AD0912MS-A70GL into general electronic cooling loops or custom PC builds, operators can maintain optimal operating temperatures for sensitive PCBs and drive arrays in medical instrumentation and general electronics manufacturing setups.
