Description

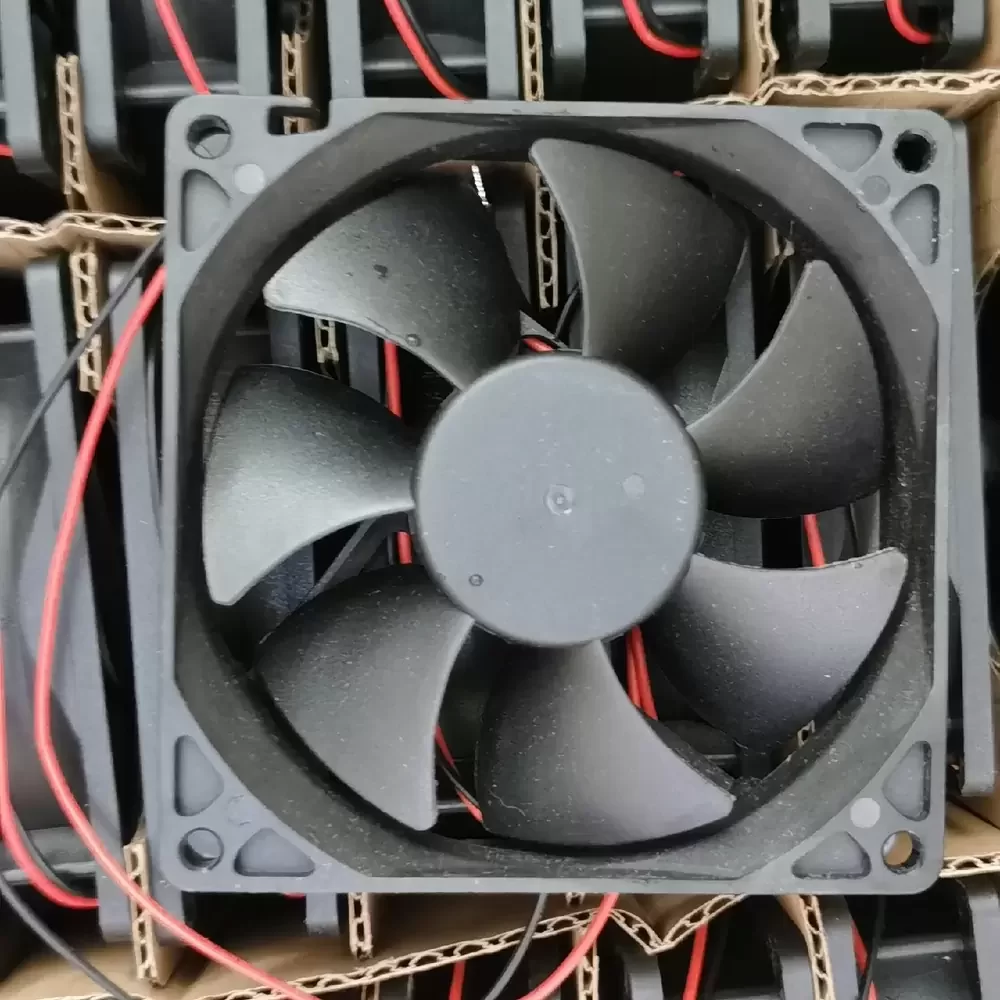

The ADDA AD0924UB-A71GL is a precision-engineered DC Axial Fan designed for critical thermal management in industrial electronics. Featuring a robust Brushless DC motor architecture paired with a durable Ball Bearing system, this unit ensures minimized friction and extended operational longevity under continuous load. The aerodynamic impeller design optimizes airflow while maintaining structural rigidity, effectively reducing thermal impedance within high-density enclosures. Its 2-wire configuration simplifies integration into standard power circuits, making it a reliable solution for maintaining optimal operating temperatures in sensitive equipment.
Model Number: AD0924UB-A71GL
Brand: ADDA
Product Type: DC Axial Fan
Rated Voltage: 24VDC
Voltage Range: 14.0 – 27.6 VDC
Rated Current: 0.21 A
Power: 5.04 W
Rated Speed: 3200 RPM
Bearing Type: Ball Bearing
Max. Air Flow: 54.5 CFM (92.6 m³/h / 1.54 m³/min)
Max. Static Pressure: 5.21 mmH₂O (51.07 Pa / 0.205 inH₂O)
Dimensions: 92x92x25mm
Weight: 98 g
Life Expectancy: 70,000 Hours at 40°C
Noise Level: 39.0 dB(A)
Housing Material: PBT (UL94V-0)
Impeller Material: PBT (UL94V-0)
Termination: 2-Wire Lead
Operating Temperature: -10°C to +70°C
Storage Temperature: -40°C to +70°C
Safety Approvals: UL, CUL, TUV, CE
The AD0924UB-A71GL is engineered for deployment in demanding industrial environments requiring consistent heat dissipation. Common implementations include variable frequency drive (VFD) inverters, server rack chassis, and automation control panels where space is constrained but airflow requirements are high. The AD0924UB-A71GL is also frequently utilized in telecommunications power supplies and CNC machinery electronics, ensuring component stability by preventing thermal throttling in enclosed systems.
