Description

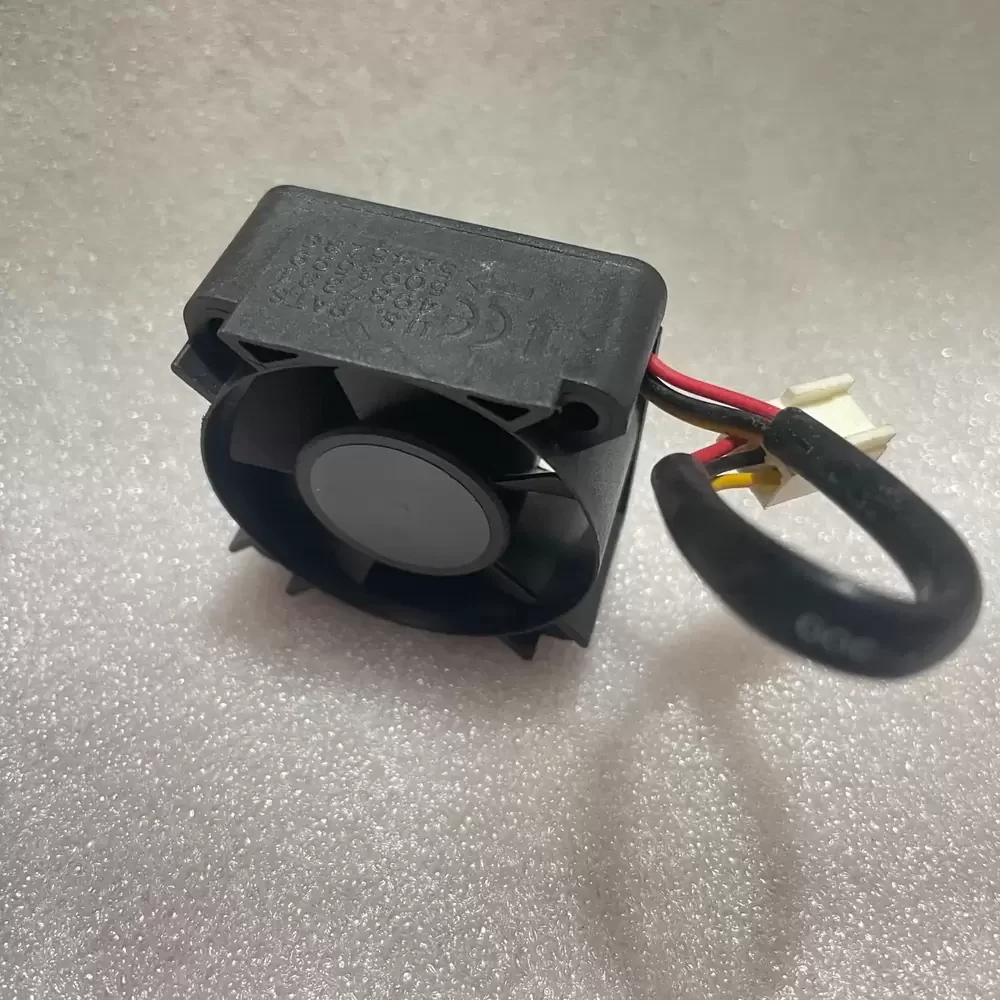

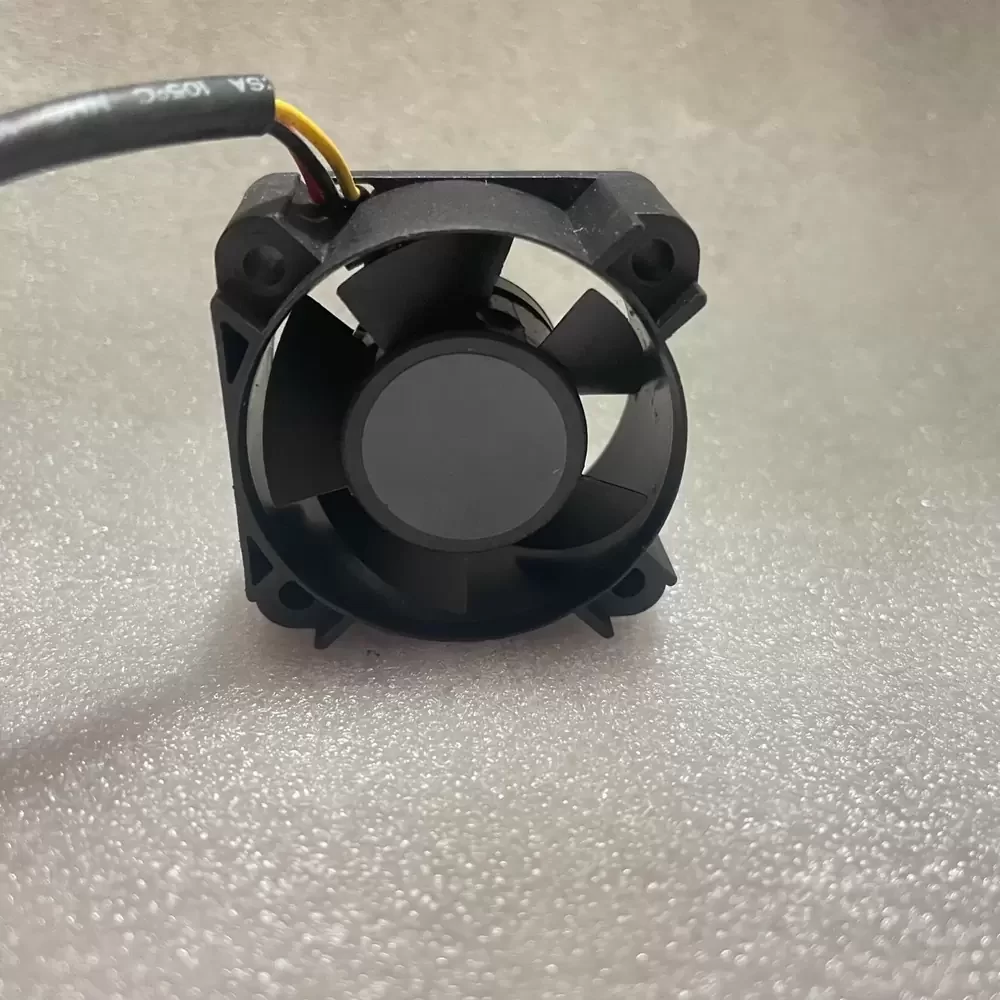

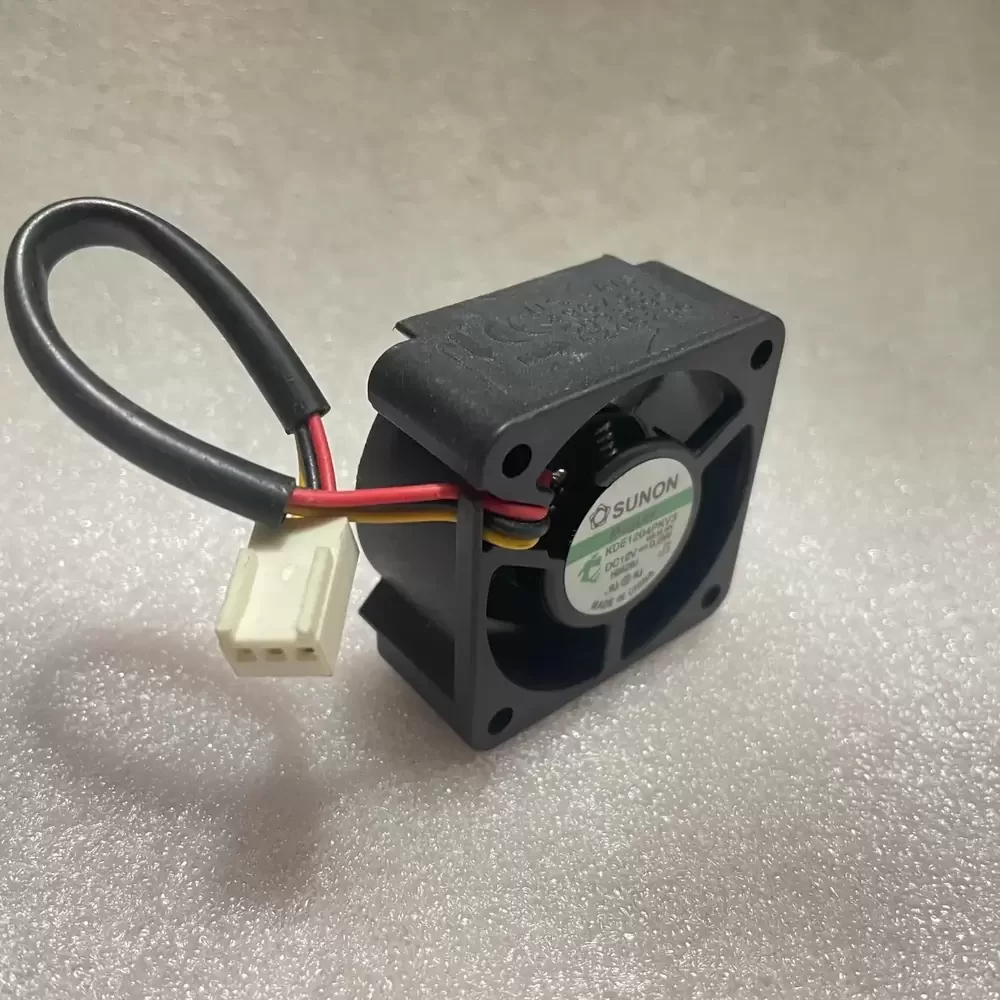

The SUNON KDE1204PKV3.MS.M.GN is a DC Axial Fan engineered for precision thermal management in space-constrained environments. Utilizing the proprietary MagLev (Magnetic Levitation) motor technology, this unit minimizes friction and vibration, significantly reducing thermal impedance while enhancing structural rigidity. The Vapo bearing architecture ensures long-term stability and ultra-quiet operation, making it ideal for sensitive electronic cooling. Its aerodynamic impeller design is optimized for consistent laminar airflow, providing reliable heat dissipation for low-power components. This 40mm fan integrates advanced electromagnetic commutation to maintain high efficiency and operational longevity in demanding industrial and consumer applications.
Model Number: KDE1204PKV3.MS.M.GN
Brand: SUNON
Product Type: Axial Fan
Rated Voltage: 12VDC
Voltage Range: 4.5 – 13.8 VDC
Rated Current: 0.05 A
Power: 0.6 W
Rated Speed: 5500 RPM
Bearing Type: MagLev Vapo Bearing
Max. Air Flow: 6.3 CFM (10.7 m³/h / 0.18 m³/min)
Max. Static Pressure: 2.79 mmH₂O (27.36 Pa / 0.11 inH₂O)
Dimensions: 40x40x20mm
Weight: 31 g
Life Expectancy: 60,000 Hours at 40C
Noise Level: 15.5 dBA
Speed Control: Tachometer (FG Signal)
Termination: 3 Lead Wires
Housing Material: Thermoplastic PBT (UL94V-0)
Blade Material: Thermoplastic PBT (UL94V-0)
Insulation Class: Class A
Operating Temperature: -10 to +70 C
Storage Temperature: -40 to +70 C
Protection Features: Auto Restart, Polarity Protection
Certifications: UL, CUR, TUV, CE
The KDE1204PKV3.MS.M.GN is specifically designed for integration into compact networking equipment, medical diagnostic tools, and high-end audio-visual systems where silent operation is critical. In server rack environments, the KDE1204PKV3.MS.M.GN provides localized cooling for microprocessors and power supply units without contributing significant acoustic noise. Its robust MagLev system makes it suitable for 24/7 operation in telecommunications hubs and industrial control panels.
