Description

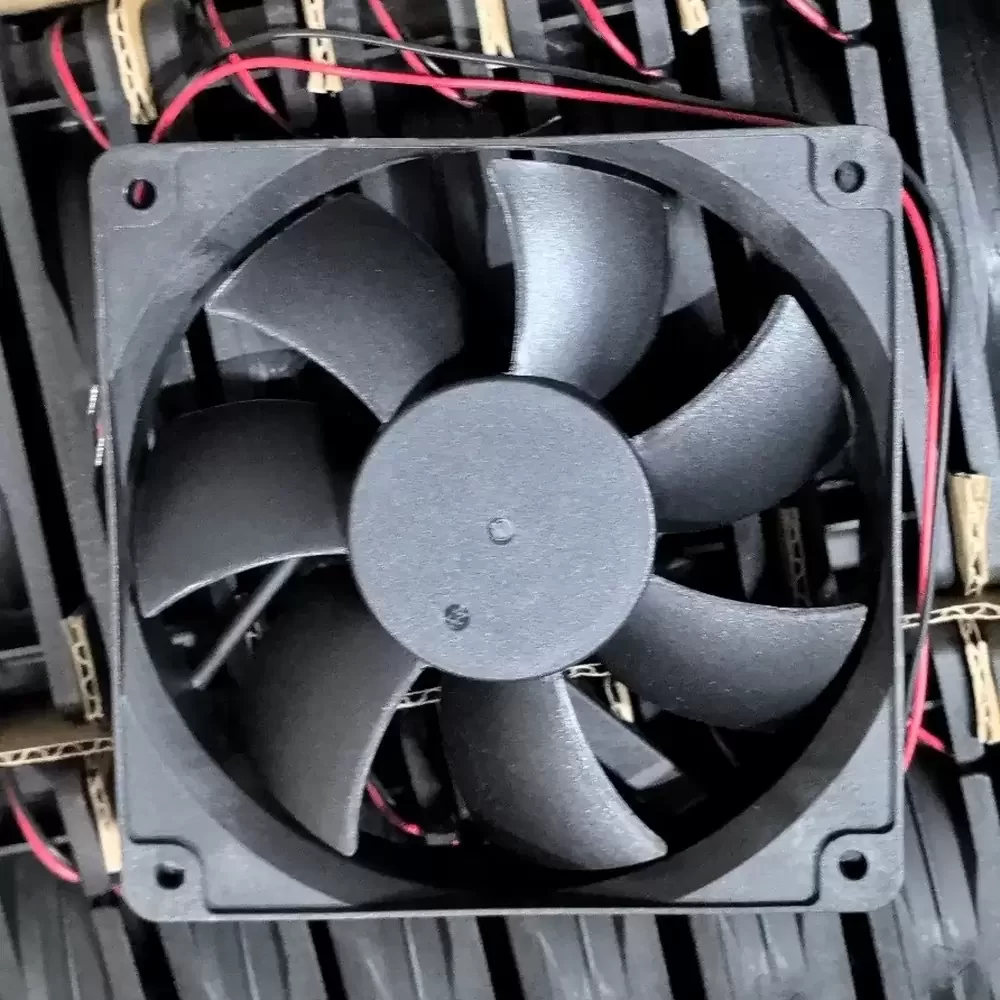

The ADDA AD1212UB-A71GL is a precision-engineered DC axial fan designed for demanding thermal management applications requiring substantial volumetric airflow. Utilizing advanced double ball bearing architecture, this unit ensures minimal friction and extended operational longevity under continuous load conditions. The aerodynamic impeller geometry is optimized to deliver high static pressure while maintaining structural rigidity, effectively reducing thermal impedance in high-density electronic enclosures. Engineered with a robust PBT housing, the brushless DC motor assembly features efficient commutation electronics, providing stable torque delivery and reliable performance in rigorous industrial environments.
Model Number: AD1212UB-A71GL
Brand: ADDA
Product Type: DC Axial Fan
Rated Voltage: 12VDC
Voltage Range: 10.8 – 13.2 VDC
Rated Current: 0.50 A
Power: 6.0 W
Rated Speed: 2500 RPM
Bearing Type: Two Ball Bearing
Max. Air Flow: 87.87 CFM (149.2 m³/h / 2.48 m³/min)
Max. Static Pressure: 4.11 mmH₂O (40.3 Pa / 0.16 inH₂O)
Dimensions: 120x120x25mm
Weight: 156 g
Life Expectancy: 70,000 Hours at 40°C
Noise Level: 42.5 dB(A)
Housing Material: PBT (UL94V-0)
Blade Material: PBT (UL94V-0)
Termination: Lead Wires (2-Wire)
Operating Temperature: -10°C to +70°C
Storage Temperature: -40°C to +70°C
Safety Approvals: UL, CUL, TUV, CE
Protection: Impedance Protected
The AD1212UB-A71GL is specifically engineered for critical cooling tasks within server racks, telecommunications cabinets, and industrial automation control panels. Its robust airflow capabilities make it an ideal solution for dissipating heat in power supply units and CNC machinery electronics. By integrating the AD1212UB-A71GL into chassis designs, engineers ensure consistent thermal regulation, preventing component throttling and extending the service life of sensitive hardware in continuous-duty environments.
