Description

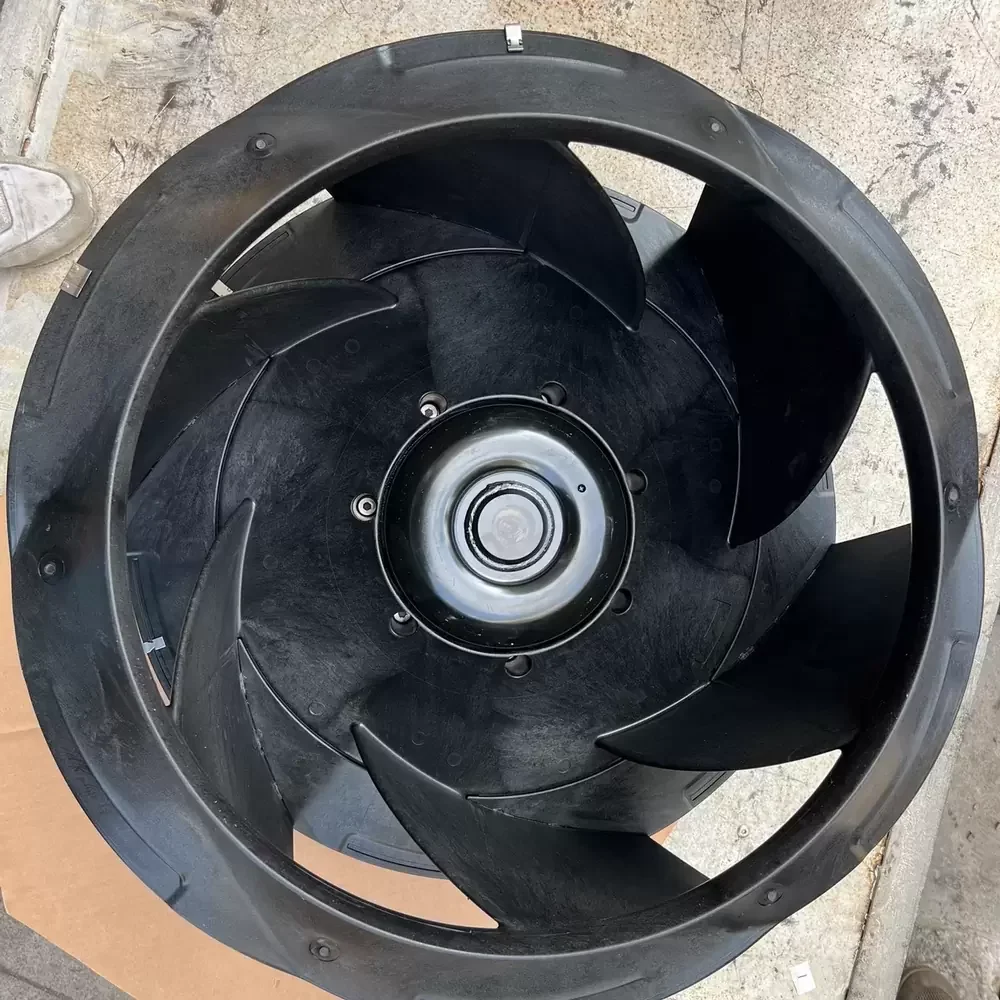

The ebmpapst R3G630-RB32-71 is a high-efficiency EC centrifugal fan designed for demanding industrial ventilation requirements. Featuring advanced GreenTech EC motor technology, this unit integrates a Variable Speed Drive (VSD) to optimize aerodynamic performance and reduce energy consumption significantly compared to AC counterparts. The backward-curved RadiCal impeller is engineered with high-performance composite materials to minimize noise generation while maximizing structural rigidity and airflow throughput. With a robust IP55 ingress protection rating, the motor ensures reliable operation in harsh environments, maintaining low thermal impedance and exceptional longevity under continuous load conditions.

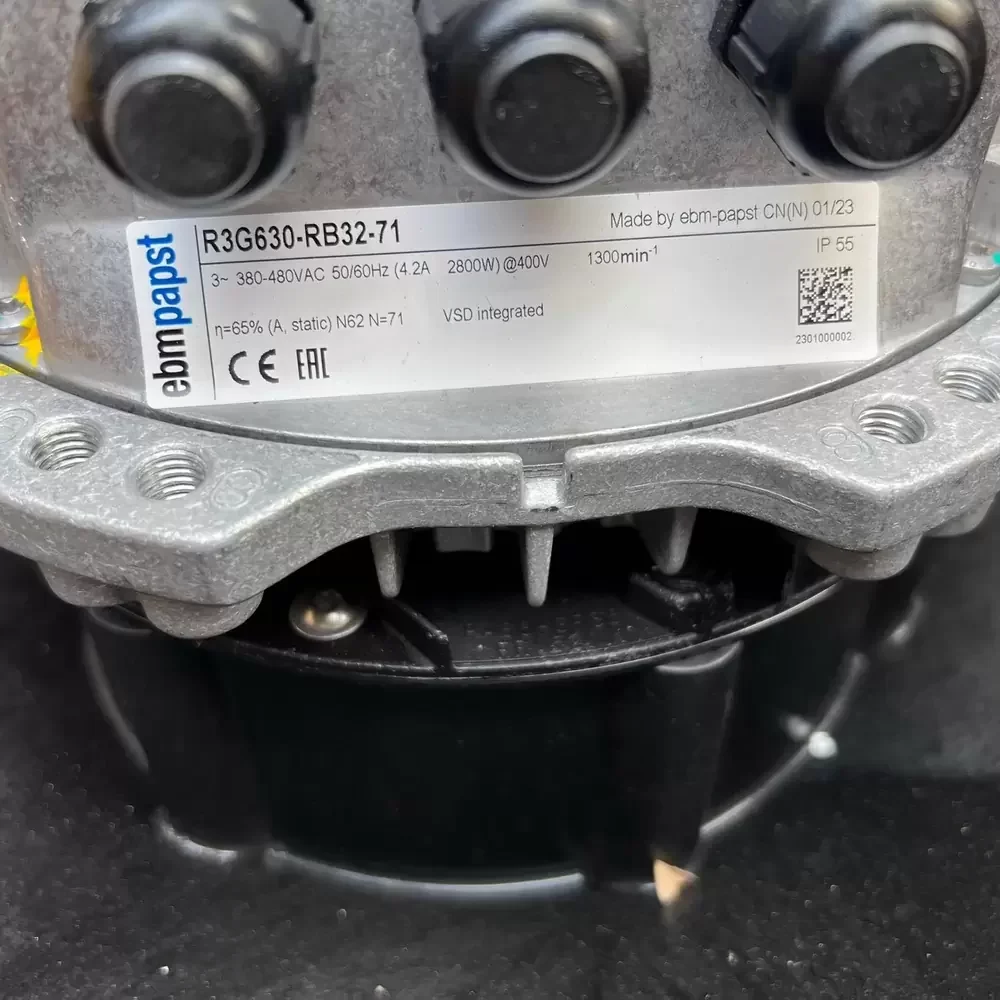

Model Number: R3G630-RB32-71
Brand: ebmpapst
Product Type: EC Centrifugal Fan (Backward Curved)
Rated Voltage: 380-480 VAC
Voltage Range: 380 – 480 V (3-Phase)
Frequency: 50 / 60 Hz
Rated Current: 4.2 A
Power Input: 2800 W
Rated Speed: 1250 RPM (Nominal)
Impeller Diameter: 630mm
Motor Technology: GreenTech EC Motor (M3G Series)
Bearing Type: Maintenance-free Ball Bearing
Max. Air Flow: Approx. 8000 CFM (13590 m³/h)
Max. Static Pressure: Approx. 3.2 inH₂O (800 Pa)
Ingress Protection: IP55
Speed Control: Integrated VSD (0-10V / PWM / MODBUS)
Impeller Material: PA Plastic (Glass-fiber reinforced)

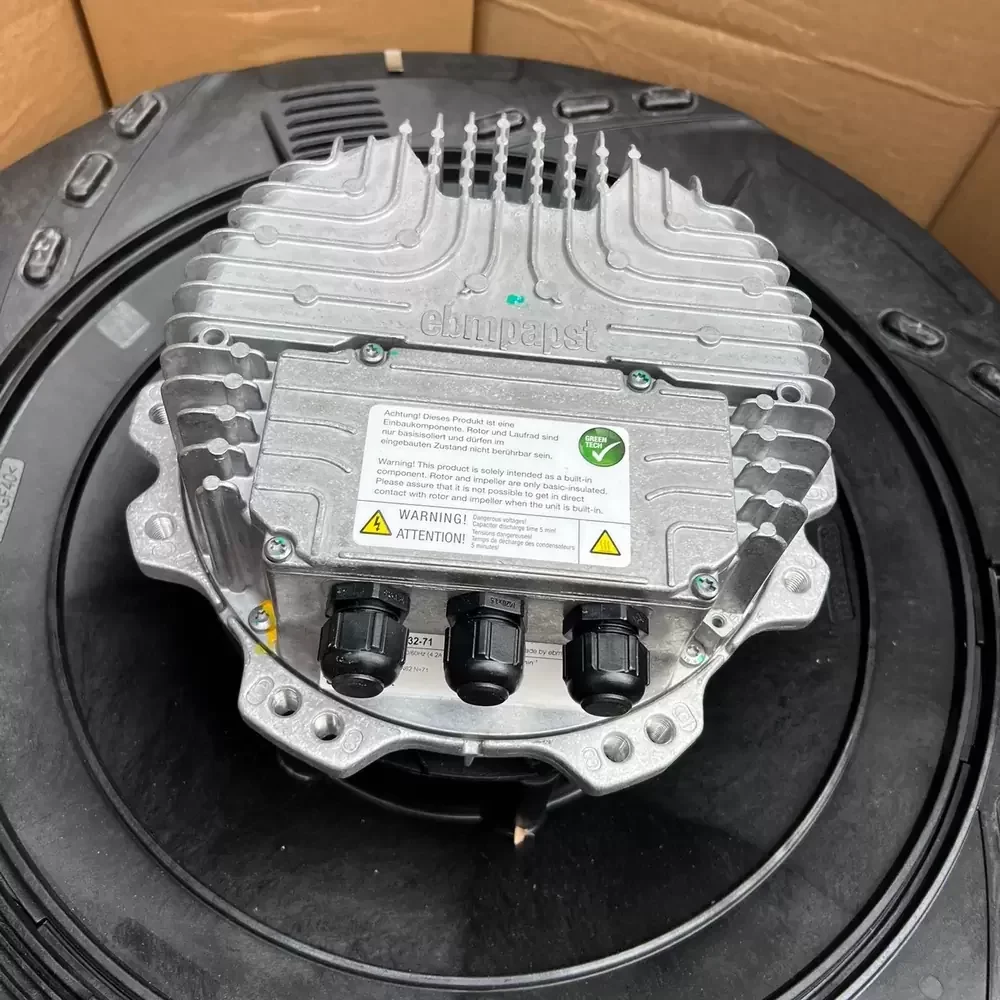

Electronics Housing Material: Die-cast Aluminum
Insulation Class: F
Operating Temperature: -25°C to +60°C
Mounting Orientation: Shaft horizontal or rotor on bottom
Protection Features: Locked-rotor protection, Soft start, Phase failure detection
Weight: Approx. 28.5 kg
The R3G630-RB32-71 is engineered for critical air handling units (AHUs) and precision cooling systems where reliability is paramount. Commonly deployed in large-scale data center cooling arrays and industrial ventilation retrofits, the R3G630-RB32-71 ensures consistent airflow management. Its integrated electronics make it ideal for cleanroom filtration systems and variable air volume (VAV) applications requiring precise modulation.
