Description
The ADDA ADD414UB-C70GP is a precision-engineered DC Axial Fan designed for high-density thermal management applications requiring robust airflow in compact footprints. Utilizing advanced brushless DC motor technology coupled with a durable Dual Ball Bearing architecture, this unit ensures exceptional structural rigidity and prolonged operational lifespan, significantly outperforming sleeve bearing alternatives in continuous-duty cycles. The aerodynamic impeller design is optimized to balance high static pressure with acoustic efficiency, minimizing turbulence-induced noise while maintaining effective thermal impedance reduction. Its 4020 form factor allows for seamless integration into space-constrained enclosures, providing reliable cooling for sensitive electronic components.

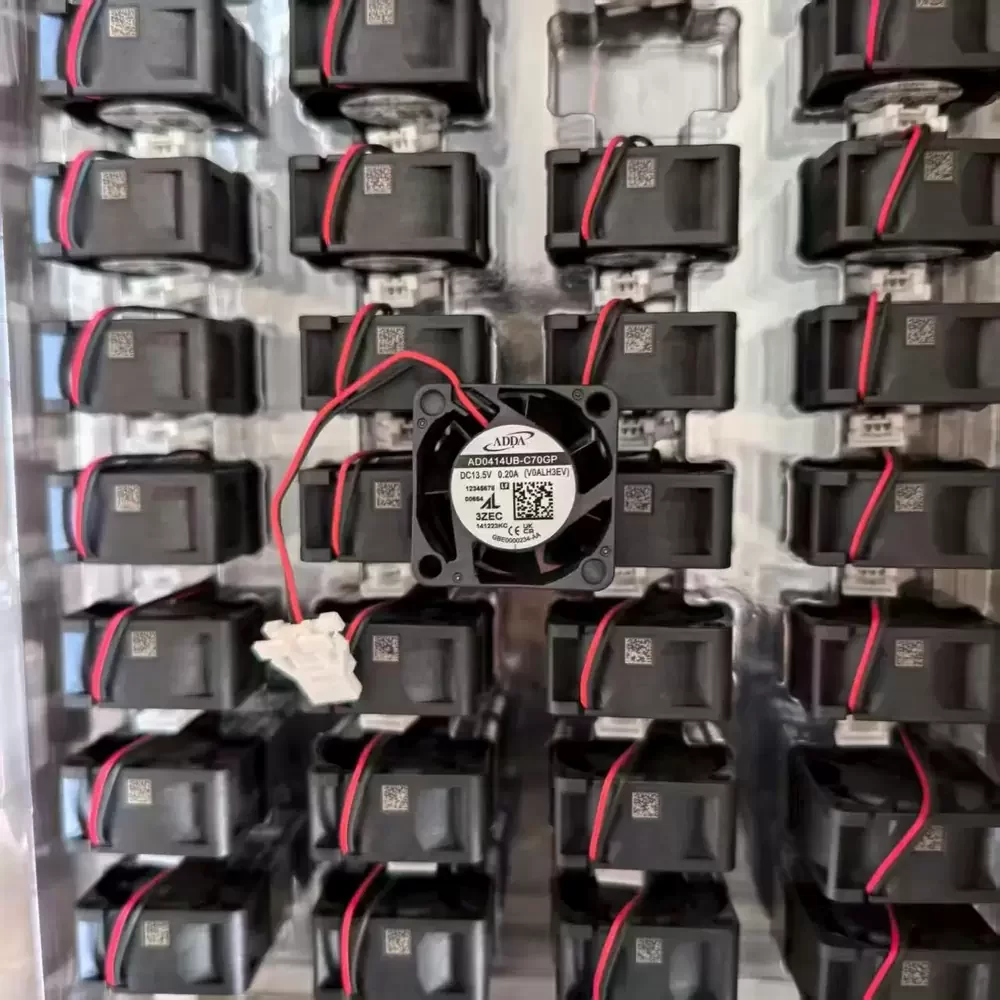

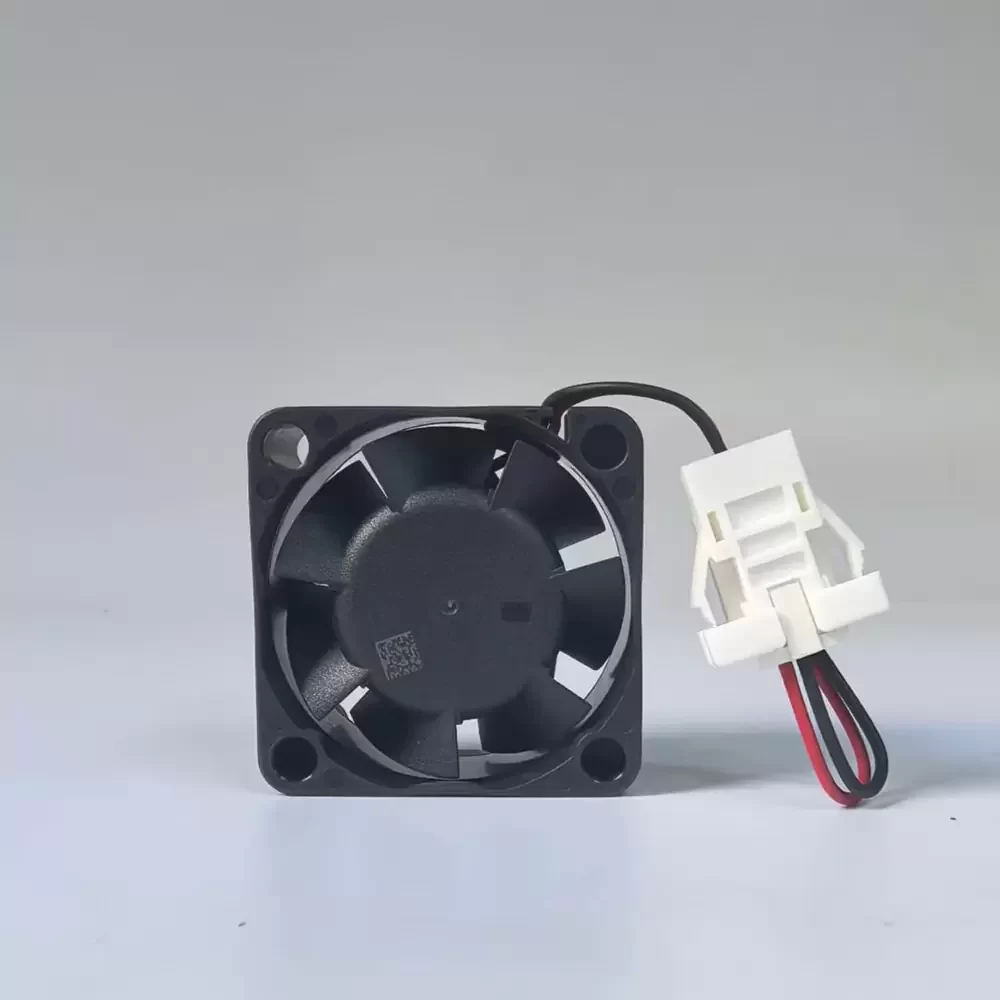

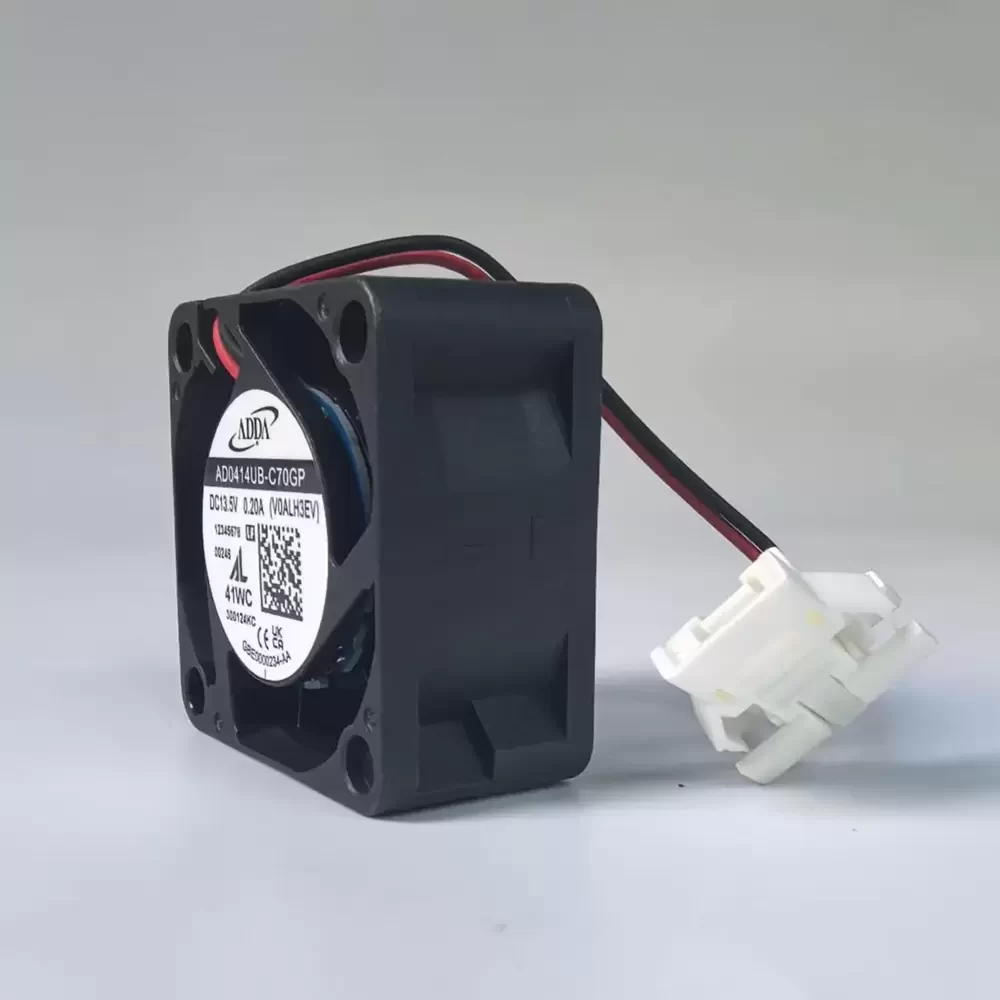

Model Number: ADD414UB-C70GP
Brand: ADDA
Product Type: DC Axial Fan
Rated Voltage: 13.5 VDC
Voltage Range: 12.0 – 14.5 VDC
Rated Current: 0.20 A
Power: 2.70 W
Rated Speed: 8500 RPM
Bearing Type: Dual Ball Bearing
Max. Air Flow: 10.8 CFM (18.3 m³/h / 0.30 m³/min)
Max. Static Pressure: 7.62 mmH₂O (74.7 Pa / 0.30 inH₂O)
Dimensions: 40 x 40 x 20 mm
Weight: 28 g
Life Expectancy: 70,000 Hours @ 40°C
Noise Level: 34.5 dB(A)
Housing Material: PBT (UL94V-0)
Blade Material: PBT (UL94V-0)
Termination: Lead Wires
Operating Temperature: -10°C to +70°C
Storage Temperature: -40°C to +70°C
Mounting Orientation: Any
Ingress Protection: IP20
Safety Certifications: CE, TUV, UL, cUL
Designed for critical cooling in compact electronic environments, the ADD414UB-C70GP excels in server chassis and rack-mount equipment where sustained airflow is mandatory. This cooling solution is frequently deployed in industrial automation controllers, network switches, and power supply units requiring efficient heat dissipation. The ADD414UB-C70GP ensures operational stability in telecommunications hardware and medical instrumentation, effectively mitigating thermal throttling in high-performance computing clusters.
