Description

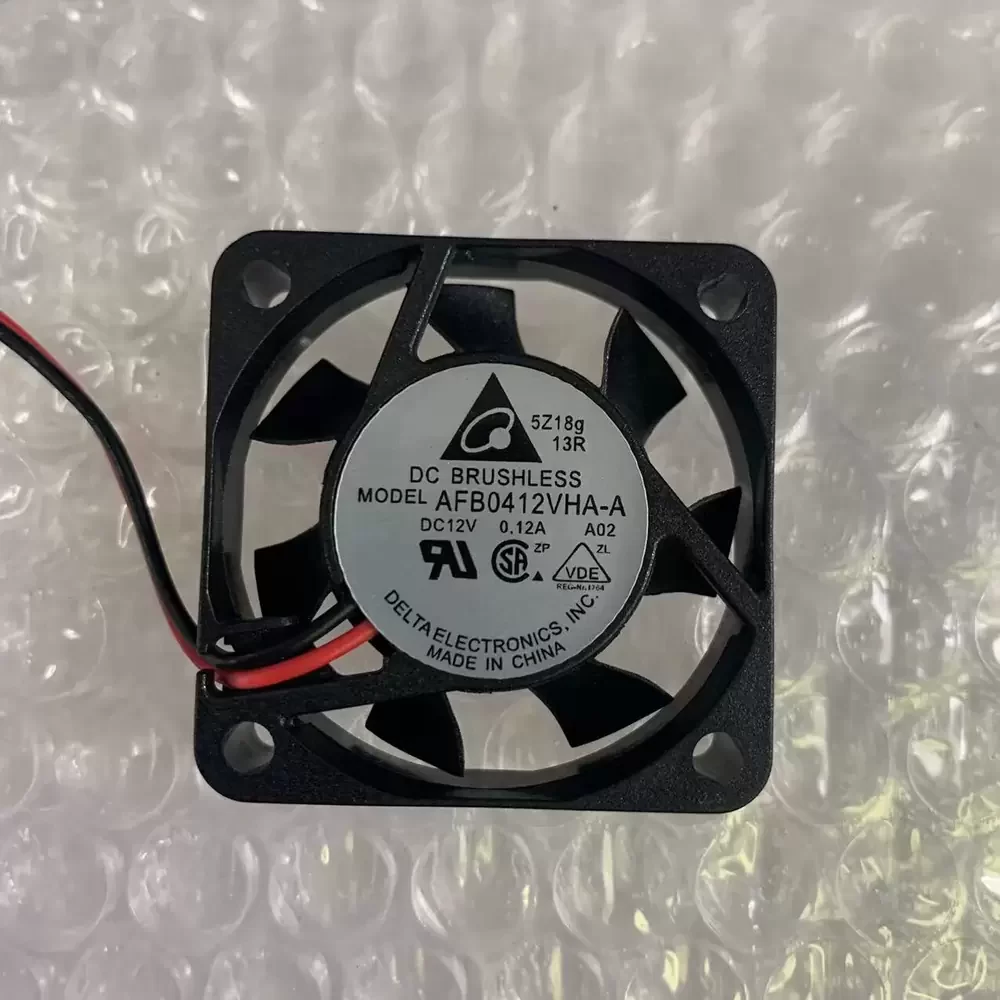

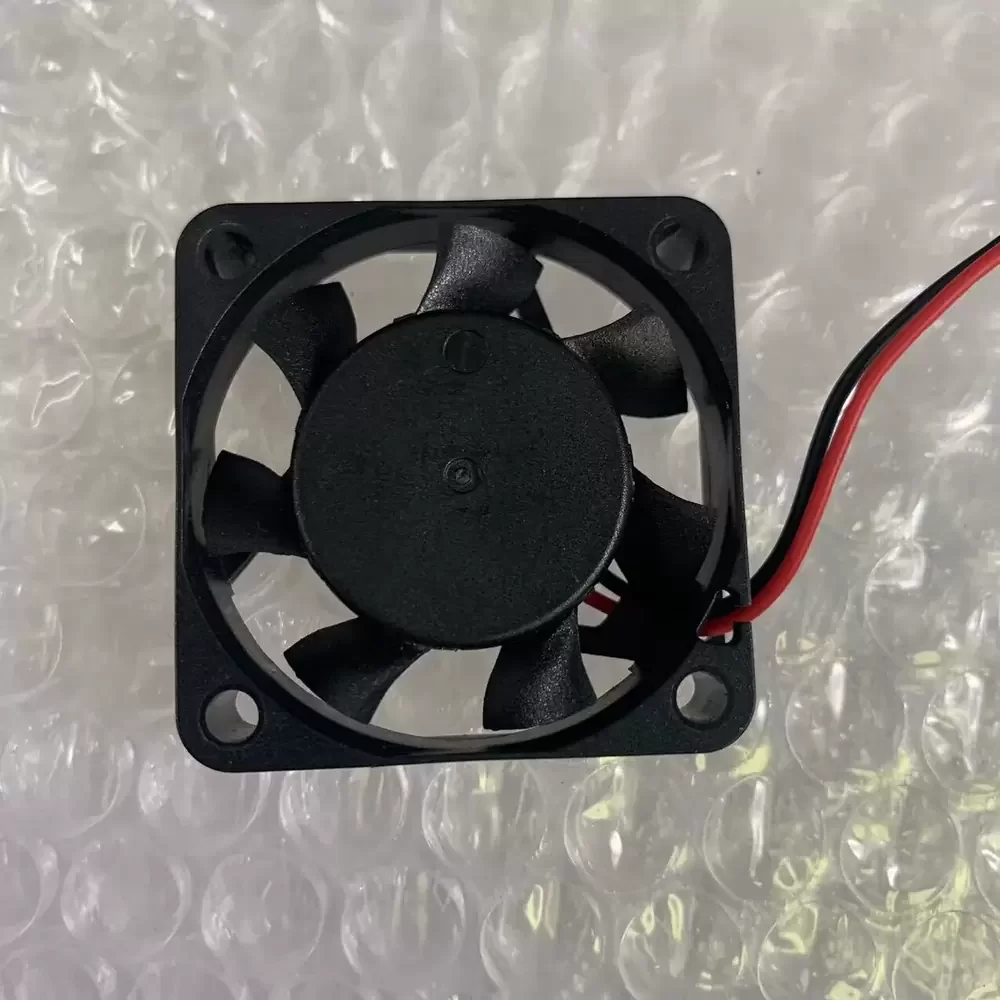

Delta AFB0412VHA-AA02 is a 12VDC 40x40x10mm Axial Fan optimized for high-density thermal management in space-constrained electronic enclosures. This DC brushless motor utilizes a sophisticated dual ball bearing architecture to minimize friction and extend service life under continuous duty cycles. The aerodynamic impeller design is engineered to reduce thermal impedance by providing a concentrated airflow stream, effectively cooling localized hotspots. Operating at a rated current of 0.12A and a speed of 7000 RPM, this unit delivers a significant static pressure of 5.51 mmH2O, making it ideal for overcoming the resistance of tightly packed internal components while maintaining structural rigidity through its UL94V-0 reinforced plastic housing.
Model Number: AFB0412VHA-AA02
Brand: Delta Electronics
Product Type: Axial Fan
Rated Voltage: 12 VDC
Voltage Range: 7.0 – 13.8 VDC
Rated Current: 0.12 A
Power: 1.44 W
Rated Speed: 7000 RPM
Bearing Type: Dual Ball Bearing
Max. Air Flow: 8.26 CFM (0.234 m³/min)
Max. Static Pressure: 5.51 mmH2O (54.0 Pa / 0.217 inH2O)
Dimensions: 40 x 40 x 10 mm
Weight: 14.5 g
Life Expectancy: 70,000 Hours at 40°C / 65% RH
Noise Level: 31.5 dB-A
Housing Material: Plastic (UL 94V-0)
Blade Material: Plastic (UL 94V-0)
Termination: 2 Lead Wires (28 AWG)
Operating Temperature: -10 to +70 °C
Storage Temperature: -40 to +75 °C
Protection Features: Locked Rotor Protection, Reverse Polarity Protection
Certifications: UL, CUL, TUV, CE
AFB0412VHA-AA02 Applications
1. 1U Network Switches and Routers: The 10mm slim profile and high static pressure allow for efficient heat dissipation within low-profile rackmount hardware where internal impedance is high.
2. Embedded Industrial Computing: Ideal as a replacement fan for IPC motherboards and compact controllers requiring high-reliability cooling in 24/7 operational environments.
3. CCTV and Security DVRs: Provides the necessary airflow to prevent thermal throttling of video processing chipsets in small-form-factor surveillance equipment.
