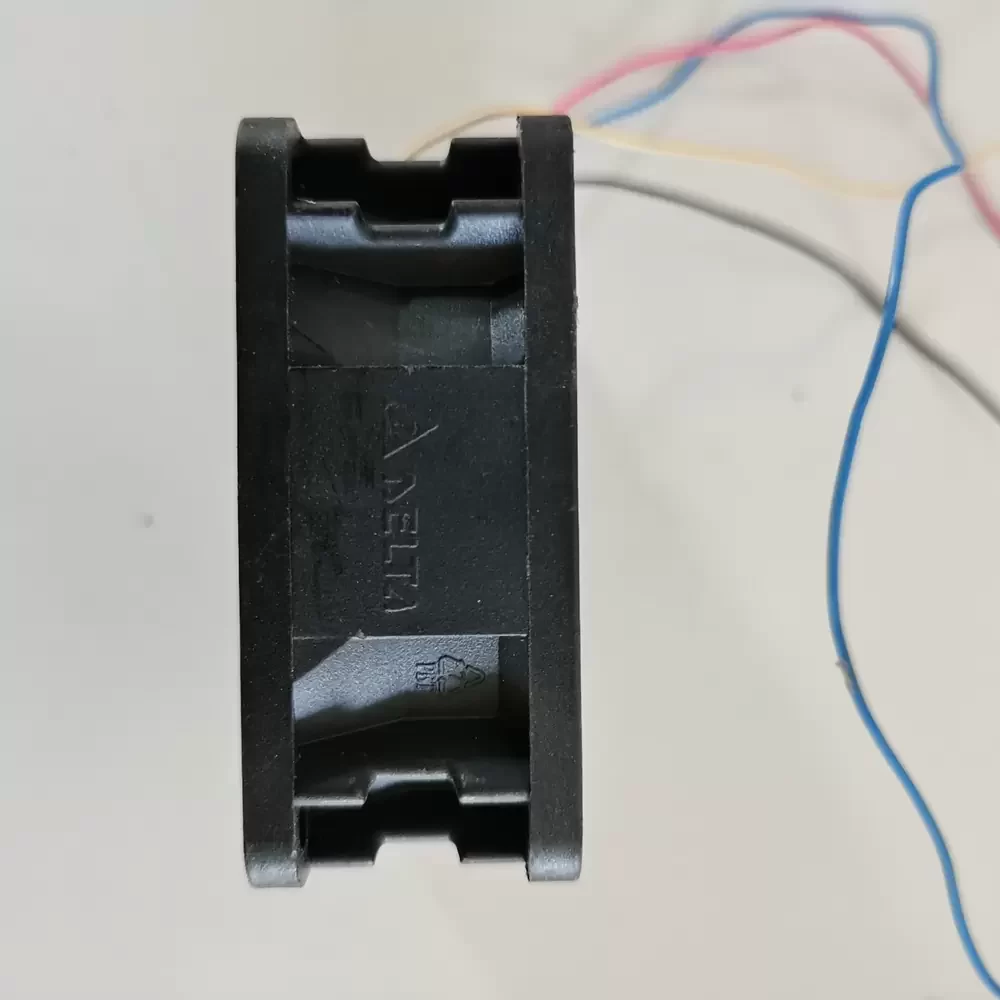

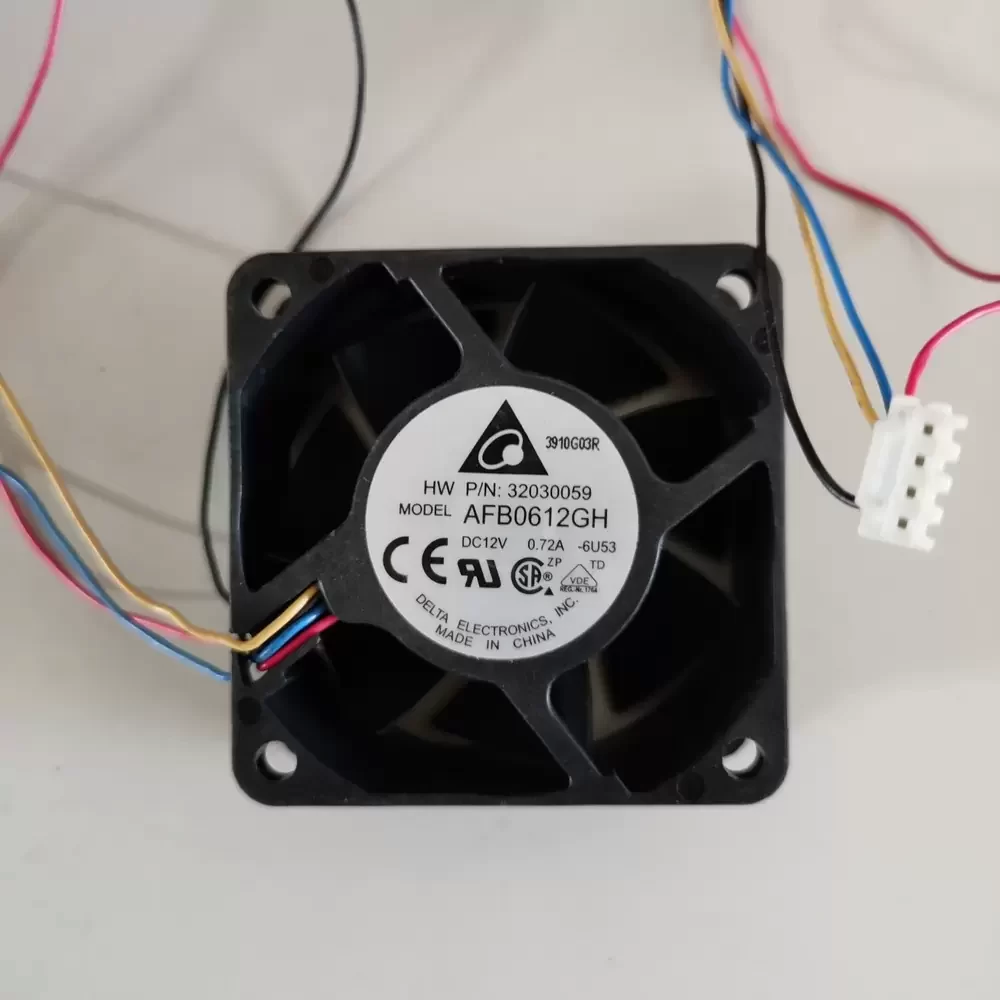

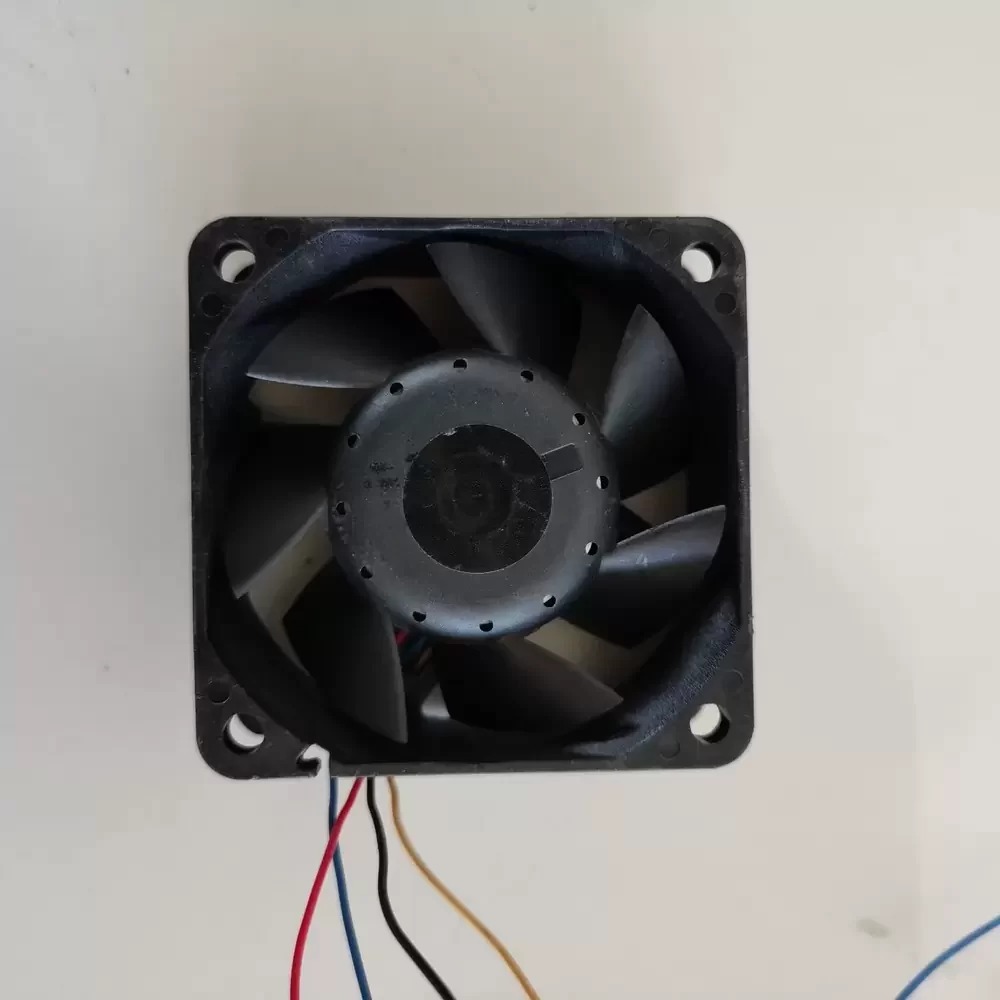

AFB0612GH-6U53 Delta 12VDC 60x60x25mm 4-Wire Axial Fan

Description

Delta AFB0612GH-6U53 is a 12VDC 60x60x25mm Axial Fan optimized for high-density thermal management in space-constrained enclosures. Utilizing a brushless DC motor and dual ball bearing architecture, this unit minimizes thermal impedance while maintaining structural rigidity under high rotational stress. The 0.72A current draw facilitates a powerful 8000 RPM output, generating significant static pressure to overcome internal system resistance. Integrated 4-wire PWM control allows for precise speed modulation, balancing 48.35 CFM airflow with acoustic requirements. This industrial-grade component is engineered for continuous operation in mission-critical hardware, ensuring long-term reliability and efficient heat dissipation in demanding environments.

Model Number: AFB0612GH-6U53
Brand: Delta Electronics
Product Type: Axial Fan
Rated Voltage: 12VDC
Voltage Range: 7.0 – 13.8 VDC
Rated Current: 0.72A
Power: 8.64W
Rated Speed: 8000 RPM
Bearing Type: Dual Ball Bearing
Max. Air Flow: 48.35 CFM (1.370 m³/min)
Max. Static Pressure: 16.51 mmH₂O (0.650 inH₂O)
Dimensions: 60 x 60 x 25 mm
Weight: 80g
Life Expectancy: 70,000 Hours at 40°C
Speed Control: PWM Control
Output Signal: Tachometer (Frequency Generator)
Noise Level: 50.0 dB-A
Housing Material: Plastic (UL 94V-0)
Blade Material: Plastic (UL 94V-0)
Termination: 4-Wire Lead Wires
Operating Temperature: -10°C to +70°C
Storage Temperature: -40°C to +75°C
Protection: Locked Rotor Protection, Reverse Polarity Protection
Insulation Class: Class A
Certifications: UL, CSA, VDE, CE

AFB0612GH-6U53 Applications
1. 1U/2U Rackmount Servers: High static pressure overcomes the high impedance of densely packed blade servers and network switches.
2. Industrial Control Cabinets: Robust dual ball bearing design ensures 24/7 reliability as a replacement fan in harsh manufacturing environments.
3. High-Performance Workstations: PWM functionality allows for dynamic cooling of localized hotspots near VRMs and chipsets in compact chassis.
