Description

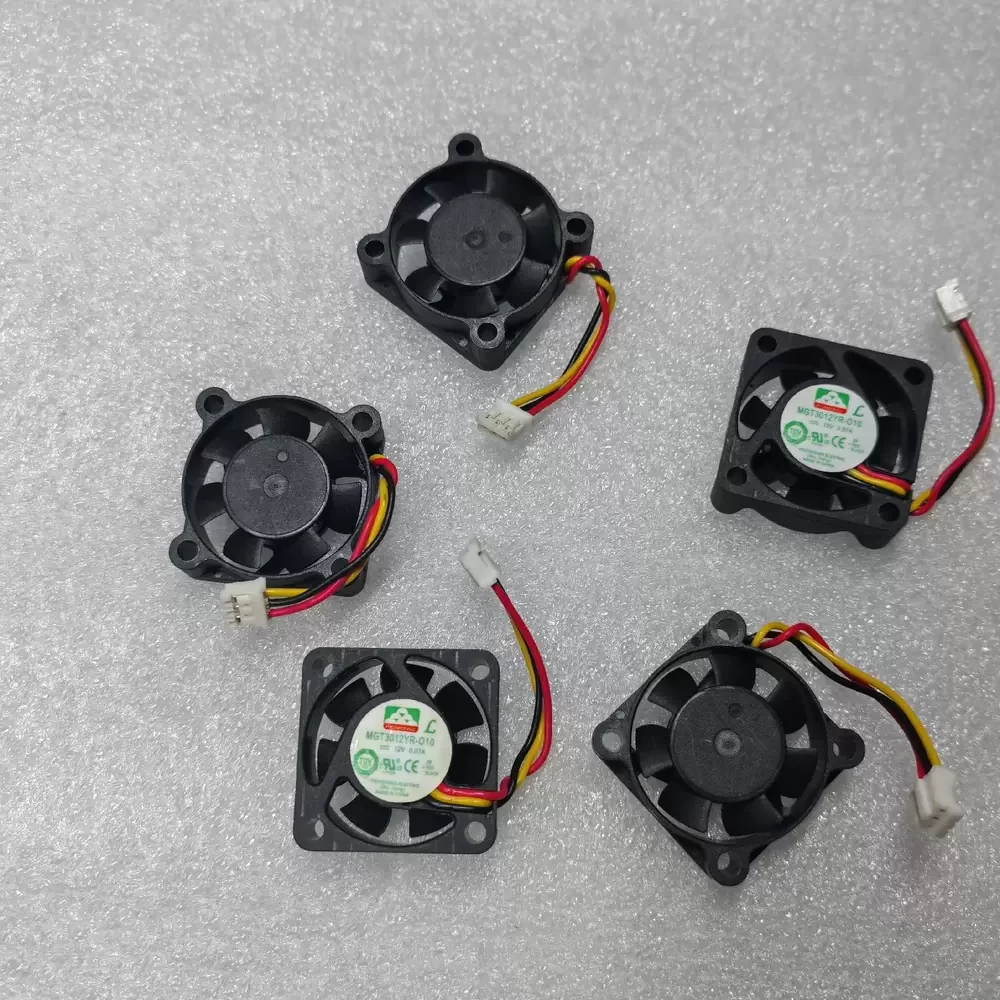

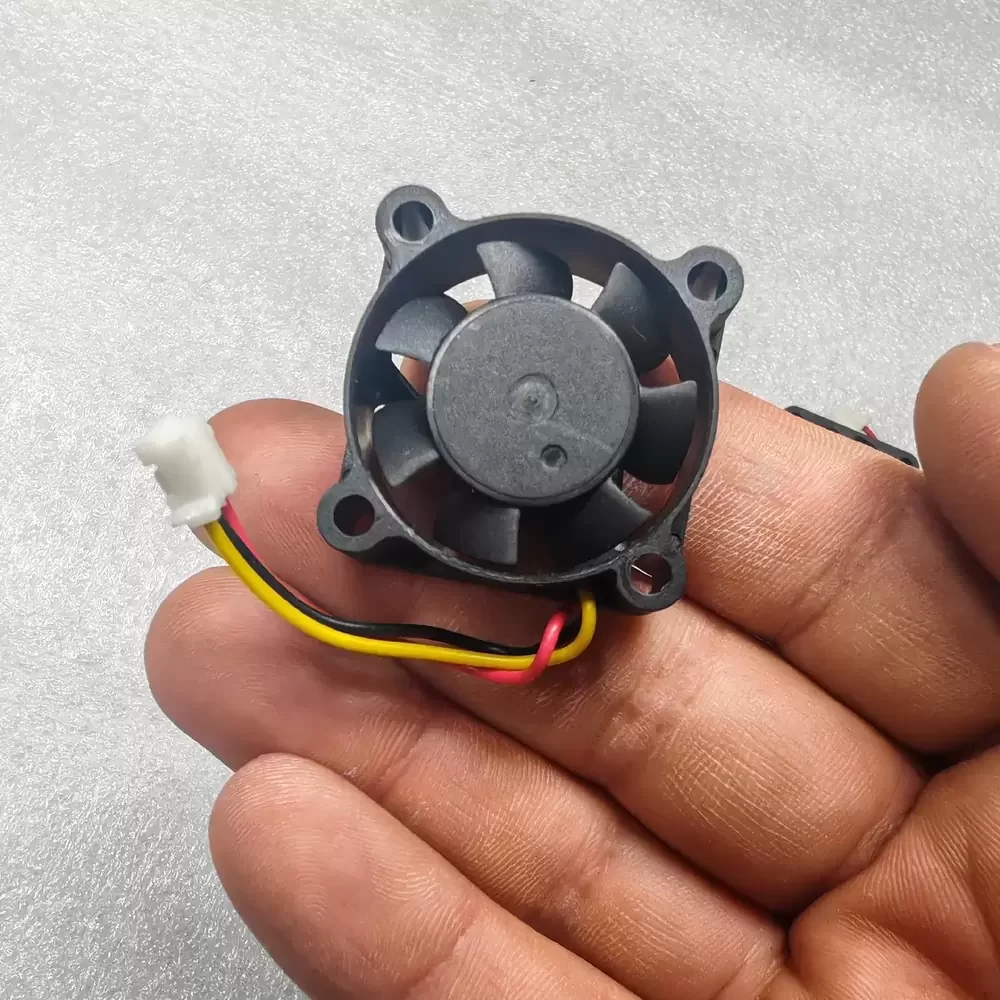

Protechnic MGT3012YR-O10 is a 12VDC 30x30x10mm Axial Fan optimized for localized thermal management in high-density electronic enclosures. Utilizing advanced motor technology and a precision bearing architecture, this unit effectively reduces thermal impedance while maintaining high structural rigidity under continuous operation. The fan operates at a rated current of 0.07A, delivering efficient airflow with a 3-wire configuration that includes a tachometer signal for real-time speed monitoring. Engineered for reliability, it serves as a critical replacement fan for compact systems requiring a balance of 8000 RPM performance and low acoustic signatures in a miniature 30mm footprint.

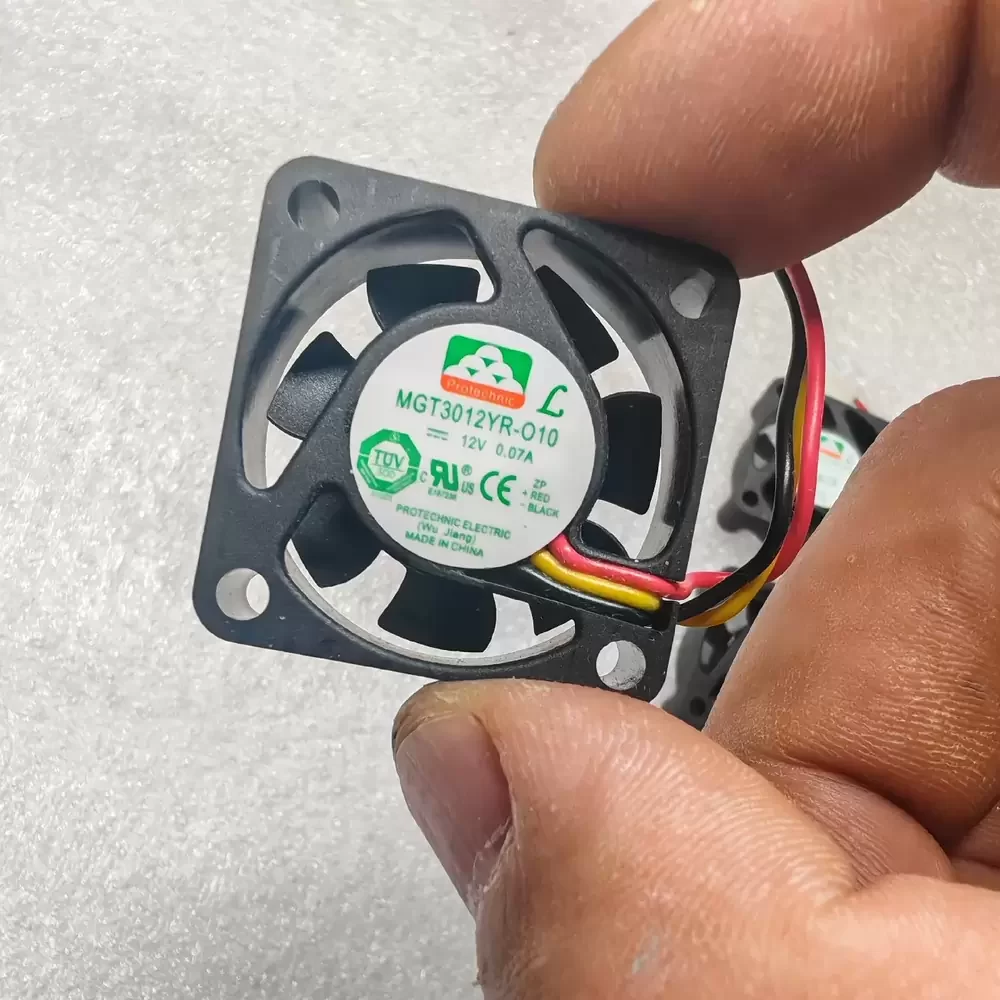

Model Number: MGT3012YR-O10
Brand: Protechnic
Product Type: Axial Fan
Rated Voltage: 12VDC
Voltage Range: 10.2 – 13.8 VDC
Rated Current: 0.07A
Power: 0.84W
Rated Speed: 8000 RPM
Bearing Type: Magic Bearing
Max. Air Flow: 3.5 CFM (5.95 m³/h)
Max. Static Pressure: 3.2 mmH₂O (31.4 Pa)
Dimensions: 30x30x10mm
Weight: 8.5g
Life Expectancy: 50,000 Hours at 40C
Speed Control: Tachometer (FG) Signal
Housing Material: Thermoplastic PBT (UL94V-0)
Blade Material: Thermoplastic PBT (UL94V-0)

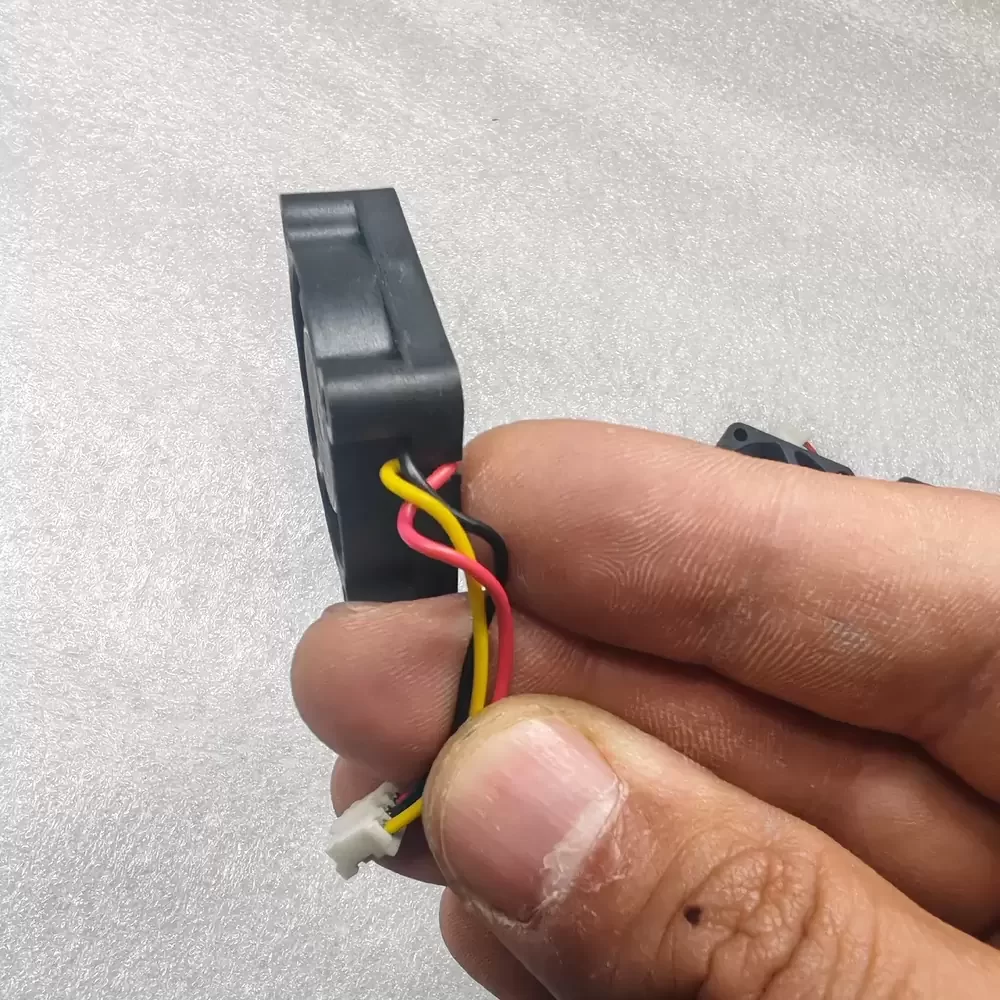

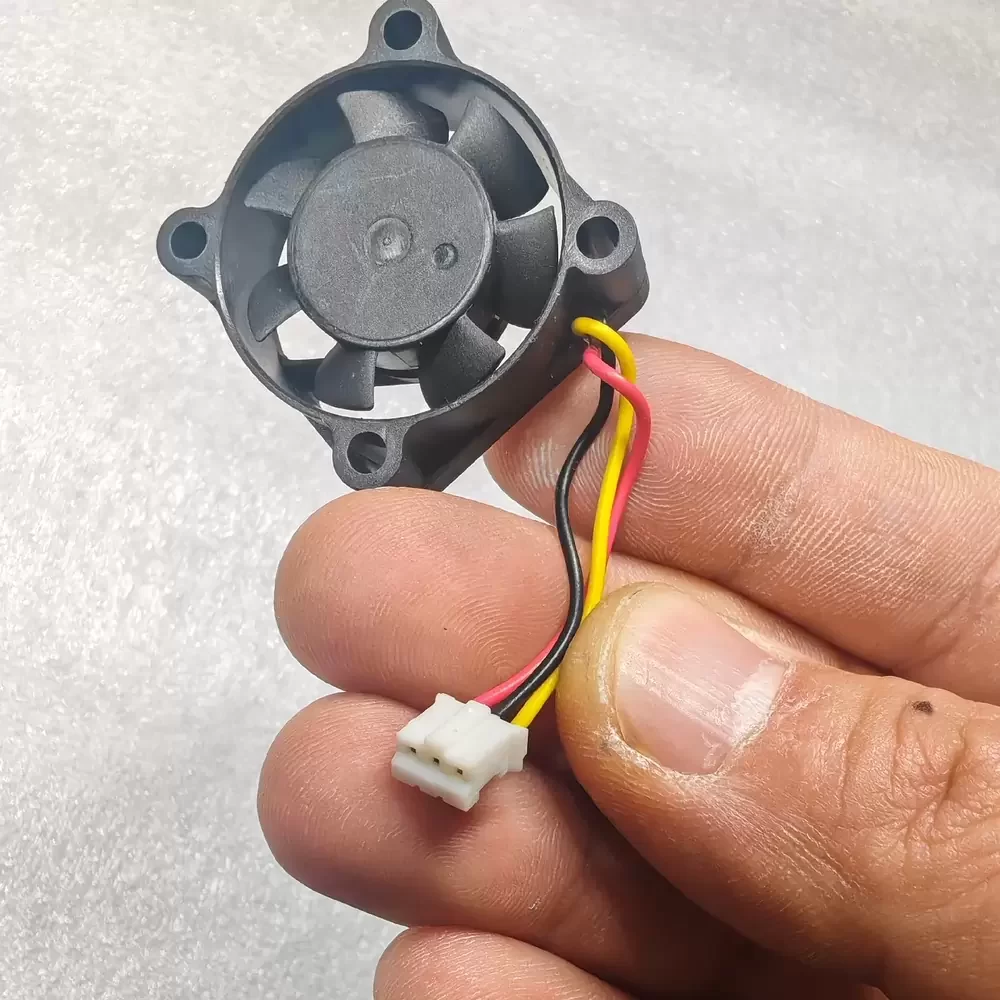

Termination: 3 Lead Wires
Operating Temperature: -10C to +70C
Storage Temperature: -40C to +70C
Protection: Locked Rotor Protection, Polarity Protection
Certifications: CE, TUV, UL
MGT3012YR-O10 Applications
1. 1U Network Switches and Routers: High static pressure capability to overcome internal system impedance in slim rackmount chassis.
2. Portable Medical Diagnostic Equipment: Compact 30mm form factor provides critical component cooling for sensitive mobile instrumentation.
3. CCTV and DVR Enclosures: Reliable replacement fan for maintaining thermal stability in 24/7 surveillance hardware.
4. Embedded Industrial PC (IPC): Low-vibration operation ensures signal integrity for precision logic controllers in rugged environments.
