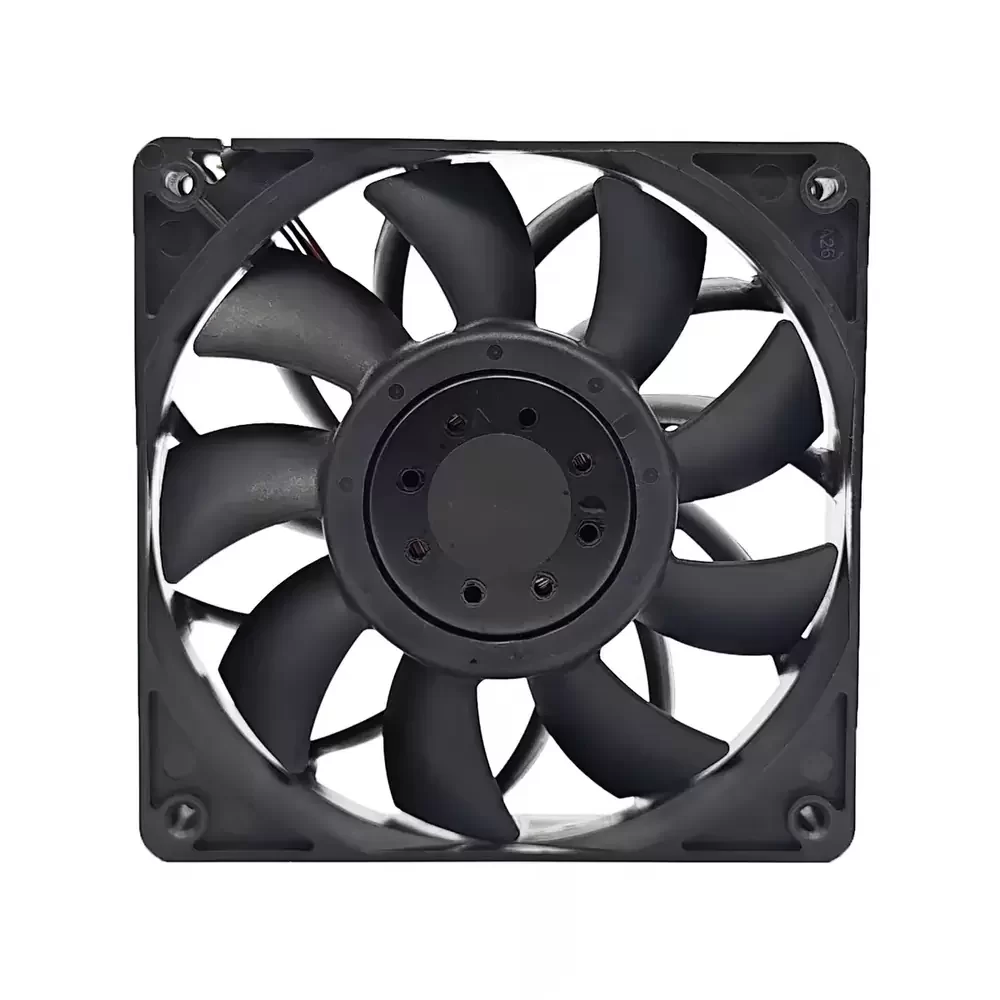

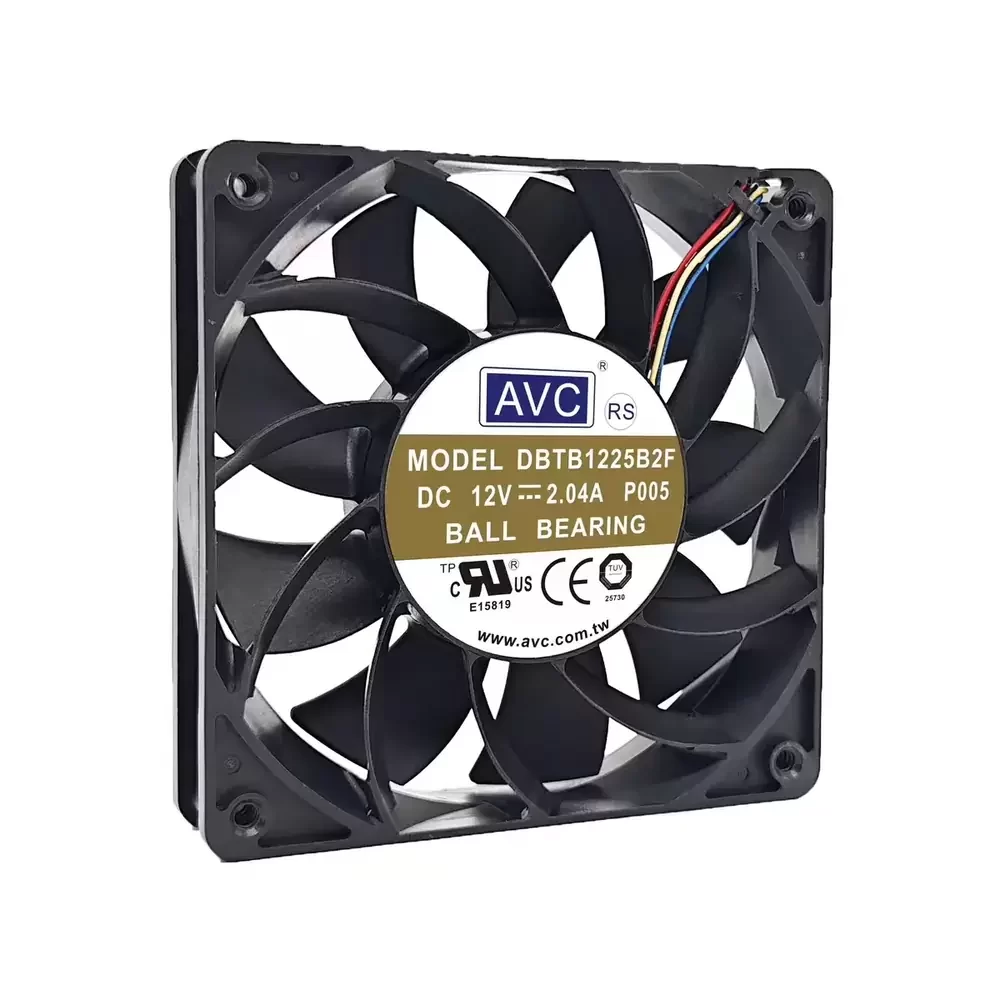

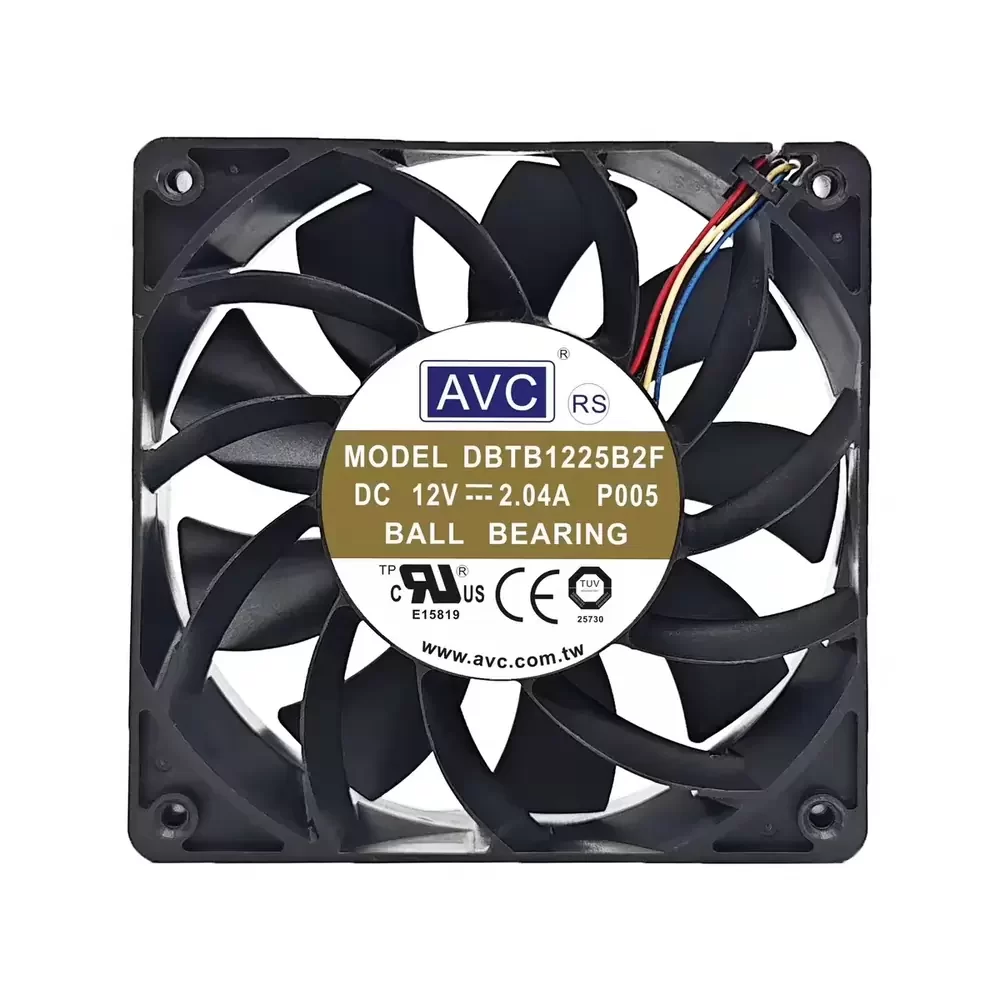

DBTB1225B2F-P005 AVC 12V 2.04A 120x120x25mm DC Axial Fan

Description

AVC DBTB1225B2F-P005 is a 120 x 120 x 25 mm high-performance DC axial fan operating at 12 VDC with a 2.04 A current rating and 170.1 CFM airflow capacity. The unit features a dual ball bearing system and a 4-wire PWM interface for precise speed control. Constructed with a PBT UL 94V-0 plastic impeller and frame, it utilizes a brushless DC motor design to achieve 5000 RPM. The internal architecture includes lead wire connections and integrated electronic protection against polarity reversal and rotor locking.

DBTB1225B2F-P005 Specifications
Model Number: DBTB1225B2F-P005
Brand: AVC (Asia Vital Components)
Category: DC Axial Fan
Frame Size: 120 x 120 x 25 mm
Rated Voltage: 12 VDC
Operating Voltage: 7.0 to 13.2 VDC
Rated Current: 2.04 A
Rated Input Power: 24.48 W
Rated Speed: 5000 RPM
Maximum Airflow: 170.1 CFM
Maximum Static Pressure: 1.15 inH2O
Noise Level: 60.0 dBA
Bearing Type: Dual Ball Bearing
Termination: 4-wire lead wires
Wire Functions: Red (+), Black (-), Yellow (FG), Blue (PWM)
Housing Material: Thermoplastic PBT (UL 94V-0)
Impeller Material: Thermoplastic PBT (UL 94V-0)
Operating Temperature: -10 to +70 °C
Storage Temperature: -40 to +70 °C
Life Expectancy: 70,000 hours at 40 °C
Motor Type: Brushless DC Motor
Protection: Polarity Protection, Locked Rotor Protection
Weight: 240 g
Safety Approvals: UL, CUL, TUV, CE

DBTB1225B2F-P005 Applications
Primary applications include integration into high-density server chassis, telecommunications rack cooling systems, and industrial frequency converters. Deployed within CNC machine control cabinets and high-performance workstation thermal management modules to maintain operational temperatures.
